Legion LS-25 Steam Kettles
Description

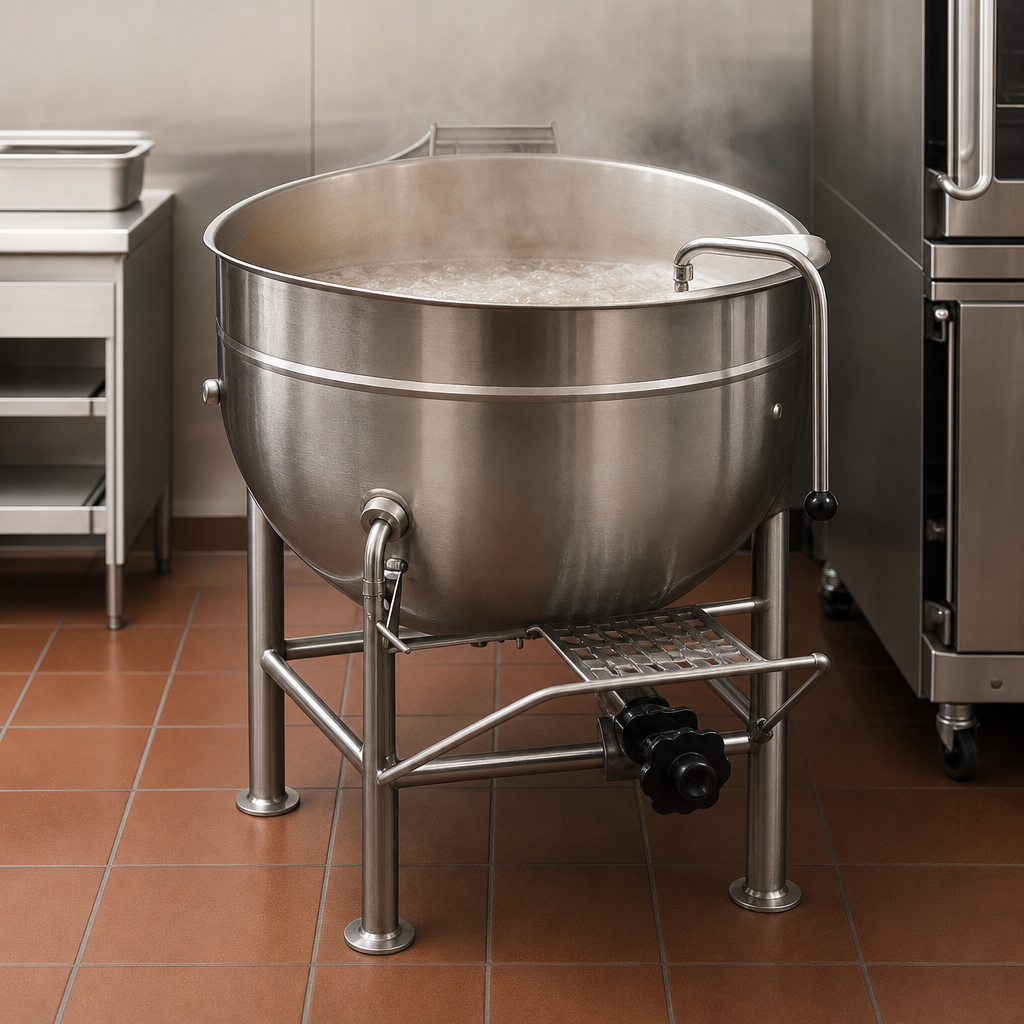

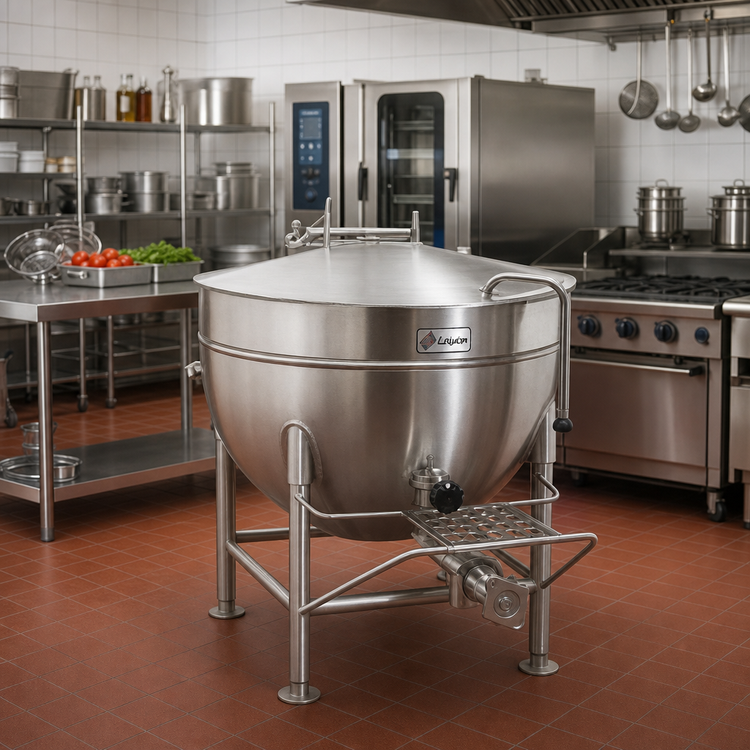

Legion LS-25 Stationary Direct Steam Kettle – 25 Gallon

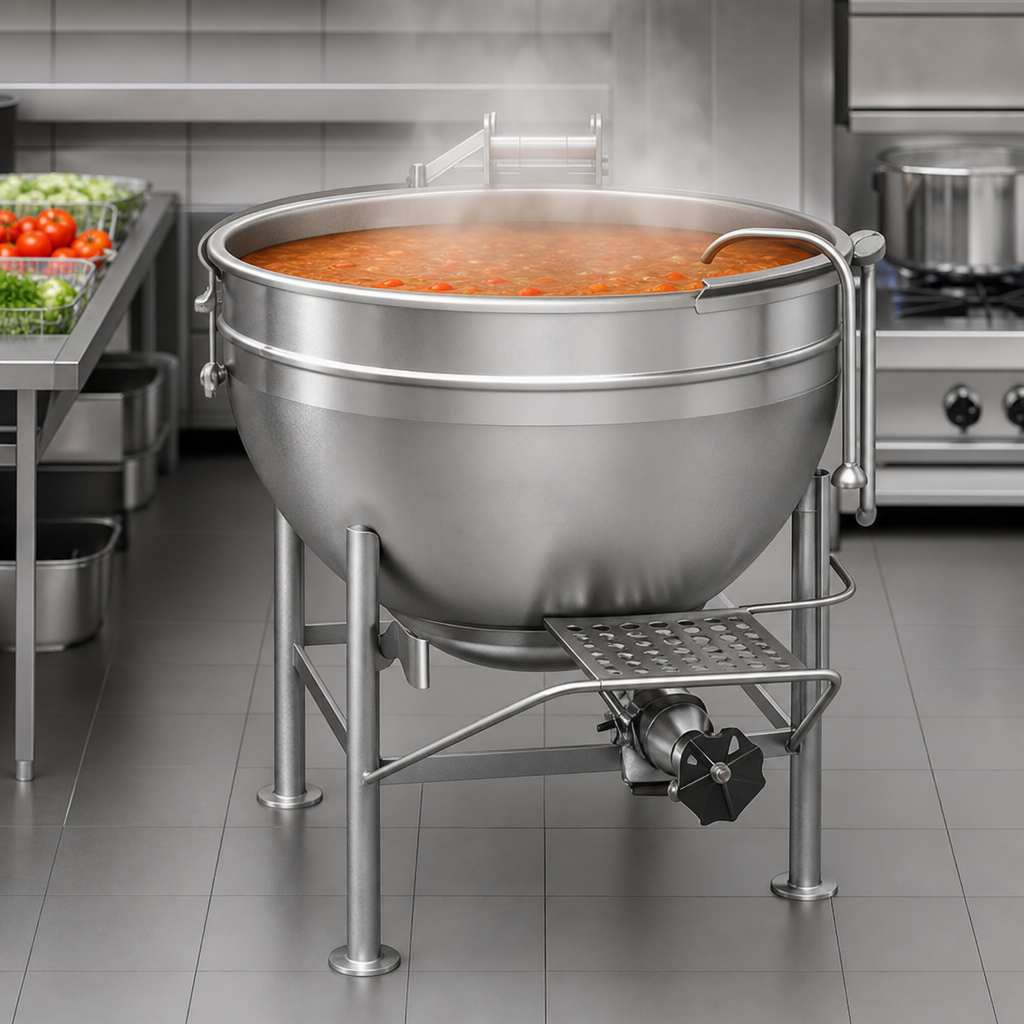

Full-jacketed • Deep-drawn 304 stainless steel • LOW-RIM™ designBuilt for demanding commercial kitchens, the Made-in-USA Legion LS-25 delivers fast, even steam heating in a space-saving, easy-to-clean package. Its 25-gallon (95 L) capacity is ideal for soups, sauces, stocks and small-batch production while the LOW-RIM™ profile keeps the kettle rim within comfortable working height for safer, faster handling.
Highlights at a Glance
- Seamless deep-drawn 304 stainless steel liner for superior sanitation and durability
- Full 304L stainless steel jacket surrounds the kettle for uniform heat transfer
- 2" 304 stainless compression draw-off valve with removable ¼" perforated disk strainer
- (3) leg base – 1 ⅝" Ø stainless legs with reinforced bracing & adjustable flanged feet
- Factory-set 30 psi operating pressure handles high-volume cooking without scorching
- LOW-RIM™ construction keeps the rim at only 48" from the floor for safer kettle access
- NSF & ASME compliant; built to meet or exceed all applicable agency standards
- Backed by Legion’s 12-month parts & labor warranty
Technical Specifications
| Model | LS-25 (Stationary, Leg Mounted) |
|---|---|
| Capacity | 25 gal. / 95 L (to datum line) |
| Operating pressure | 30 psi (direct steam) |
| Construction | Seamless 304 liner with 304L stainless full jacket |
| Draw-off valve | 2" 304 stainless compression-type, includes ¼" perforated strainer |
| Steam inlet (Q) | ¾" NPT |
| Steam outlet/condensate (R) | ½" NPT |
| Overall height (J1) | 58.5" (148.6 cm) |
| Rim height (J2) | 48.0" (121.9 cm) |
| Overall diameter (A) | 25.5" (64.8 cm) |
| Leg configuration | Three 1 ⅝" Ø stainless legs with flanged, height-adjustable feet |
| Country of origin | USA |
What Ships with Your Kettle
- Factory-installed 2" draw-off valve & ¼" perforated disk strainer
- Stainless leg assembly with hardware & adjustable flanges
- Operator’s manual & warranty registration card
Popular Optional Accessories
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Lift-off or actuator-assisted cover
- 2-speed mixer/agitator assembly
- Draw-off protection or lockable lid for security installations
- Perforated disk strainer with ⅛" holes
Contact us for pricing and lead-times on factory-installed or field retro-fit accessories.
Legion provides a 12-month parts & labor warranty from date of installation (15 months from ship date). Extended coverage is available.
