Legion  |  SKU: LS-20

Legion LS-20 Steam Kettles

$6,940.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

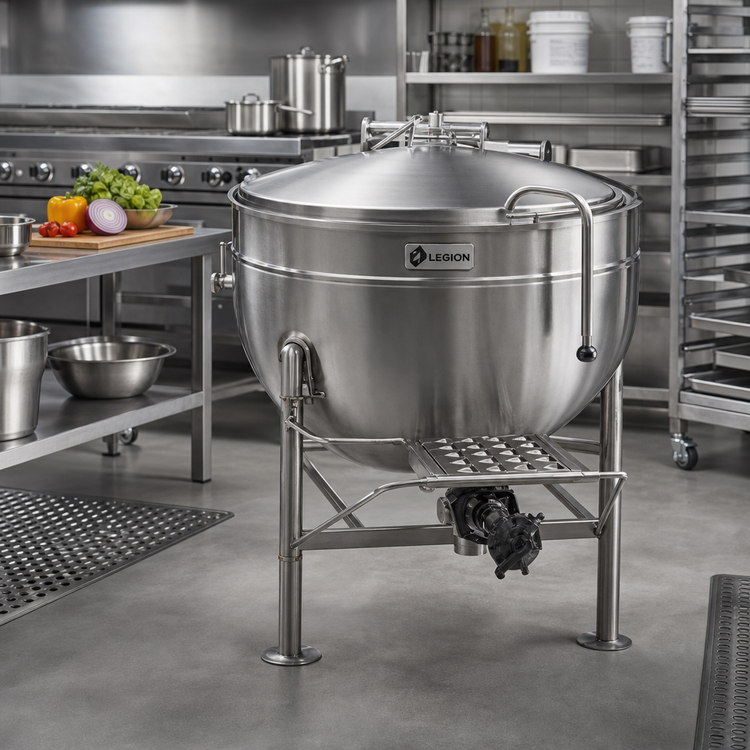

Legion LS-20 Direct Steam Kettle — 20 Gallon

Full-Jacketed • Stationary • Low-Rim™ Deep-Drawn Construction

Produce velvety soups, hearty stews, and flawless sauces faster and more consistently with the Legion LS-20. This compact 20-gallon kettle harnesses your facility’s steam supply for rapid, even heating while its ergonomic Low-Rim™ design keeps the cooking surface within easy reach.

Key Features
  • Seamless 304 stainless-steel kettle liner — no interior weld seams or crevices.

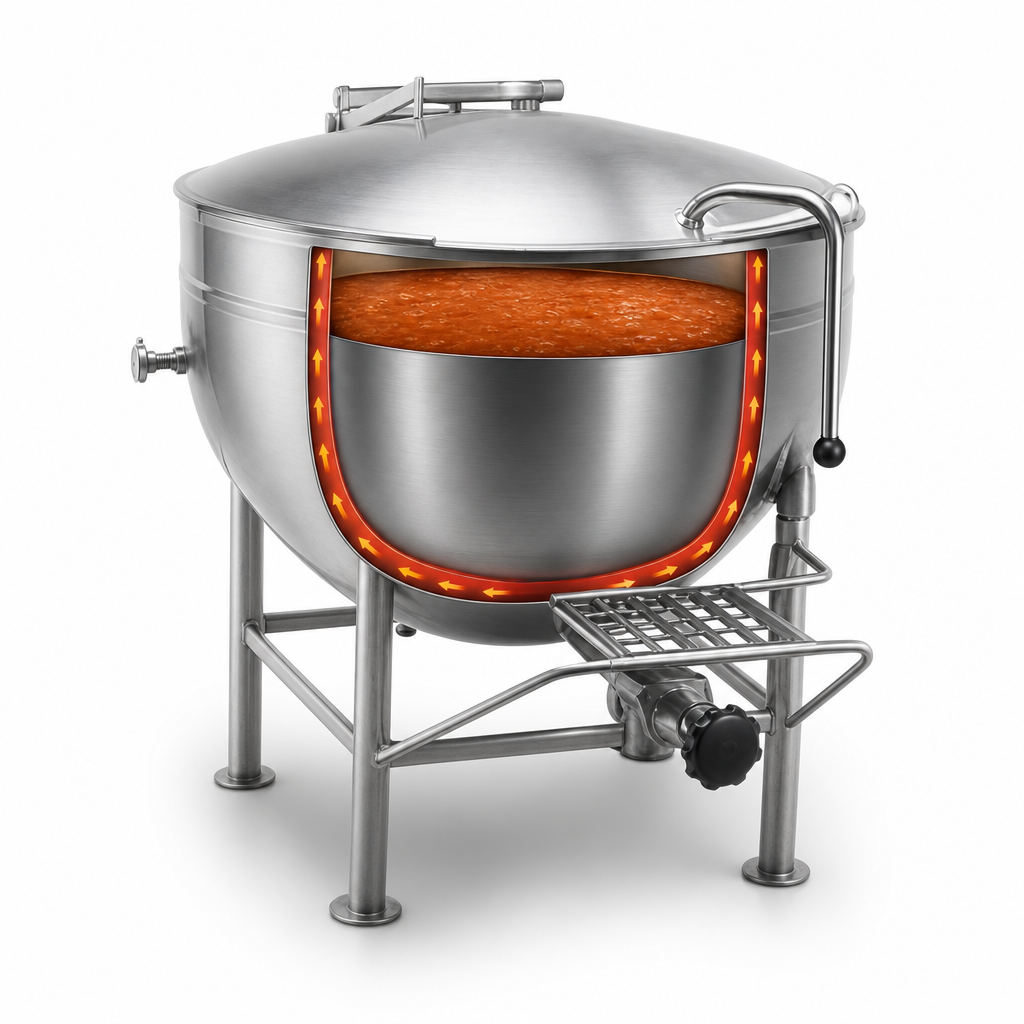

  • Full 304L stainless jacket completely surrounds the kettle for uniform heat transfer.
  • Direct-steam operation, rated 30 psi (ASME compliant) for quick response and energy savings.
  • 2" 304 stainless compression draw-off valve for smooth portioning and fast clean-out.
  • Perforated ¼" disk strainer included to keep food particles out of the draw-off.
  • (3) heavy-duty 1 ⅝"-diameter legs with reinforced bracing and adjustable flanged feet.
  • Built in the USA and meets NSF sanitation standards.
Ideal For
  • Stocks, broths, and gravies
  • Batch soups, chili, and curries
  • Pasta, rice, and grains
  • Custards, puddings, and confectionery syrups
Technical Specifications
Capacity 20 gal / 76 L (working volume)
Operating Pressure 30 psi / 207 kPa
Construction Seamless 304 stainless liner with 304L full jacket
Heating Source External direct steam — inlet ¾" NPT, outlet ½" NPT
Draw-Off Valve 2" compression type, 304 stainless, with ¼" perforated strainer
Mounting (3) stainless legs, 1 ⅝" Ø, adjustable flanged feet
Inside Diameter 23.0" / 584 mm
Inside Depth 15.0" / 381 mm
Rim Height 57.4" / 146 cm (floor to rim)
Compliance ASME, NSF
What’s Included
  • Legion LS-20 stationary direct-steam kettle
  • 2" draw-off valve with installed ¼" strainer disk
  • Adjustable flanged feet hardware
  • Owner’s and installation manual
Installation Notice: Unit must be bolted to the floor and connected to a regulated 30 psi steam supply. Verify local codes and steam availability before ordering.

Need a fill faucet, basket inserts, or other accessories? Contact us — we’ll configure the perfect setup for your kitchen.

Features & Specs

Manufacturer

Legion

Shipping Weight

190.0lbs

Capacity

18 - 26 gallon

Kettle Jacket

full jacket

Base

tri-leg

Kettle Liner

304 stainless steel

Specifications

Stationary Direct Steam Kettle, 20-gallon, 304 stainless steel liner, full jacket, 2" draw-off valve with perforated 1/4" hole strainer, stainless steel construction, (3) legs with adjustable flanged feet, 30 psi
