Legion LS-150 Steam Kettles
Description

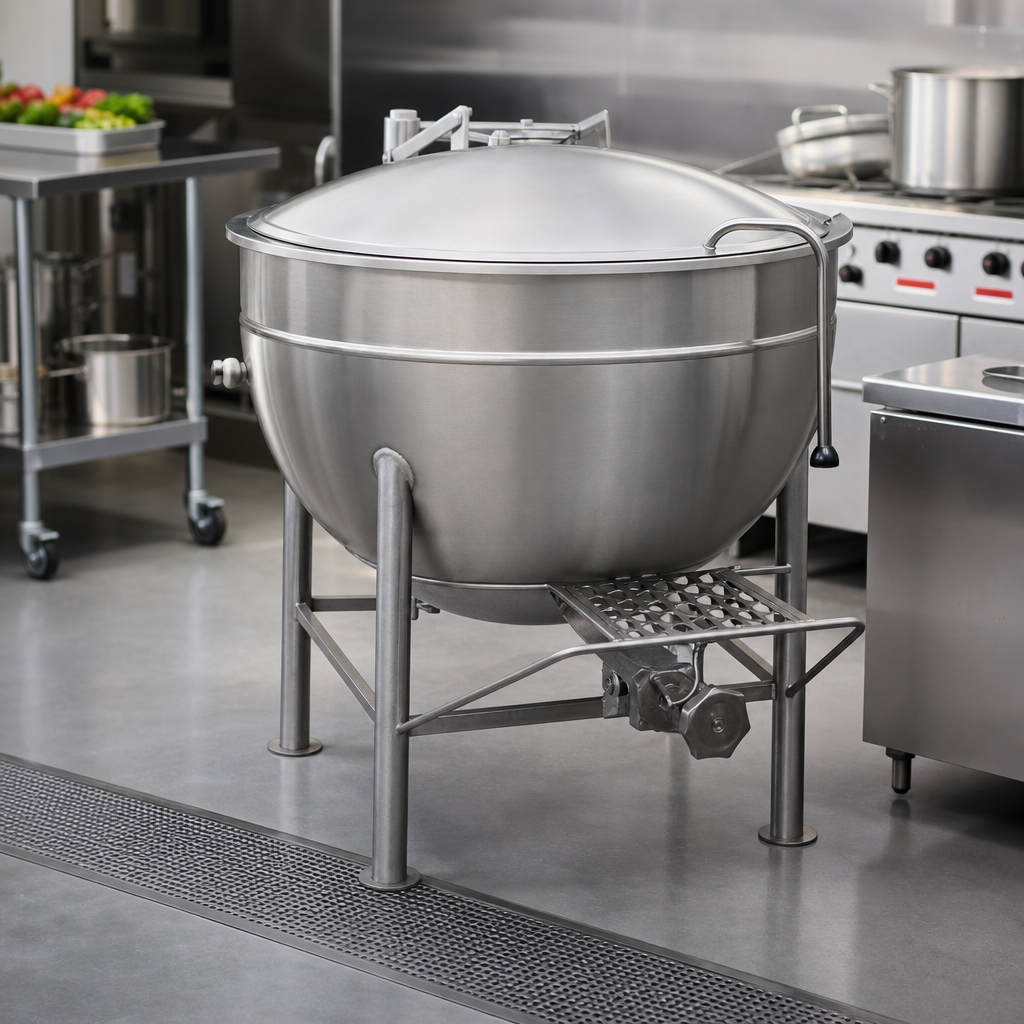

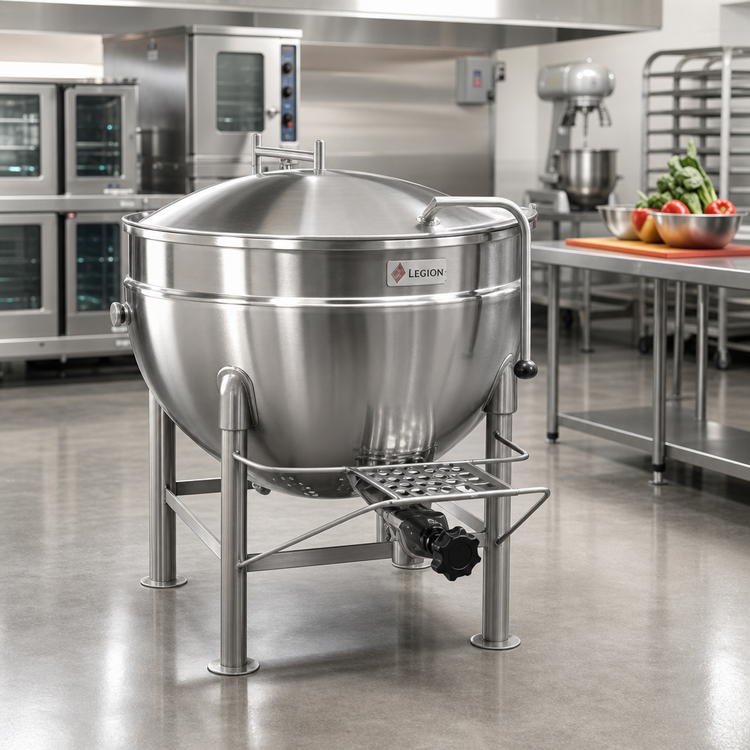

Legion LS-150 Direct Steam Kettle — 150 Gallon Full Jacket
LOW-RIM™ deep-drawn construction • Made in the USABuilt for high-volume kitchens that refuse to compromise on speed, safety or sanitation, the Legion LS-150 connects directly to your boiler for rapid, even heating across a generous 150 gallon (568 L) capacity. Heavy-duty 304 stainless steel inside and out means years of worry-free performance and easy clean-up.
Key features
- Full-jacket design surrounds product with heat for consistent results and faster cook times.
- Seamless, deep-drawn 304 SS kettle liner—no interior welds to trap food soil.
- Direct-steam operation rated at 25 psi for quick heat-up and recovery.
- 2 in. compression draw-off valve (304 SS) with factory-supplied ¼ in. perforated disk strainer.
- LOW-RIM™ profile lowers the rim height for safer loading, stirring and cleaning.
- One-piece domed stainless cover with actuator assist (standard on 40–150 gal models).
- (4) 2 in. diameter stainless legs with reinforced bracing & adjustable flanged feet.
- ASME-coded & NSF-listed; manufactured in Waynesboro, Georgia.
Why choose Legion?
- Deep-drawn kettle & jacket increase structural strength and heat transfer efficiency.
- 304 SS draw-off tube and welds resist corrosion and chemical attack from cleaning agents.
- Precision-formed radius eliminates hard-to-reach corners, cutting cleaning time dramatically.
- Full U.S. parts & labor warranty backed by Legion’s nationwide service network.
Specifications
| Model | LS-150 (Stationary, Leg Mounted) |
|---|---|

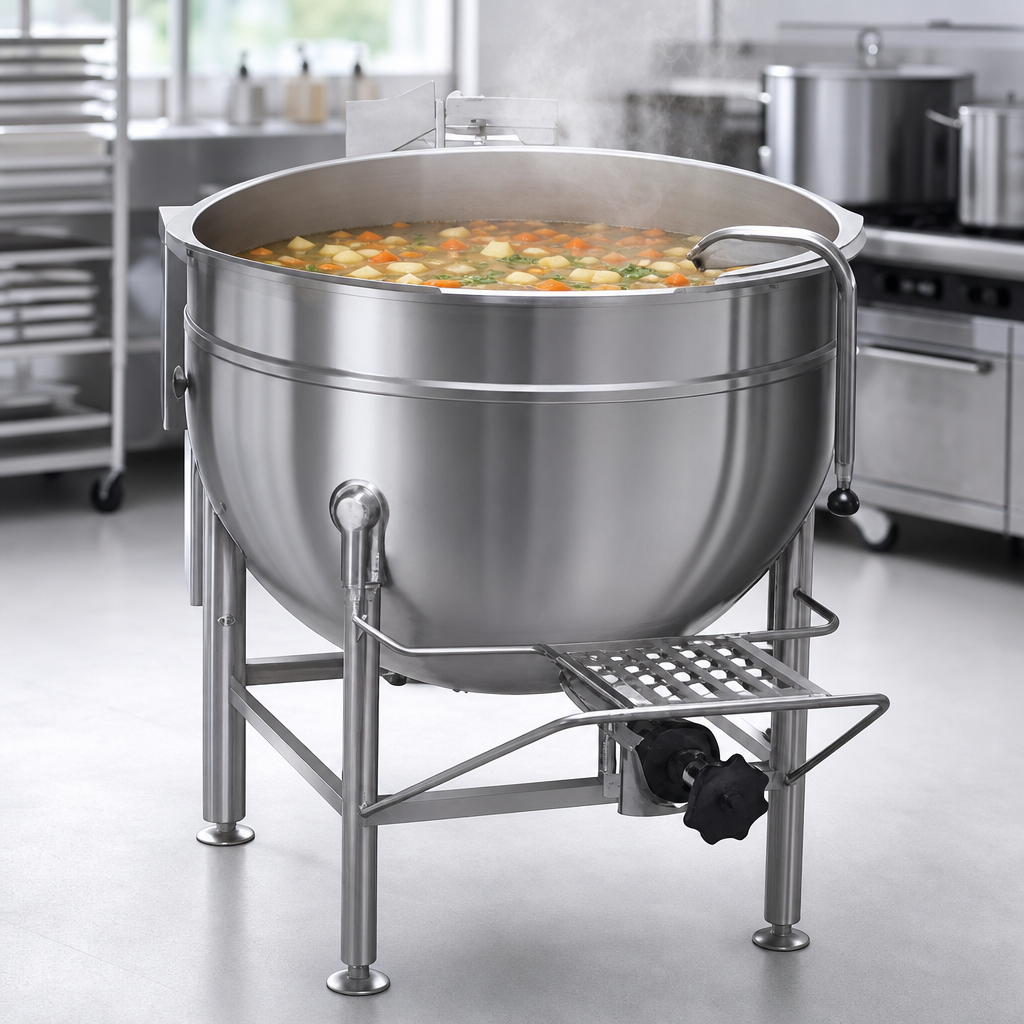

| Capacity | 150 gal / 568 L |
| Operating pressure | 25 psi (172 kPa) direct steam |
| Construction | Seamless 304 SS liner & 304L full jacket |
| Draw-off | 2 in. compression valve with ¼ in. perforated strainer disk |
| Standard cover | One-piece, actuator-assisted, domed 304 SS |
| Legs / Feet | 4 × 2 in. Ø stainless legs, reinforced bracing, adjustable flanged feet |
| Steam connections | Inlet 1¼" NPT • Outlet ¾" NPT |
| Overall size (WxDxH) | 44.0" × 44.8" × 91.7"1 |
| Agency approvals | ASME, NSF |
1Height measured to lid handle when fully open. See spec sheet for exact rough-in data.
What’s included
- Legion LS-150 Direct Steam Kettle
- Actuator-assisted stainless cover
- ¼ in. perforated disk strainer
- Installation & operation manual
- 12-month parts & labor warranty
Take production to the next level with Legion’s industry-leading LOW-RIM™ kettle technology. Order the LS-150 today and experience consistent, high-volume cooking performance shift after shift.
