Legion  |  SKU: LS-125

Legion LS-125 Steam Kettles

$19,343.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

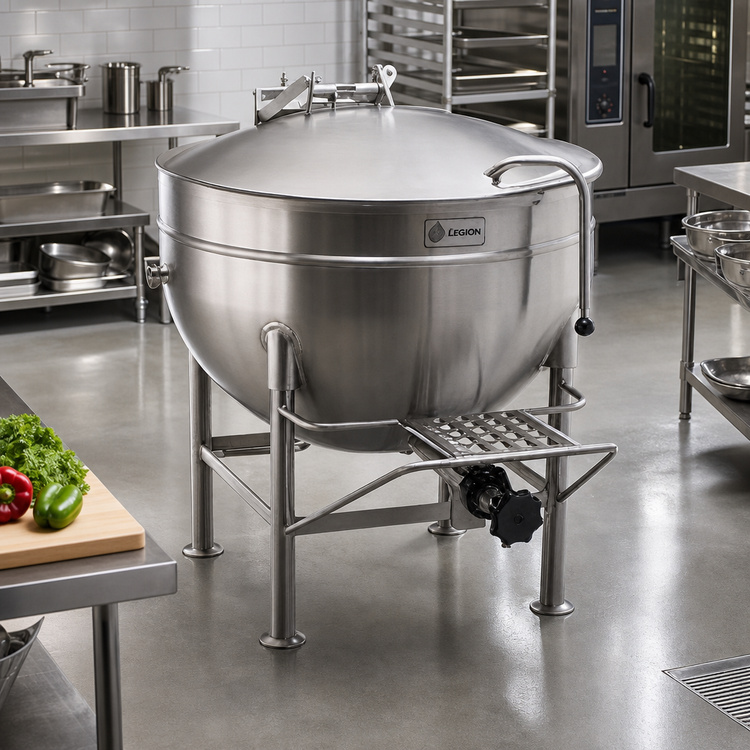

Legion LS-125 Stationary Direct Steam Kettle – 125 Gallon

Full-Jacketed • Low-Rim™ Deep-Drawn Construction • Made in USA

The Legion LS-125 gives production kitchens 125 gallons of fast, uniform, steam-powered cooking in a rugged, ergonomic package. A seamless 304 stainless liner, full 304L jacket and Low-Rim™ profile make this kettle easy to clean, comfortable to use and built to last shift after shift.

Key Features
  • Generous 125 gal (473 L) capacity—ideal for soups, sauces, stocks and bulk cooking

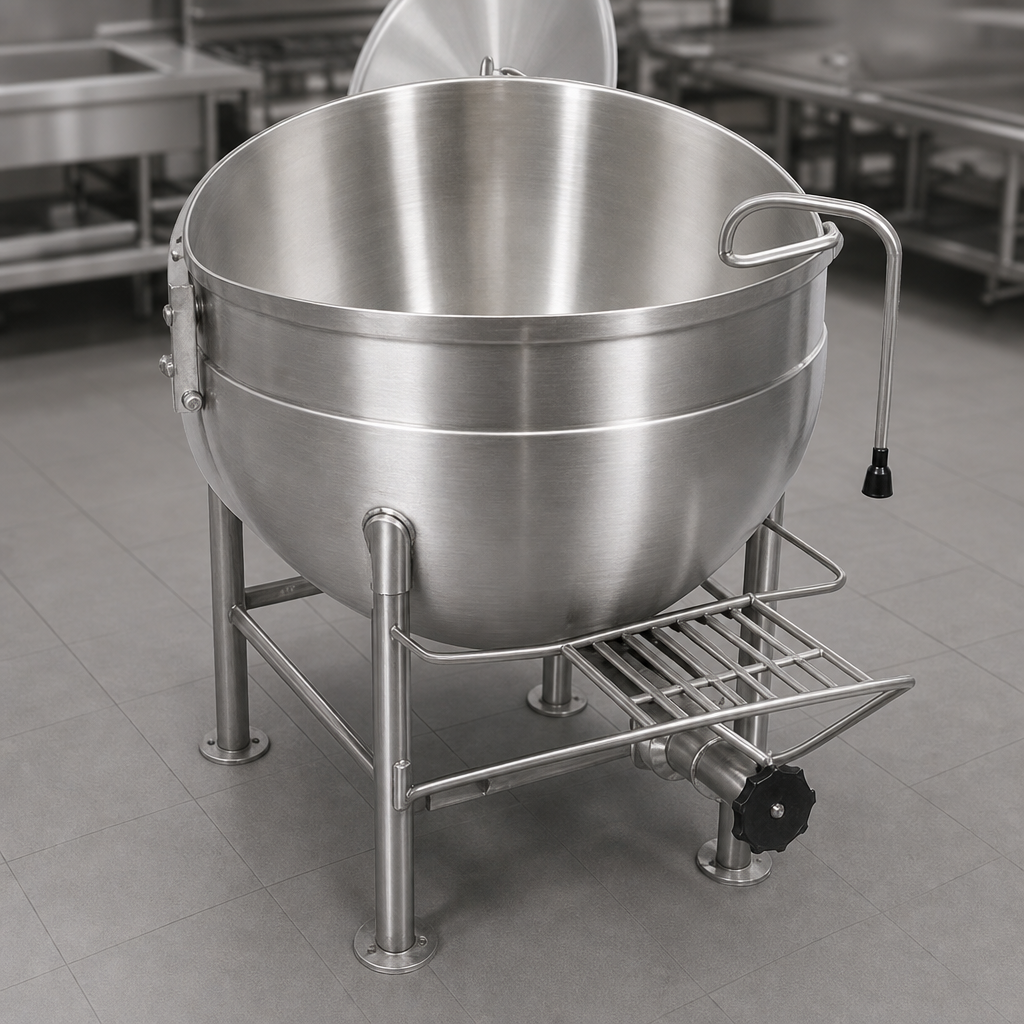

  • Seamless deep-drawn 304 stainless steel kettle liner for maximum hygiene

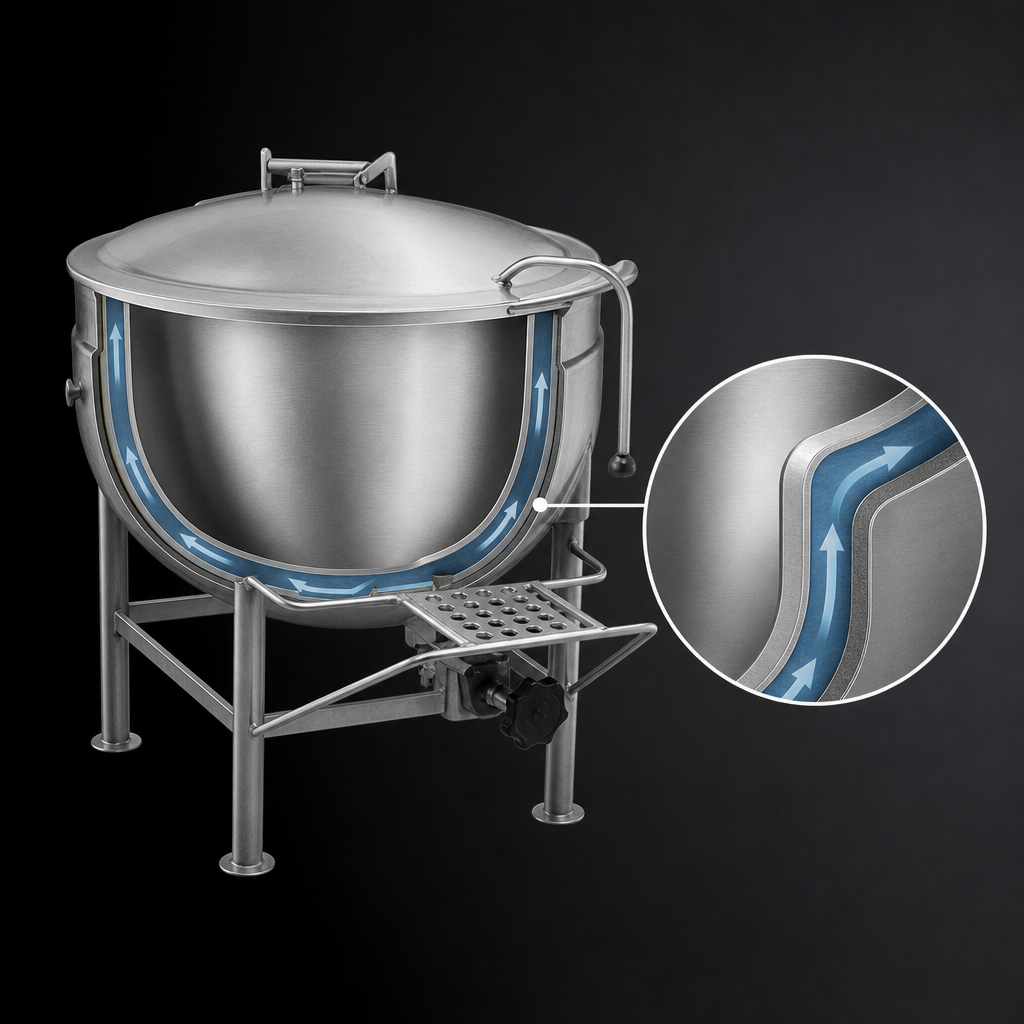

  • Full 304L stainless steel jacket rated to 25 psi operating pressure for rapid, even heat transfer
  • 2 inch compression-type draw-off valve with ¼ in perforated stainless strainer—quick, clog-free draining
  • Low-Rim™ design and actuator-assisted one-piece domed stainless cover for safe, ergonomic access
  • Four 2 in-diameter stainless legs with reinforced bracing & adjustable flanged feet—rock-solid floor mounting
  • All-welded 304 stainless draw-off tube and fittings for corrosion-proof performance
  • Engineered and manufactured in the USA to meet or exceed ASME & NSF requirements
Specifications
Model LS-125 (leg-mounted, stationary)
Capacity 125 gal / 473 L
Heating source Direct external steam (customer-supplied)
Operating pressure 25 psi / 172 kPa
Liner material Seamless 304 stainless steel
Jacket material 304L stainless steel, full jacket
Draw-off valve 2 in 304 SS compression type with ¼ in perforated disk strainer
Cover One-piece domed 304 SS, actuator-assisted
Support (4) 2 in-diameter stainless legs, reinforced & flanged, adjustable
Compliance ASME, NSF and other applicable agency standards
Optional Accessories (sold separately)
  • Single or double fill faucets with 12 in / 18 in swing nozzles
  • 48 in flexible spray hose assemblies (vinyl or stainless)
  • Pressure-reducing valve & connection kit
  • Two-speed mixer/agitator
  • Lift-off or two-piece hinged covers
  • Basket or bag inserts, measuring strip, draw-off drain hose & more
  • Lockable lid and reinforced bar rim for security applications
Important: This is a direct-steam kettle and requires a suitable external boiler and code-compliant steam/condensate connections. Installation must be performed by qualified professionals in accordance with local regulations.

Specifications and availability are subject to change without notice. Product images may show optional accessories.

Features & Specs

Manufacturer

Legion

Shipping Weight

590.0lbs

Kettle Jacket

full jacket

Base

quad-leg

Kettle Liner

304 stainless steel

Capacity

80 - 150 gallon

Specifications

Stationary Direct Steam Kettle, 125-gallon, 304 stainless steel liner, full jacket, 2" draw-off valve with perforated 1/4" hole strainer, stainless steel construction, (4) legs with adjustable flanged feet, 25 psi
