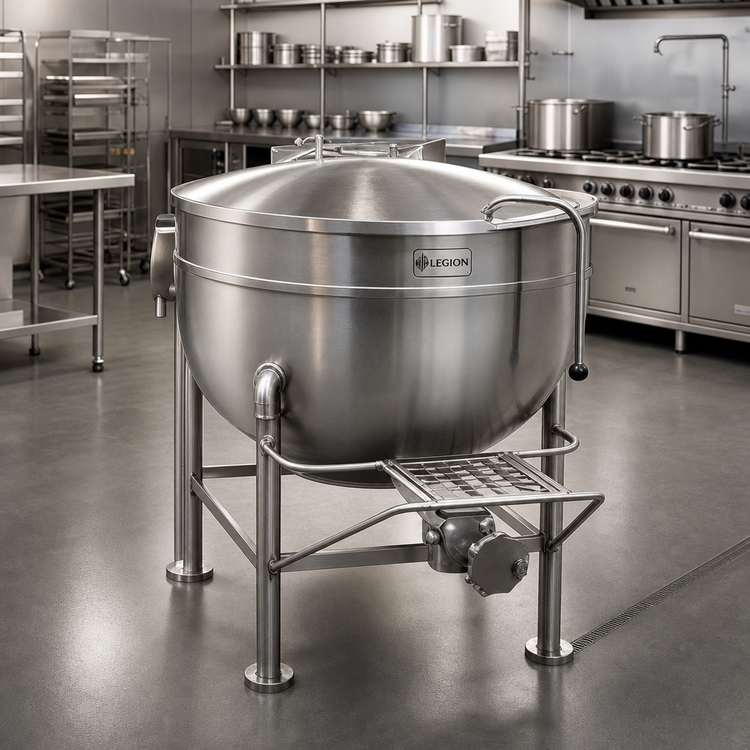

Legion LS-100 Stationary Direct Steam Kettle – 100 Gallons

Built for high-volume production kitchens, the Legion LS-100 delivers a generous 100-gallon (379 L) capacity inside a seamless 304 stainless steel liner. LOW-RIM™ deep-drawn construction, a full steam jacket and an actuator-assisted domed cover give you faster heat-up, gentler cooking and safer, more ergonomic operation than stock pots or skillet-style braisers.

Key Features

• 100-gallon (379 L) stationary kettle – perfect for soups, sauces, stocks & pasta

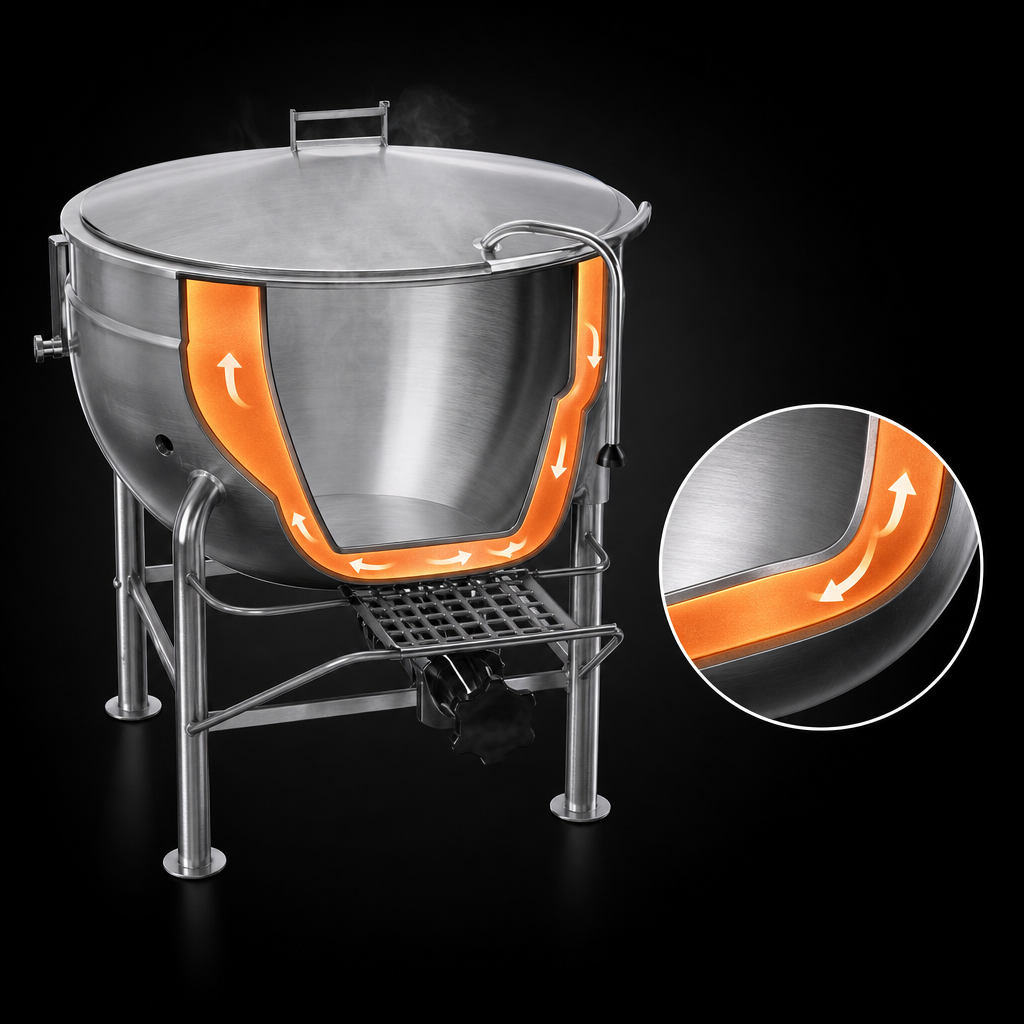

• Full 304L stainless steel jacket rated 25 psi operating pressure

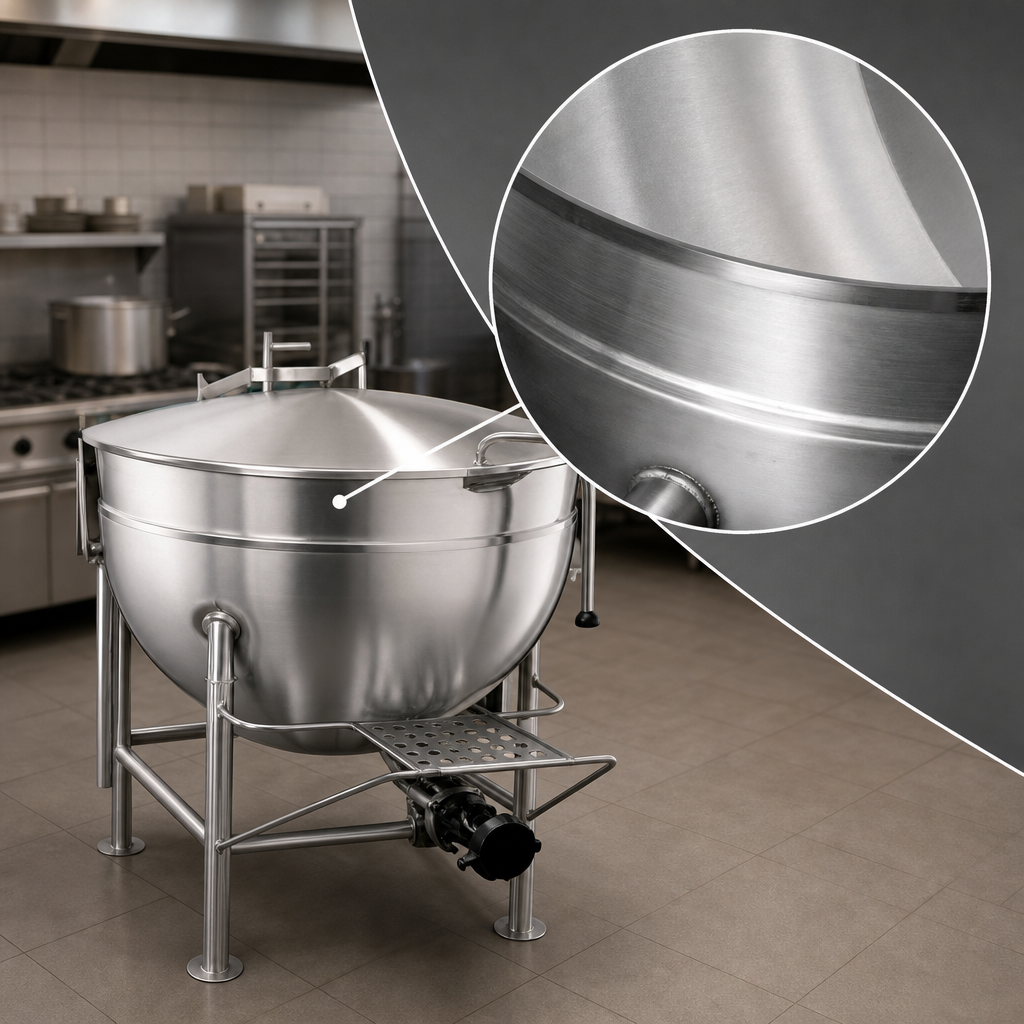

• Seamless deep-drawn 304 stainless liner for superior sanitation
• 2″ 304 stainless compression draw-off valve with removable ¼″ perforated disk strainer
• One-piece domed cover with spring-loaded actuator for effortless lifting
• (4) 2″ Ø stainless steel legs with reinforced bracing & adjustable flanged feet
• LOW-RIM™ design reduces operator reach and improves safety
• ASME-registered pressure vessel; NSF compliant; fabricated in Waynesboro, GA

Why Choose a Legion Direct Steam Kettle?

• Even, gentle heat from all sides—no hot spots or scorching
• Up to 50 % faster heat-up vs. stock pots on an open range
• No electric elements or gas burners to service—just connect to your low-pressure steam line
• Deep-drawn construction eliminates interior weld seams where food soil can hide

Specifications

*Dimensions taken from manufacturer’s drawing; verify clearances before installation.

Looking for a different size? LS series kettles are available in 20 – 150 gallon models. Contact us for a custom quote or available accessories.
