Legion LP-60 Steam Kettles
Description

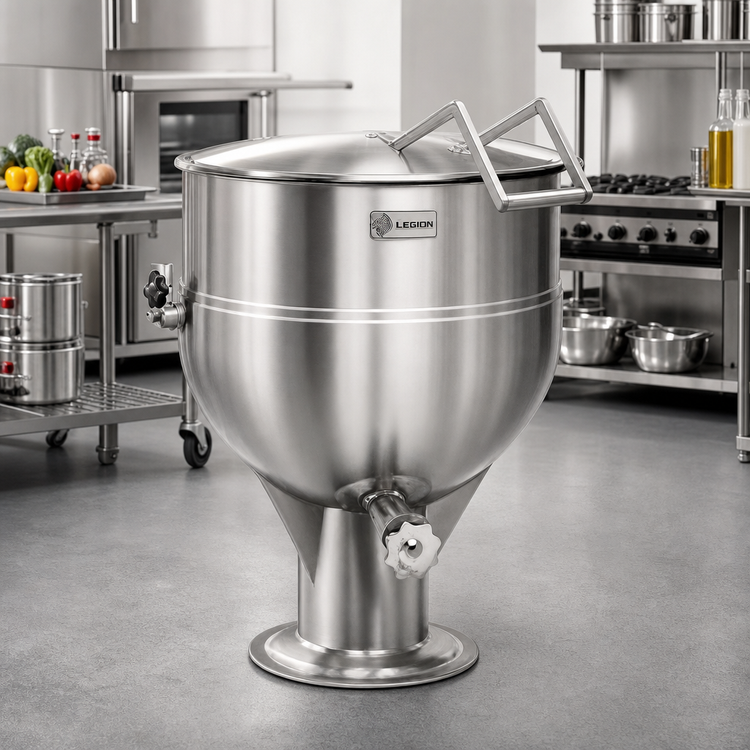

Legion LP-60 Stationary Direct Steam Kettle – 60 Gallon
2/3 Jacketed • Deep-Drawn 304 Stainless Steel • Made in USAEngineered for high-volume, high-efficiency production, the Legion LP-60 delivers 60 gallons of evenly distributed steam heat in a space-saving pedestal design. From soups and sauces to pasta, grains and proteins, this rugged kettle turns out consistent results shift after shift while standing up to the toughest commercial kitchen environments.
Key Benefits

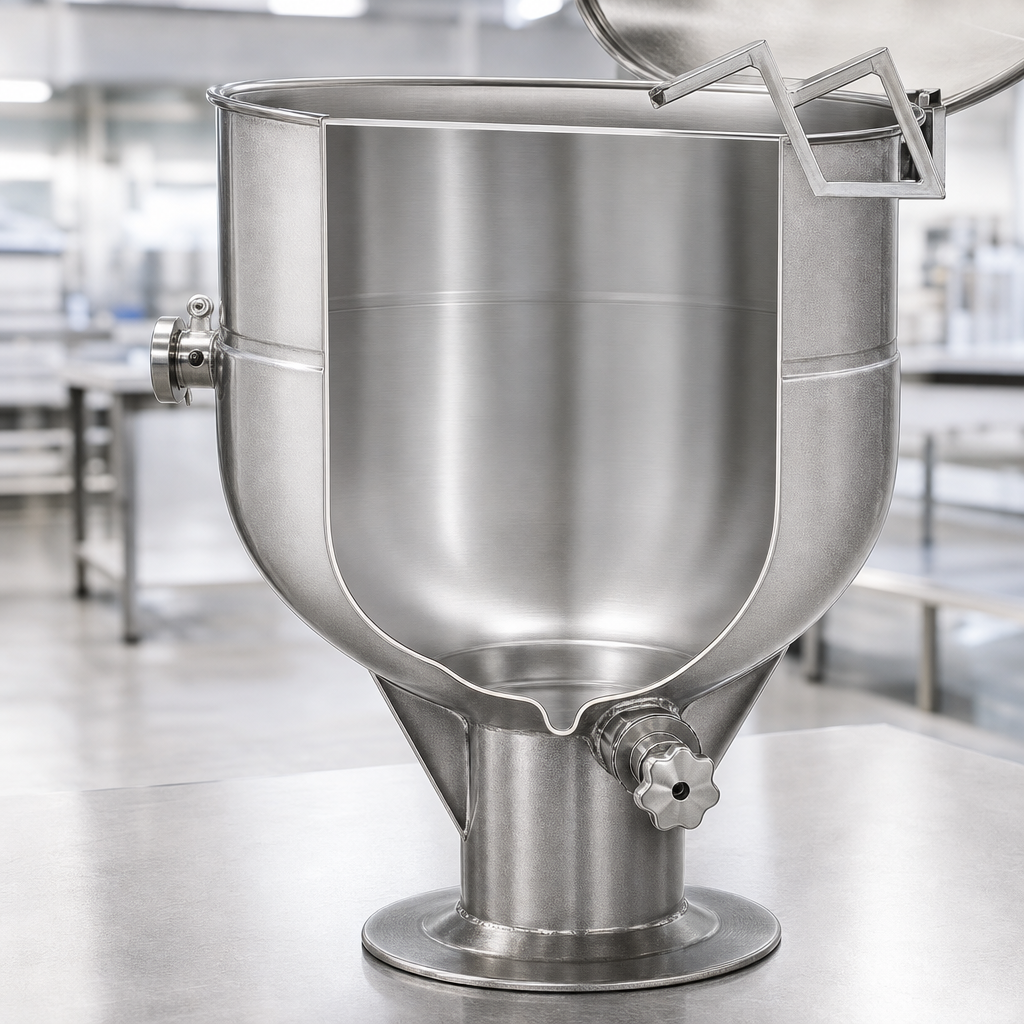

- Seamless 304 stainless-steel liner resists pitting, corrosion and flavor carry-over.

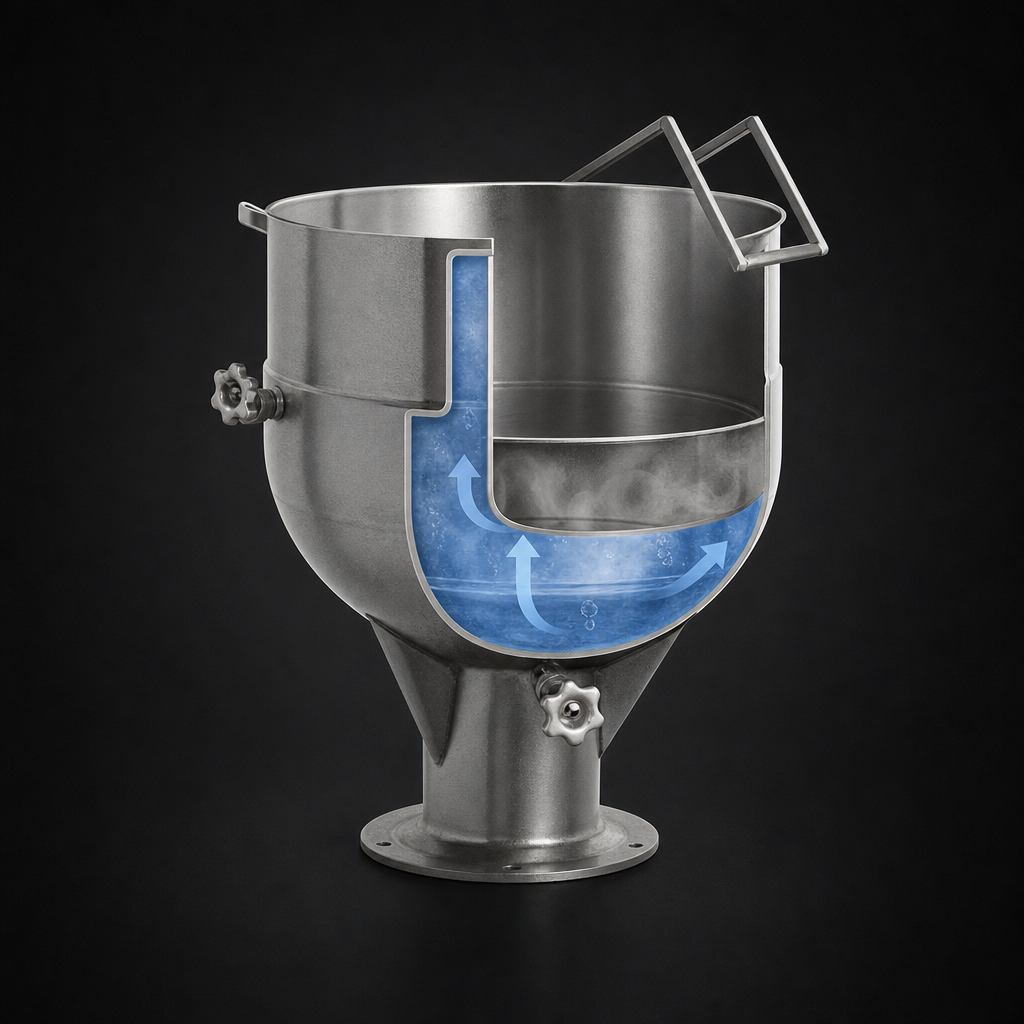

- 2/3 jacketed body transfers steam heat up the sidewalls for faster, more even cooking.
- 30 psi operating pressure shortens batch times and boosts throughput.
- One-piece domed cover with spring-assist actuator opens effortlessly and stays balanced in any position.
- 2″ compression draw-off valve with removable ¼″ perforated strainer—perfect for broths, stocks and quick clean-outs.
- Fully welded 304 stainless pedestal base provides rock-solid stability and simple floor sanitation.
- Built to ASME & NSF standards and proudly made in the USA.
Specifications
| Capacity | 60 gal | 227 L |
|---|---|
| Construction | Seamless deep-drawn 304 stainless liner & jacket |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 30 psi (207 kPa) |
| Steam Connections | ¾″ NPT inlet • ½″ NPT condensate return |
| Draw-Off Valve | 2″ stainless compression type, ¼″ perforated disk strainer |
| Cover | Actuator-assisted domed stainless (one-piece) |
| Base | Welded 304 stainless pedestal |
| Overall Height | 72.2″ (1,834 mm) |
| Diameter | 29.5″ (749 mm) |
| Shipping Weight | ≈ 485 lb / 220 kg |
Dimensions taken from Legion drawing for Model LP-60; slight variation may occur with selected options.
Ideal For
- Soups, stews & chili
- Bulk pasta, rice and grains
- Custards, sauces & gravies
- Seafood boils & poaching large proteins
- Re-thermalizing chilled or frozen product
What’s Included
- Legion LP-60 pedestal steam kettle
- Spring-assist stainless cover
- 2″ draw-off valve with ¼″ perforated strainer disk
- Operator’s & installation manual
Need faucets, spray hoses, agitators or other accessories? Contact us for factory-approved options.
