Legion LP-50 Steam Kettles
Description

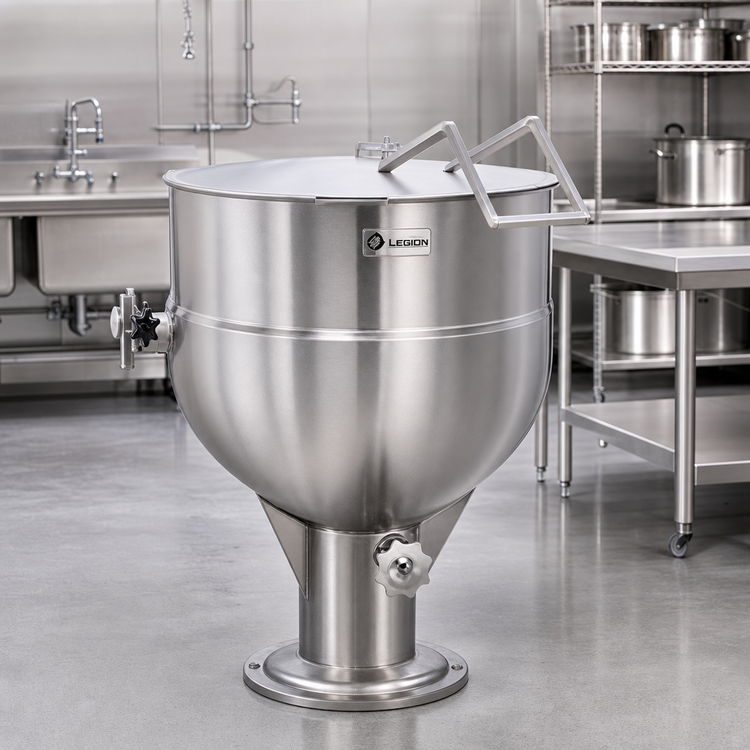

Legion LP-50 Stationary Direct Steam Kettle – 50 Gallon
2/3-Jacketed • 304 Stainless Steel • Pedestal-MountedEngineered for demanding production kitchens, the Legion LP-50 delivers rock-solid reliability and rapid, even cooking in a generous 50-gallon (189 L) capacity. Its seamless 2/3 steam jacket and all-304 stainless construction stand up to daily abuse while the 2" compression draw-off valve with perforated strainer makes portioning stocks, sauces and soups fast and mess-free.
Key Benefits

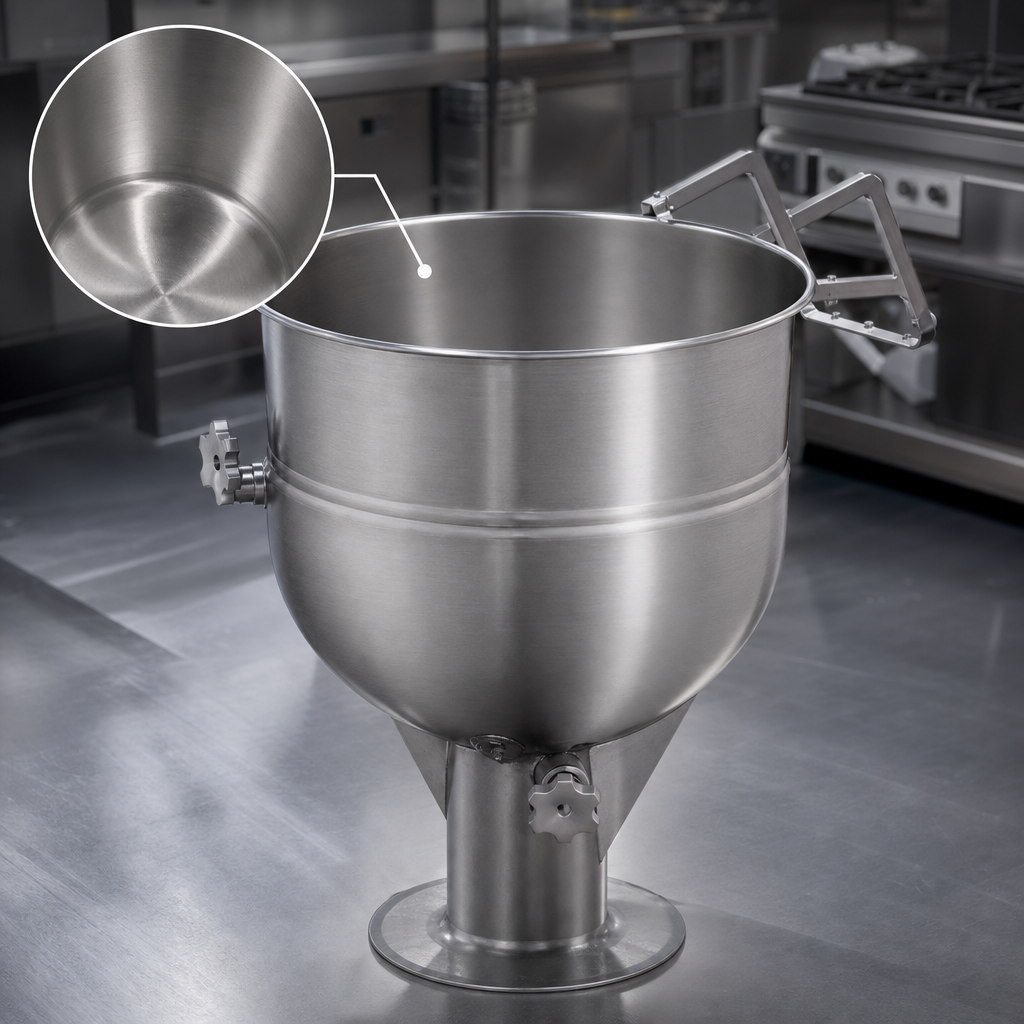

- Seamless deep-drawn 304 stainless kettle liner for maximum sanitation and durability.

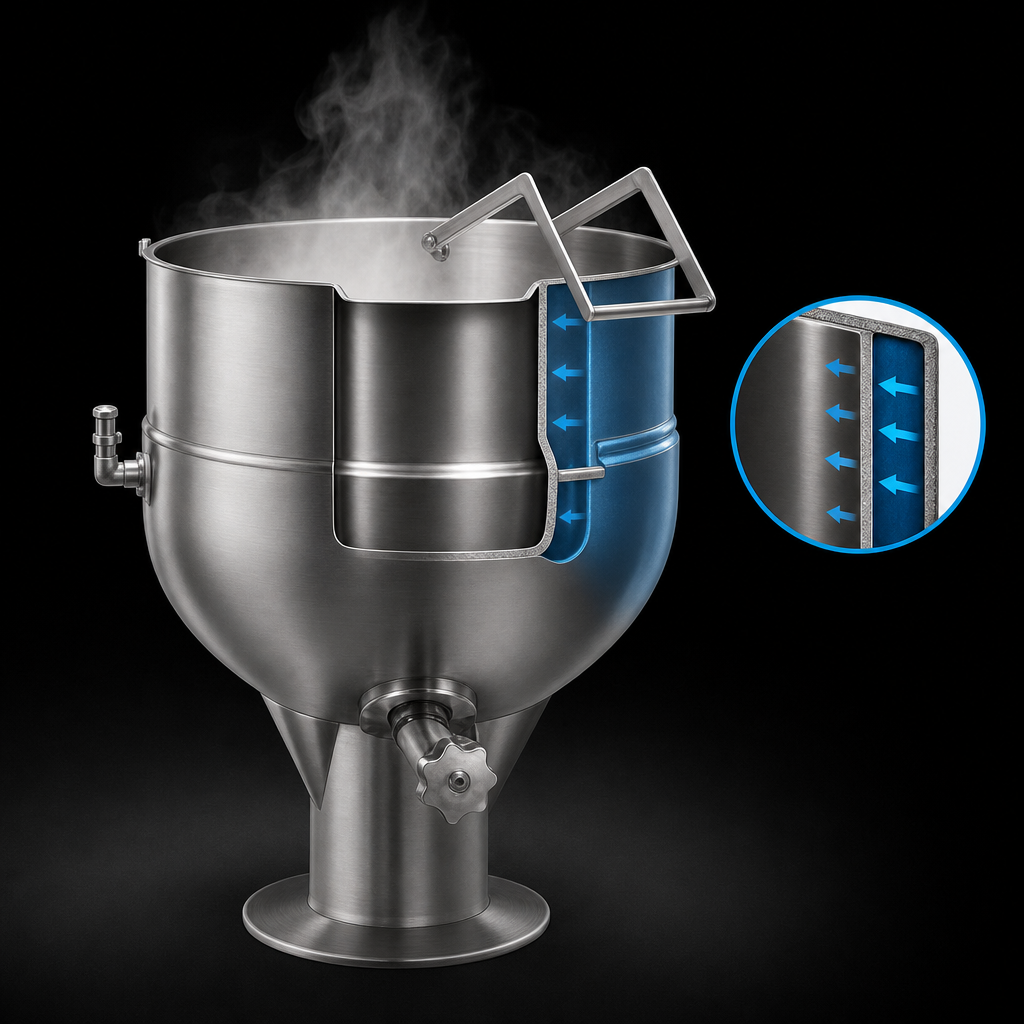

- 2/3 jacket design provides 360° steam coverage for faster heat-up and consistent results.
- Factory-installed 2" compression draw-off valve with 1/4" perforated disk strainer—ideal for clear broths.
- 30 psi operating pressure supports high-volume, high-temperature cooking.
- Heavy-duty pedestal base and tube (304 stainless) welded directly to the jacket for a rock-steady, stationary install.
- One-piece domed stainless cover with actuator assist (easy open/close, no slam).
- Made in the USA and built to applicable ASME & NSF standards.
At-a-Glance Specs
| Model | LP-50 |
|---|---|
| Capacity | 50 gal / 189 L |
| Liner & Jacket | Seamless 304 / 304L stainless, 2/3 jacketed |
| Operating Pressure | 30 psi (2.07 bar) |
| Draw-off Valve | 2" compression type, 304 stainless Perforated disk strainer – 1/4" holes |
| Cover | One-piece domed, actuator assisted |
| Construction | All-welded 304 stainless kettle, jacket, pedestal tube & base |
| Steam Connections | 3/4" NPT inlet • 1/2" NPT condensate return |
| Certifications | ASME, NSF (others as applicable) |
| Country of Origin | Made in USA |
Footprint & Service Clearances
| Dimension | Inches | Millimetres |
|---|---|---|
| A – Diameter | 29.5" | 749 mm |
| B – Jacket Depth | 21.8" | 554 mm |
| C – Height (rim to base) | 36.5" | 927 mm |
| D – Min. Service Radius | 23.8" | 604 mm |
| J1 – Overall Height (cover open) | 69.0" | 1753 mm |
| S – Draw-off Centerline | 14.0" | 356 mm |
H dimension (draw-off outlet height) varies with valve style; values above reflect 2" compression valve.
Popular Accessories & Upgrades
- Single or dual fill faucets with 12" / 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- 2-speed mixer / agitator kit
- Lift-off, hinged or lockable security covers
- Perforated disk strainer – 1/8" holes for finer filtration
- Kettle care & cleaning kit
Contact us for a full list of factory-installed options and loose accessories.
