Legion LP-40 Steam Kettles
Description

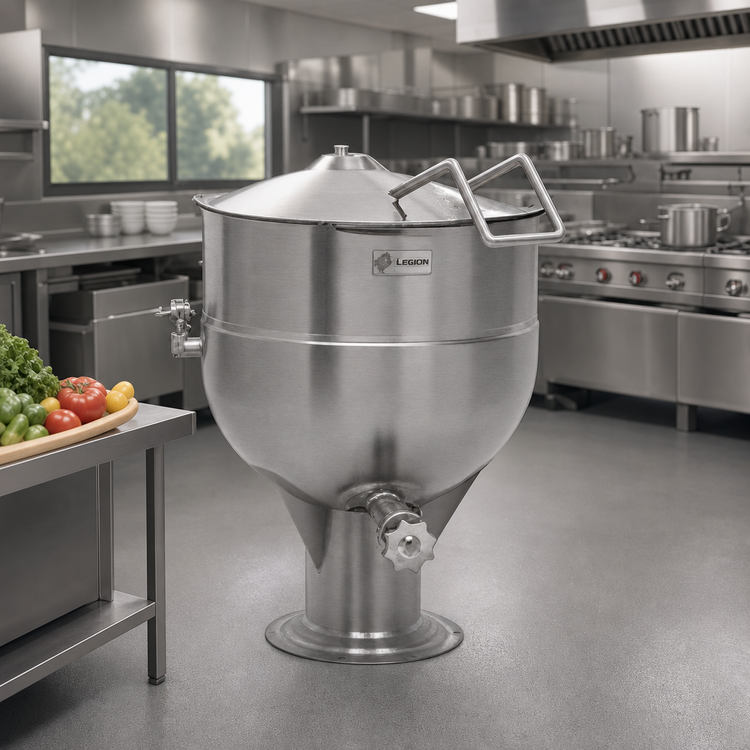

Legion LP-40 | 40-Gallon Stationary Direct Steam Kettle
2/3-jacketed, pedestal-mounted - built for high-volume precision cookingTackle your busiest production days with the Legion LP-40. A seamless 304 stainless steel liner, rapid-heating 2/3 steam jacket and labor-saving 2 inch draw-off valve combine to deliver consistent, repeatable results—batch after batch.
Key features & benefits
- 40 gal (151 L) capacity—up to 640 eight-ounce servings per cook cycle.

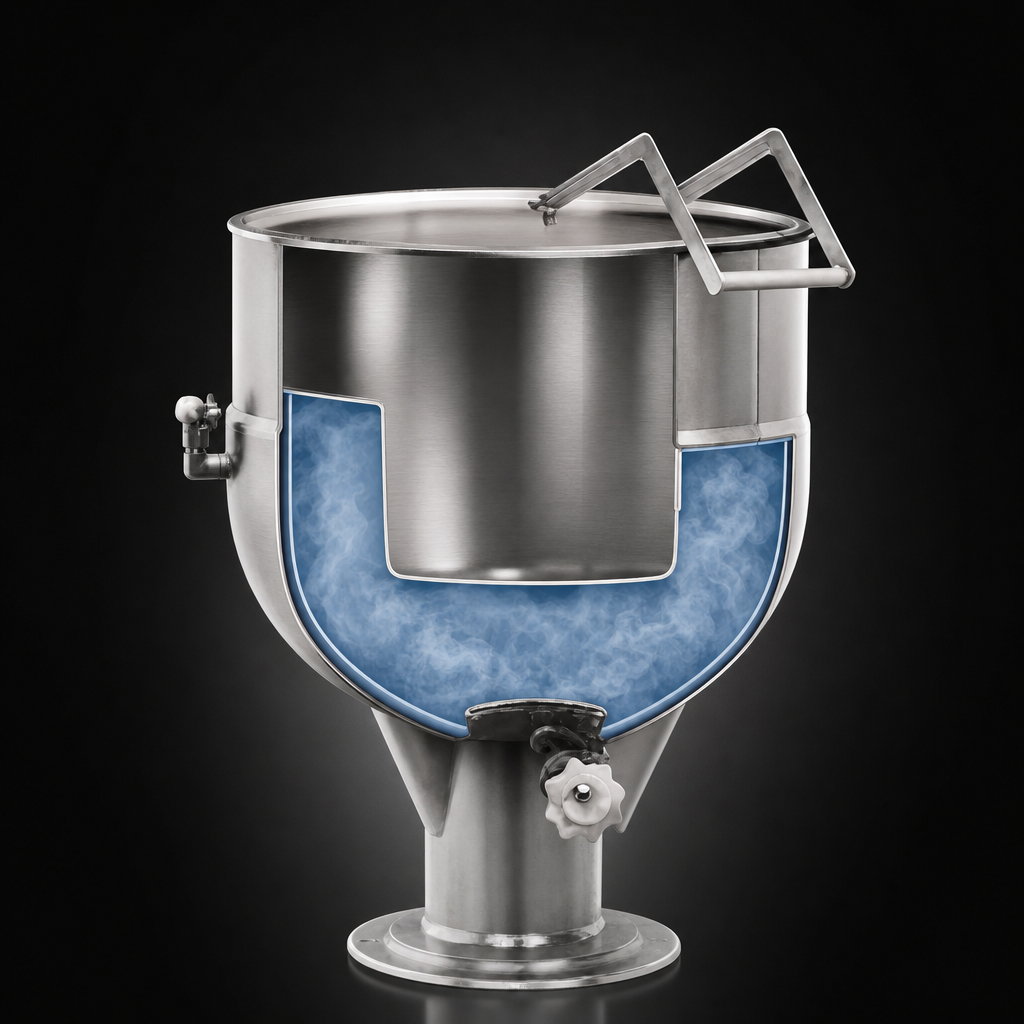

- 2/3 jacketed direct-steam heating for fast start-ups and uniform temperature distribution.

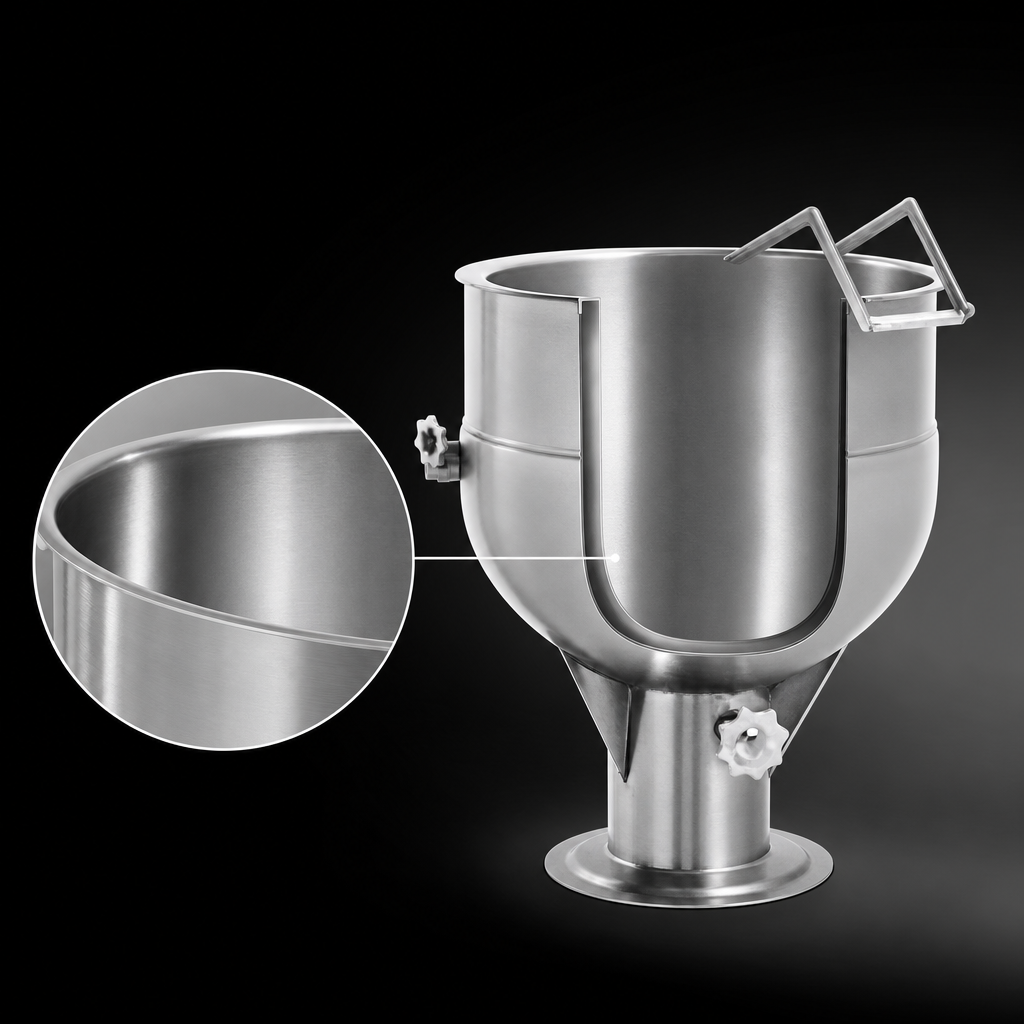

- Deep-drawn 304 stainless steel liner, jacket, pedestal tube and base resist corrosion and simplify sanitation.
- Factory-installed 2 in. compression draw-off valve with ¼ in. perforated strainer speeds portioning while keeping solids in the kettle.
- Spring-assist domed stainless steel cover stays in place at any angle for safer, easier loading and stirring.
- Rated 30 psi operating pressure for higher cooking temperatures and reduced cook times.
- ASME code-stamped and NSF listed; proudly manufactured in Waynesboro, Georgia, USA.
Typical applications
- Stocks, soups & chowders
- Bulk sauces, gravies & reductions
- Pasta, rice & grains
- Braising meats & vegetables
- Syrups or beverage bases
Specifications
| Model | LP-40 (Direct Steam, 2/3 Jacketed) |
|---|---|
| Capacity | 40 gal / 151 L |
| Operating Pressure | 30 psi (207 kPa) |
| Liner & Jacket Material | Seamless 304 & 304L stainless steel |
| Cover | One-piece, domed, spring-assist, 304 stainless steel |
| Draw-off Valve | 2 in. compression type with ¼ in. perforated strainer |
| Steam Connections | ¾ in. NPT inlet / ½ in. NPT condensate return |
| Mounting | Stationary pedestal base seam-welded to jacket |
| Diameter (A) | 25.5 in. (65 cm) |
| Bowl Depth (C) | 36.8 in. (94 cm) |
| Overall Height (J1) | 65.3 in. (166 cm) |
| Working Height (J2) | 54.8 in. (139 cm) |
| Floor Clearance to Valve (D) | 21.8 in. (55 cm) |
Dimensions are nominal and shown in inches unless noted. “H” dimension varies with draw-off size selection.
What’s included
- LP-40 kettle, factory hydro-tested and ASME code-stamped
- 2 in. compression draw-off valve & ¼ in. perforated disk strainer (installed)
- Stainless steel domed cover with handle & spring assist
- Installation & operation manual
- One-year limited parts & labor warranty
Why choose Legion?
Legion Industries has specialized in commercial steam equipment since 1957. Each kettle is fabricated, polished and pressure-tested in our Georgia facility, giving chefs the confidence of American-made quality and long-term reliability.
