Legion LP-30 Steam Kettles
Description

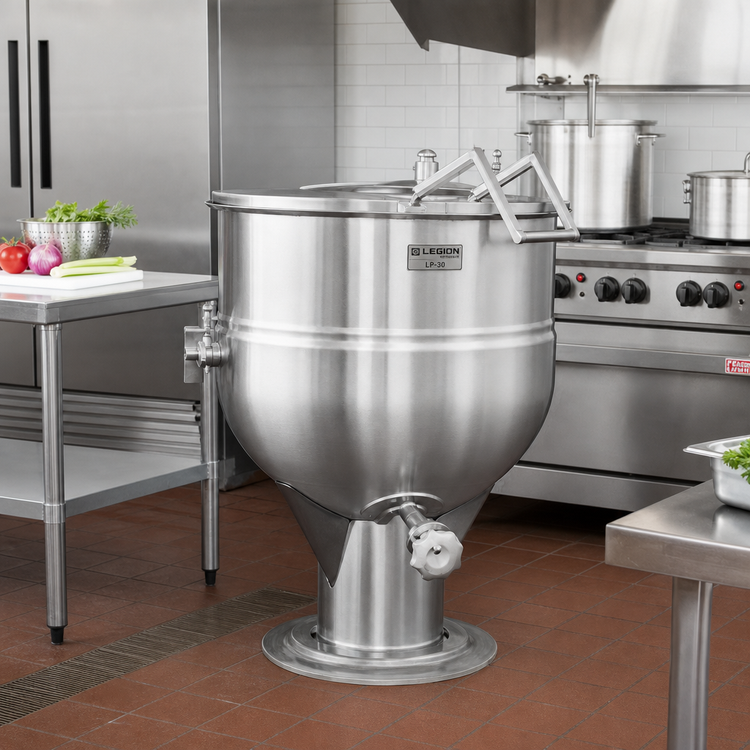

Legion LP-30 | 30-Gallon Stationary Direct Steam Kettle
2/3 Jacketed • Deep-Drawn 304 Stainless Steel • Pedestal MountedBuilt in the USA for demanding commercial kitchens, the Legion LP-30 pairs rugged 304 stainless-steel construction with efficient direct-steam heating. The result is rapid, uniform cooking in a compact footprint that stands up to years of heavy service.
Key Benefits & Features
- 30 gal (114 L) working capacity—ideal for soups, sauces, stocks & braising.
- Seamless deep-drawn 304 SS kettle liner eliminates crevices that can trap food soil.

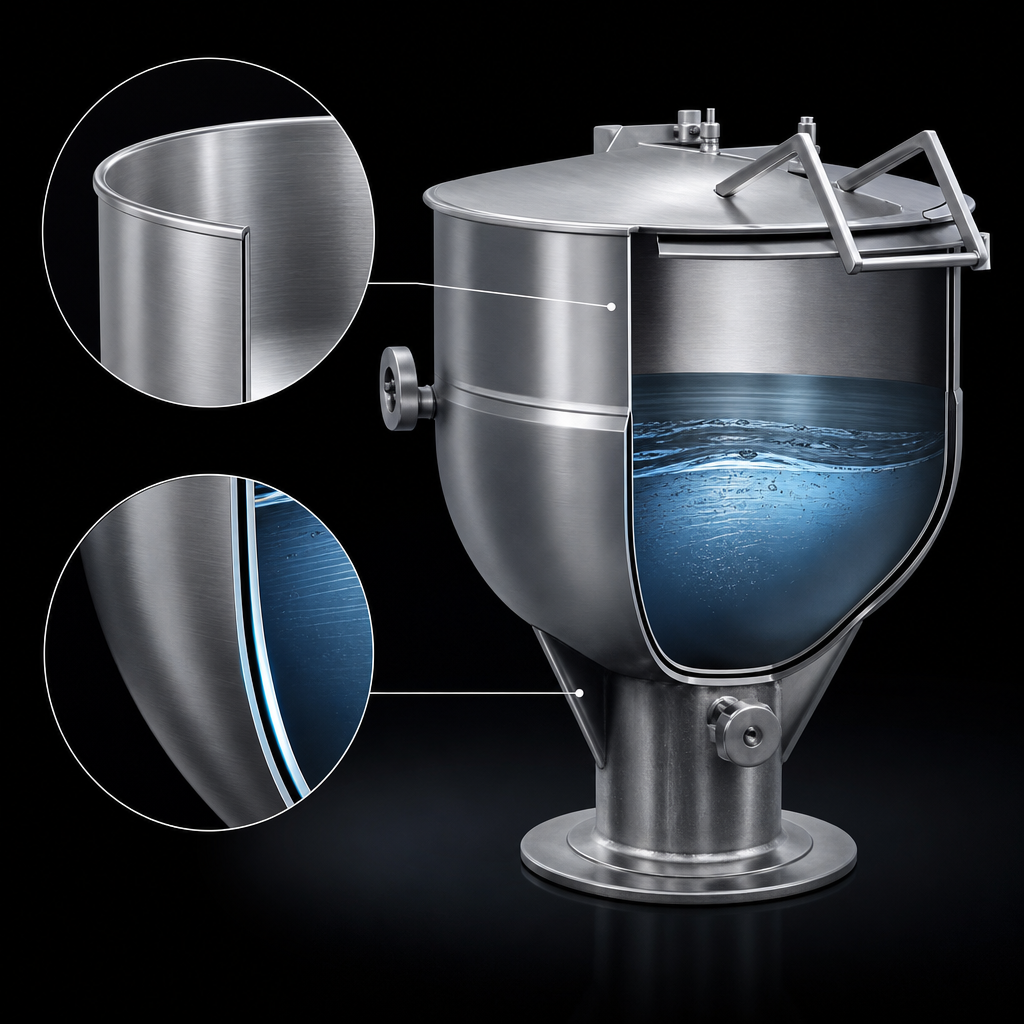

- 2/3 jacketed design surrounds product with even heat for faster recovery and reduced scorching.
- Factory-set 30 psi operating pressure delivers high BTU performance with direct steam.
- 304 SS pedestal tube seam-welded to jacket for rock-solid stability.

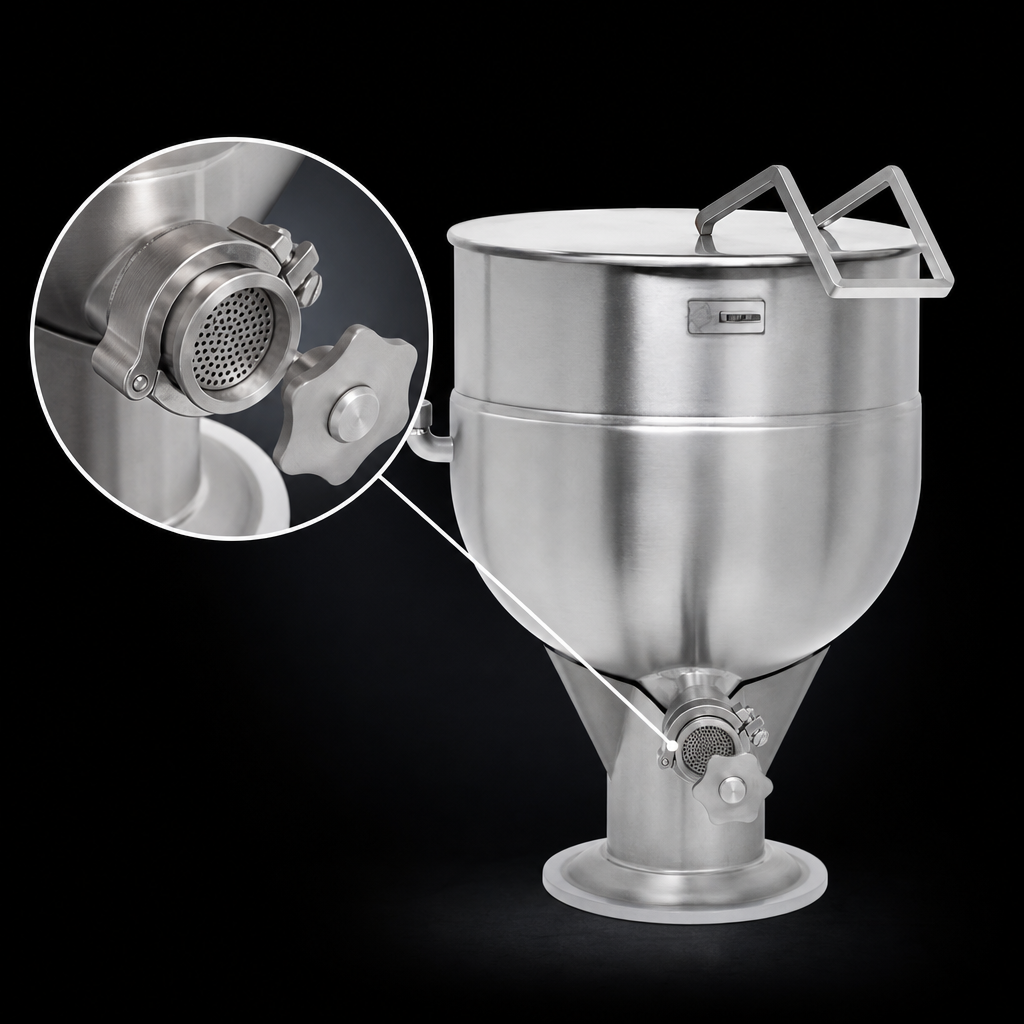

- 2" compression draw-off valve with removable perforated disk strainer (¼" holes) for effortless portioning & product clarity.
- One-piece domed stainless cover keeps heat & moisture where you need it.
- All-stainless exterior—liner, jacket, base, valve & welds—for maximum corrosion resistance and easy sanitation.
- ASME-code constructed & NSF listed for peace of mind and code compliance.
Technical Specifications
| Model | LP-30 (Stationary, Pedestal-Mounted) |
|---|---|
| Capacity | 30 gal / 114 L |
| Operating Pressure | 30 psi (2 bar) |
| Liner & Jacket Material | Seamless 304/304L stainless steel |
| Jacket Coverage | Two-thirds (2/3) of kettle body |
| Draw-Off Valve | 2" compression type with ¼" perforated disk strainer |
| Overall Height | J1 = 61.6" / 156 cm | J2 = 51.8" / 132 cm |
| Diameter | 23.0" (A) kettle body |
| Steam Connections | ¾" NPT inlet • ½" NPT condensate return |
| Manufacturing Origin | Waynesboro, GA USA |
What’s In The Box
- Legion LP-30 stationary kettle with pedestal base
- One-piece domed stainless-steel cover
- 2" compression draw-off valve assembled with ¼" perforated strainer disk
- Installation & operation manual
- 12-month parts & labor warranty (registration required)
Popular Accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray-rinse hose (vinyl or stainless)
- Tri-basket or single-basket inserts for pasta & vegetable cooking
- Lift-off, actuator-assisted, or 2-piece hinged covers
- Mixer/Agitator, 2-speed assembly
- Pressure-reducing valve & air eliminator for high-pressure steam lines
Legion kettles are ASME & NSF certified and ship with a 12-month parts & labor warranty. Extended coverage is available. Refer to the enclosed warranty sheet for full terms.
