Legion LP-20 Steam Kettles
Description

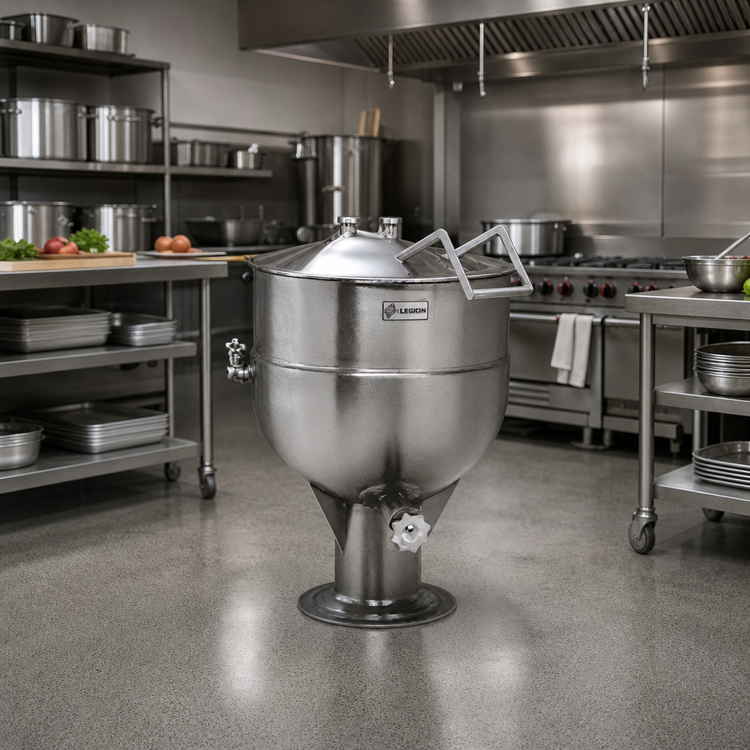

Legion LP-20 Stationary Direct-Steam Kettle – 20 Gal
2/3 Jacket • Seamless 304 Stainless Steel • Pedestal Mounted • 30 psiBuilt in Waynesboro, Georgia, the Legion LP-20 gives chefs a rock-solid, mid-volume workhorse for soups, sauces, stocks and stews. A full 20 gallons of capacity, fast heat-up from a 2/3 steam jacket and all-stainless construction make it a long-term performer in any commercial kitchen.
Key Features
- 20 gal / 76 L stationary kettle—ideal for restaurants, commissaries & schools

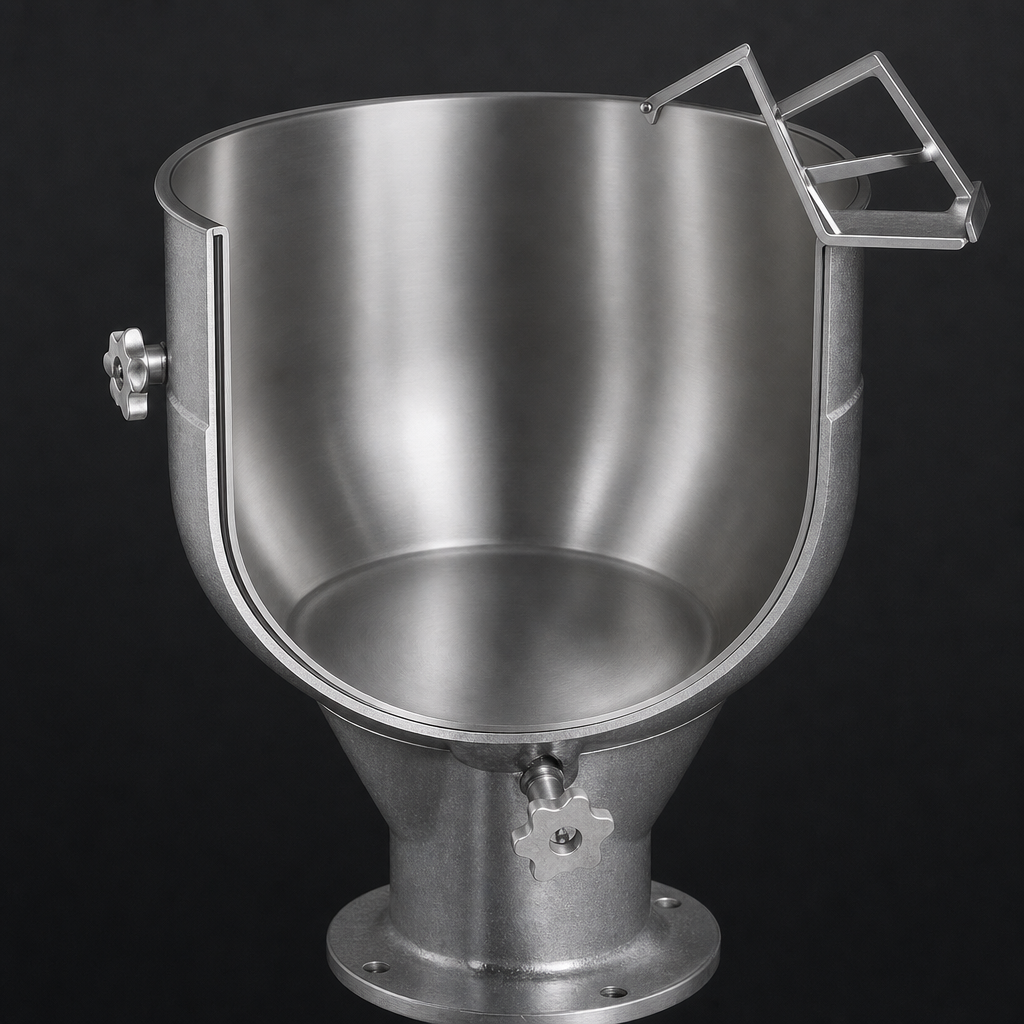

- Seamless deep-drawn 304 SS kettle liner for easy cleaning and lasting corrosion resistance

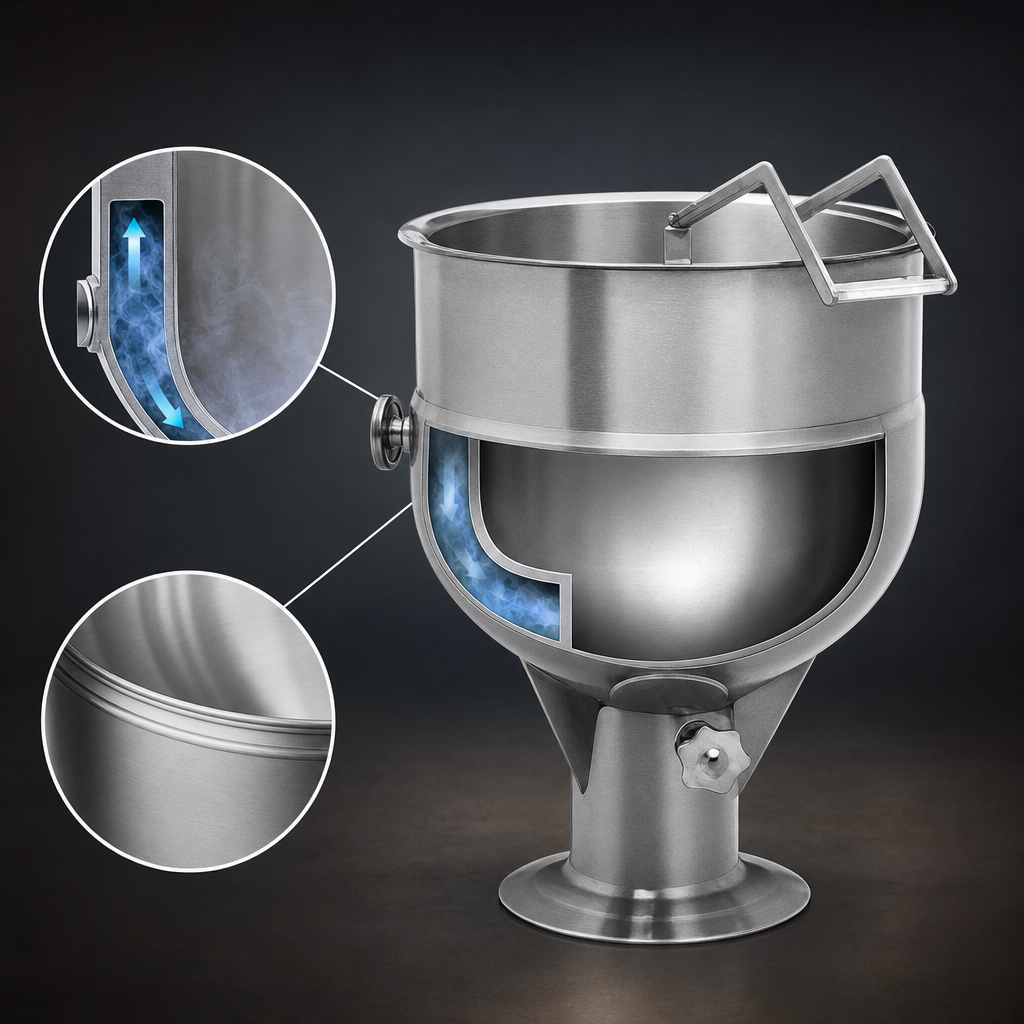

- 2/3 jacketed body accelerates heat transfer and reduces scorching
- Accepts direct steam up to 30 psi (205 kPa) for rapid heat-up and recovery
- 2" 304 SS compression draw-off valve with removable perforated 1/4" disk strainer—perfect for clear broths or particulate products
- One-piece 304 SS domed cover (manual lift) traps heat and minimizes energy loss
- Heavy-duty pedestal tube seam-welded to jacket for outstanding stability
- Made in the USA and built to comply with NSF, ASME and other applicable standards
Specifications
| Model | LP-20 |
|---|---|
| Capacity | 20 U.S. gal (76 L) |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 30 psi max. |
| Inner Liner | Seamless deep-drawn 304 stainless steel |
| Jacket | 304L stainless steel, deep-drawn |
| Draw-off Valve | 2" 304 SS compression type |
| Strainer | Perforated disk, 1/4" holes (removable) |
| Steam Inlet | 3/4" NPT |
| Condensate Return | 1/2" NPT |
| Overall Height | 56.0" (142 cm) – rim to floor |
| Rim Diameter | 22.0" (56 cm) |
| Finish | Satin-polished stainless steel |
| Origin | Waynesboro, GA USA |
Popular Options & Accessories
- Single or dual fill faucet with 12" / 18" swing nozzle & mounting bracket
- 48" flexible spray hose assembly (vinyl or stainless)
- 1-piece actuator-assisted cover (20 – 30 gal)
- Tri-basket or single basket inserts
- Perforated disk strainer – 1/8" holes
- Pressure-reducing valve or higher pressure rating
- Draw-off drain hose, kettle care kit & measuring strip
Standard Legion warranty: 12 months parts & labor from installation (15 months from ship date). See full warranty statement for details and exclusions.
