Legion LP-100 Steam Kettles
Description

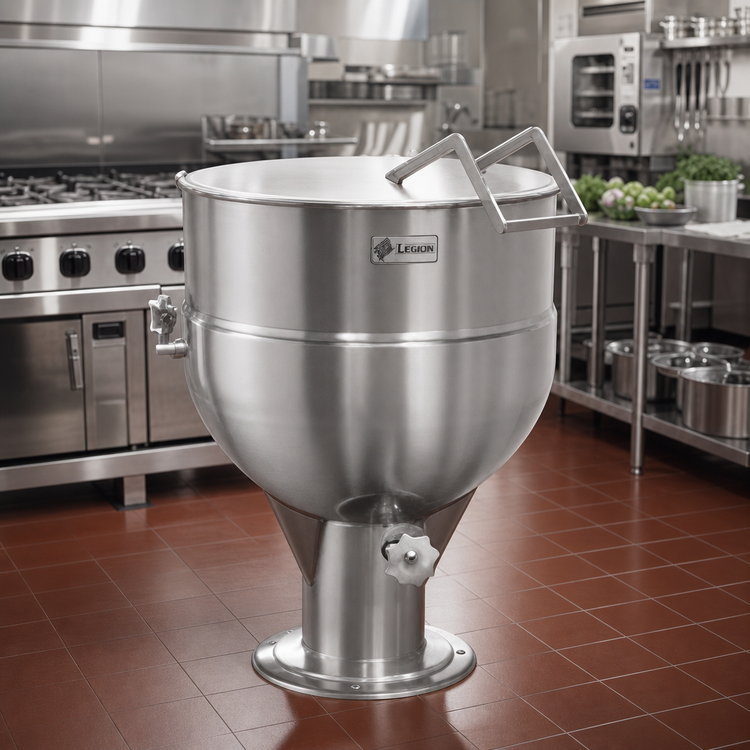

Legion LP-100 | 100-Gallon Stationary Direct Steam Kettle
Deep-drawn 2/3-jacketed, pedestal-mounted workhorse – Made in the USAEngineered for the rigors of high-volume production, the LP-100 combines a seamless 304 stainless steel liner, powerful direct-steam heating and an operator-friendly actuator-assisted cover. From scratch stocks to small-batch sauces, this 100-gallon kettle delivers fast, even heat transfer and decades of worry-free performance.
Why Your Kitchen Will Love It

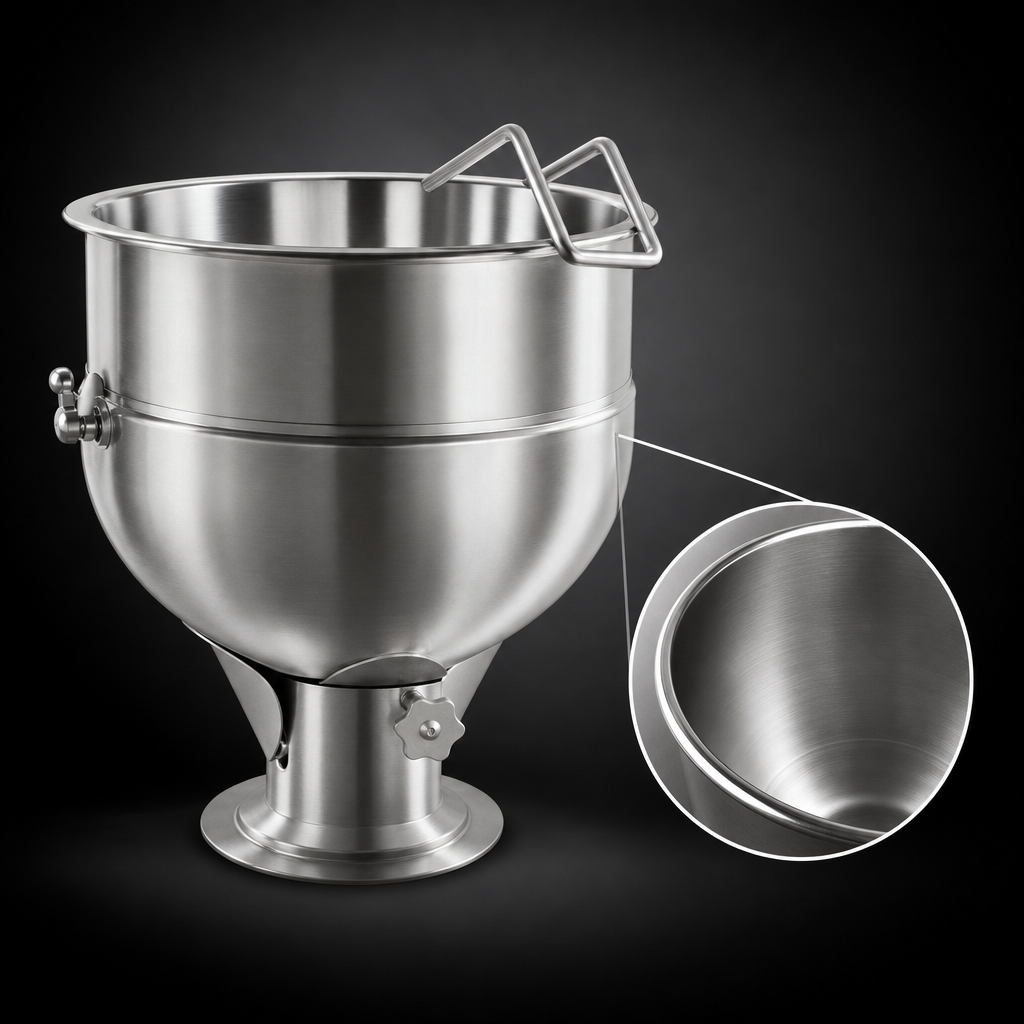

- Seamless deep-drawn 304 stainless steel liner eliminates interior weld seams and simplifies cleaning.

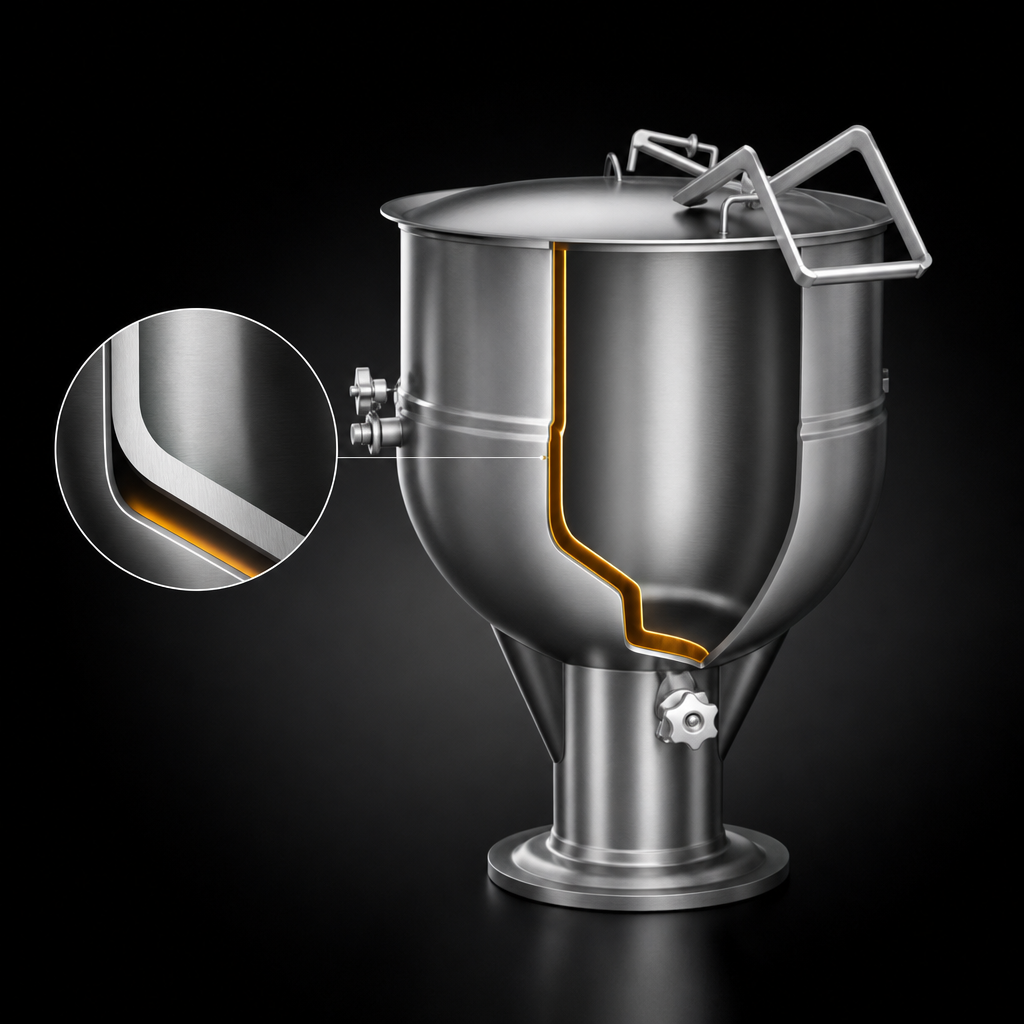

- 2/3 jacketed design maximizes heat surface area for rapid heat-up and recovery.
- Robust 304L stainless jacket is ASME rated for 30 psi operating pressure (higher pressures optional).
- One-piece domed cover with gas-assist actuator lets staff open or close the lid effortlessly—even when hot.
- 2" 304 stainless compression draw-off valve with ¼" perforated disk strainer handles chunky soups & stocks without clogging.
- Heavy-duty pedestal base (304 stainless) keeps the vessel rock-solid while freeing up floor space beneath.
- Made in the USA and built to meet or exceed NSF, ASME and other governing agency standards.
Batch Capacity Guide*
- Soup or Stock: up to 1,600 eight-ounce servings
- Sauce or Gravy: approximately 1,250 six-ounce portions
- Pasta or Blanched Veg: 75–90 lbs per load
*Approximate yields; actual capacity varies with product density and fill level.
Technical Specs
| Model / Capacity | LP-100 | 100 gal · 379 L |
|---|---|
| Liner | Seamless 304 stainless steel, #4 satin finish |
| Jacket | 304L stainless, 2/3 coverage, direct steam |
| Operating Pressure | 30 psi (ASME) |
| Steam Inlet / Return | 1" NPT / ¾" NPT |
| Draw-off Valve | 2" 304 SS compression type · ¼" perforated strainer disk |
| Cover | One-piece domed stainless lid, actuator-assisted |
| Overall Height (lid closed / open) | 65.6" / 82.7" |
| Bowl Diameter (A) | 39" |
| Bowl Depth (C) | 40.7" |
| Center of Draw-off (N) | 16.1" above finished floor |
| Construction | Pedestal tube & base – 304 stainless, seam-welded to jacket |
| Agency Approvals | NSF, ASME Section VIII |
| Warranty | 12 months from installation / 15 months from ship date – parts & labor |
Popular Add-Ons (Sold Separately)
- Single or dual fill faucets with 12" or 18" swing nozzles
- 48" flexible spray rinse hose (stainless or vinyl)
- Two-speed mixer/agitator assembly
- Lockable security lid & reinforced bar rim packages
- Perforated disk strainers – ⅛" hole pattern
Specifications subject to change without notice as part of Legion’s continuous product improvement program. Please consult factory for custom pressures, alternative draw-off styles, or additional accessories.
