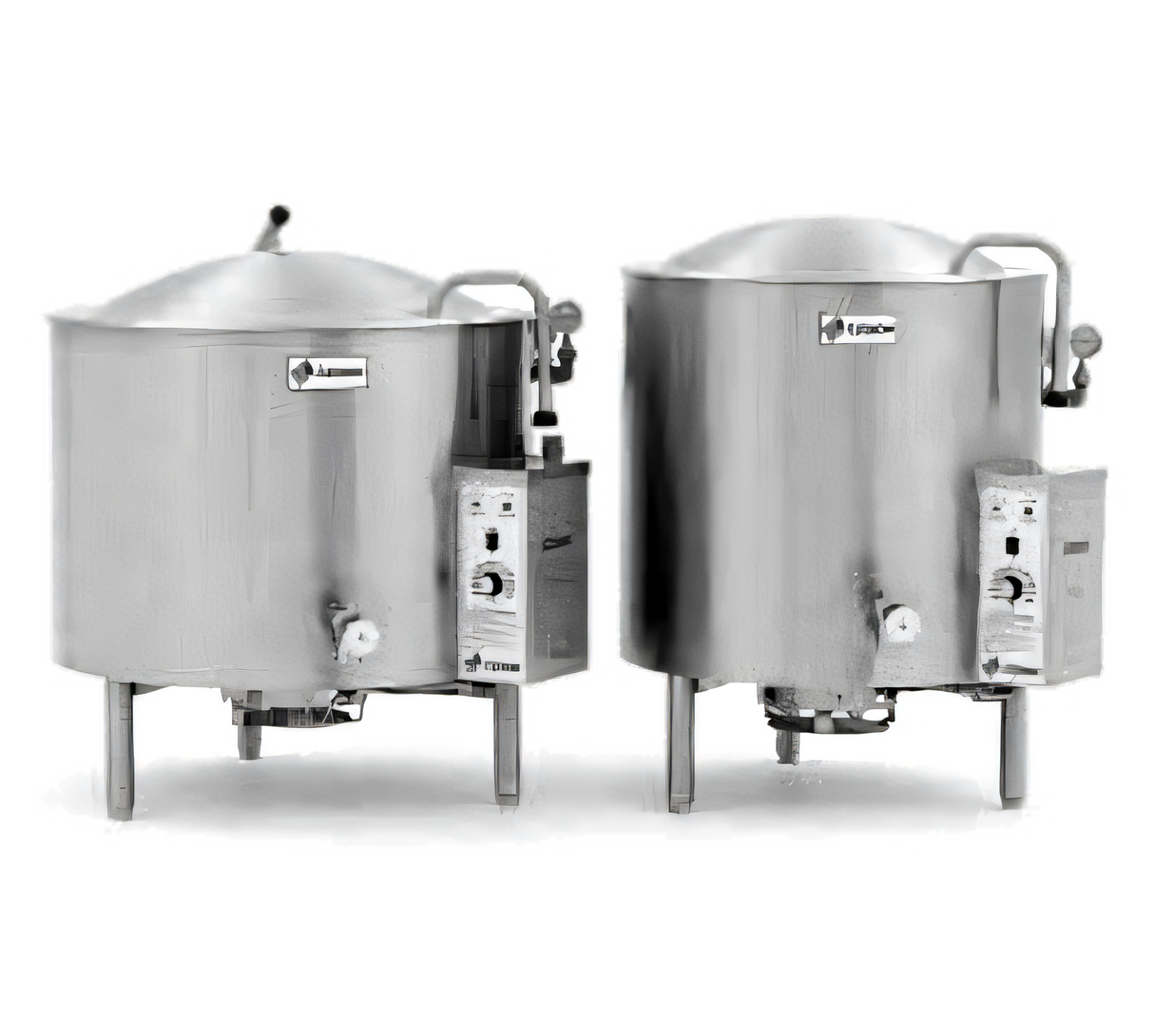

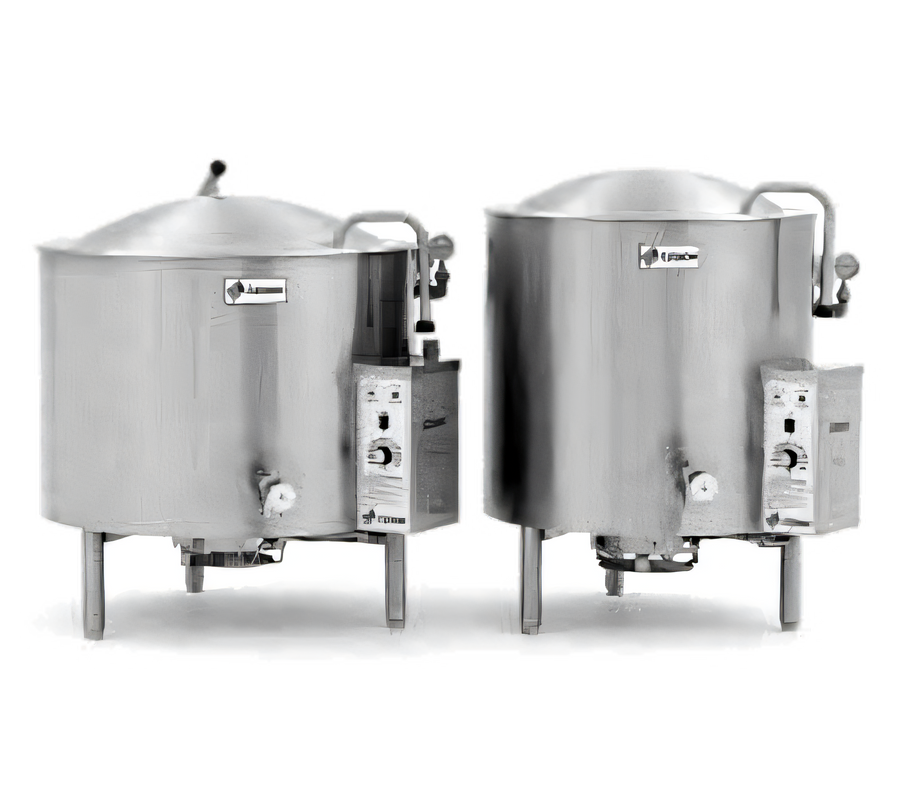

Legion LOW-RIM™ 80-Gallon Gas Stationary Kettle with Mixer
Model LGB-80F-MV | Self-Contained • Full Jacket • 154,836 BTU (nat. gas)Built in Waynesboro, GA, the Legion 80-gallon LOW-RIM™ kettle combines heavy-duty gas heating, full-body insulation and a factory-installed twin-shaft mixer to give high-volume kitchens unmatched performance in one compact, floor-mounted unit.
Key features & benefits
- Seamless deep-drawn 304 stainless steel liner with sanitary radius lip.
- 304L stainless steel jacket rated 50 psi for rapid, even heat transfer.
- Self-contained burner delivers ≈155,000 BTU (natural) or 149,200 BTU (LP).
- Precise thermostat control from 150 °F – 260 °F (65 °C – 127 °C).
- Electronic ignition & safety pilot—quick, reliable start-up.
- Full-body insulation keeps exterior surfaces cool and cuts energy loss.
- 2" stainless compression draw-off valve plus ¼" perforated disc strainer.
- One-piece, actuator-assisted domed cover—easy to raise even when hot.
- Adjustable bullet feet level the kettle on uneven floors.
- All exterior surfaces, legs & control console are heavy-gauge stainless steel.
Integrated twin-shaft mixer
- Totally enclosed gear motor with two fixed speeds (≈23 RPM & 46 RPM main agitator).
- 304 stainless anchor-style agitator hugs the kettle wall for full-surface blending.
- Removable nylon scraper blades wipe the entire cooking surface clean.
- Counter-rotating stainless beater (≈60 RPM & 120 RPM) improves circulation.
- Bayonet-mounted shafts remove in seconds for cleaning or non-mixing operation.
- Actuator-assisted bridge lift and positive rim-lock for safe, one-person handling.
- Safety interlock prevents high-speed starts when mixer is not fully engaged.
Safety & protection system
- Pressure relief & air-eliminator valves
- Low-water cut-off with indicator light
- Jacket-water fill port with sight glass
- Front-mounted pressure gauge for at-a-glance monitoring
Technical specifications
| Capacity | 80 gal / 303 L |
|---|---|
| Heat source | Natural gas (154,800 BTU /hr) | Propane (149,200 BTU /hr) |
| Gas connection | ¾" NPT | 5–7" W.C. supply pressure (natural) |
| Electrical | 120 V, 1 ph, 1 A (electronic ignition & controls) |
| Mixer motor | 2 HP, two-speed gear drive |
| Operating temperature | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-off valve | 2" stainless steel compression type |
| Overall length (F) | 50.6" / 1286 mm |
| Overall width (J) | 88.5" / 2248 mm |
| Height to rim (D) | 32.6" / 828 mm |
| Construction | All stainless steel; seam-welded outer casing & console |
| Origin | Made in the USA (Waynesboro, GA) |
Dimensions from Legion drawing revision 113 with 2" draw-off valve.
Perfect for
- Soups, sauces & gravies
- Chili, stew & braised meats
- Pasta, rice & grains
- Puddings, custards & pie fillings
- Sugar syrups & confectionery
Ask us about Legion kettles ranging from 15 – 100 gallons, electric or steam models, and a full menu of accessories.
Legion equipment complies with ASME, NSF, UL, ETL, AGA, CSA & CGA standards.
One-year parts & labor warranty included; extended coverage available.
