Legion LGB-80F Steam Kettles
Description

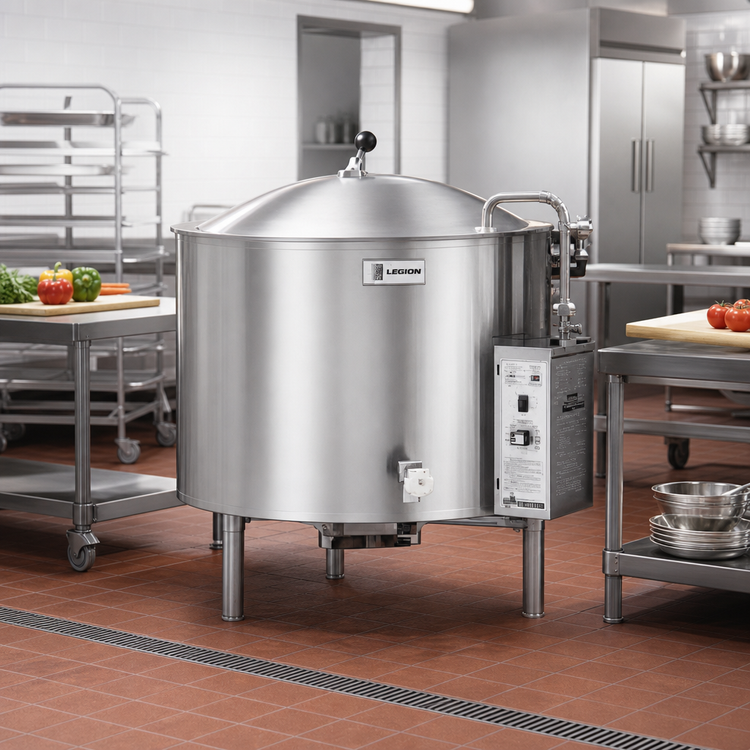

Legion Low-Rim™ 80-Gallon Gas Stationary Kettle – Model LGB-80F
Full-jacketed • Self-contained • Insulated for Safety™Built for the busiest institutional and commercial kitchens, the LGB-80F delivers exceptional batch-cooking performance with industry-leading safety features and legendary Legion durability.
Key Features
- Massive 80 gal / 303 L capacity for soups, sauces, stocks, pasta and more.

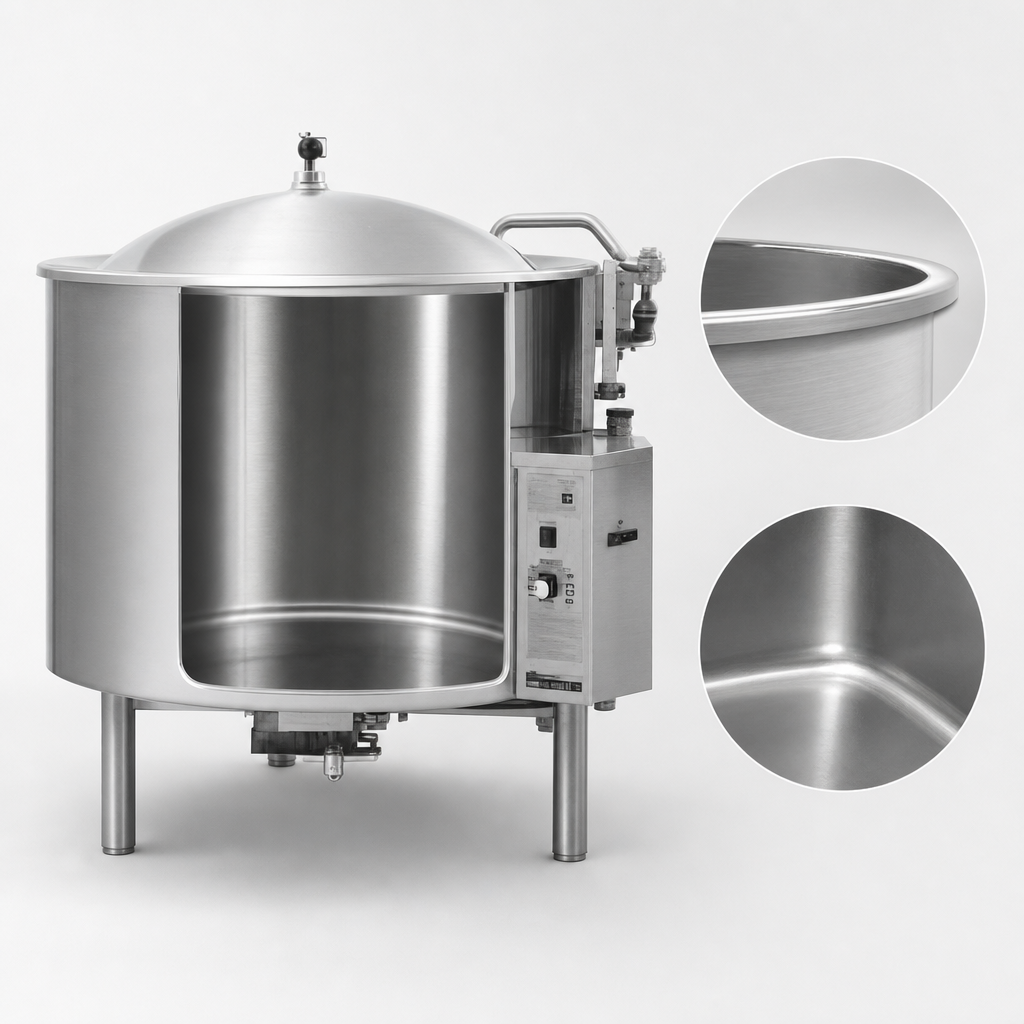

- Seamless deep-drawn 304 stainless-steel liner with integrally formed radius lip for fast, sanitary clean-up.
- Full 304L stainless jacket (50 psi) surrounds the kettle for uniform, scorch-free heat.
- Thermostat temperature control from 150 °F – 260 °F (65 °C – 127 °C) for precise simmer-to-boil cooking.
- High-output 154,800 BTU natural-gas burner with 120 V electronic ignition—no standing pilot.
- Comprehensive protection system:
- Pressure relief valve & gauge
- Air eliminator valve
- Jacket-water fill port with sight glass
- Automatic low-water cutoff with indicator light
- Safety pilot control
- 2″ 304-SS compression draw-off valve for rapid, drip-free portioning.
- Actuator-assisted one-piece domed cover keeps condensation contained while reducing operator effort.

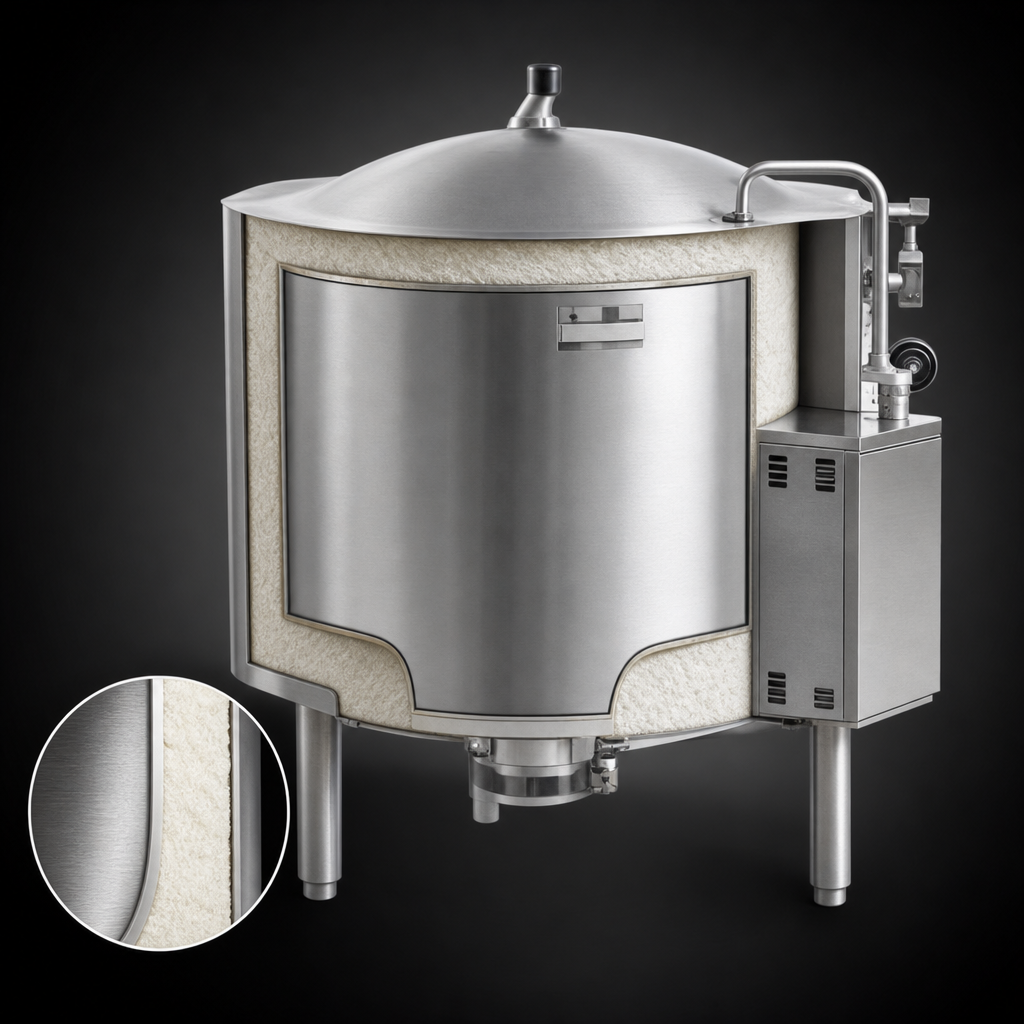

- Full-body mineral-fiber insulation keeps exterior surfaces cool and improves energy efficiency.
- Rugged stainless outer casing, four stainless legs, and seam-welded control console—made in the USA.
- Adjustable bullet feet for easy leveling on uneven floors.
- NSF & ASME compliant construction.
Why Low-Rim™?
The exclusive Low-Rim™ profile lowers the kettle rim, giving staff safer, more ergonomic access for stirring, tasting and cleaning—no step stools required.
At-a-Glance Specifications
| Model | LGB-80F |
|---|---|
| Capacity | 80 gal / 303 L |
| Construction | 304 SS liner, 304L SS full jacket & outer casing |
| Heating Source | Natural gas, 154,800 BTU (Propane: 149,200 BTU) |
| Ignition | 120 V electronic spark |
| Temperature Range | 150 °F – 260 °F (thermostat) |
| Draw-off Valve | 2″ compression, 304 SS |
| Overall Dimensions* | W 50.6″ × D 39.5″ × H (rim) 39.0″ |
| Gas Connection | ¾″ NPT (natural or propane) |
| Electrical | 120 V, 1 ph, 50/60 Hz, 1 A |
*Nominal dimensions; consult the official spec sheet for detailed installation data.
What’s Included
- Perforated ¼″ disc strainer
- Adjustable bullet feet (factory installed)
- Operator’s manual & 12-month parts-and-labor warranty
Upgrade your high-volume kitchen with the Legion 80-Gallon Low-Rim™ Gas Kettle—where capacity, consistency and safety come together in one powerful cooking solution.
