Legion LGB-80 Steam Kettles

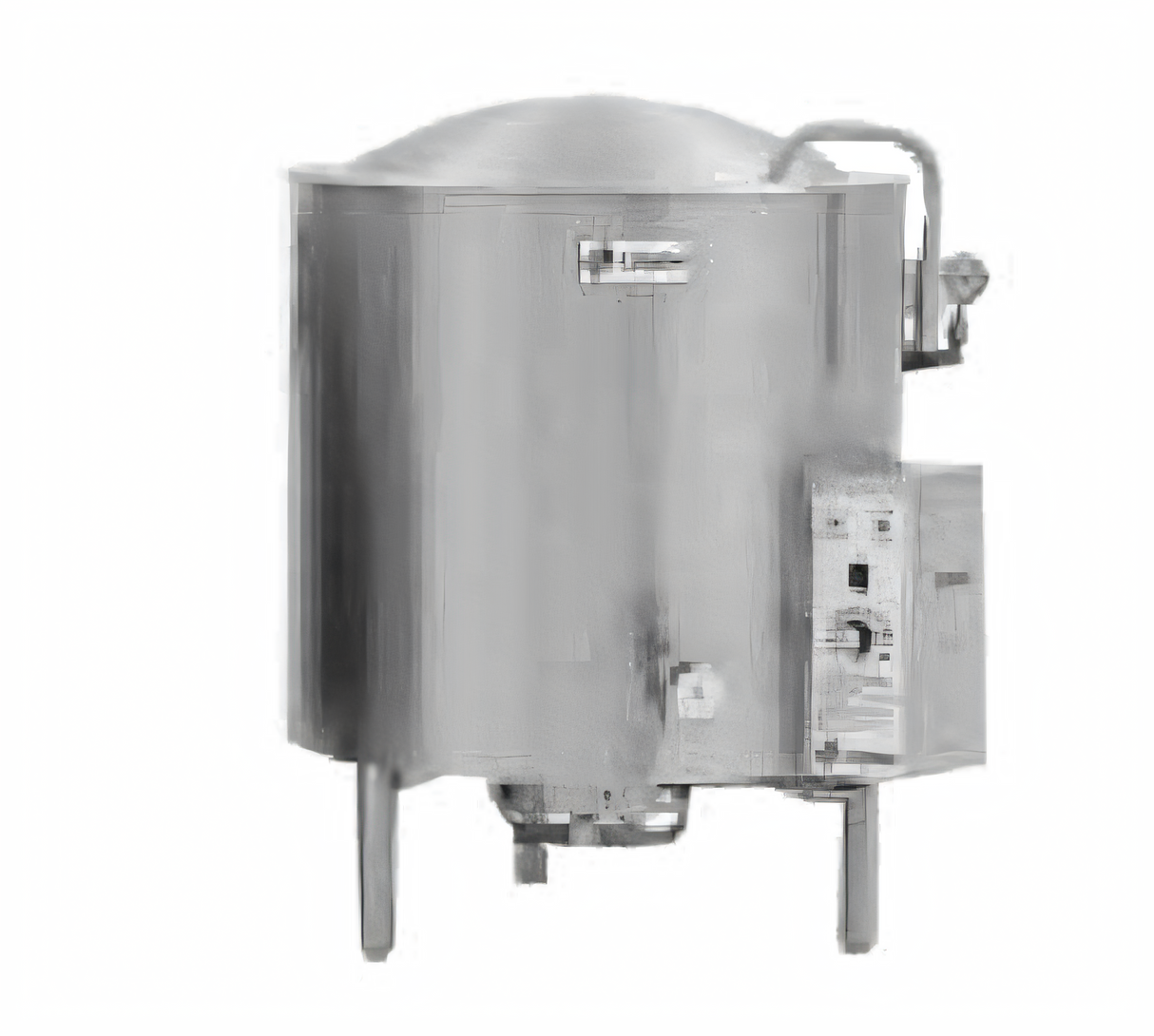

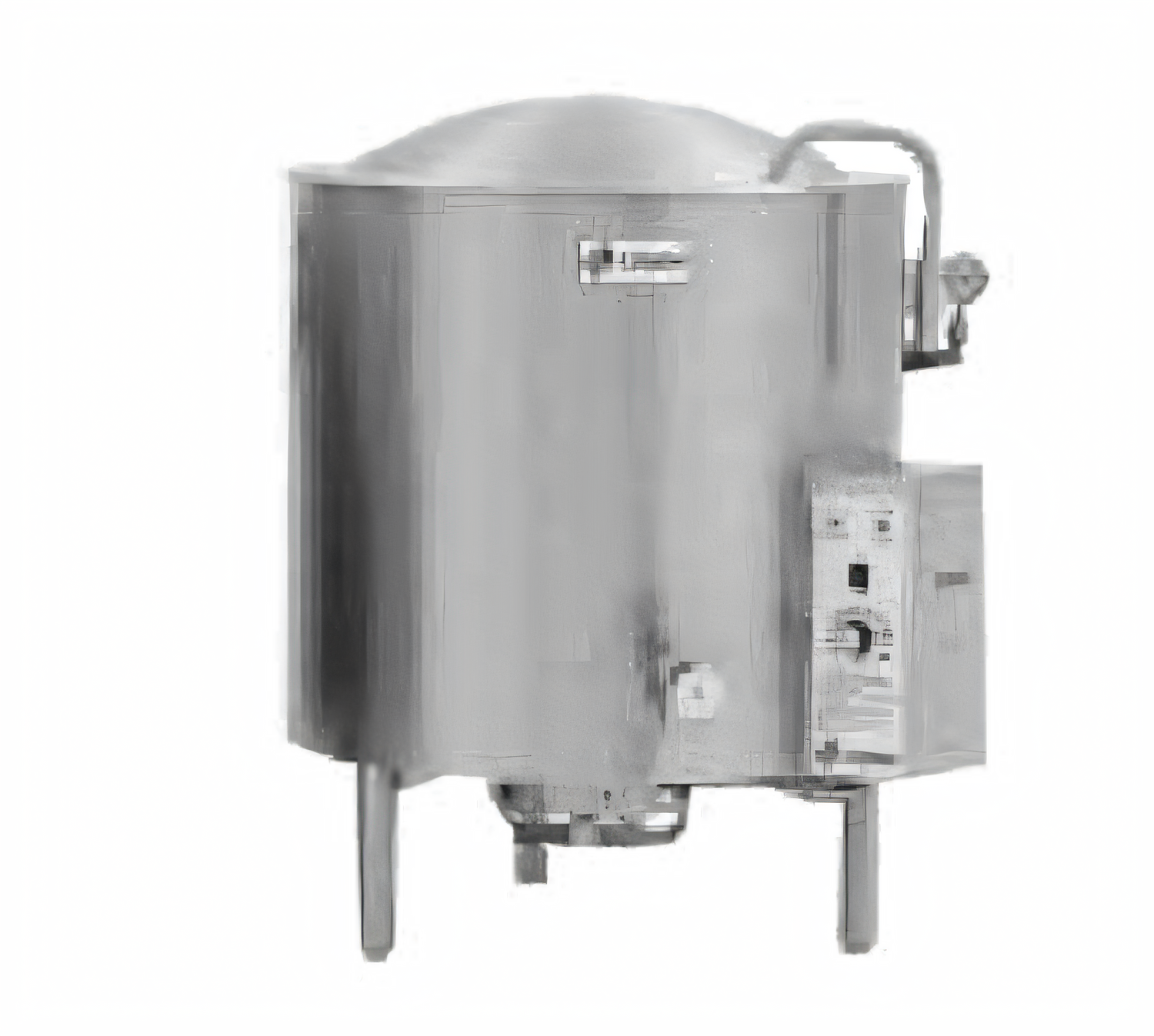

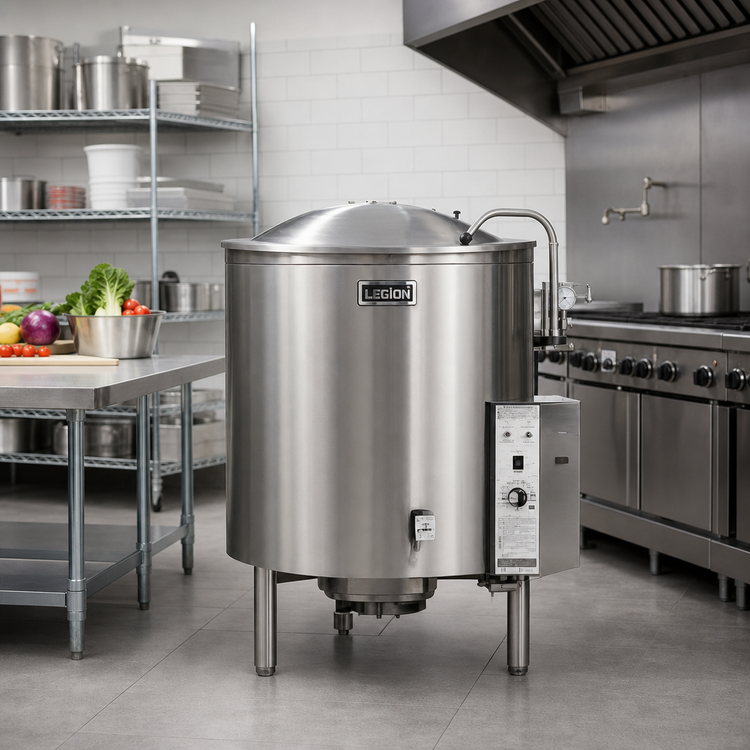

Legion LGB-80 Insulated Self-Contained Gas Kettle – 80 Gal.

Engineered for demanding commercial kitchens, the Legion LGB-80 delivers high-capacity cooking, fast heat-up and rock-solid safety features in a fully insulated, all-stainless package.

Key Features

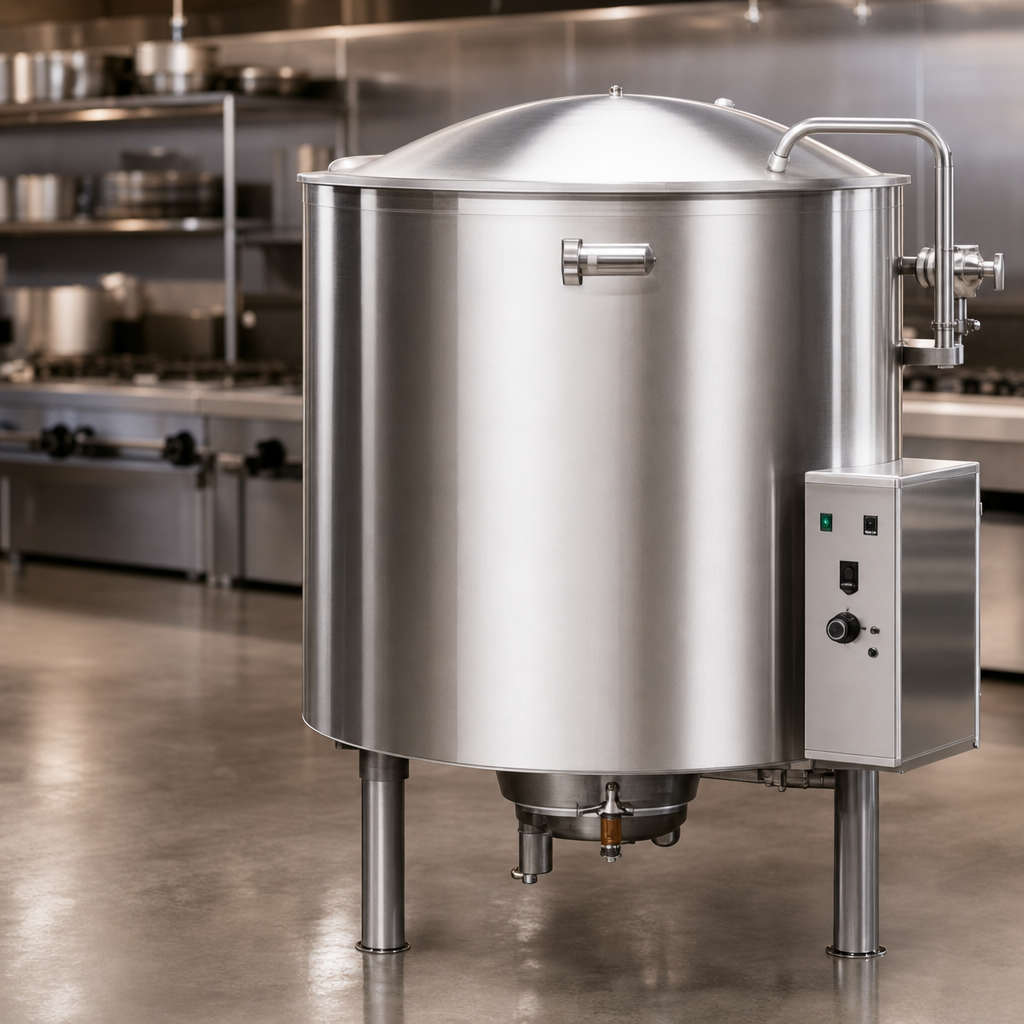

• 80 gallon (303 L) working capacity – ideal for stocks, sauces & soups.
• Gas-fired 2/3 jacket with 131,400 BTU burner (Natural) / 131,100 BTU (Propane) for even, efficient heating.
• Seamless deep-drawn 304 stainless liner with integrally formed radius lip for quick, sanitary clean-up.

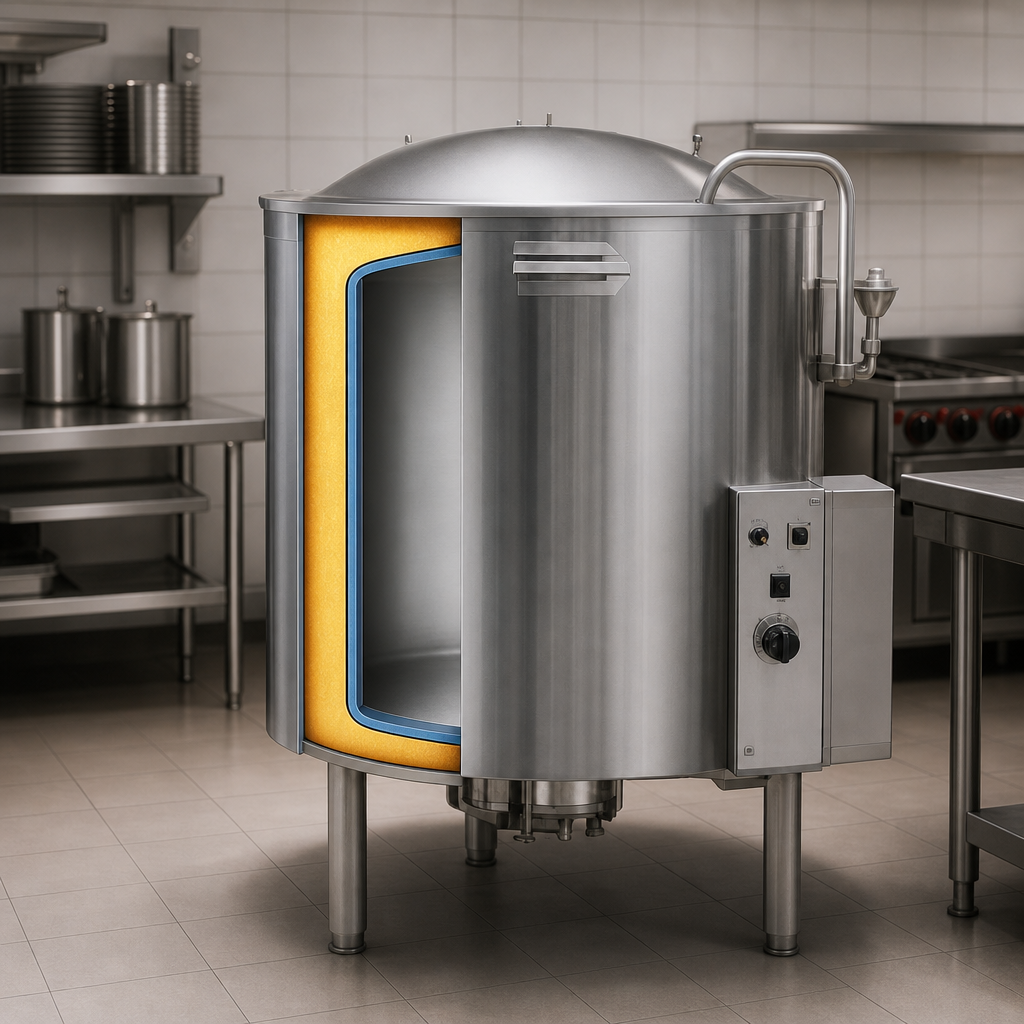

• Full body Insulated for Safety™ design keeps exterior surfaces cooler and saves energy.
• Actuator-assisted, one-piece domed cover minimizes operator effort and retains heat.
• 2" 304 stainless compression draw-off valve with matching tube & welds for fast product transfer.
• Electronic spark ignition (120 V standard) with safety pilot and automatic low-water cut-off.
• Adjustable thermostat 150 °F – 260 °F for precise, repeatable results.
• Comprehensive protection system: pressure relief valve, air eliminator, pressure gauge, jacket-water sight glass.
• All-stainless exterior, four welded legs with adjustable bullet feet, and seam-welded control console.
• Meets or exceeds ASME, NSF, CSA and other applicable standards.

Specifications

*See spec drawing for reference points.

Popular Options & Accessories

• Single or dual fill faucets (12" or 18" swing nozzle)
• 48" flexible spray hose (vinyl or stainless)
• Automatic water-filling meter
• Electric timer with buzzer
• Mixer/agitator, 2-speed
• Gas quick disconnect & flexible gas hose
• Tri-basket or single basket inserts, nylon bag inserts & disc strainers
• Lockable covers & security fasteners

Why Legion?

• Over 70 years of American manufacturing expertise.
• Industry-leading safety and sanitation features.
• Responsive technical support and nationwide parts availability.

Standard warranty: 12 months from installation (15 months from ship date). Extended coverage available.
