Legion LGB-60F Steam Kettles
Description

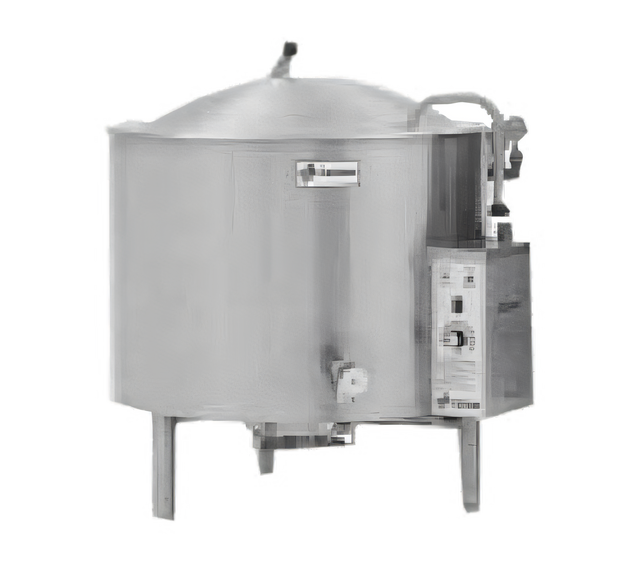

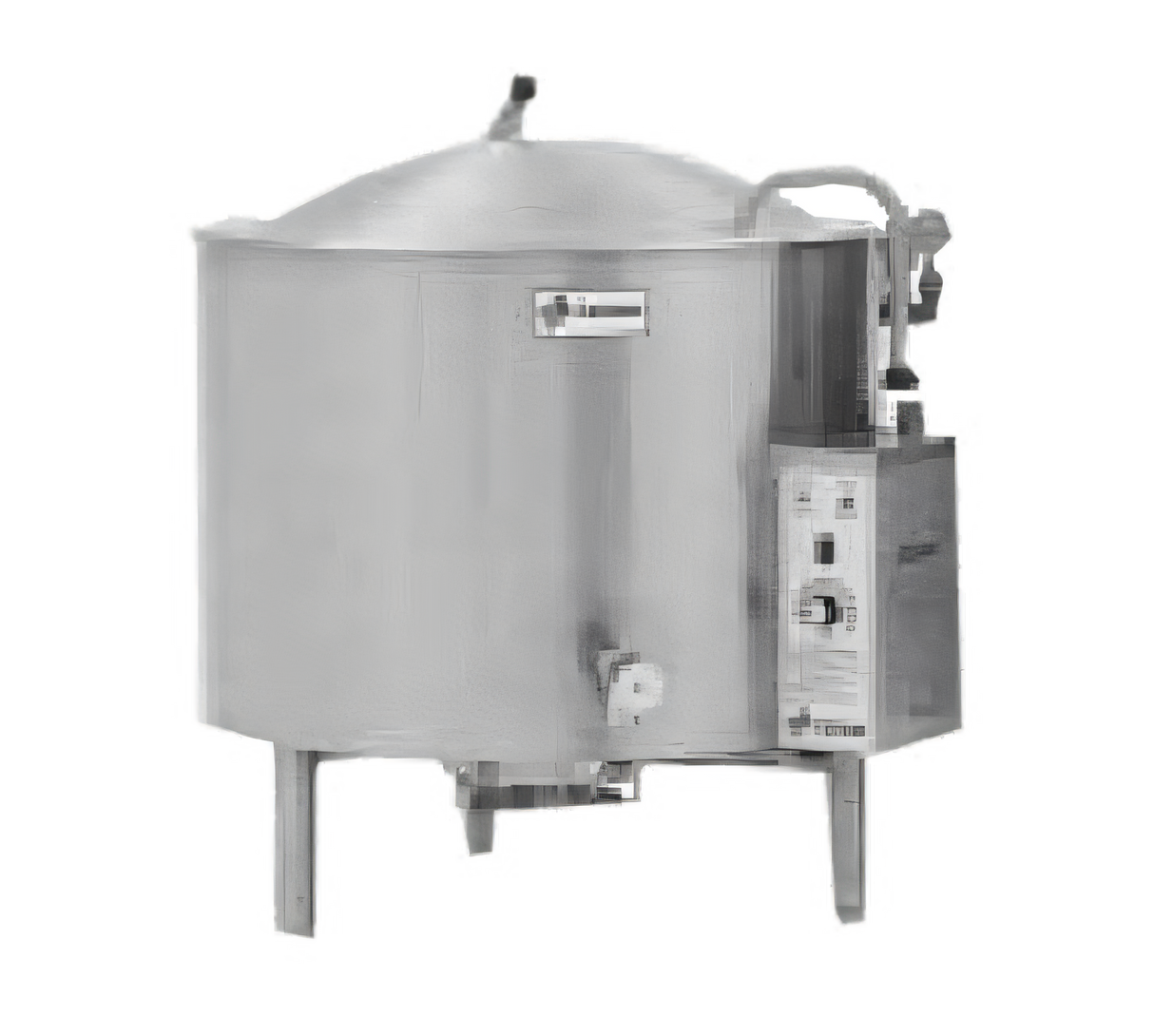

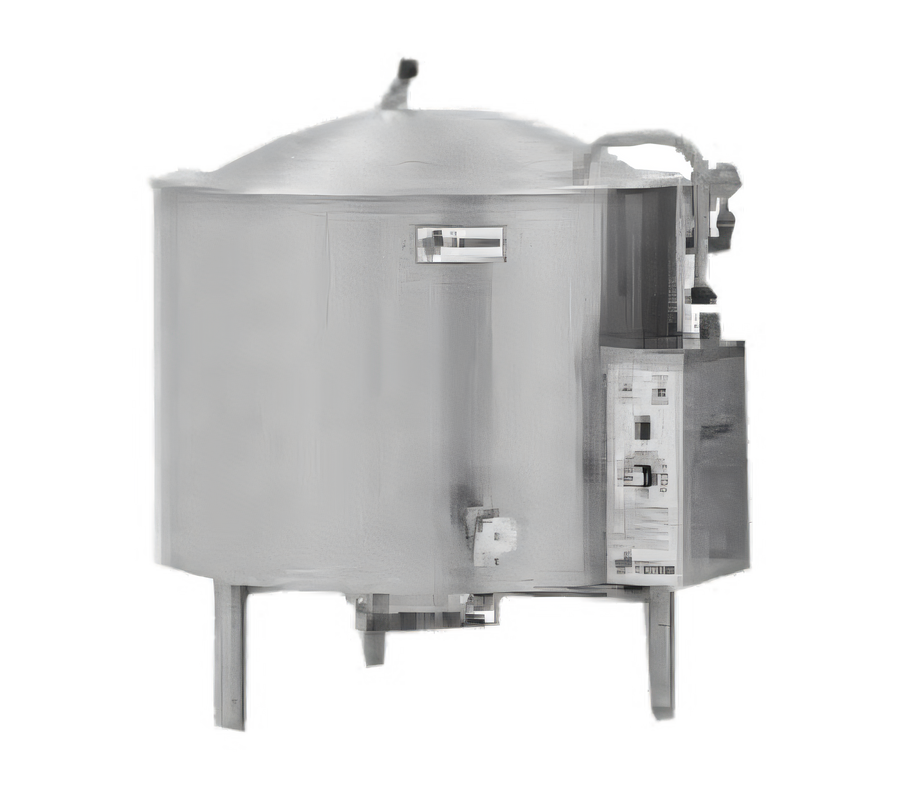

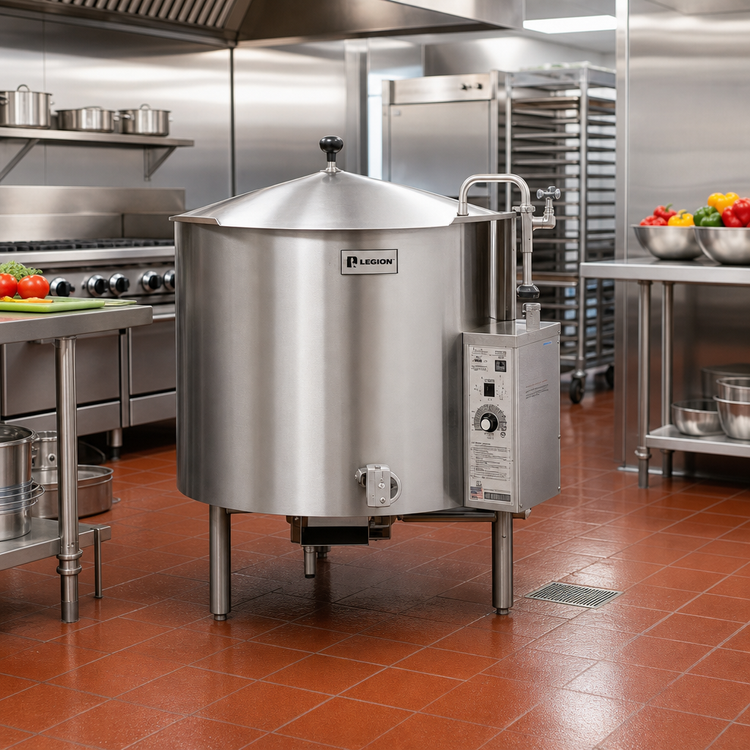

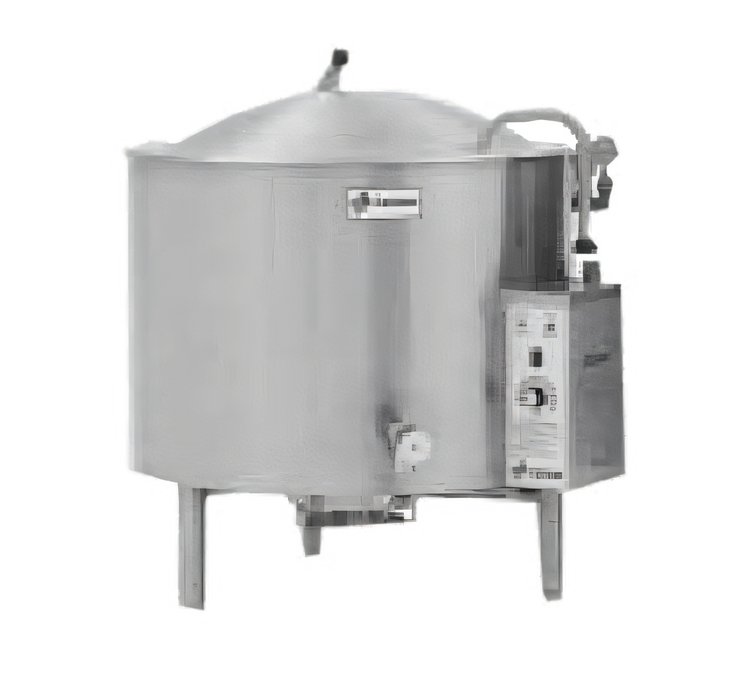

Legion LGB-60F Low-Rim™ 60-Gallon Gas Stationary Kettle
Insulated • Self-Contained • Full Jacketed • Made in USABuilt for demanding commercial kitchens, the LGB-60F delivers 60 gallons of consistent, energy-efficient cooking power in a safe, low-profile design. From soups and sauces to stews and stocks, this steam-jacketed kettle keeps every batch uniform, flavorful and easy to handle.
Why Operators Choose Legion

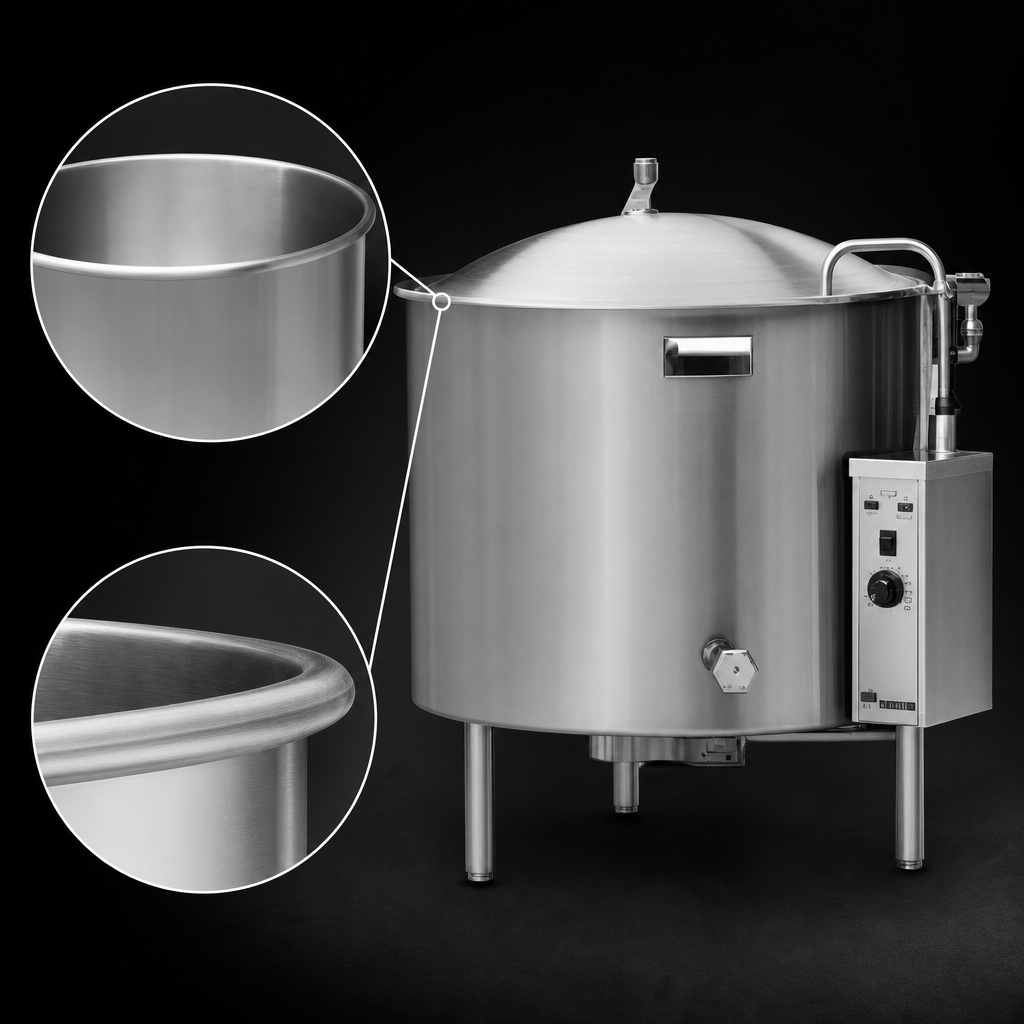

- Seamless deep-drawn 304 stainless steel kettle liner with hygienic radius lip for effortless cleanup.

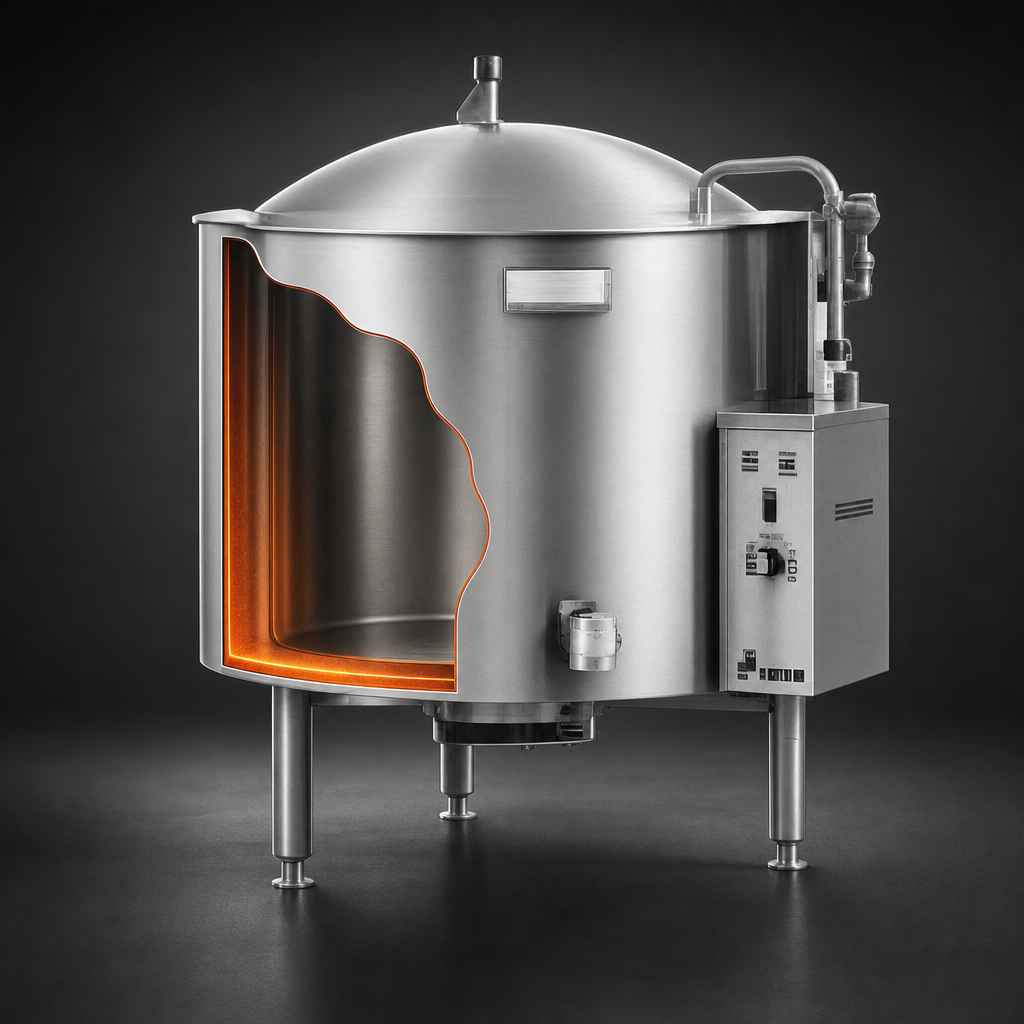

- Full 304L stainless steam jacket surrounded by Insulated for Safety™ full-body insulation—more heat in the food, less in the room.
- High-performance 131,400 BTU burner (natural gas) with electronic spark ignition eliminates pilot relighting.
- Thermostatic control from 150 °F–260 °F automatically maintains set temperature.
- One-piece actuator-assisted domed cover reduces operator strain and seals in heat and moisture.
- 2" 304 SS compression draw-off valve with perforated ¼" disc strainer for quick, clog-free product transfer.
- Comprehensive safety suite: pressure relief valve, air eliminator, pressure gauge, low-water cut-off & indicator light, and safety pilot control.
- Low-Rim™ height and adjustable bullet feet create an ergonomic working angle for loading, stirring and emptying.
- All-stainless exterior, legs and welded control console stand up to years of heavy use and daily wash-downs.
- Manufactured and factory tested in the USA to ASME, NSF, CSA and related standards.
Technical Specifications
| Model | LGB-60F |
|---|---|
| Capacity | 60 gal | 227 L |
| Heat Source | Gas-fired, full steam jacket |
| BTU Input | 131,400 NG | 131,100 LP |
| Gas Connection | ¾" IPS • Supply pressure 5–7" W.C. (NG) or 12–14" W.C. (LP) |
| Electrical | 120 V, 1 Φ, 50/60 Hz, 1 A (standard) • 208/240 V optional |
| Temperature Range | 150 °F – 260 °F thermostatic |
| Draw-Off Valve | 2" compression, 304 SS |
| Standard Accessories | Perforated disc strainer, adjustable bullet feet |
| Cover | One-piece, domed, actuator-assisted, 304 SS |
| Construction | 304/304L stainless liner, jacket, outer casing, legs & control console |
| Overall Dimensions* | 32.5" W × 39.5" D × 44.1" H (to rim) |
| Certifications | NSF, ASME, CSA & others as applicable |
Factory-Installed Options
- Single or dual potable-water faucet with 12" or 18" swing-nozzle bracket
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-filling meter
- Electric timer with buzzer
- Two-speed mixer/agitator
- 3" draw-off, ball-type drain and other valve configurations
- Gas quick-disconnect & flexible 60" gas hose
- Lockable lid or control cover for correctional facilities
Warranty Coverage
The LGB-60F is protected by Legion’s 12-month parts & labor warranty (15 months from ship date). Extended warranty plans are available—contact us for details.
* Dimensions shown with 2" draw-off valve. Contact us for drawings with alternate valve sizes.
Looking for a different capacity? Low-Rim™ gas kettles are available in 15, 20, 25, 30, 40, 80 and 100 gallon models.
