Legion LGB-60 Steam Kettles
Description

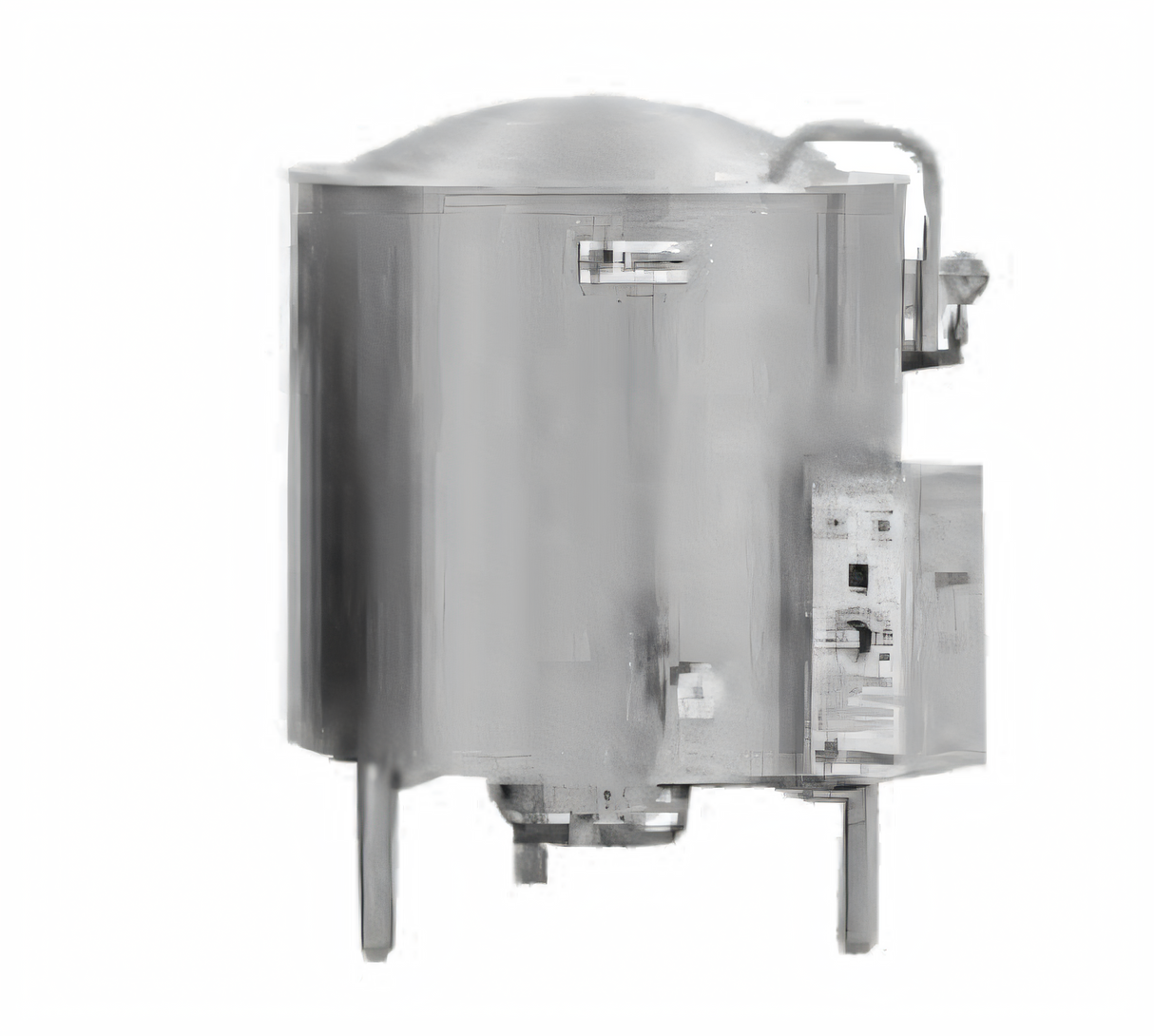

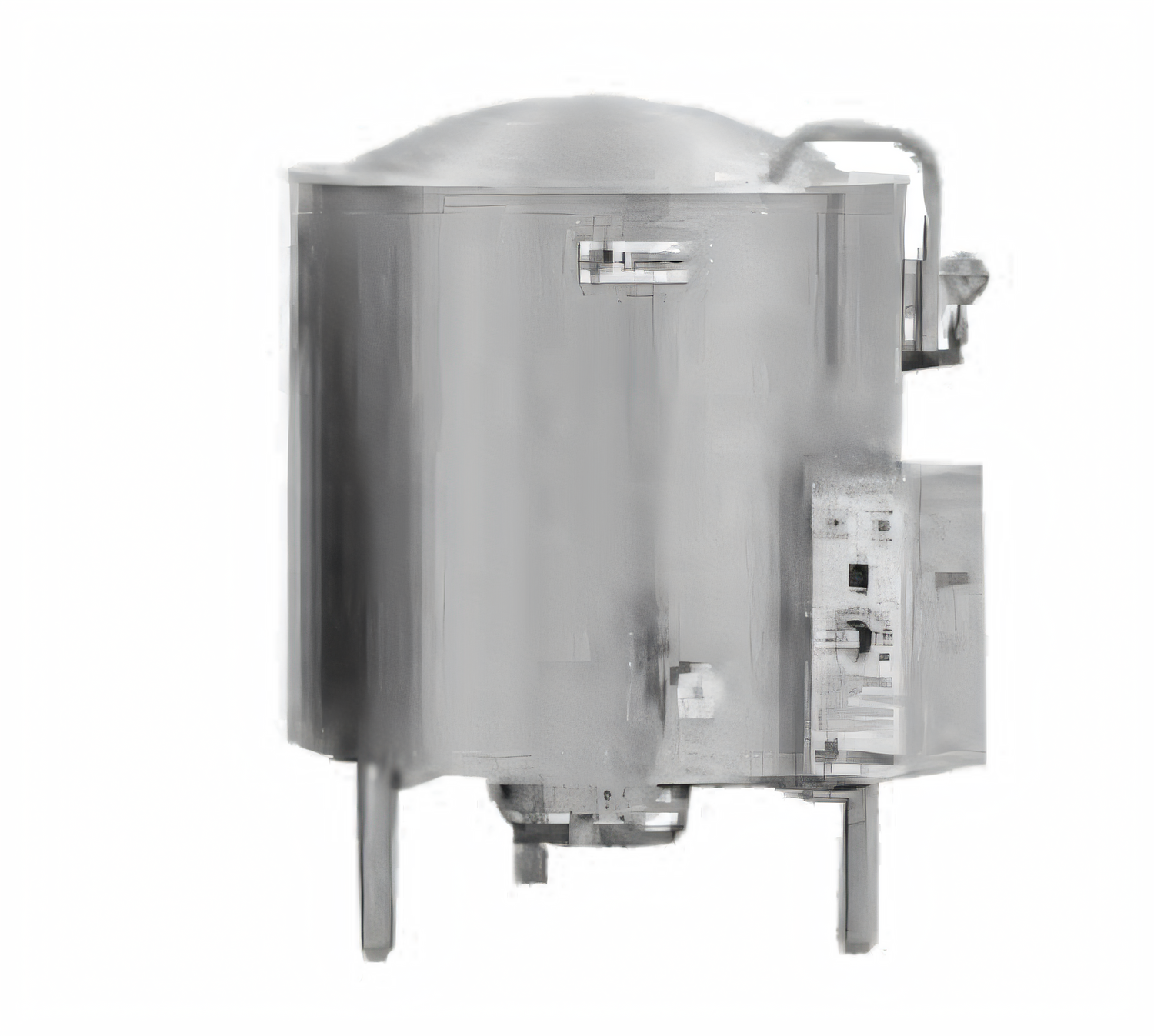

Legion LGB-60 “Insulated for Safety™” 60-Gallon Gas Stationary Kettle
2/3 Jacketed • Self-Contained • Made in USABuilt for demanding, high-volume kitchens, the Legion LGB-60 delivers 60 gallons (227 L) of perfectly even heat in a compact, fully insulated package. A seamless 304 stainless kettle liner, robust 106,800 BTU burner and comprehensive safety controls make this floor-mounted workhorse ideal for soups, sauces, stocks and more—all while protecting operators and conserving energy.
Key benefits

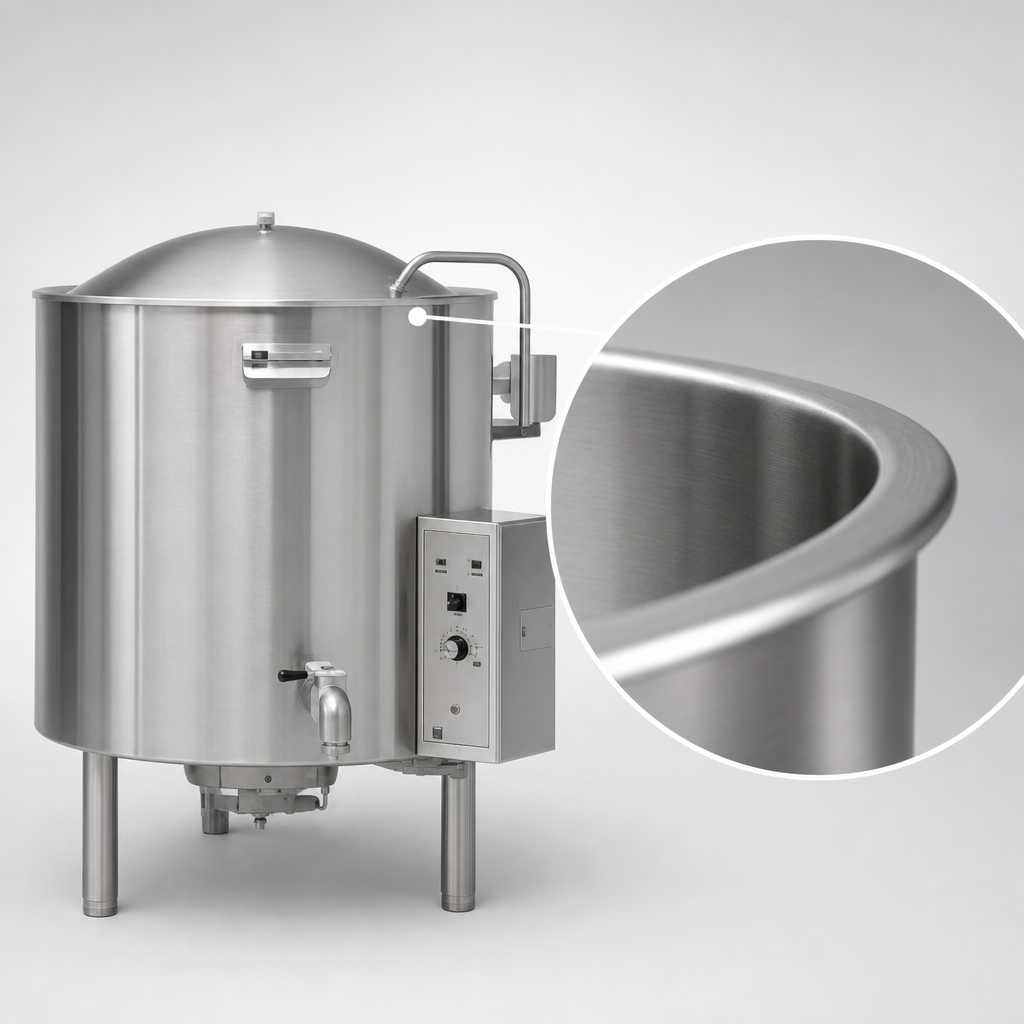

- Seamless, deep-drawn 304 stainless kettle liner with sanitary radius lip—no interior weld seams.

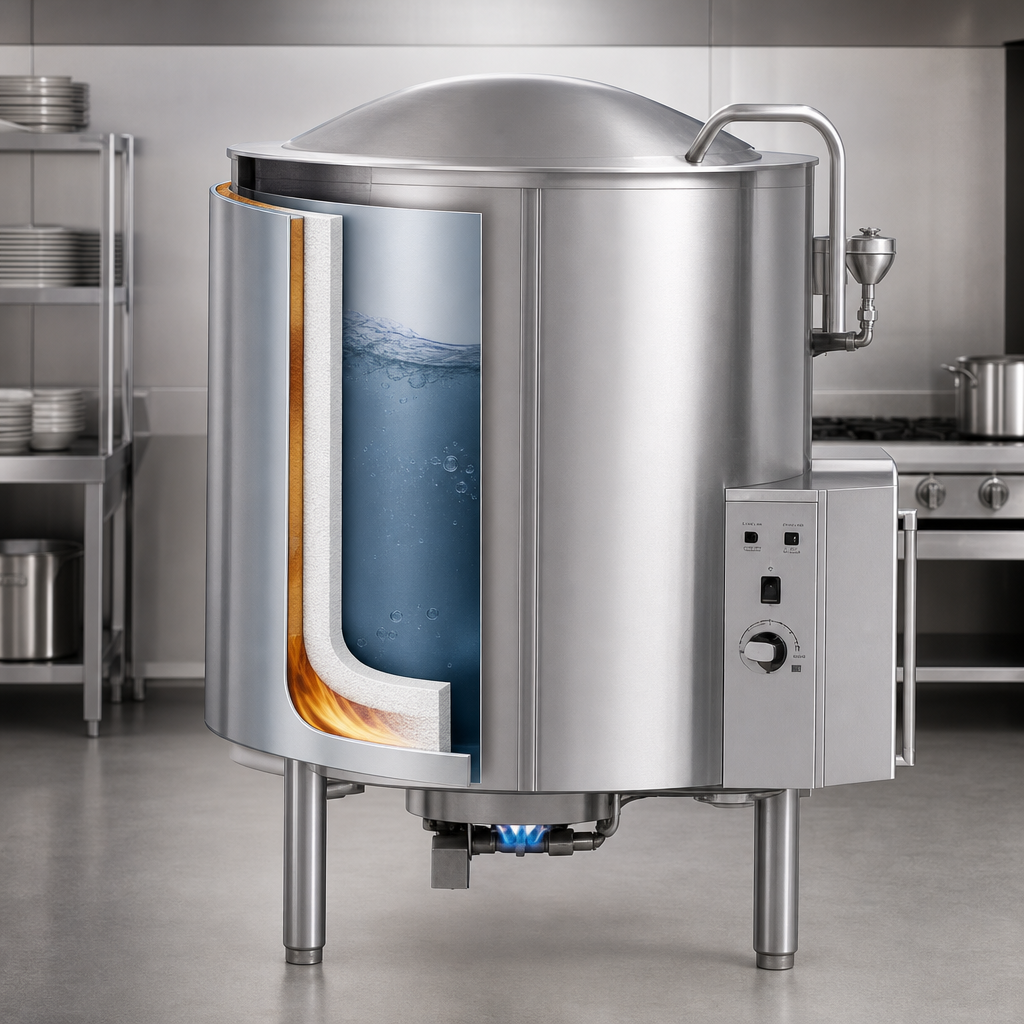

- 2/3 jacket surrounded by full-body insulation for rapid, even heating and reduced energy loss.
- Thermostat control from 150 °F–260 °F (65 °C–127 °C) handles delicate poaching to rolling boils.
- High-output 106,800 BTU burner with 120 V electronic ignition for fast, reliable start-ups.
- Integrated safety suite: low-water cut-off with indicator, pressure relief, air eliminator & pressure gauge.
- Actuator-assisted, one-piece domed cover stays where you put it and returns condensation to the kettle.
- 2″ 304 stainless compression draw-off valve with ¼″ perforated strainer for smooth, clog-free portioning.
- Rugged four-leg base with adjustable stainless bullet feet for rock-solid installation.
- Outer casing & control console are seam-welded 304 stainless for unmatched durability.
- Manufactured, tested & certified in the USA to ASME, NSF, CSA and related standards.
Technical specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Heat source | Natural or Propane gas, self-contained 2/3 jacket |
| Input | 106,800 BTU/h (Natural) | 108,500 BTU/h (Propane) |
| Temperature range | 150 °F–260 °F / 65 °C–127 °C |
| Ignition | Electronic spark, 120 V, 1 A (208/240 V optional) |
| Gas connection | ¾″ IPS • Natural 5–7″ W.C. • Propane 12–14″ W.C. |
| Draw-off valve | 2″ compression type, 304 stainless (strainer included) |
| Construction | 304/304L stainless liner, jacket, outer shell, legs & console |
| Cover | One-piece, actuator-assisted domed stainless cover |
| Overall dimensions* | 29.5″ W × 41.1″ D × 41.7″ H to rim • 81.2″ H with cover open |
| Compliance | ASME, NSF, CSA |
*Dimensions shown are nominal. Refer to the factory installation manual for detailed clearance and service requirements.
What’s included
- Legion LGB-60 kettle with actuator-assisted cover
- 2″ compression draw-off valve & ¼″ perforated disc strainer
- Adjustable stainless bullet feet (installed)
- Owner’s/installation manual
Popular accessories (sold separately)
- Single or dual water-fill faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Two-speed mixer/agitator kit
- Flexible gas hose & quick-disconnect
- Tri-basket or nylon bag inserts for batch cooking
Specifications and availability are subject to change without notice. Contact us for custom configurations or additional documentation.
