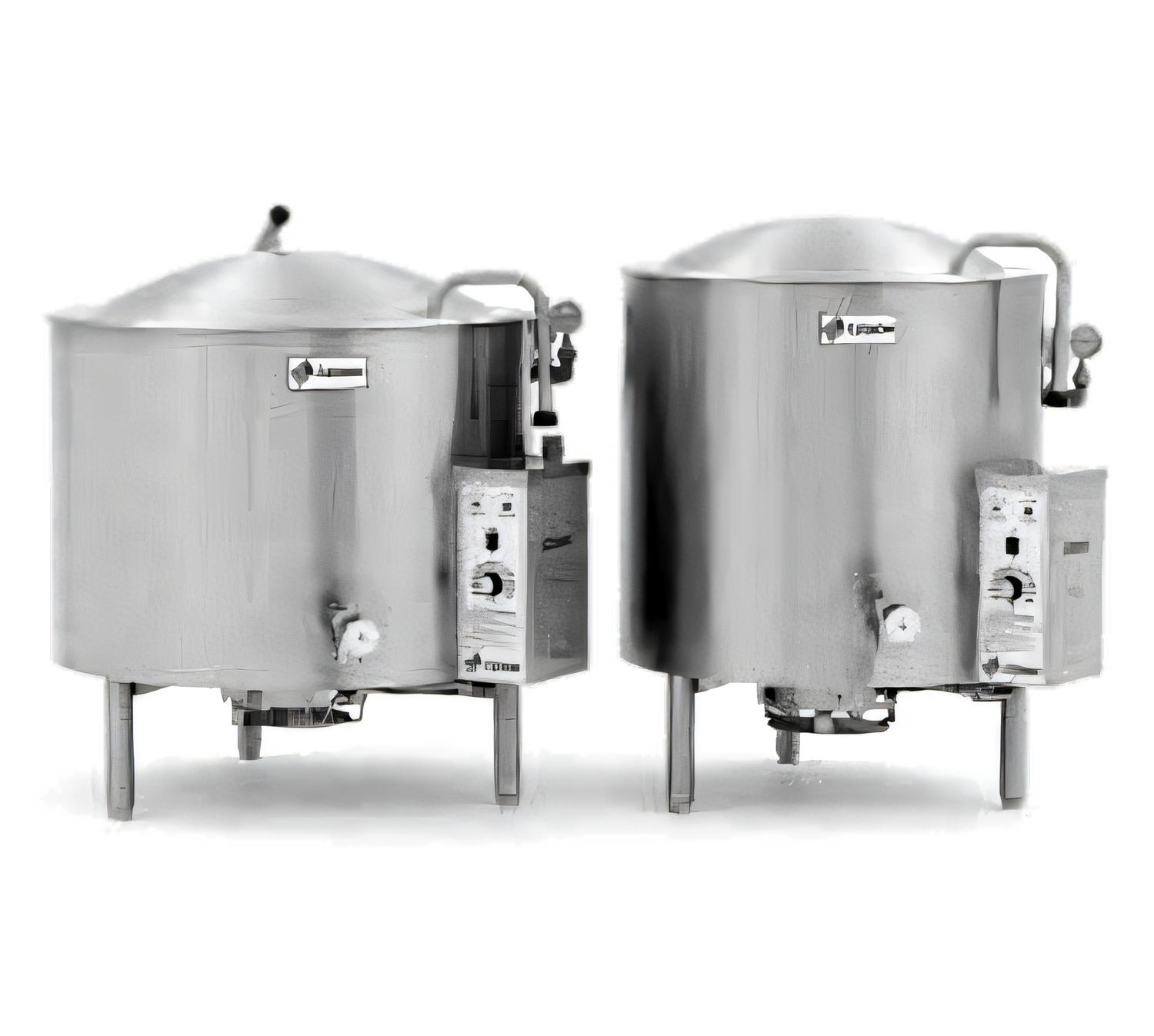

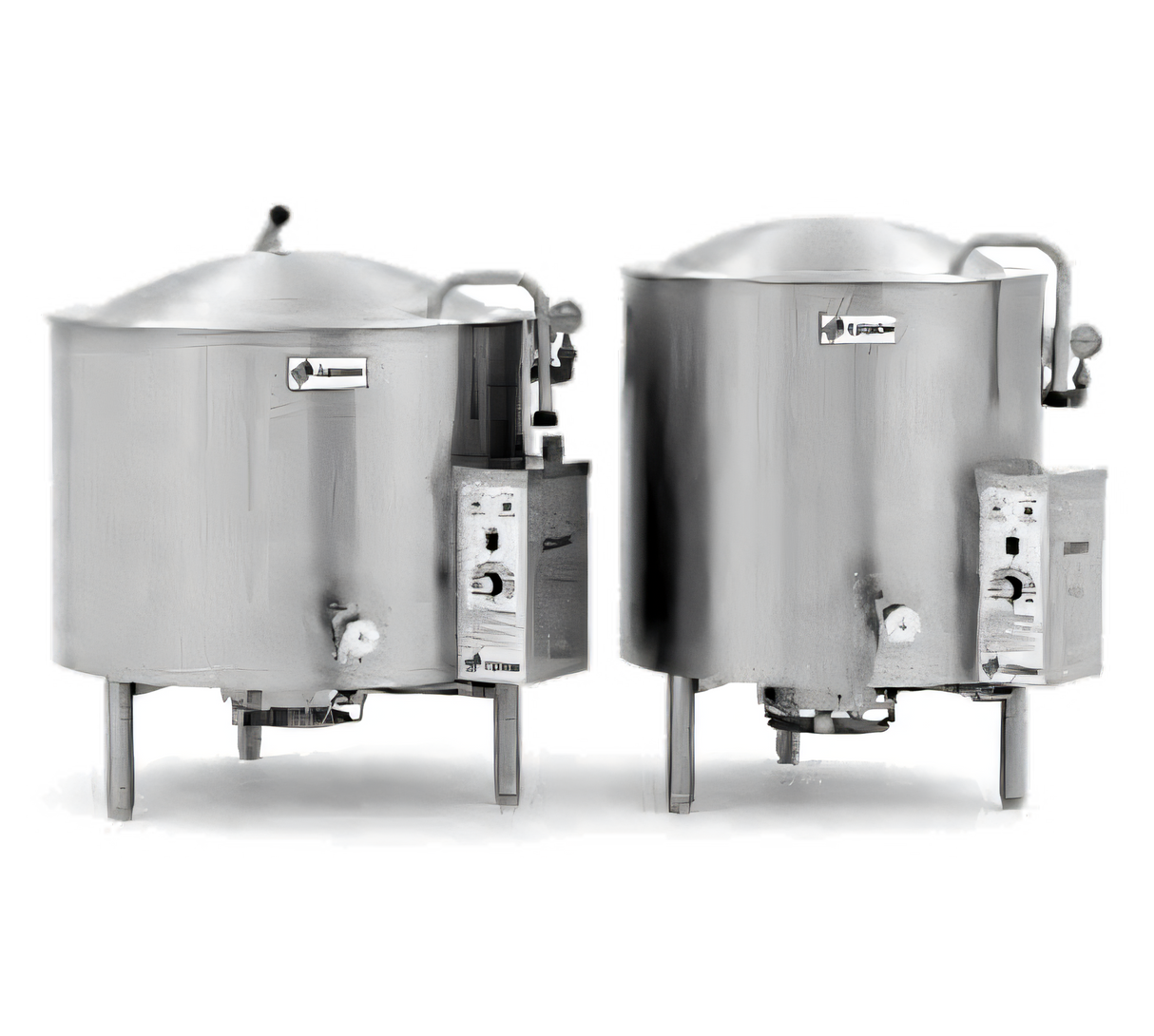

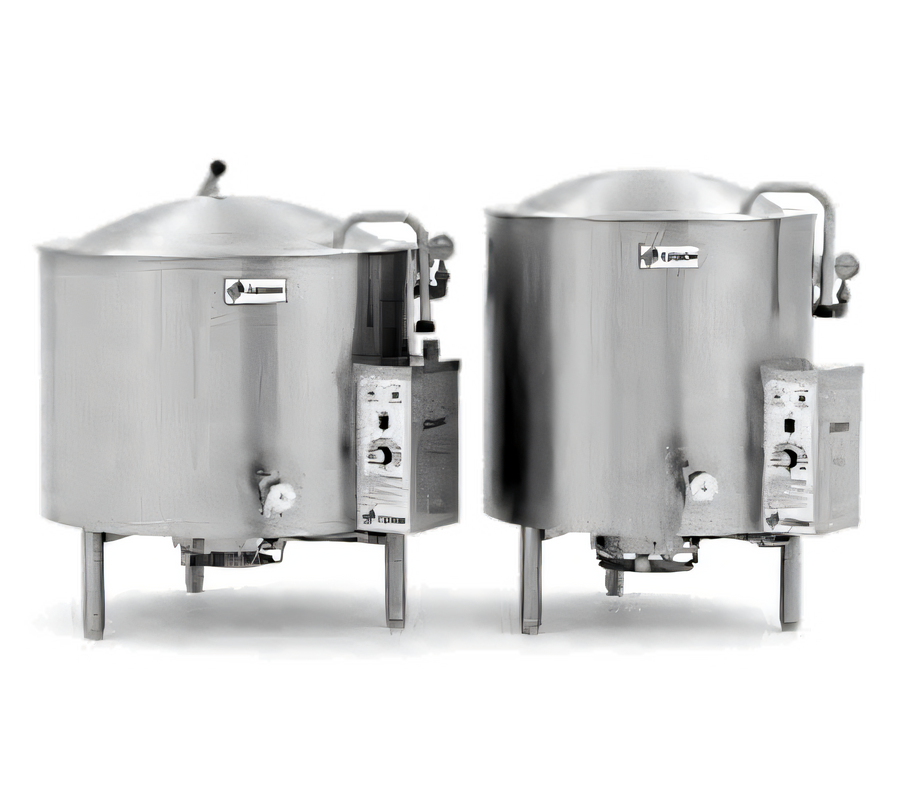

Legion LGB-50MV Steam Kettles
Description
Legion LGB-50 Stationary Gas Kettle with Twin-Shaft Mixer
50 gal | 2/3-Jacketed | Self-Contained | 106,800 BTUEngineered for demanding institutional and commercial kitchens, the Legion LGB-50 combines rapid, steam-even heating with a factory-mounted two-speed mixer that keeps high-volume sauces, soups and fillings consistently blended from start to finish. Built in the USA from 100 % 304 stainless steel, this insulated self-contained kettle delivers the durability, safety and performance chefs rely on day after day.
Kettle Highlights
- Seamless deep-drawn 304 stainless steel liner with integrally formed radius lip
- 2/3 jacket coverage for faster heat-up and even cooking
- Full-body insulation (Insulated for Safety™) reduces heat loss & keeps exterior cool to the touch
- 2″ 304 SS compression draw-off valve with matching draw-off tube and welds
- Actuator-assisted, one-piece domed cover with bullet feet for smooth positioning
- Electronic ignition (120 V, 1 A) – no standing pilot required
Integrated MV Twin-Shaft Mixer
- Enclosed aluminum mixer bridge with totally-enclosed gear motor (2 HP high / ¾ HP low)
- Two operating speeds:
• Low – 23 RPM main / 60 RPM secondary
• High – 46 RPM main / 120 RPM secondary - 304 SS anchor agitator contoured to kettle wall; removable nylon blades continuously scrape surface
- Counter-rotating 304 SS secondary beater for thorough, lump-free mixing
- Bayonet-mount tool system for quick removal and easy cleaning
- Actuator-assisted bridge lift with positive rim lock and safety interlock (prevents high-speed starts when raised)
Built-In Safety & Control
- Thermostat adjustable from 150 °F to 260 °F
- Pressure relief valve, air eliminator & pressure gauge
- Jacket-water fill port with sight glass
- Automatic low-water cutoff with indicator light
- Safety pilot control for gas supply
Specifications
| Capacity | 50 gal / 190 L |
|---|---|
| Heat Input | 106,800 BTU/hr (Natural Gas) | 108,500 BTU/hr (LP) |
| Jacket Coverage | 2/3 of kettle body |
| Temperature Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Draw-Off Valve | 2″ 304 SS compression type, side-mounted |
| Construction | 304 SS liner, jacket & outer casing; seam-welded control console |
| Interior Finish | 180-grit sanitary polish |
| Gas Connection | ¾″ IPS, 5-7″ W.C. (Nat) | 12-14″ W.C. (LP) |
| Electrical | 120 V, 1 Ø, 50/60 Hz, 1 A (ignition & controls) |
| Mixer Drive | Totally enclosed gear motor, two-speed, twin-shaft |
| Overall Height (J) | ≈ 77.9 in (1,979 mm) with cover closed |
| Kettle Diameter (A) | 29.5 in (749 mm) |
| Front-to-Back (C) | 38.4 in (975 mm) |
| Agency Compliance | ASME, NSF, CSA & applicable gas approvals |
| Origin | Made in USA |
Popular add-ons (sold separately) include faucet packages, basket inserts, flexible gas hoses, and automatic water-filling meters. Contact us for details.
