Legion LGB-50 Steam Kettles
$16,443.00
Unit price
/
Unavailable
Description

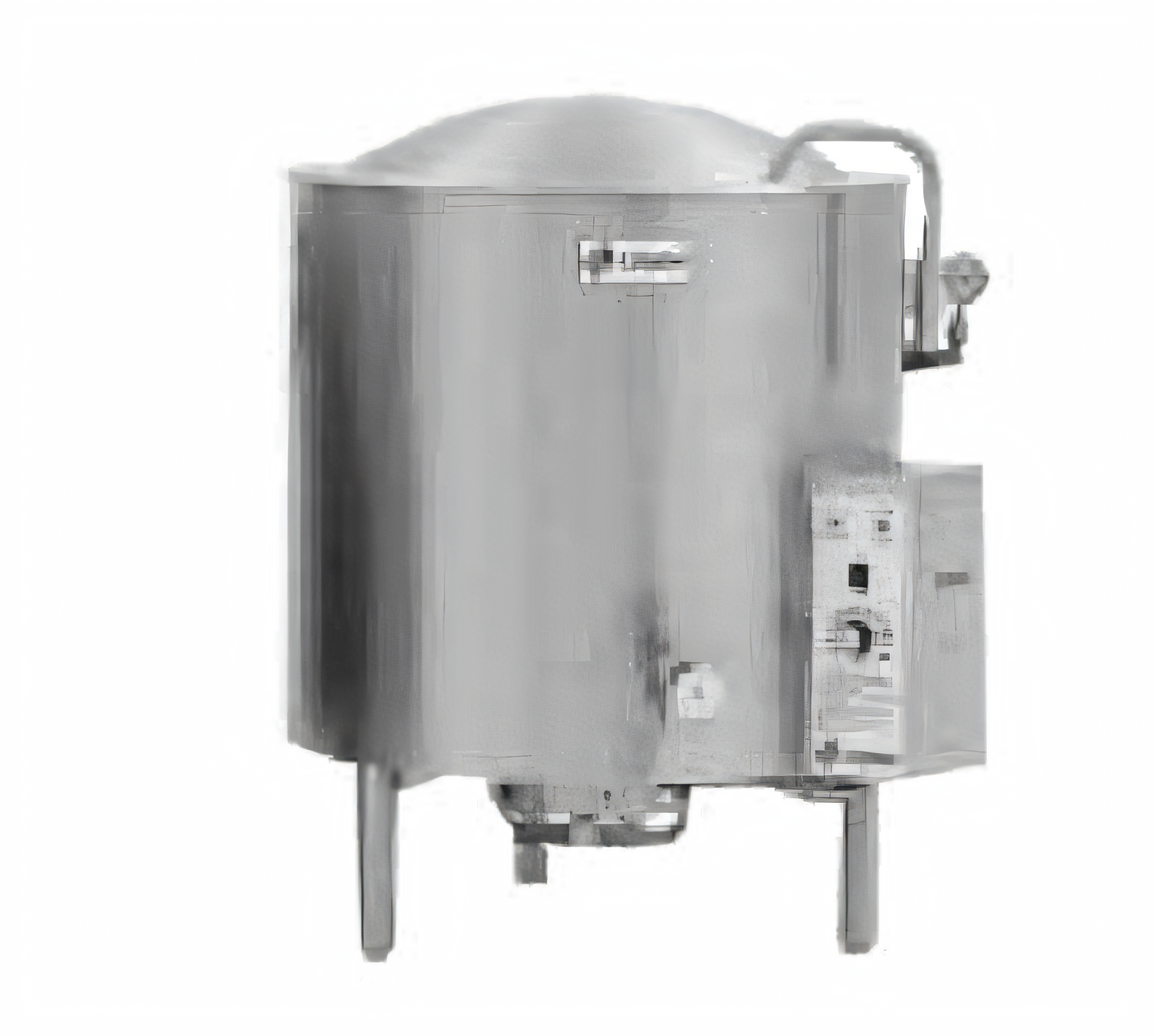

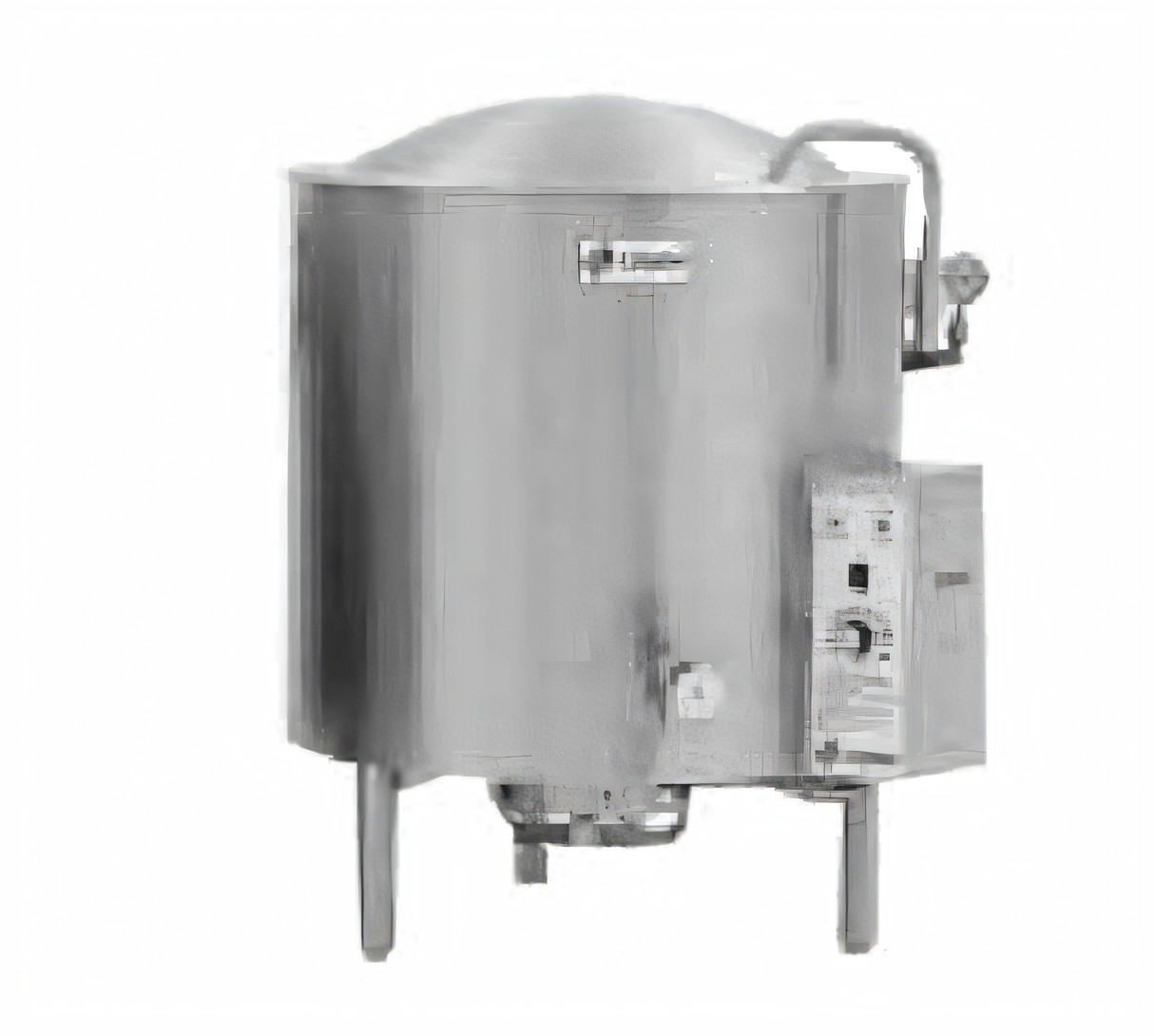

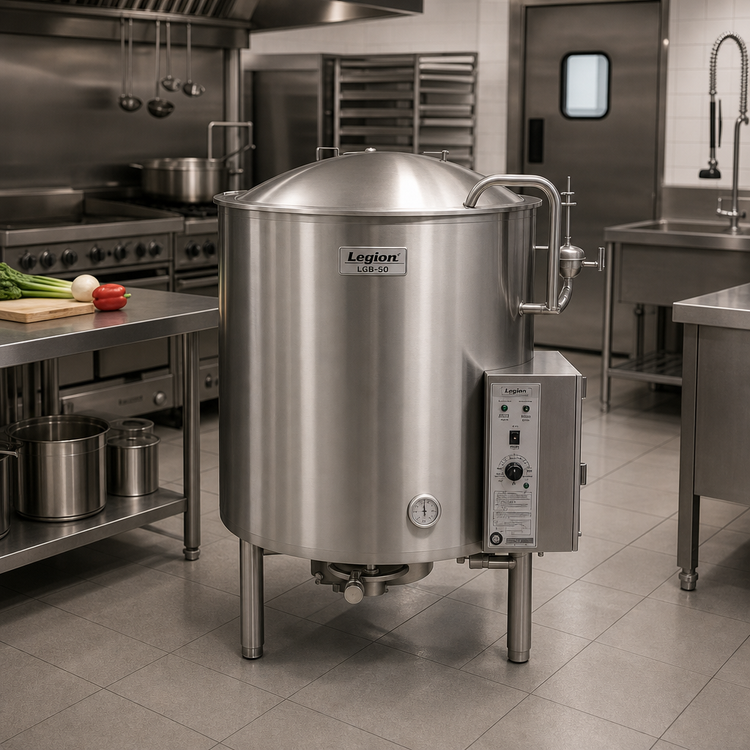

Legion LGB-50 50-Gallon Insulated Self-Contained Gas Kettle
106,800 BTU | 2/3 Jacketed | Made in USAEngineered for high-capacity production with rock-solid reliability, the Legion LGB-50 stationary kettle lets you braise, simmer and cook up to 50 gallons with unbeatable temperature control, energy efficiency and operator safety.
Key Features

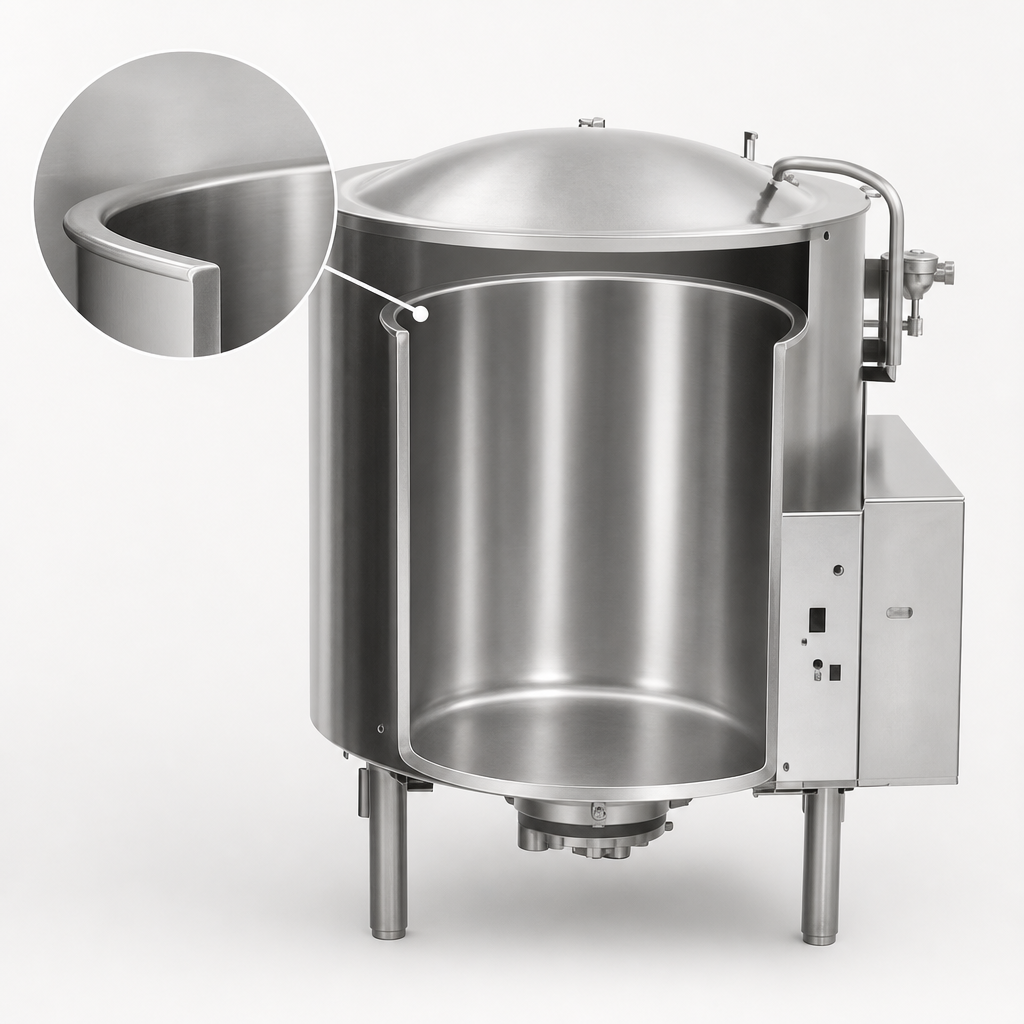

- Seamless, deep-drawn 304 SS kettle liner with integrally formed radius lip

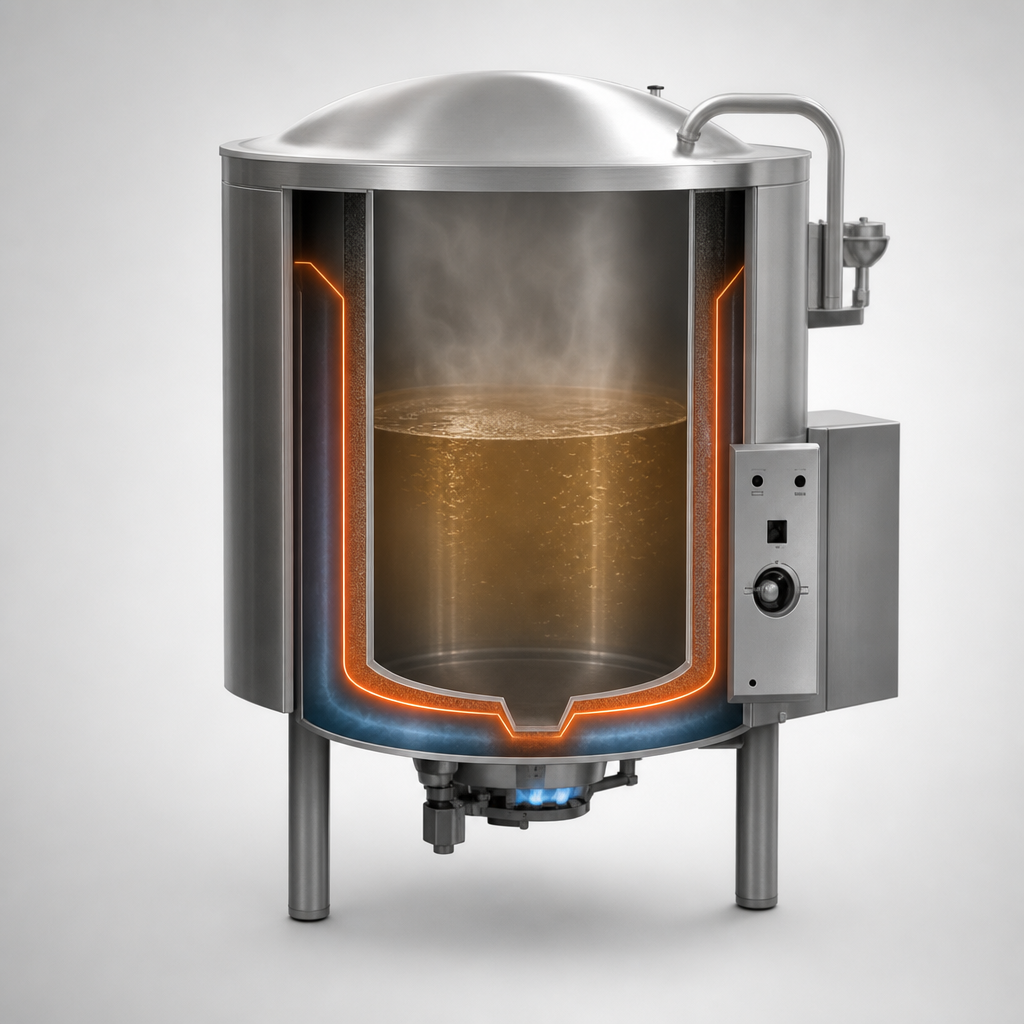

- 2/3 jacket in 304L stainless distributes heat uniformly from 150 °F – 260 °F
- Thermostat-regulated burner outputs 106,800 BTU (Natural) or 108,500 BTU (LP)
- Electronic ignition, 120 V (50/60 Hz, 1 ph, 1 A) for fast, reliable start-up
- Full-body “Insulated for Safety™” construction reduces heat loss & exterior temperature
- 2" compression draw-off valve with 304 SS tube for quick, sanitary transfers
- Actuator-assisted one-piece domed cover—holds in any position for hands-free use
- Comprehensive protection system:
- Pressure relief & air-eliminator valves
- Pressure gauge and jacket-water sight glass
- Automatic low-water cut-off with indicator light
- Safety pilot control
- Four seam-welded stainless legs with adjustable bullet feet for perfect leveling
- NSF, ASME and other agency approvals; fabricated in Waynesboro, GA
Technical Specifications
| Capacity | 50 gal / 190 L |
|---|---|
| Heat Source | Natural gas 106,800 BTU h-1 Propane 108,500 BTU h-1 |
| Gas Connection | 3/4" NPT (rear) |
| Supply Pressure | Natural 5–7" W.C. Propane 12–14" W.C. |
| Outlet Pressure (factory set) | Natural 3.5" W.C. Propane 10" W.C. |
| Operating Temperature | 150 °F – 260 °F (66 °C – 127 °C) |
| Electrical | 120 V, 50/60 Hz, 1 ph, 1 A (ignition & controls) |
| Draw-Off Valve | 2" compression type, 304 SS |
| Exterior Finish | 304 SS, satin, seam-welded |
| Cover | Actuator-assisted, one-piece domed stainless cover |
| Overall Dimensions (in) | A 29.5 | B 21.8 | C 38.4 | D 27.8 | E 16.6 | F 41.1 | J 77.9 | S 20.9 | V 11.8 | W 18.8 |
Popular Accessories (sold separately)
- Single or dual water-fill faucets (12" or 18" swing nozzle)
- 48" flexible spray hose assembly (vinyl or stainless)
- 2-speed mixer/agitator kit
- Automatic water-fill meter
- Draw-off drain hose, baskets & perforated disc strainers (⅛" or ¼")
Additional custom options available—contact us for details.
Installation Reminder: Gas and electrical connections must be performed by a licensed professional in accordance with local codes. Ensure the floor structure supports the kettle’s filled operating weight.
Images may show optional accessories. Specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Legion
Shipping Weight
650.0lbs
Kettle Jacket
partial jacket
Kettle Liner
stainless steel
Capacity
50 gal
Base
tri-leg
Specifications
Stationary Kettle, Gas, self-contained, 50-gallon, 304 stainless steel liner, 2/3 jacket, thermostat temperature control, electric ignition, 2" compression draw-off valve, full body insulation, stainless steel kettle, legs & control console, actuator-assisted dome cover, 106,759 BTU
