Legion LGB-40F Steam Kettles
$17,316.60
Unit price
/
Unavailable
Description

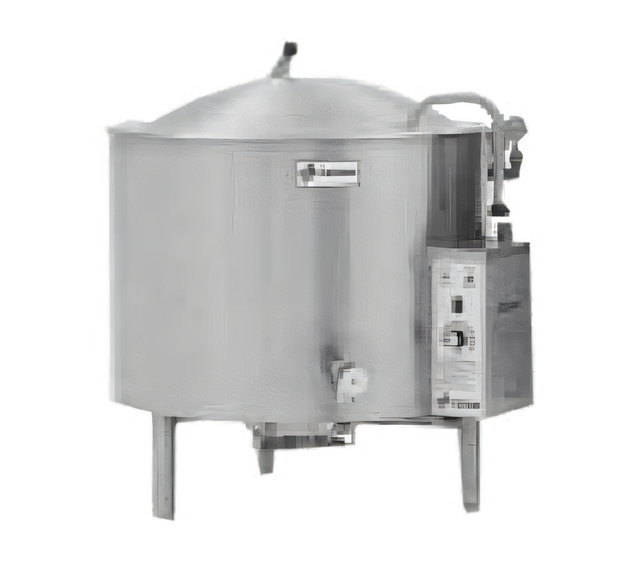

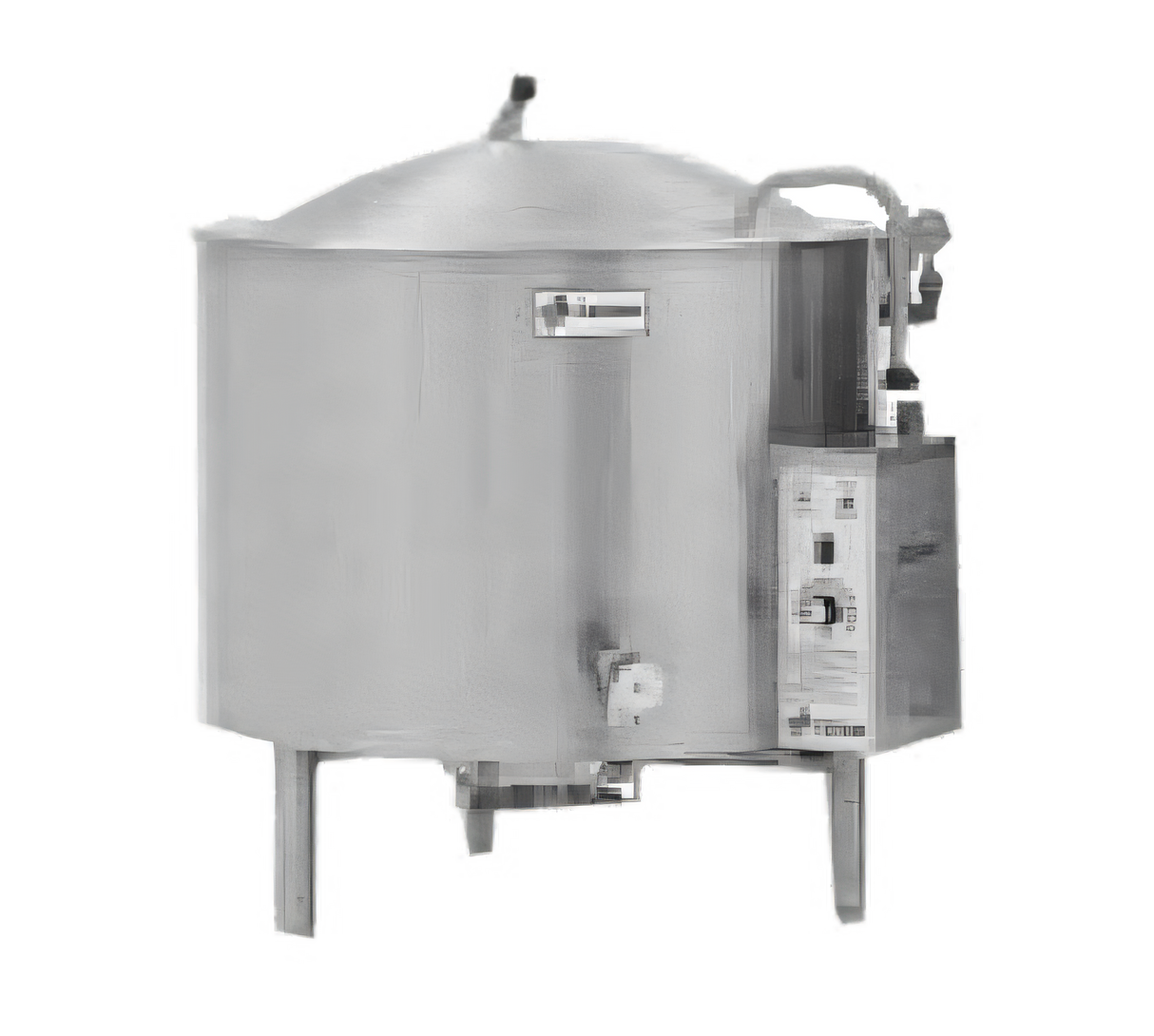

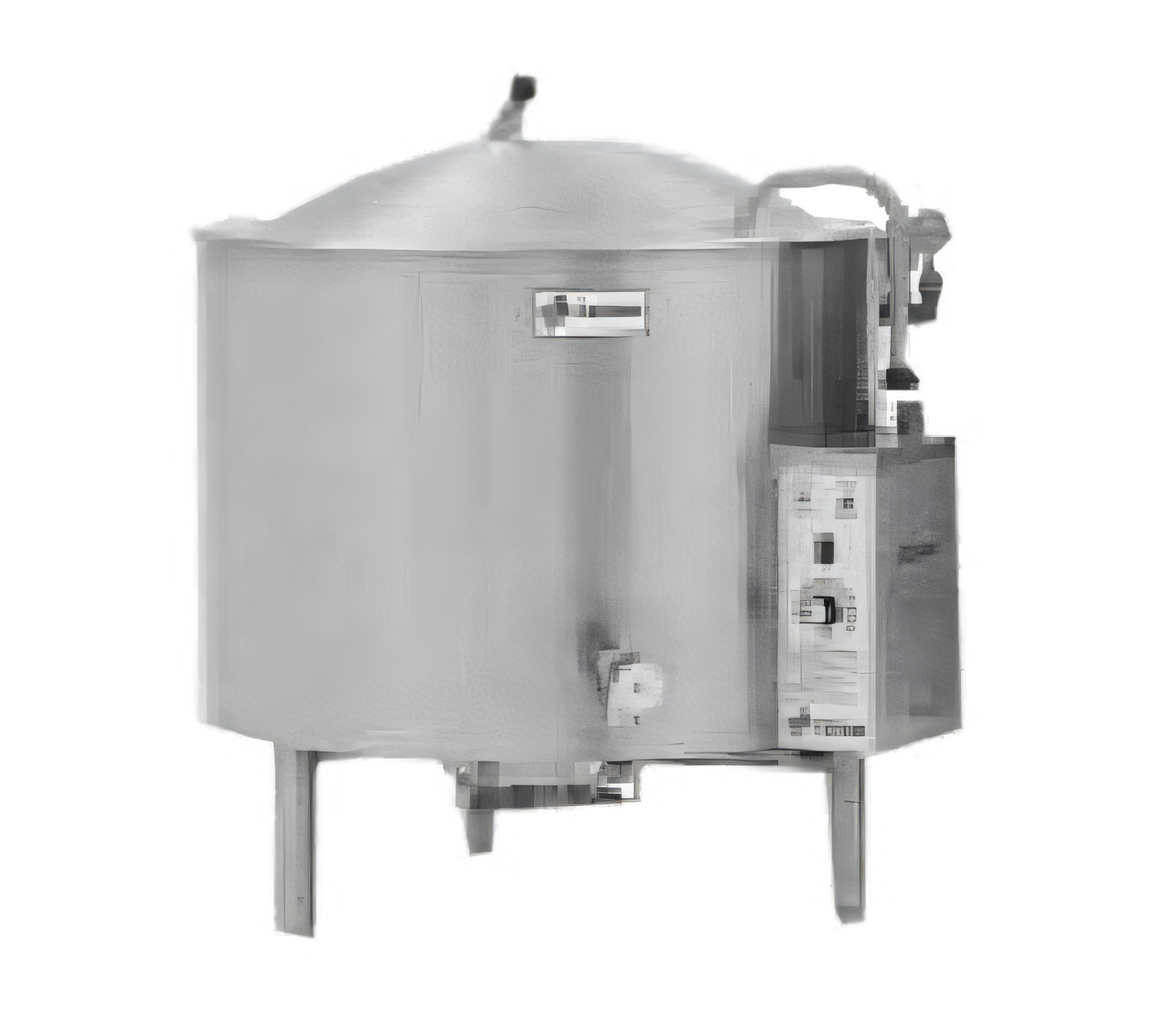

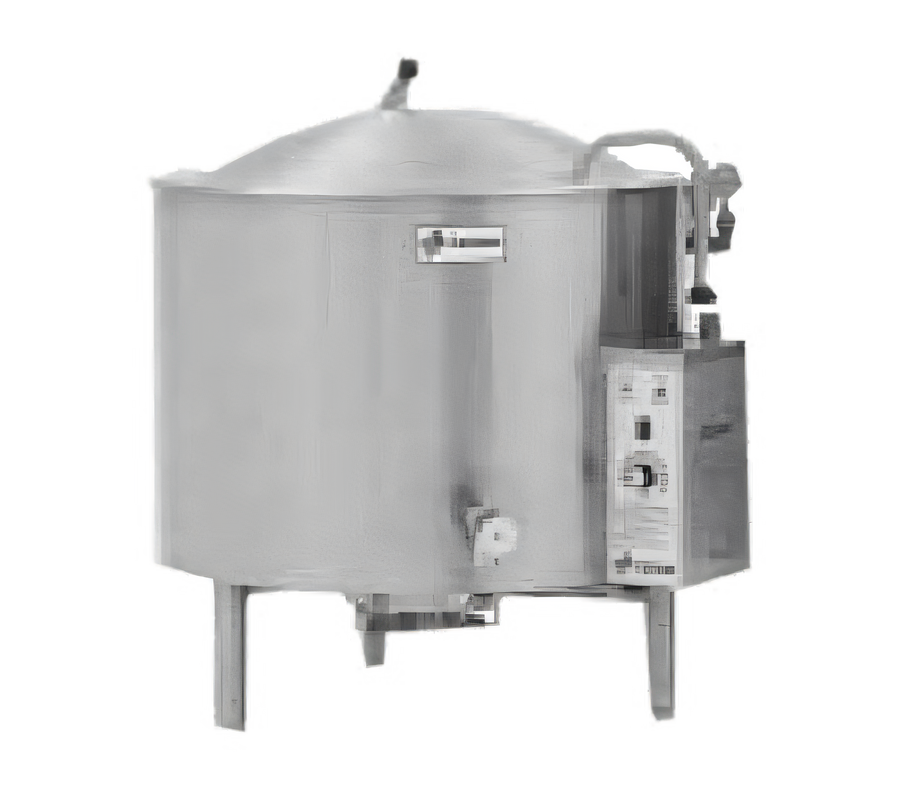

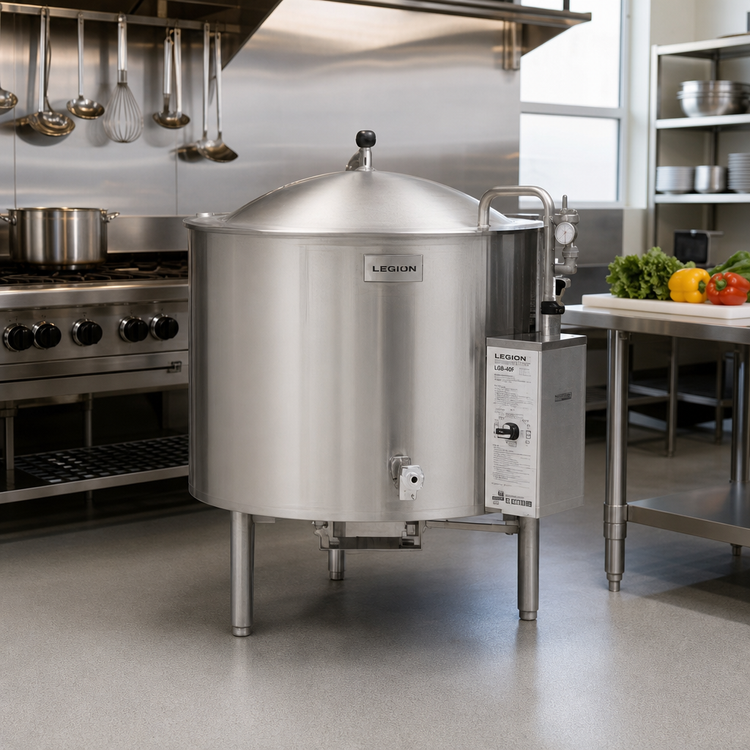

Legion LGB-40F Low-Rim™ 40-Gallon Gas Stationary Kettle
Full-jacketed • Insulated Self-Contained • 106,800 BTU (Natural Gas)When high-volume production meets uncompromising safety, you get the Legion LGB-40F. This low-profile, 40-gallon kettle delivers fast, even heating, operator-friendly ergonomics, and the rugged stainless-steel construction that busy commercial kitchens demand.
Why You’ll Love It
- 40 gal / 151 L capacity – perfect for soups, sauces, stews and stocks.
- Gas-fired, self-contained design: 106,800 BTU (natural) or 108,500 BTU (propane) with electronic ignition (120 V).

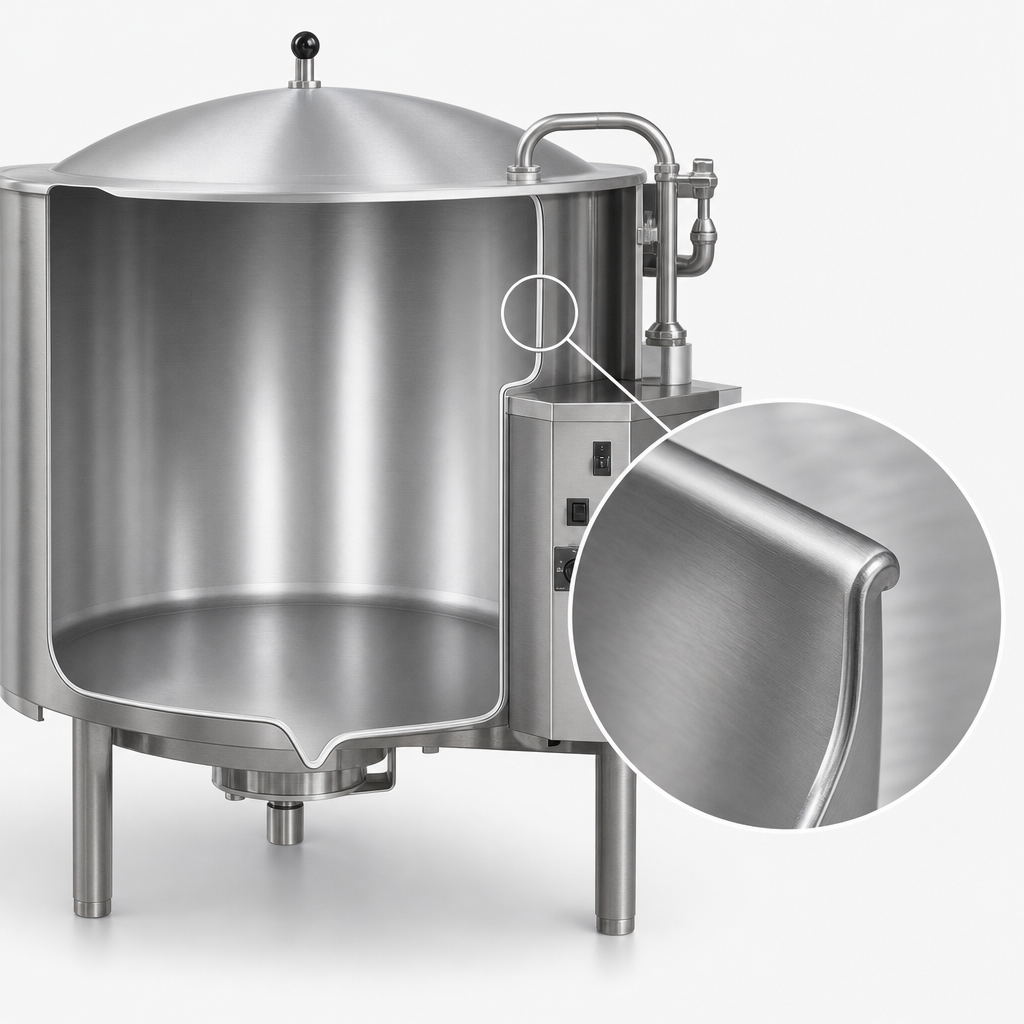

- Seamless deep-drawn 304 SS liner with integrally formed radius lip for easy cleaning and drip-free pouring.
- Full 304L stainless-steel jacket distributes heat evenly and gently up to 260 °F (thermostat controlled).

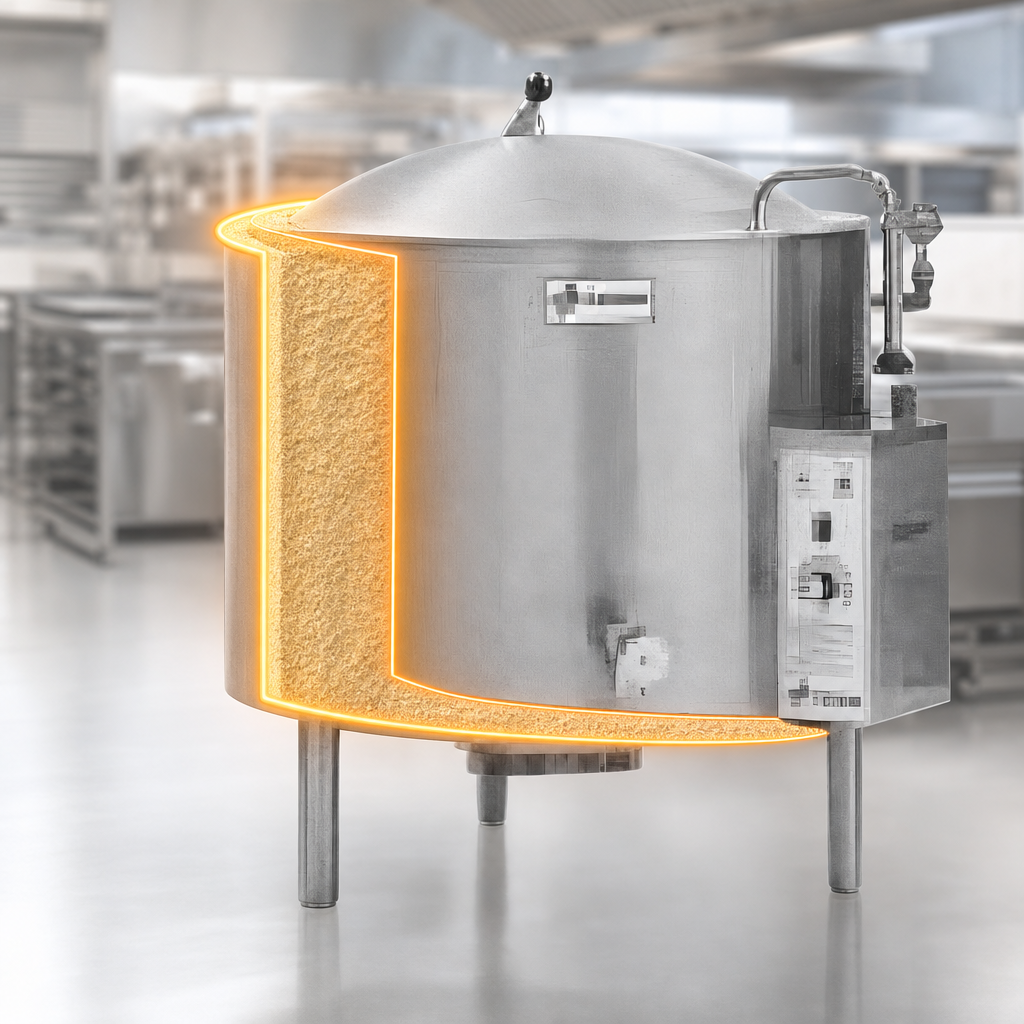

- Full-body Insulated for Safety™ construction keeps exterior cool and lowers energy costs.
- Actuator-assisted one-piece domed cover retains heat/moisture and reduces operator strain.
- 2" 304 SS compression draw-off valve with ¼" perforated disc strainer for fast, clog-free dispensing.
- Low-Rim™ profile offers easier access for loading, stirring and cleaning than traditional floor kettles.
Built-In Protection
- Thermostat control: 150 °F – 260 °F.
- Pressure relief valve & air eliminator valve.
- Steam jacket pressure gauge plus water fill & sight glass.
- Automatic low-water cut-off with indicator light.
- Safety pilot control for reliable ignition shut-off.
Construction Highlights
- 304 SS outer casing, legs and seam-welded control console.
- Adjustable bullet feet for quick leveling.
- Made in the USA; engineered to meet or exceed ASME, NSF, CSA & UL standards.
Performance Specifications
| Capacity | 40 gal / 151 L |
|---|---|
| Heat Source | Natural gas 106,800 BTU/hr (propane 108,500 BTU/hr) |
| Operating Temp. | 150 °F – 260 °F (thermostatic) |
| Ignition | Electronic, 120 V, 1 ph, 1 A |
| Draw-Off Valve | 2" 304 SS compression w/ ¼" perforated strainer |
| Rim Height | 27.8" |
| Overall Height (lid open) | ≈ 74.5" |
| Overall Height (lid closed) | ≈ 41.1" |
| Gas Connection | ¾" NPT (natural) / ½" NPT (propane) |
| Water Connection | Self-contained (no external boiler required) |
Popular Options & Accessories (sold separately)
- Single or dual water faucet with 12" or 18" swing nozzle.
- 48" flexible spray hose (vinyl or stainless).
- Electric timer with buzzer.
- Two-speed mixer/agitator kit.
- Flexible gas hose & quick disconnect.
- Lockable lid or control cover for security installations.
Professional installation required: All gas and electrical connections must be performed by a licensed technician and in accordance with local codes.
Need a different capacity or custom configuration? Contact our equipment specialists — we’ll build the perfect Legion kettle for your kitchen.
Features & Specs
Features & Specs
Manufacturer
Legion
Shipping Weight
555.0lbs
Kettle Jacket
full jacket
Kettle Liner
stainless steel
Capacity
40 gal
Base
tri-leg
Specifications
Low Profile Stationary Kettle, Gas, self-contained, 40-gallon, 304 stainless steel liner, full jacket, thermostat temperature control, electric ignition, 2" compression draw-off valve, full body insulation, stainless steel kettle, legs & control console, actuator-assisted dome cover, 106,759 BTU
