Legion LGB-40 Steam Kettles
Description

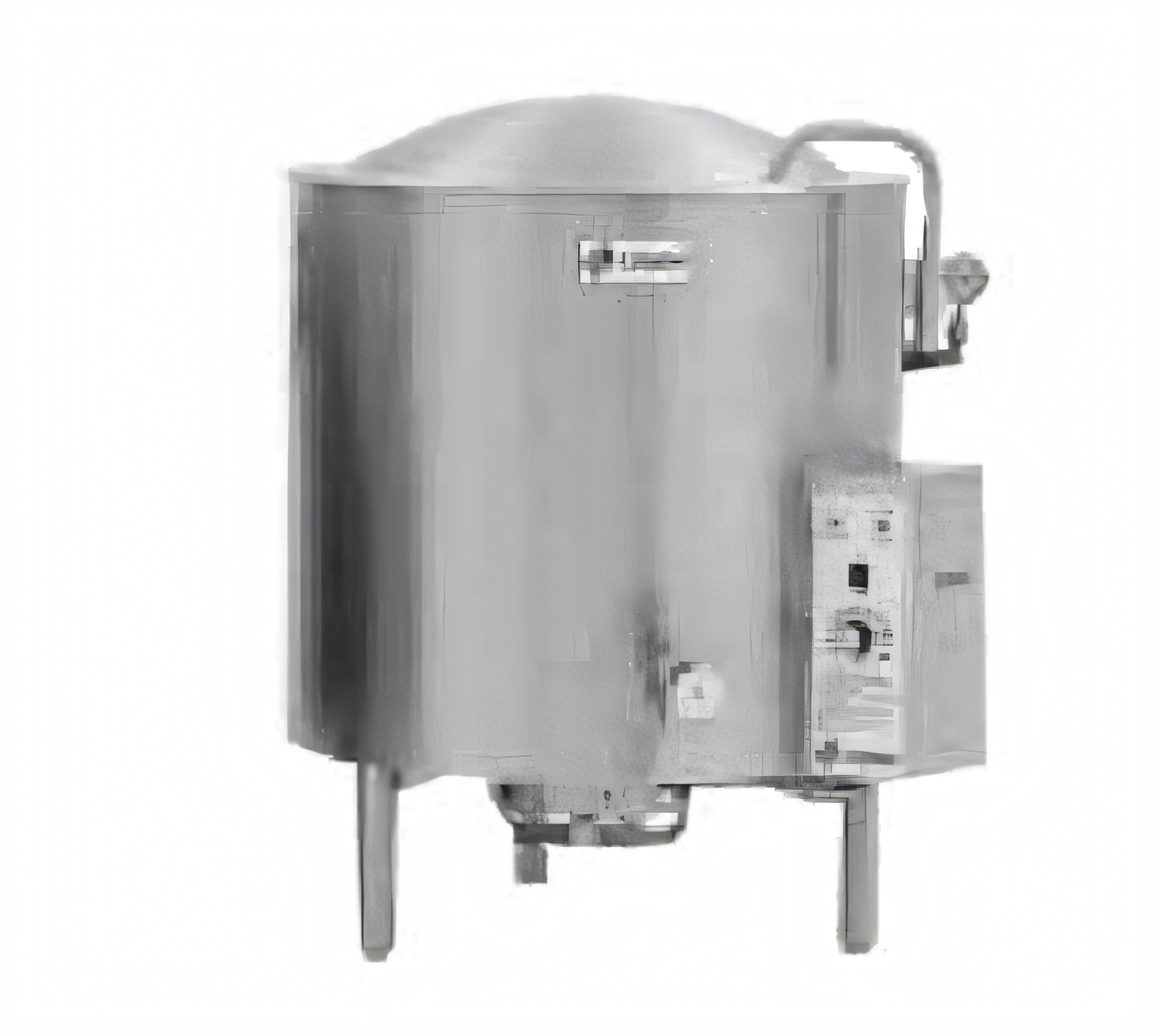

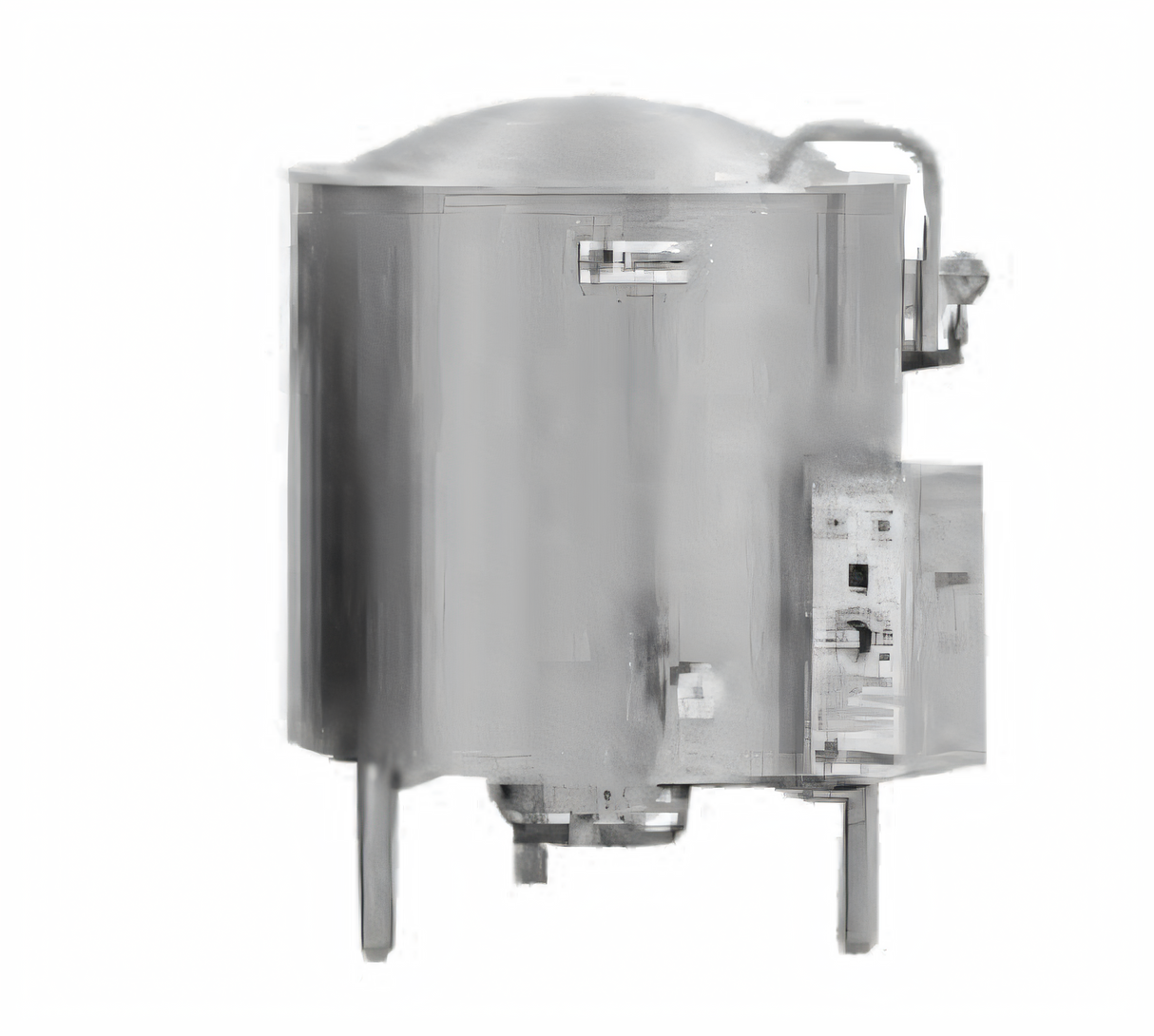

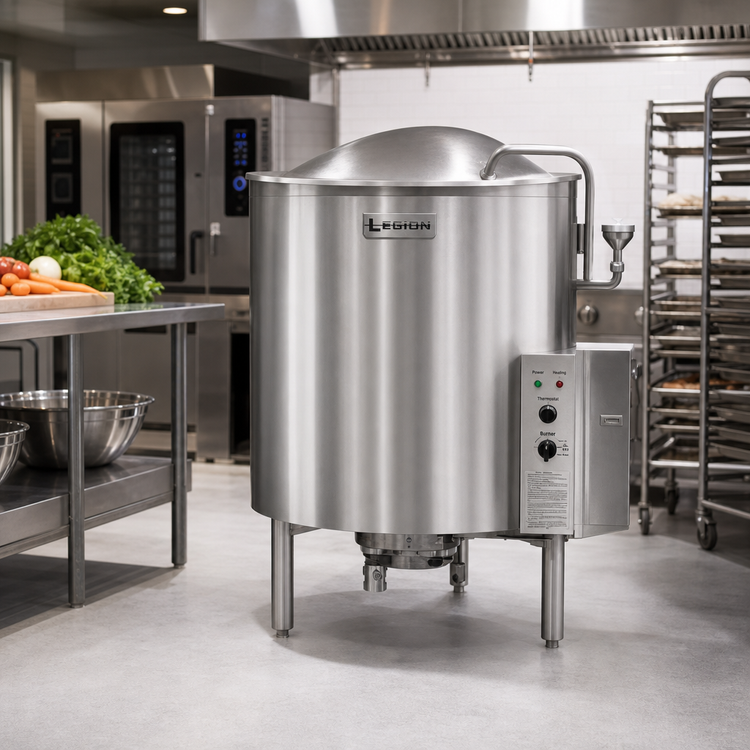

Legion LGB-40 40-Gallon Gas Stationary Kettle
Self-Contained • 2/3 Jacketed • Insulated for Safety™Engineered for high-volume commercial kitchens, the Legion LGB-40 delivers consistent, energy-efficient kettle cooking in a compact 40-gallon footprint. A seamless 304 stainless steel liner, full-body insulation and precise thermostat control (150 °F – 260 °F) give you the versatility to simmer, braise or boil large batches with confidence—all while keeping operators protected from excess heat.
Performance & Safety Highlights

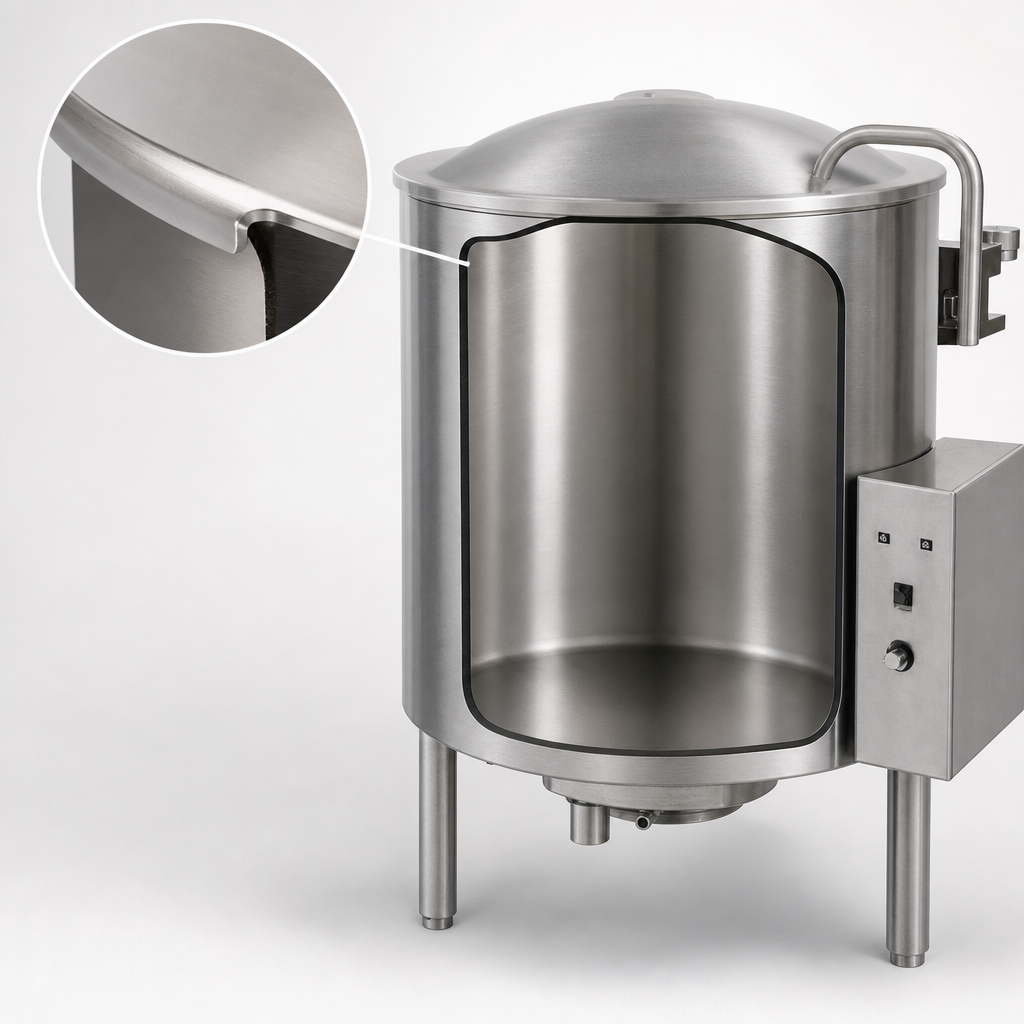

- Seamless deep-drawn 304 stainless kettle liner with integrally formed radius lip for easy sanitation.

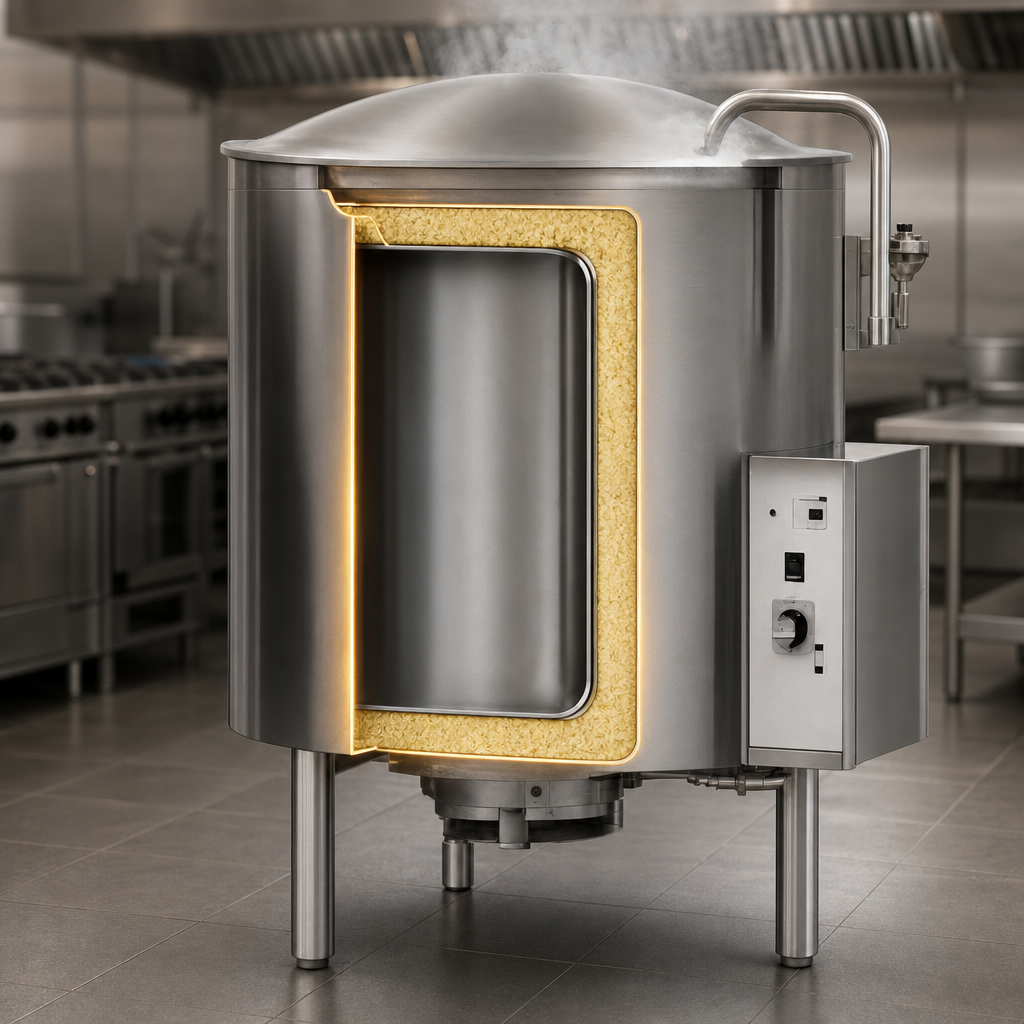

- 2/3 jacketed design surrounds sidewall & kettle bottom for faster heat-up and even cooking.
- Robust 79,900 BTU natural-gas burner (83,100 BTU LP) with electronic ignition—no standing pilot.
- Full body insulation between jacket and casing reduces energy loss and keeps exterior surfaces cool.
- Factory-installed 2″ 304 stainless compression draw-off valve speeds product transfer & cleanup.
- One-piece, actuator-assisted domed cover contains steam & condensate while reducing operator fatigue.
- Four stainless steel legs with adjustable bullet feet provide rock-solid, level installation.
Built-In Protection & Controls
- Thermostat temperature control: 150 °F – 260 °F (66 °C – 127 °C).
- Pressure relief valve, air eliminator & pressure gauge safeguard the jacket.
- Automatic low-water cut-off with indicator light prevents dry firing.
- Jacket water fill port & sight glass for quick status checks.
- Safety pilot control for dependable gas management.
Key Specifications
| Model | LGB-40 (Floor-Mounted) |
|---|---|
| Capacity | 40 gal | 151 L |
| Fuel / Input | Natural Gas – 79,900 BTU/hr Propane (LP) – 83,100 BTU/hr |
| Gas Connection | 3/4" IPS, rear |
| Operating Temp. | 150 °F – 260 °F (66 °C – 127 °C) |
| Electrical | 120 V, 1 Ph, 1 A (electronic ignition) 208/240 V option |
| Jacket Construction | 2/3 jacketed, 304L stainless, ASME-certified |
| Draw-Off Valve | 2" 304 stainless compression type |
| Overall Dimensions | 25.5" W × 22.3" D × 42.0" H to rim |
| Origin | Made in USA – Waynesboro, GA |
What’s Included
- One-piece actuator-assisted domed stainless steel cover
- Perforated disc strainer (¼″ holes)
- Adjustable bullet feet (4)
- Factory commissioning & pressure test certificate
Popular Accessories & Upgrades
- Single or dual pot-filler faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- 2-speed mixer/agitator assembly
- Gas quick-disconnect kit or 60″ flexible gas hose
- Draw-off drain hose, measuring strip, strainer inserts & basket sets
Legion Industries reserves the right to improve or modify product design without prior notice. Always consult local codes for installation compliance.
