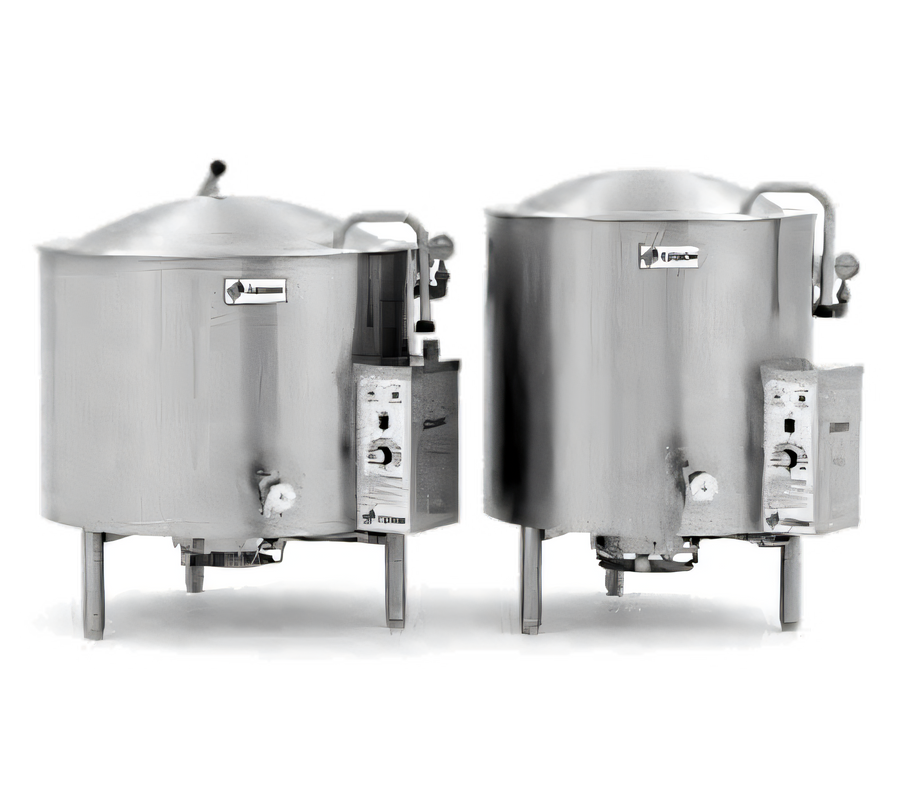

Legion LGB-30FMV Steam Kettles
Description
Legion LGB-30F Low-Rim™ 30-Gallon Gas Stationary Kettle with 2-Speed Mixer
79,855 BTU • Full Jacket • 304 Stainless Steel • Made in USAPurpose-built for busy commercial kitchens, the Legion LGB-30F pairs a rugged, fully jacketed kettle with a powerful two-speed mixer. Enjoy hands-free cooking, faster batch times and perfectly uniform results—every single time.
Key Advantages
- Low-Rim™ 30 gal (114 L) kettle—easy to load, stir and empty without lifts or steps.
- 79,855 BTU gas burner heats a full 304L stainless jacket for rapid, even temperature distribution.
- Seamless deep-drawn 304 stainless liner with integrally formed radius lip for quick, sanitary clean-up.
- MV twin-shaft mixer (2-speed):
- Anchor-style main agitator with removable nylon scrapers wipes the entire kettle wall and base.
- Counter-rotating secondary beater eliminates hotspots and lumping.
- Bayonet-mount agitators release in seconds—use the kettle with or without mixing.
- Thermostat-controlled temperature range: 150 °F – 260 °F (65 °C – 127 °C) for delicate dairy to high-heat reductions.
- Electronic ignition (120 V, 1 A) with safety pilot—no wasted gas from standing pilots.
- 2″ 304 stainless compression draw-off valve plus ¼″ perforated disc strainer for clean portions.
- Full body insulation keeps heat where it belongs, improving efficiency and operator safety.
- All-stainless exterior, seam-welded control console and adjustable bullet feet for unmatched durability.
Performance Snapshot
| Capacity | 30 gal / 114 L |
|---|---|
| BTU Input | 79,855 BTU (Natural or Propane) |
| Heat Source | Gas-fired, full jacket |
| Temperature Control | Thermostat, 150 °F – 260 °F |
| Ignition | Electronic, 120 V, 50/60 Hz, 1 A |
| Draw-off Valve | 2″ compression, 304 stainless |
| Mixer Speeds | Main: 23 / 46 RPM • Beater: 60 / 120 RPM |
| Mixer Motor | ½ HP (low) / 1 HP (high) |
| Construction | 304 & 304L stainless liner, jacket, casing, legs & console |
| Protection | Low-water cutoff, pressure relief valve, air eliminator, gauge, fill & sight glass |
| Gas Connection | ¾″ IPS (Natural 5-7″ W.C. • LP 12-14″ W.C.) |
| Certifications | ASME, NSF, ETL, CSA & more |
Safety-First Design
- Low-rim profile reduces lift height and operator fatigue.
- Positive rim lock secures mixer bridge; interlock prevents high-speed starts while unlocked.
- Automatic low-water cutoff safeguards the jacket from dry-firing.
- Actuator-assisted, one-piece domed cover supplied as standard.
Optional Accessories (Add-Ons)
- Single or dual rinse faucet with 12″ / 18″ swing nozzle
- 48″ flexible spray hose assembly
- Automatic water-fill meter
- Gas quick disconnect & 60″ flexible gas hose
- Tri-basket or nylon bag inserts for pasta & stocks
- Lockable lid and control cover for correctional facilities
Need a larger (or smaller) capacity, or an electric-heated model? Explore the full Legion line or chat with our food-service specialists.
