Legion LGB-30 Steam Kettles
Description

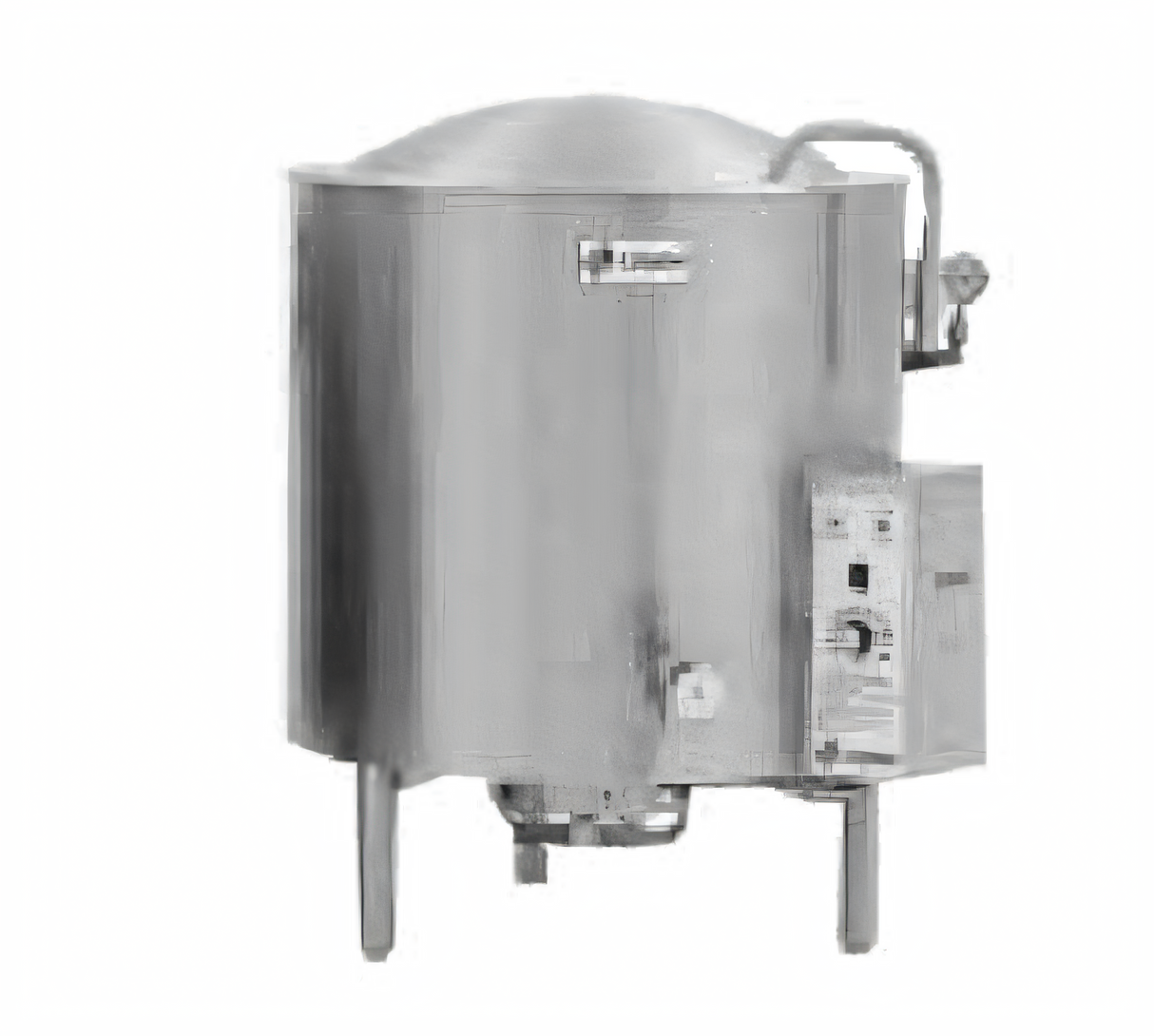

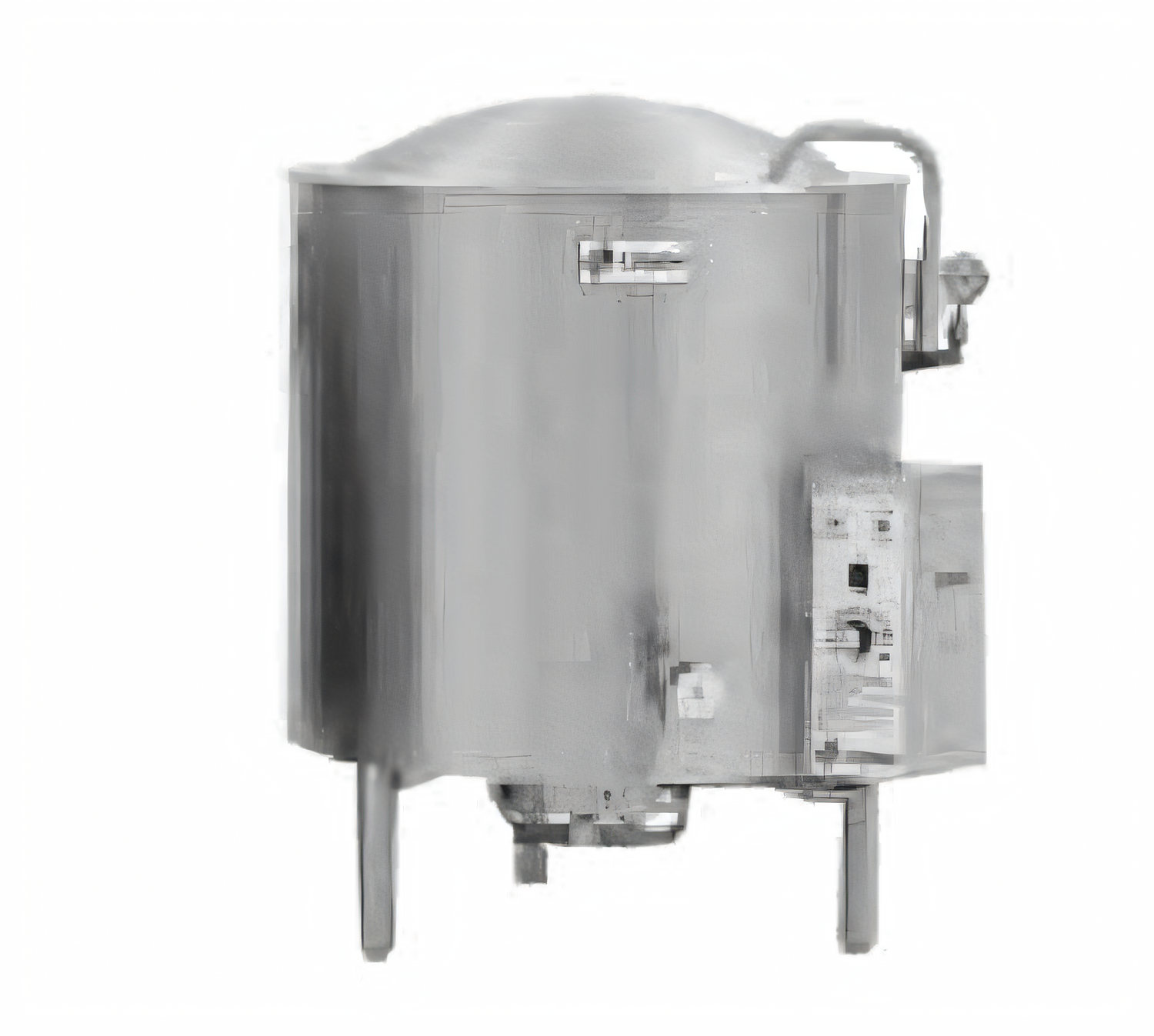

Legion LGB-30 30-Gallon Gas Stationary Kettle
Self-Contained • 2/3 Jacketed • Insulated for Safety™Power through your highest-volume soups, sauces and stocks with Legion’s U.S.-made LGB-30. This 30-gallon (114 L) floor-mounted kettle delivers fast, even heating via a 2/3 steam jacket, while its full-body insulation and all-stainless construction keep operators protected and clean-up quick.
Key Performance & Safety Features

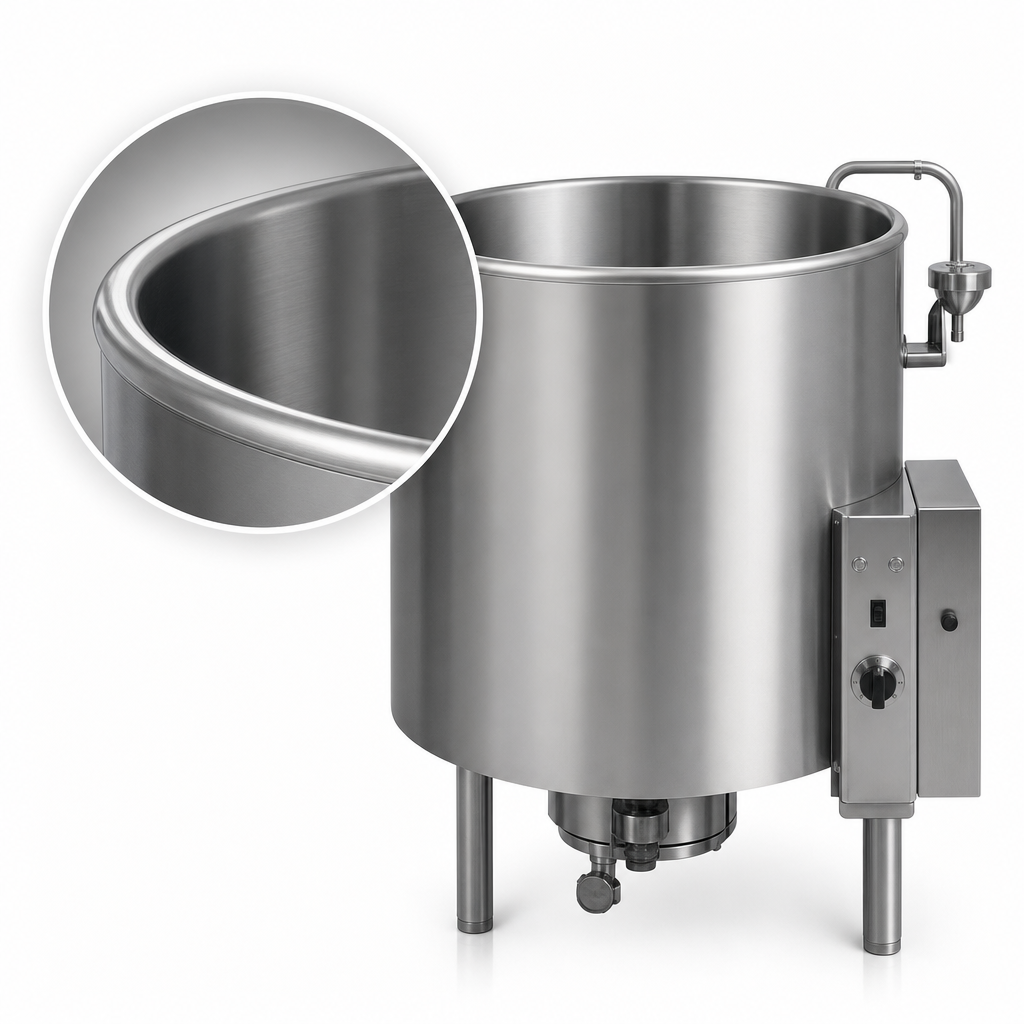

- Seamless deep-drawn 304 stainless steel liner with integrally formed radius lip for drip-free pouring.
- 304L stainless 2/3 jacket rated at 66,700 BTU/hr (Natural Gas) / 67,800 BTU/hr (LP).
- Thermostatic control 150 °F – 260 °F (65 °C – 127 °C) with electronic ignition (120 V standard).
- Kettle Protection System: pressure relief valve, pressure gauge, air eliminator, low-water cut-off & indicator light, jacket-water fill with sight glass and safety pilot.

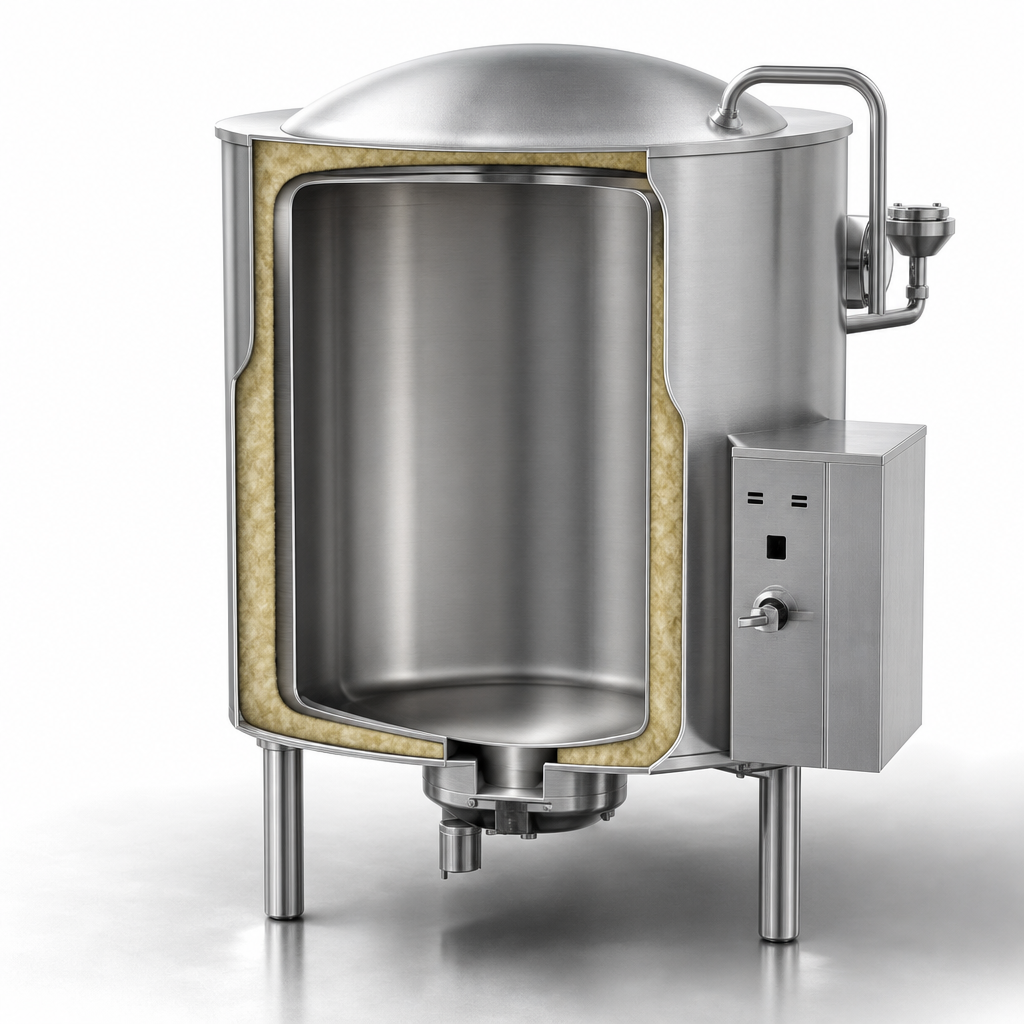

- Full-body insulation between jacket and outer casing to reduce energy use and exterior temperature.
- Hygienic 2" 304 SS compression draw-off valve with perforated disc strainer (¼" holes) included.
- Rugged, seam-welded stainless steel legs and control console with adjustable bullet feet.
- One-piece domed stainless cover with actuator assist for effortless lifting.
- Built & certified in the USA to applicable ASME, NSF, CSA & UL standards.
At-a-Glance Specifications
| Model / Capacity | LGB-30 / 30 gal • 114 L |
|---|---|
| Heating Source | Natural or Propane gas, self-contained |
| Input | 66,700 BTU/hr (Natural) | 67,800 BTU/hr (LP) |
| Gas Connection | ½" IPS; supply pressure 5-7" W.C. (Nat) / 12-14" W.C. (LP) |
| Electrical | 120 V, 1 Ph, 1 A (ignition & controls) 208 / 240 V optional |
| Jacket Coverage | 2/3-kettle sidewall |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-Off Valve | 2" compression type, 304 SS |
| Construction | 304 SS liner, jacket, outer casing, legs & console |
| Cover | One-piece domed, actuator-assisted, 304 SS |
| Controls | Front-mounted stainless console, electronic ignition, indicator lights |
| Certifications | ASME, NSF, CSA/AGA, UL (as applicable) |
| Origin | Made in the USA |
| Warranty | 12 months parts & labor from installation (extended coverage available) |
Optional Accessories & Upgrades
- Single or dual rinse faucet with 12" or 18" swing nozzle.
- 48" flexible spray hose (vinyl or stainless).
- Automatic water-fill meter.
- Tri-basket or single-basket inserts, nylon bag insert with spreader ring.
- Hinged, lift-off or lockable covers.
- 2-speed mixer/agitator, electric timer with buzzer & more (see price list).
Need help selecting accessories or arranging installation?
Contact our product specialists via chat or email and we’ll configure the perfect Legion kettle package for your kitchen.
