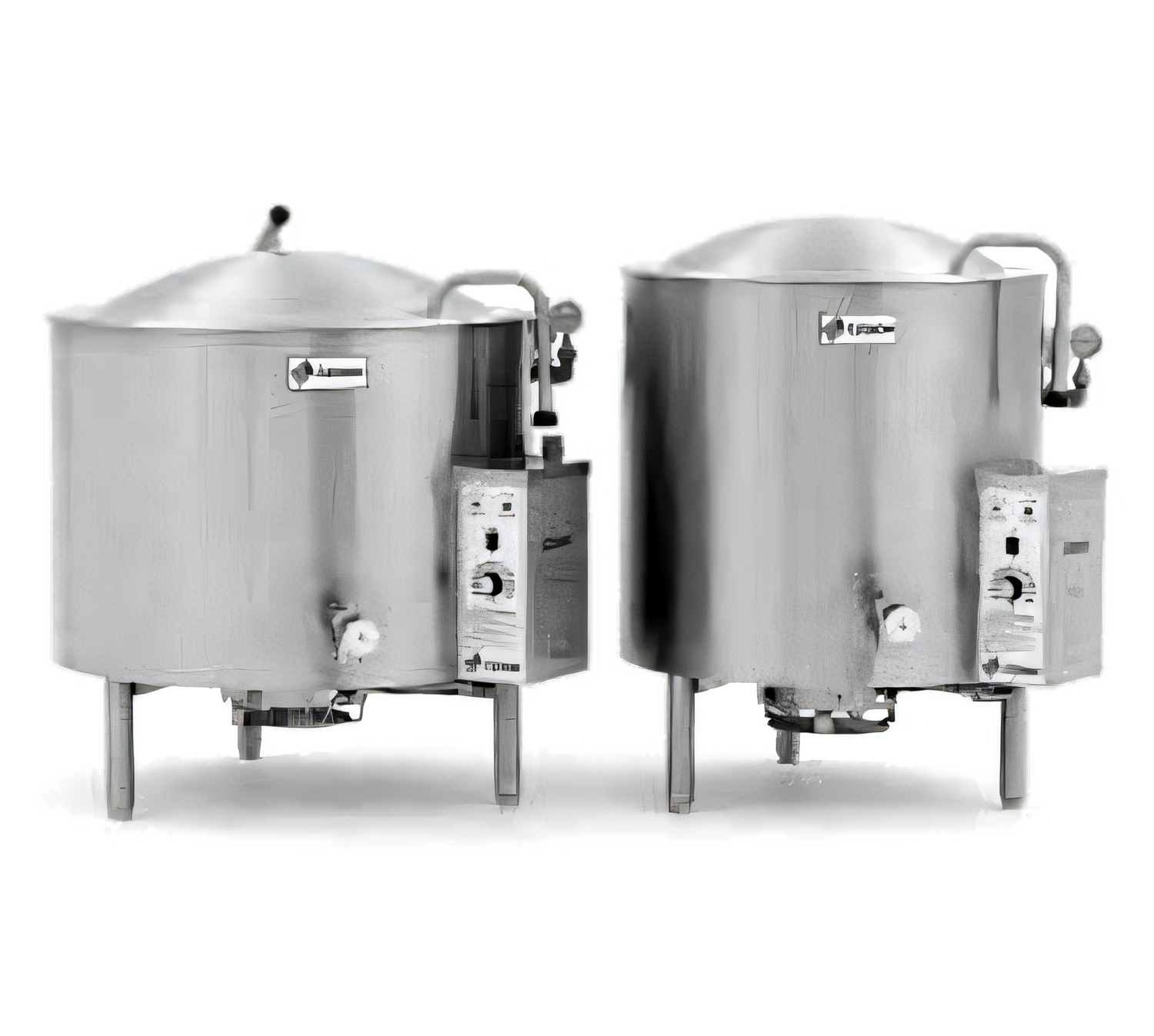

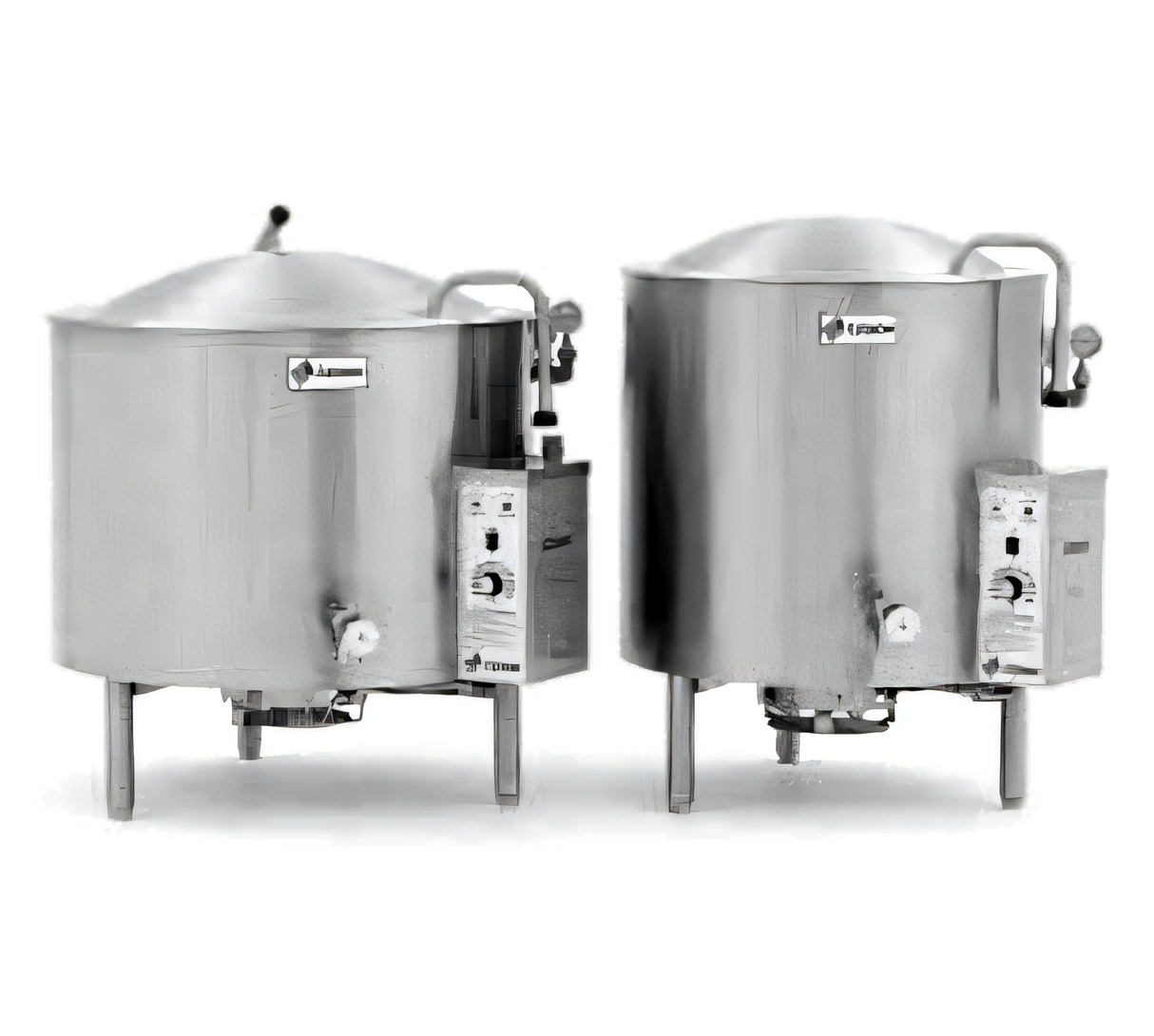

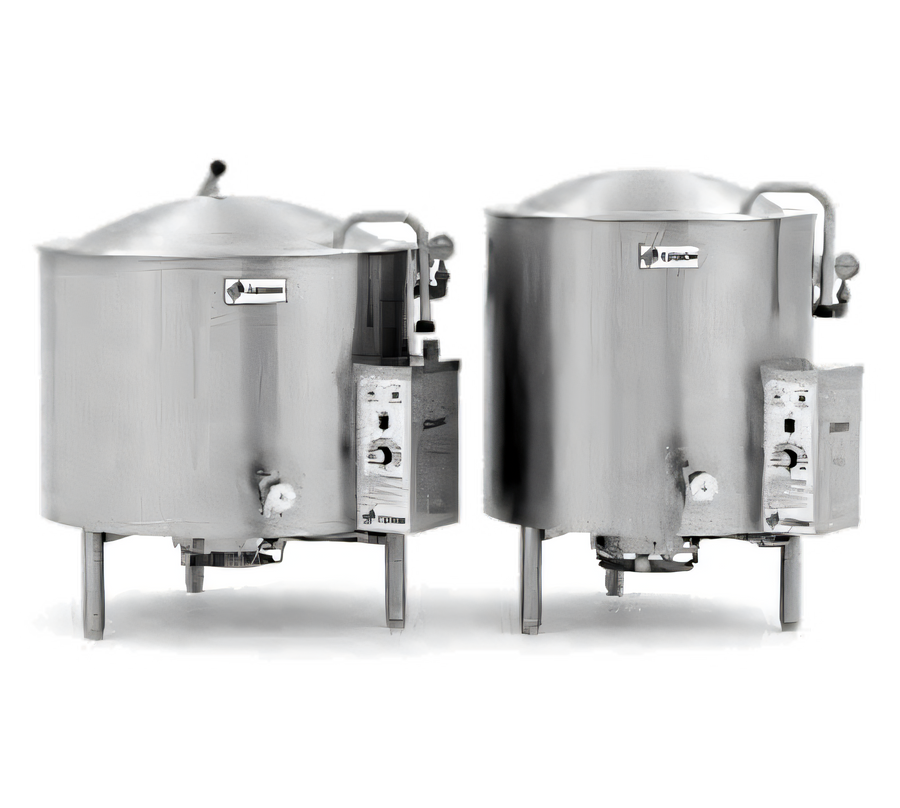

Legion LGB-25F Low-Profile 25-Gallon Gas Kettle with Two-Speed Mixer
Full-jacketed • 304 stainless steel • 79,855 BTUEngineered for heavy-production kitchens that demand consistency, safety, and speed, the Legion LGB-25F combines a fully insulated, gas-fired kettle with a factory-mounted two-speed agitator. From silky sauces to hearty soups and stews, this 25-gallon workhorse delivers precise temperature control, even heat distribution, and hands-free mixing—streamlining every batch while protecting your team and your bottom line.
Performance You Can Taste
- 79,855 BTU burner reaches set-points fast and maintains them without scorching.
- Seamless 304 stainless liner with a deep-drawn radius lip for hygienic, easy-clean surfaces.
- Full 304L stainless jacket delivers uniform heat up the sidewalls for consistent results.
- Thermostat-controlled range 150 – 260 °F eliminates guesswork and safeguards product quality.
- 2" compression draw-off valve moves product safely and quickly to pans, totes, or fillers.
Integrated Two-Speed Agitator
- Rugged, totally-enclosed gear motor with high (46 RPM) and low (23 RPM) speeds.
- 304 stainless anchor-type main agitator hugs the kettle wall to prevent hot spots.
- Counter-rotating secondary beater breaks up clumps and promotes uniform particle suspension.
- Removable nylon scraper blades sweep the entire surface—no more manual scraping.
- Actuator-assisted lift raises the mixer head for effortless loading, cleaning, or tilted access.
Safety Comes Standard
- Full-body fiberglass insulation keeps exterior surfaces cool to the touch.
- Pressure relief, air eliminator, and clearly marked pressure gauge protect the jacketed system.
- Automatic low-water cut-off with indicator light prevents element damage.
- Electronic ignition and safety pilot ensure reliable starts every time.
Technical Specifications
| Capacity | 25 gal | 95 L |
|---|---|
| BTU Input (Natural Gas) | 79,855 BTU/hr |
| Gas Connection | ¾" IPS (natural) | 5 – 7" W.C. supply pressure |
| Operating Temp. Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Jacket Type | Full-jacketed, ASME-certified |
| Liner & Jacket Material | 304/304L stainless steel |
| Insulation | Full-body fiberglass between jacket & outer casing |
| Draw-Off Valve | 2" compression-type, 304 stainless |
| Agitator Drive | Two-speed gear motor, 46 / 23 RPM |
| Electrical | 120 V, 1 ph, 1 amp (electronic ignition & mixer controls) |
| Floor Mount | Stainless steel low-profile legs with adjustable bullet feet |
| Origin | Made in USA |
Ideal For
- High-volume restaurants & commissaries
- School, hospital, and correctional foodservice
- Batch production of sauces, soups, custards, oatmeal, chili, & more
Need a faucet, strainer, or custom basket insert? Contact us for factory-approved accessories designed specifically for your Legion LGB-25F kettle.
Product Weight:
