Legion LGB-25F Steam Kettles
Description

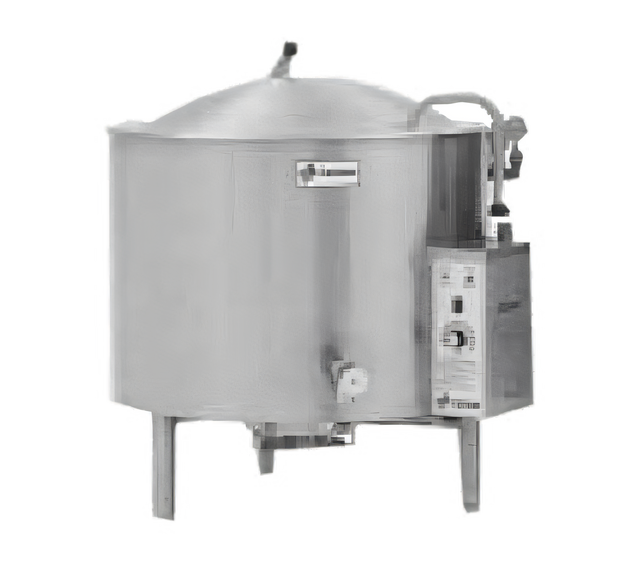

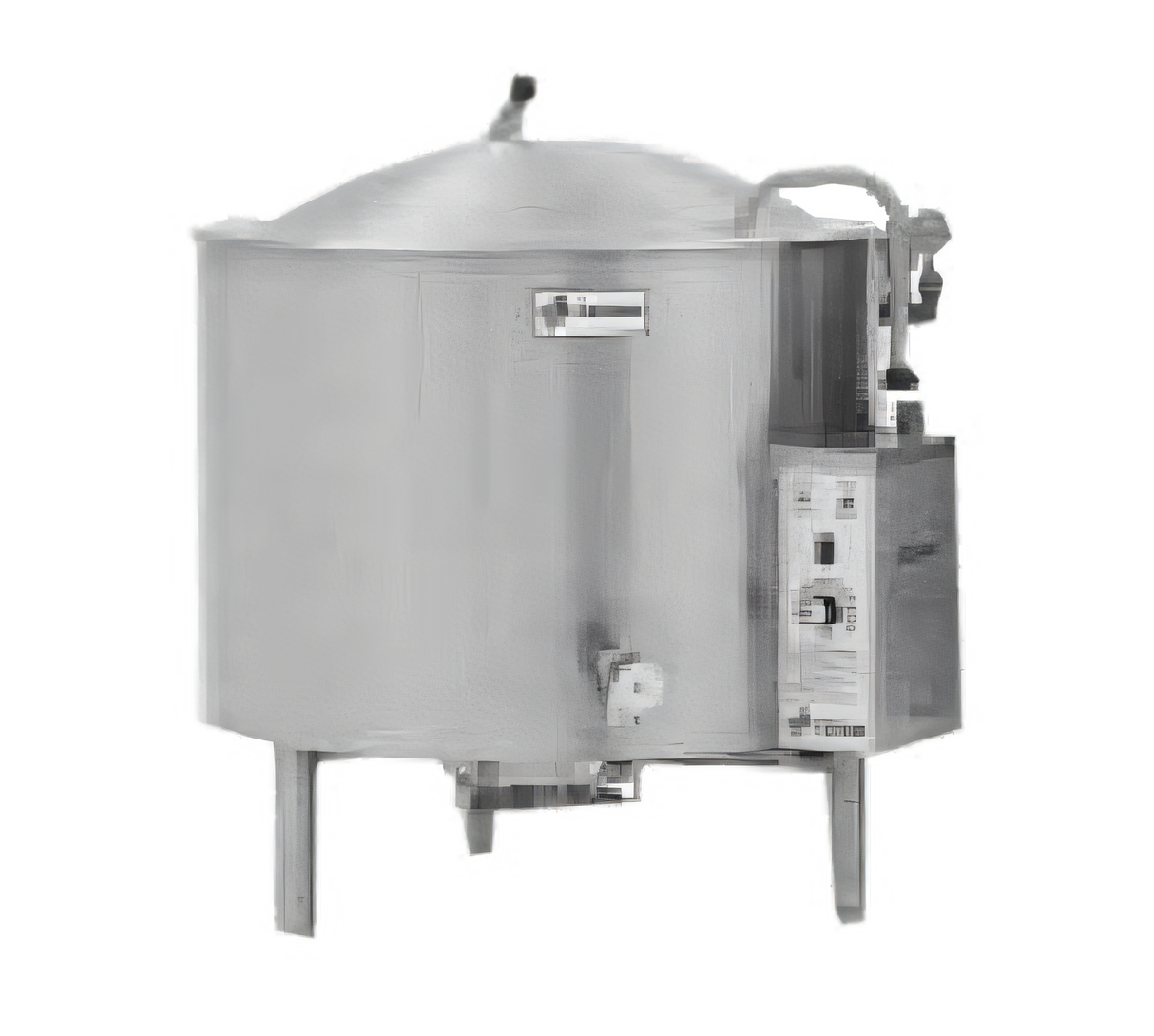

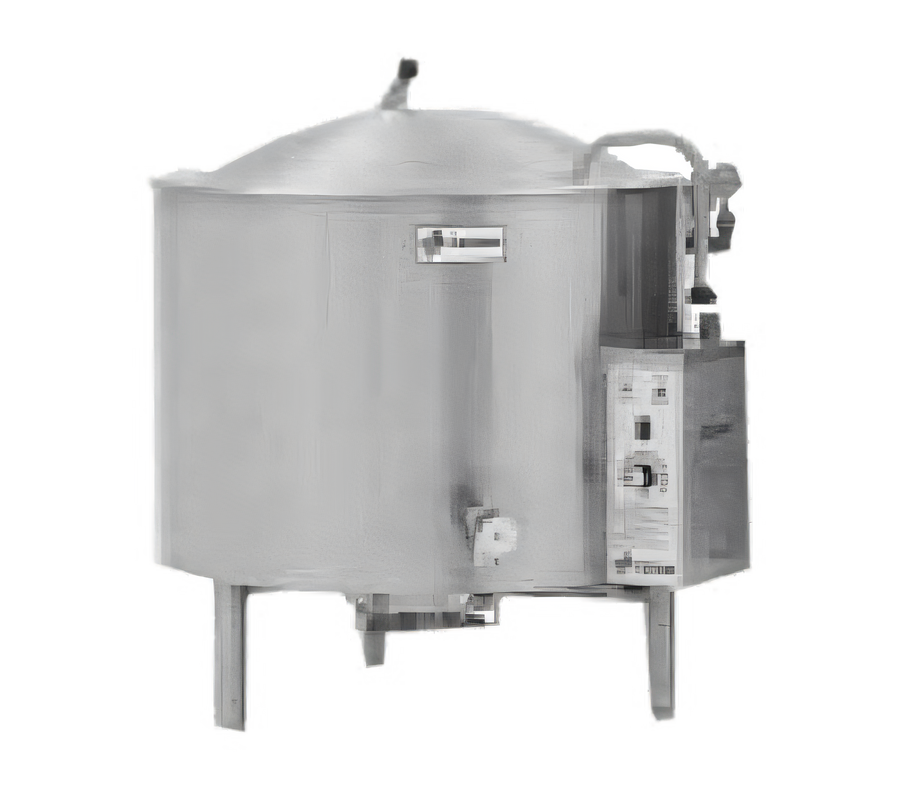

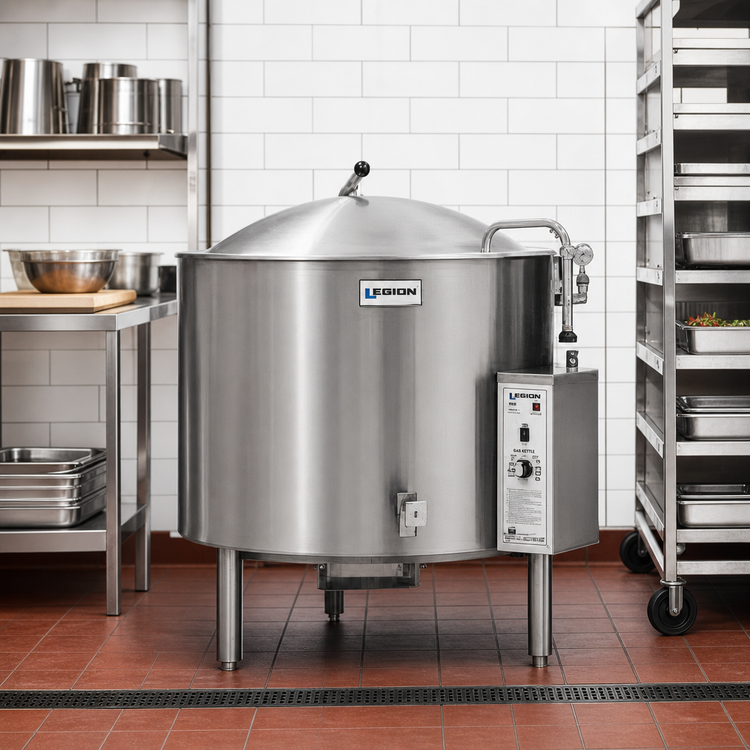

Legion LGB-25F | 25-Gallon Low-Rim™ Gas Stationary Kettle
Full-Jacketed • Self-Contained • 79,855 BTUBuilt in Waynesboro, GA and engineered for demanding commercial kitchens, the Legion LGB-25F delivers fast, even heat without the need for an external boiler. Its Low-Rim™ profile keeps the kettle lip within comfortable reach, while full-body insulation and a host of safety features protect both operator and product batch after batch.
Key Performance Features
- 25-gallon (95 L) capacity—perfect for high-volume soups, sauces, stews & pasta.
- 79,855 BTU gas burner with electronic ignition for rapid heat-up.

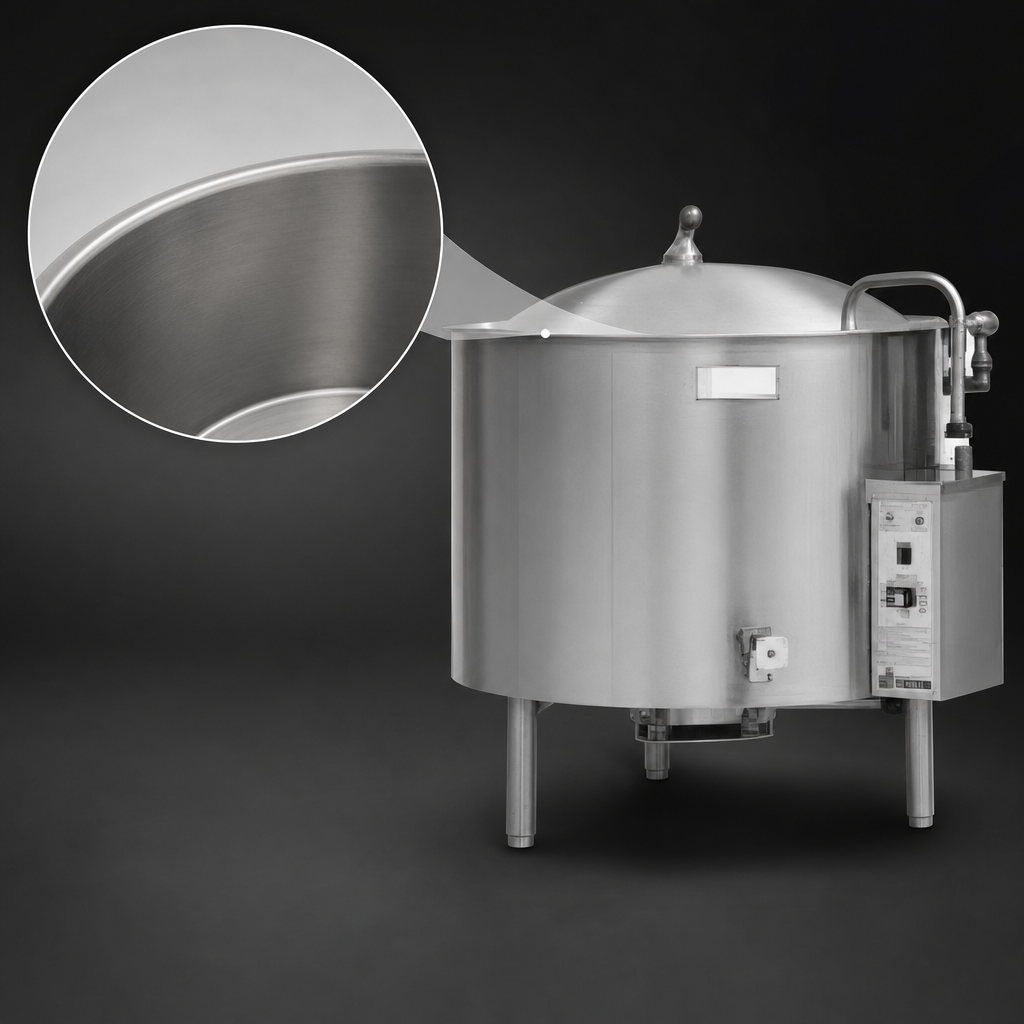

- Seamless deep-drawn 304 stainless liner with integral radius lip for effortless stirring and drip-free pouring.

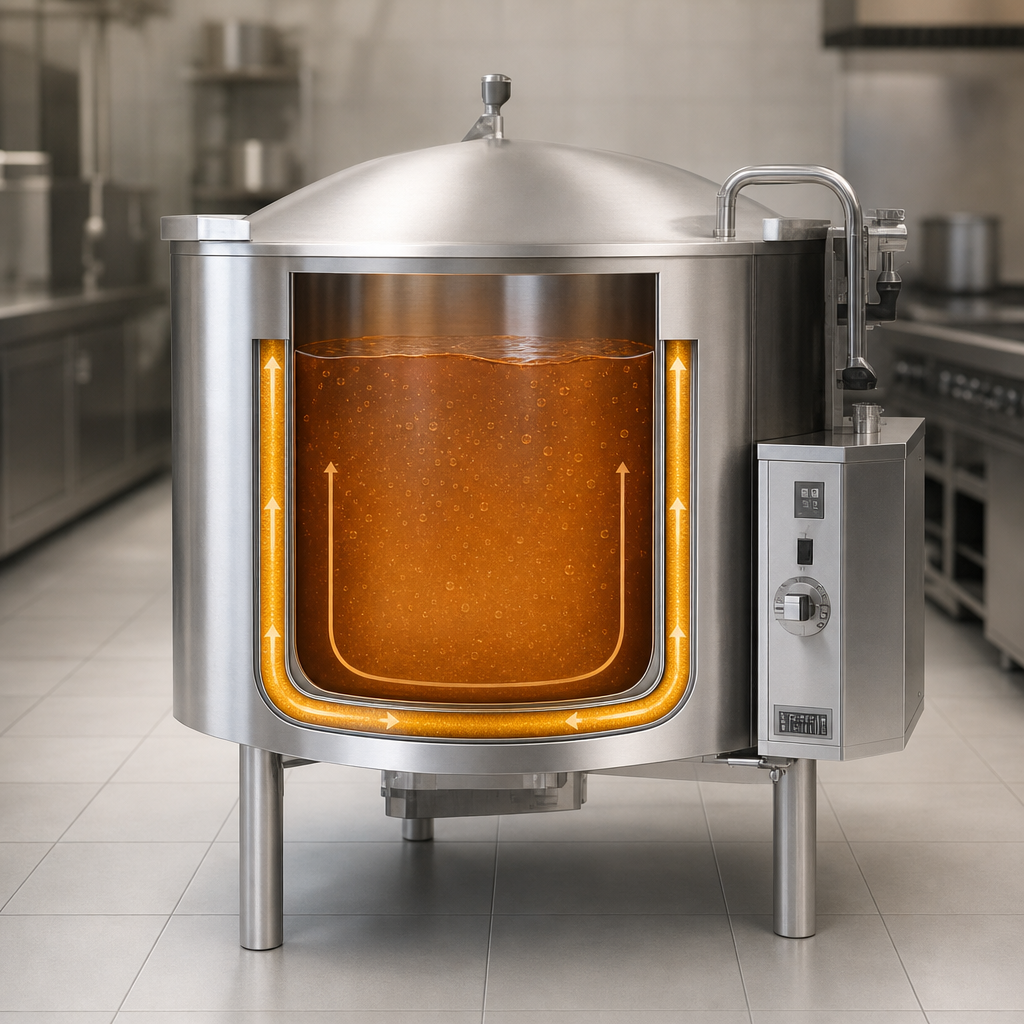

- 304L stainless full jacket surrounded by high-density insulation for superior energy efficiency and a cool-touch exterior.
- Thermostat control from 150 °F – 260 °F (65 °C – 127 °C) lets you simmer, braise or boil with accuracy.
- 2" 304 stainless compression draw-off valve speeds batch transfer and clean-up.
- Low-Rim™ design reduces lift height, improving operator comfort and safety.
- Adjustable bullet feet for quick, level installation.
- NSF-listed and ASME-code constructed—no external steam source required.
Safety & Protection System
- Automatic low-water cut-off with indicator light prevents jacket damage.
- Pressure relief valve, air eliminator and pressure gauge continuously safeguard the steam jacket.
- Safety pilot valve plus electronic ignition eliminates manual flame-lighting.
- Full-coverage insulation keeps exterior surfaces cooler to the touch.
What’s Included
- One-piece domed stainless cover
- Perforated disc strainer (¼" holes)
- Seam-welded stainless control console & outer casing
Technical Specifications
| Model | LGB-25F |
|---|---|
| Capacity | 25 gal / 95 L |
| Heat Source | Natural gas (standard) or Propane (LP) |
| Total Input | 79,855 BTU/h Natural | 83,100 BTU/h LP |
| Gas Connection | ¾" NPT |
| Electrical | 120 V, 1 ph, 50/60 Hz, 1 A (controls & ignition) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-Off Valve | 2" compression type, 304 stainless |
| Approx. Dimensions* | 25.5" W × 25.8" D × 37.1" H to kettle lip |
| Construction | All-stainless kettle, jacket, legs & console |
| Country of Origin | USA |
*Refer to factory drawing for full dimensional data, utility locations and clearance requirements.
Options & Accessories
- Swing-nozzle fill faucets (single or dual), 12" or 18"
- 48" flexible spray hose (vinyl or stainless)
- Electronic timer with buzzer
- Basket inserts, drain hoses, measuring strips & more
- Prison / security fastener packages
Warranty
Backed by a 12-month parts & labor warranty (90-day coverage on wear items) with optional extended coverage available at checkout.
Installation must comply with all local gas, electrical and plumbing codes. A licensed professional is recommended.
