Legion LGB-20MV Steam Kettles
Description

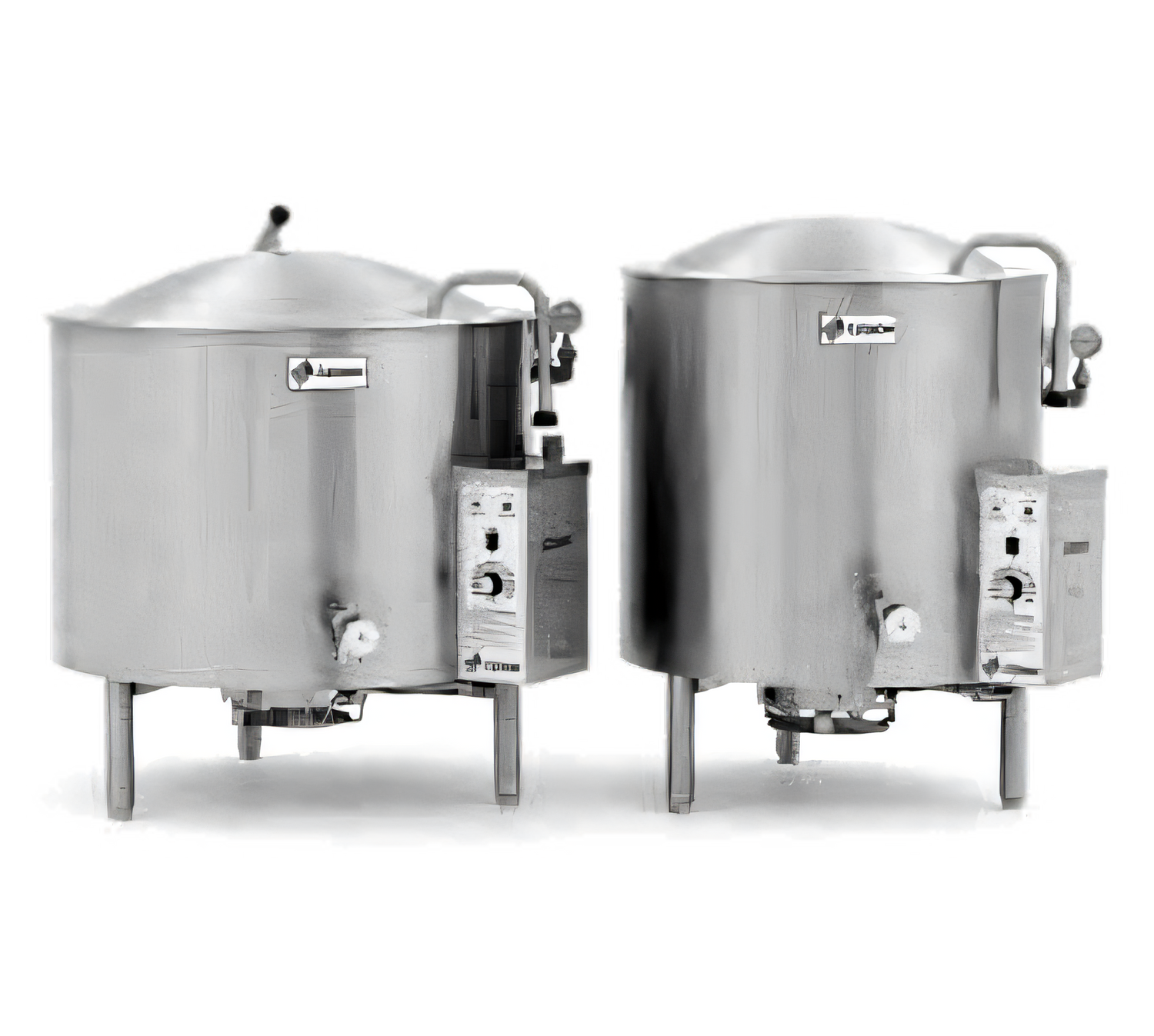

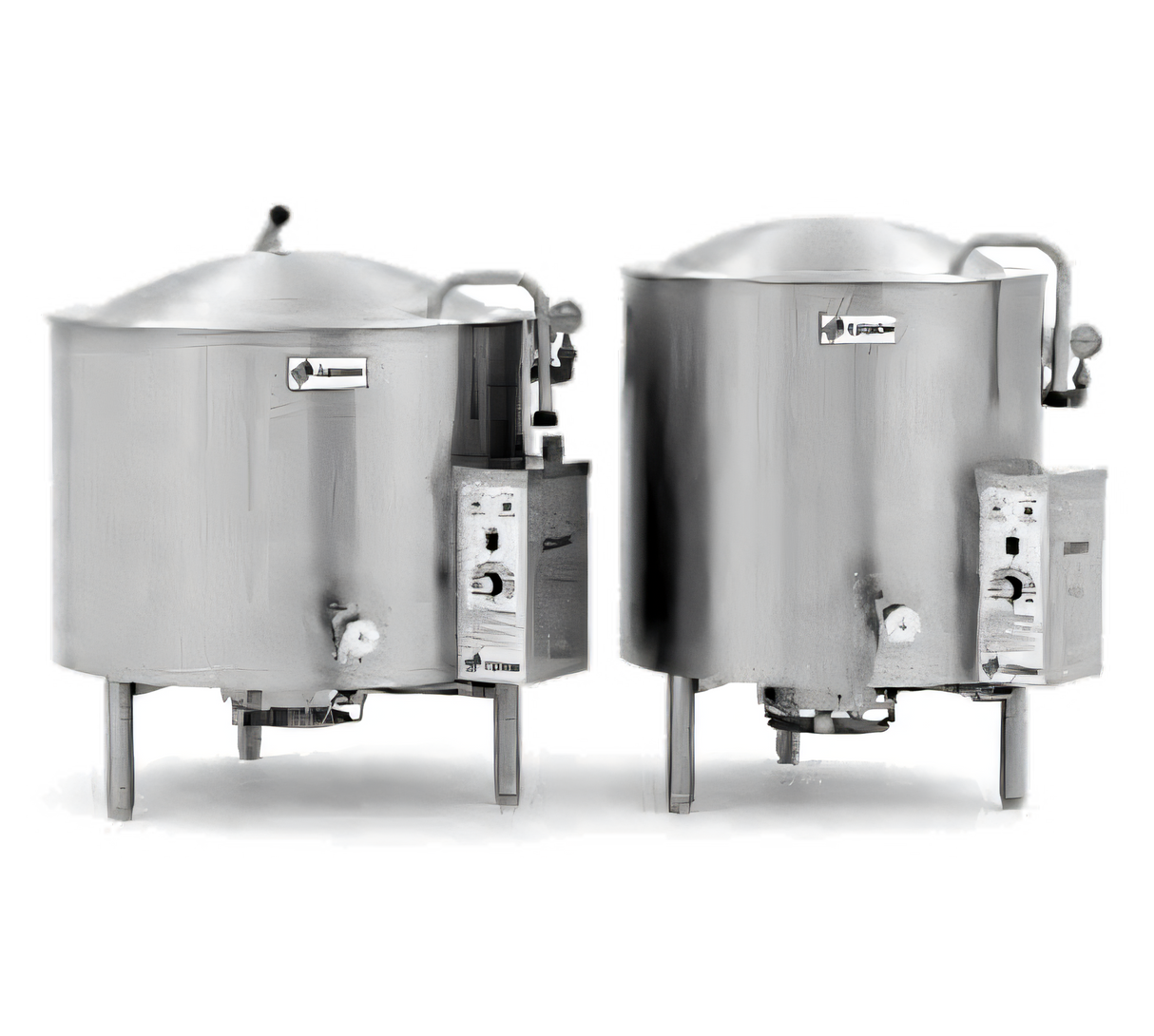

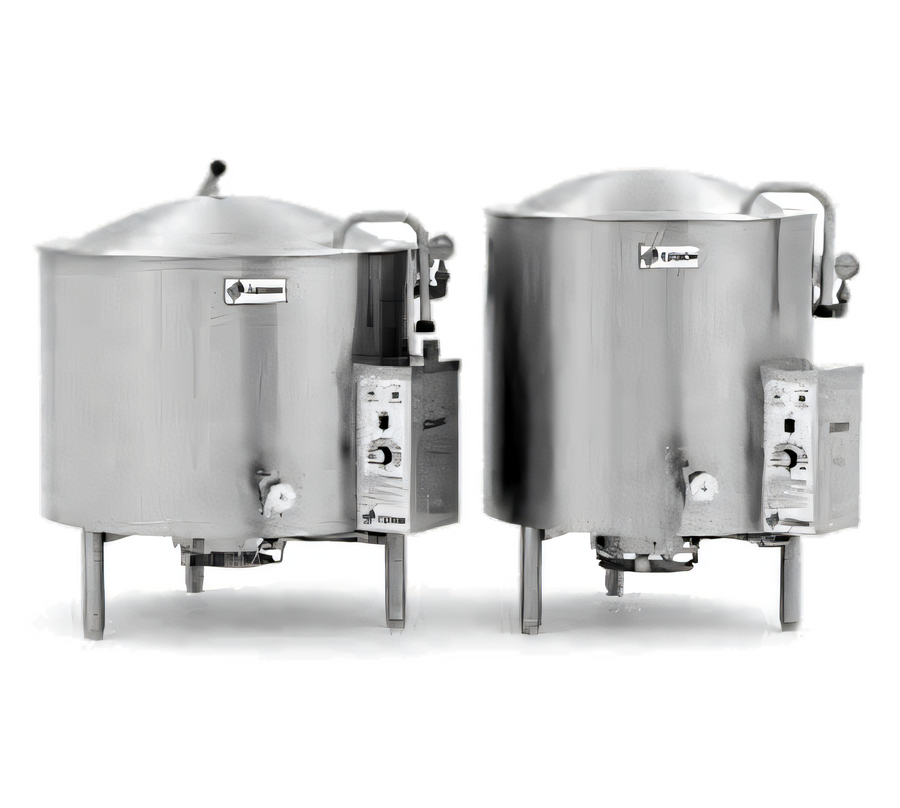

Legion LGB-20 Gas Stationary Kettle with Integrated MV Mixer — 20 Gallon
Self-Contained • 2/3 Jacketed • 63,167 BTU • Made in USAPower through soups, sauces, stews and more with Legion’s 20-gallon LGB-20 kettle, factory-equipped with a twin-shaft MV mixer. The gas-fired, fully insulated design heats faster, mixes continuously and cleans up in minutes—giving you rock-solid consistency every single batch.
Performance You Can Taste
- 2/3 jacketed body surrounds product with gentle, even heat—no hot spots or scorching.
- High-efficiency 63,167 BTU burner plus full body insulation equals rapid heat-up and lower fuel bills.
- Two-speed agitator (23 / 46 RPM) and counter-rotating beater (60 / 120 RPM) keep high-viscosity foods moving for lump-free results.
- Thermostatic control from 150 – 260 °F lets you simmer, braise or boil at the turn of a dial.
- Electronic ignition (120 V) eliminates standing pilots and lights instantly.
Engineered for Heavy-Duty Kitchens
- Seamless deep-drawn 304 SS liner with sanitary radius lip.
- 304 SS jacket, draw-off tube and 2″ compression valve resist corrosion and flavor carry-over.
- MV mixer bridge is balanced, enclosed aluminum for strength and easy tilting.
- Nylon scraper blades hug the kettle wall, preventing burn-on and cutting rinse time.
- Bayonet-mounted agitator tools remove in seconds for dish-machine cleaning.
- Kettle protection package: pressure relief, air eliminator, jacket sight glass, low-water cut-off & indicator light.
- Four stainless legs with adjustable bullet feet provide rock-solid floor mounting.
Specifications
| Capacity | 20 gal | 76 L |
|---|---|
| Heat Source | Natural or LP gas, 63,167 BTU/hr |
| Temperature Range | 150 – 260 °F (65 – 127 °C) |
| Jacket Coverage | 2/3 body |
| Construction | 304 SS liner, jacket & outer casing with full-body insulation |
| Agitator Speeds | Main: 23 / 46 RPM • Beater: 60 / 120 RPM |
| Gas Connection | ½″ IPS (Nat. 5–7″ W.C. | LP 12–14″ W.C.) |
| Electrical | 120 V, 1 ph, 1 A (ignition) + 115 V, 1 ph (mixer motor) |
| Draw-Off Valve | 2″ 304 SS compression, perforated disc strainer ¼″ holes |
| Footprint (W × D × H) | 22″ W × 32″ D × 64″ H (cover raised) |
| Agency Approvals | ASME, NSF, CSA |
Larger capacities, automatic water meters, ball-type valves, quick-disconnect gas kits and other custom options are available on request.
Built in Waynesboro, Georgia, and backed by Legion’s legendary quality, the LGB-20 with MV mixer turns labor-intensive batch cooking into a precise, push-button operation. Order yours today and taste the difference consistency makes!
