Legion LGB-20FMV Steam Kettles
Description

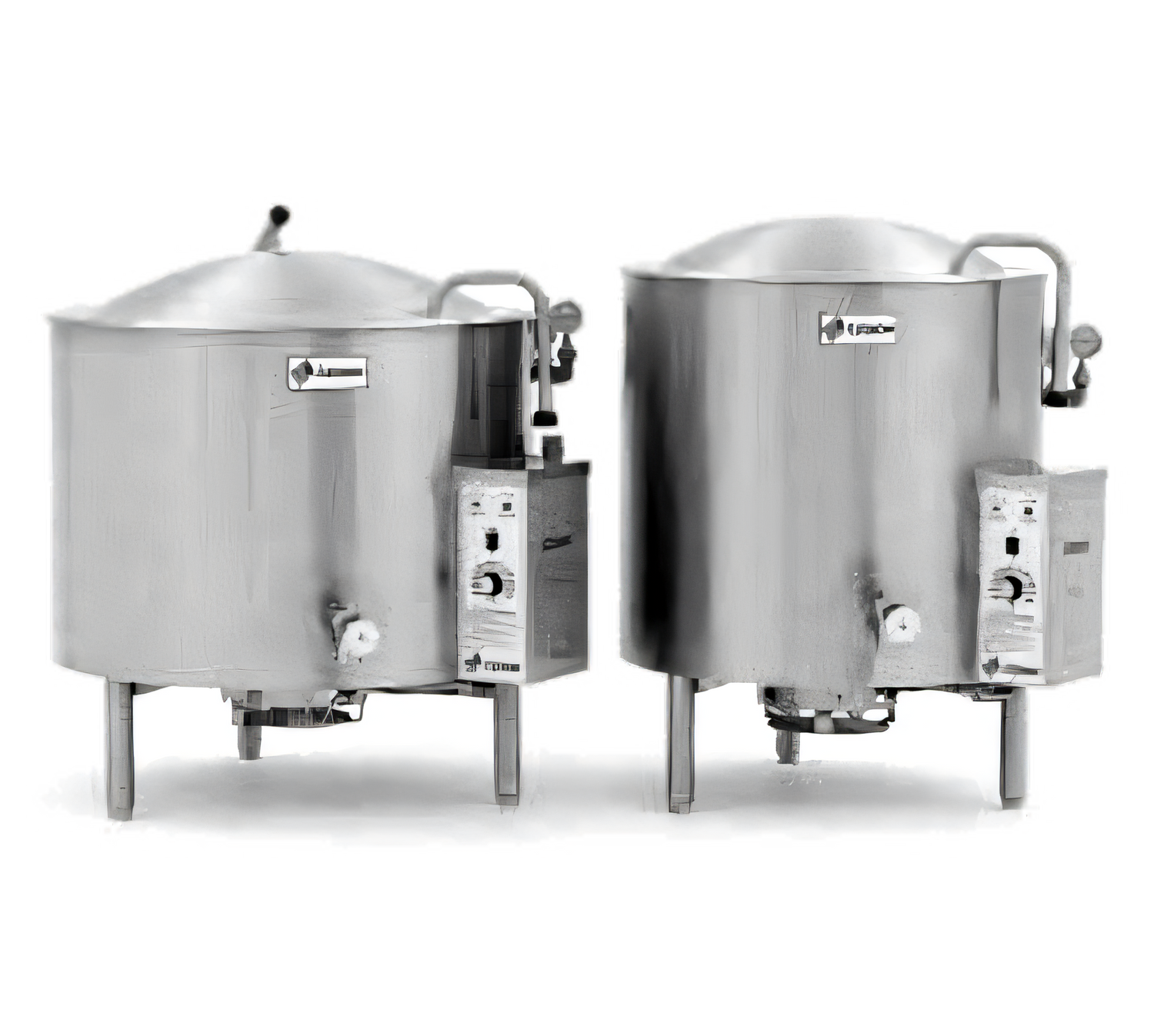

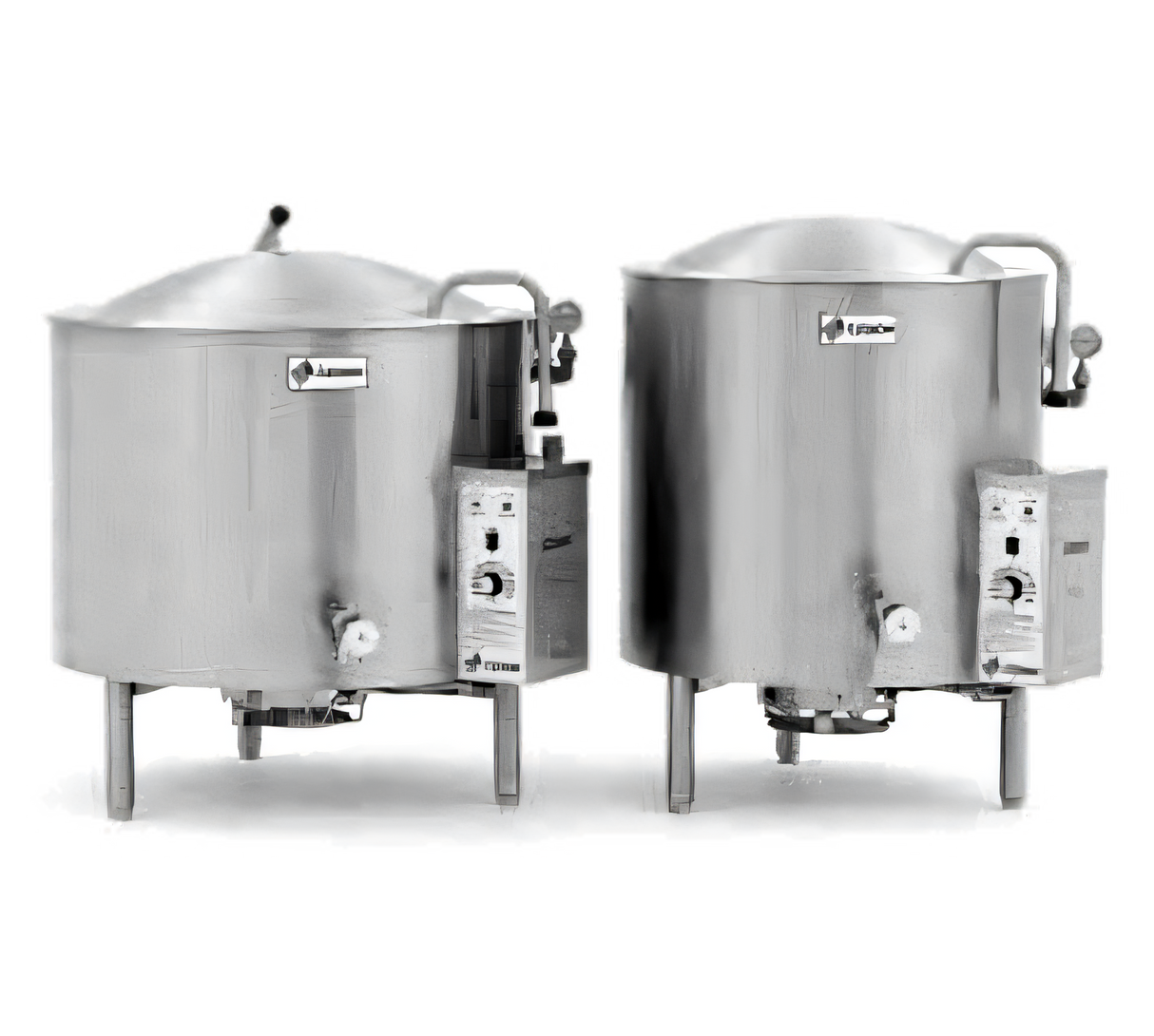

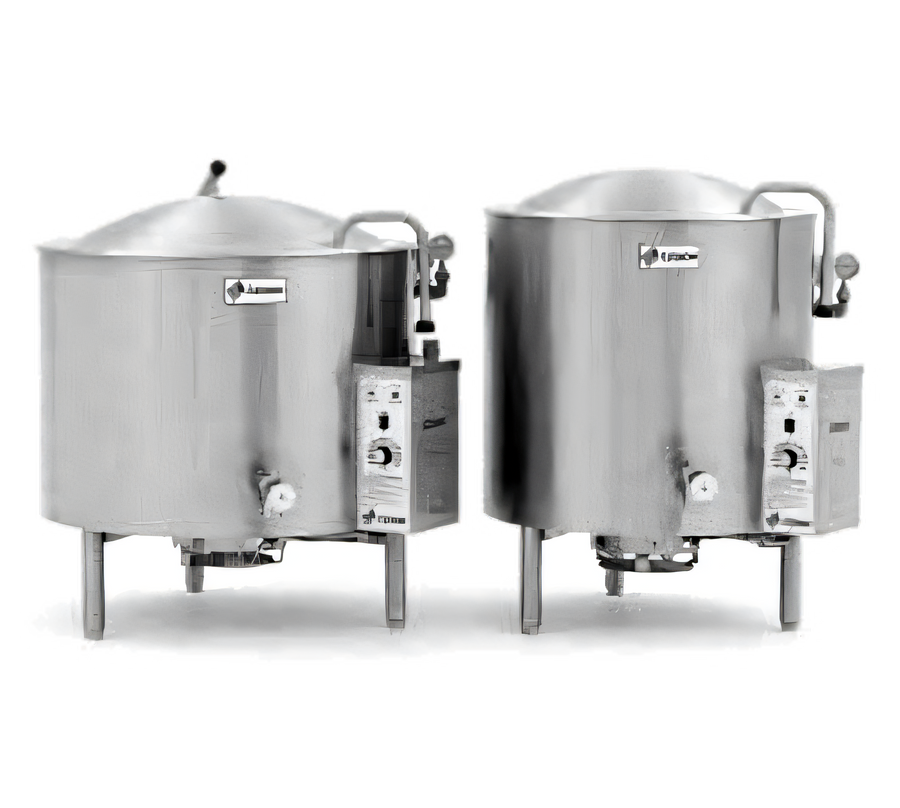

Legion Low-Rim™ 20-Gallon Gas Stationary Kettle with MV Mixer
Model LGB-20F | Self-Contained, Full-Jacketed | 66,725 BTUEngineered for demanding commercial kitchens, the Legion LGB-20F combines rapid, gas-fired cooking with an integrated two-speed mixer to deliver perfectly consistent soups, sauces and fillings while slashing labor and energy costs. Built, tested and certified in the USA, this Low-Rim™ kettle keeps operators comfortable, productive and safe shift after shift.
Why You’ll Love It
- Ergonomic Low-Rim™ design—deep-drawn liner sits lower for easier stirring, tasting and loading.
- Full 304/304L stainless steel liner, jacket, outer casing, legs and control console for unmatched durability.
- Self-contained, full steam jacket surrounds product for even heating with no external boiler required.
- Big 66,725 BTU burner (natural gas) brings product to temperature fast and maintains a tight ±10 °F range.
- Complete kettle protection system—thermostat 150 – 260 °F, pressure gauge & relief valve, air eliminator, low-water cutoff with indicator light.
- Full-body insulation keeps exterior surfaces cool and maximises energy efficiency.
- Electronic ignition (120 V) with safety pilot—no standing pilot to waste fuel.
- 2″ compression draw-off valve in 304 stainless steel for smooth, drip-free portioning.
Built-In MV Twin-Shaft Mixer
- Two-speed gear motor: Low 23 RPM / 60 RPM, High 46 RPM / 120 RPM (main / beater).
- Anchor-style main agitator with removable nylon scraper blades sweeps the entire kettle surface.
- Counter-rotating stainless steel beater breaks up clumps and ensures thorough mixing of thick or delicate products.
- Bayonet-mounted shafts lift out in seconds for cleaning or for using the kettle without agitation.
- Actuator-assisted bridge & agitator lift plus positive rim-lock for safe, one-person operation.
- Safety interlock prevents high-speed starts when scraper is not fully engaged.
Included Components
- One-piece domed stainless steel cover
- Perforated disc strainer, ¼″ holes
- Adjustable stainless steel bullet feet
- Jacket water fill port & sight glass
Technical Specifications
| Capacity | 20 gal | 76 L |
|---|---|
| Heat Source | Natural gas (propane kit optional), 66,700 BTU input |
| Gas Connection | ½″ NPT (supply pressure 5–7″ W.C. NG / 12–14″ W.C. LP) |
| Temperature Range | 150 °F – 260 °F (thermostatic) |
| Electrical | 120 V, 1 ø, 1 A (ignition & controls) • Mixer motor 1 HP (high) / ½ HP (low) |
| Liner / Jacket Material | Seamless 304 stainless steel liner • 304L full jacket |
| Insulation | Full-body fiberglass, “Insulated for Safety™” cool-touch exterior |
| Draw-Off Valve | 2″ 304 SS compression type with removable lever handle |
| Overall Dimensions (W×D×H) | 23.0″ × 24.6″ × 35.4″ (consult drawing for clearances) |
| Certifications | ASME, NSF, UL, CSA & applicable gas codes |
| Country of Origin | Made in USA |
Covered by Legion’s 12-month parts & labor warranty (extended plans available). See warranty sheet for complete details.
