Legion LGB-20F Steam Kettles
Description

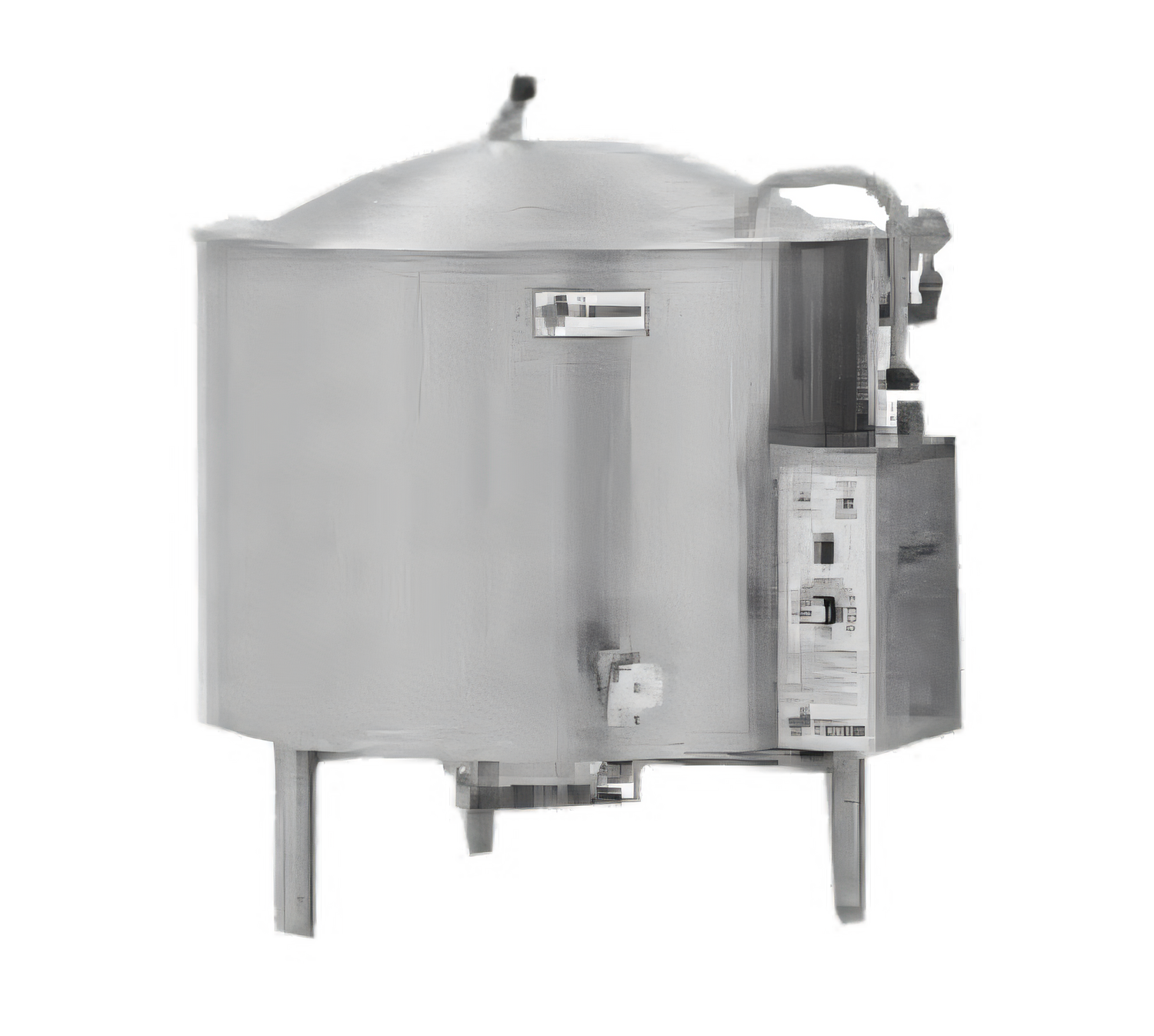

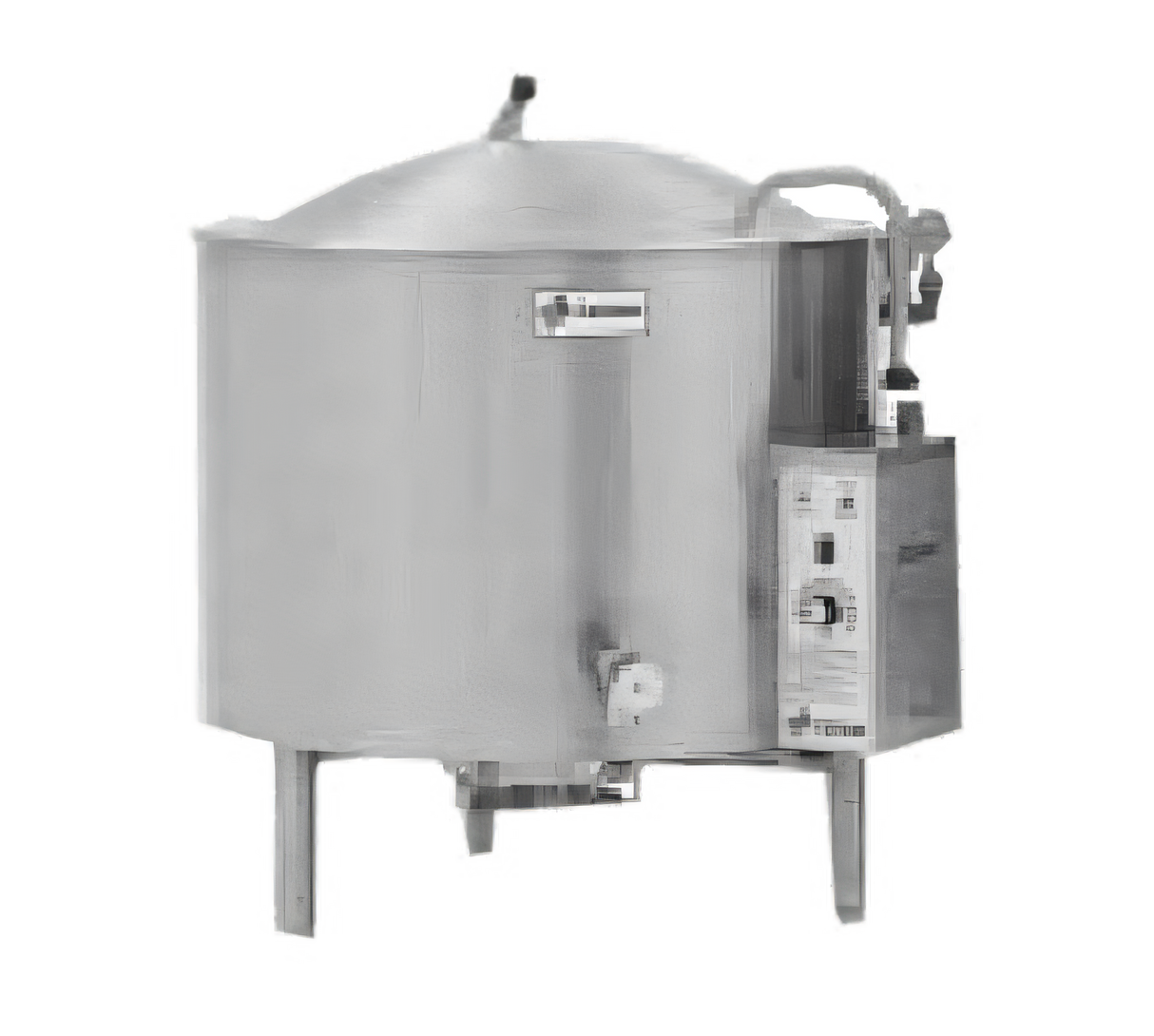

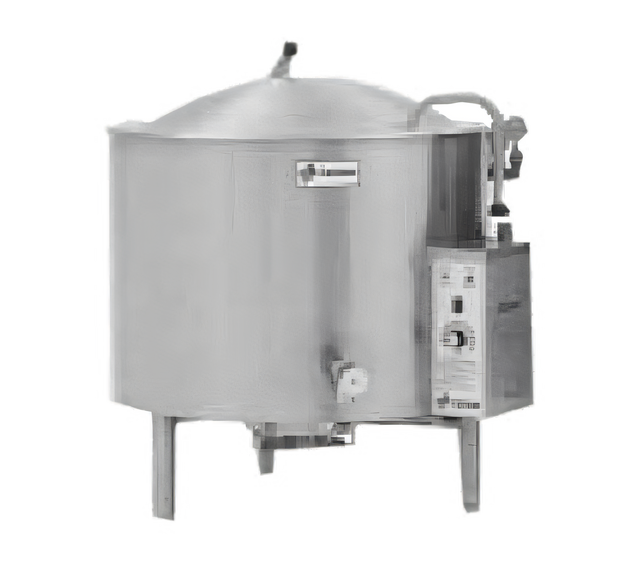

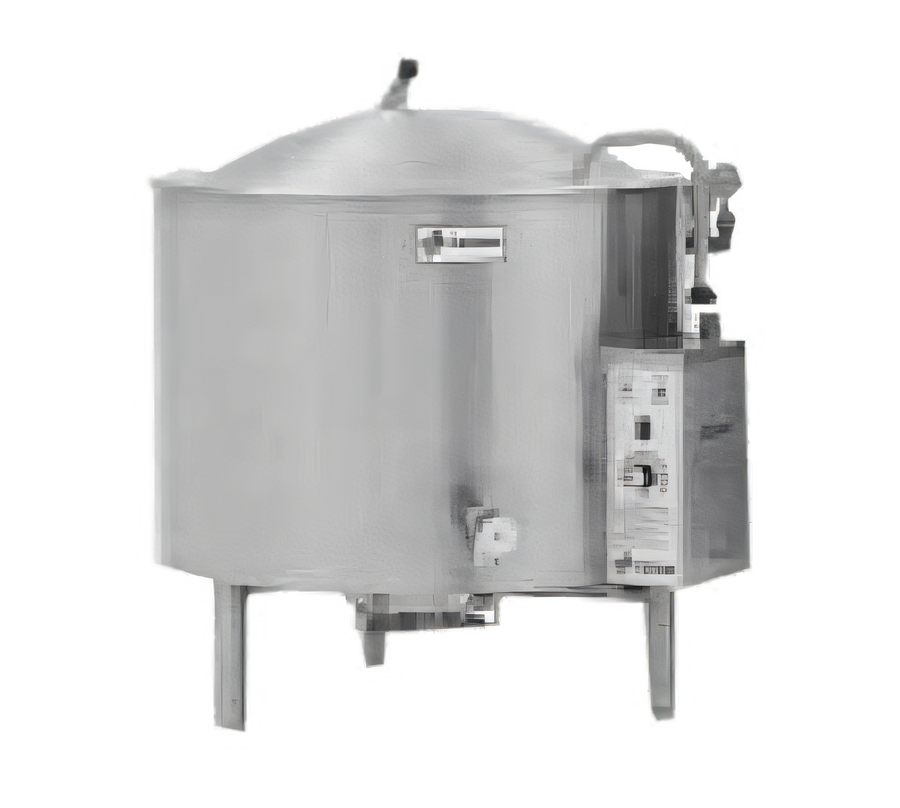

Legion Low-Rim™ 20-Gallon Gas Stationary Kettle – Model LGB-20F
Full-jacketed • Self-contained • Insulated for Safety™Built for bustling commercial kitchens that won’t compromise on speed, consistency, or safety, the Legion LGB-20F delivers 66,700 BTU* of 360° gas heat in a compact, low-profile footprint. A seamless 304 stainless liner, full steam jacket and precise thermostat control take the guesswork out of small-batch sauces, soups, stocks and more—letting your team focus on flavor, not babysitting pots.
Key advantages
- 20 gal / 76 L working capacity—perfect for restaurants, schools & catering labs

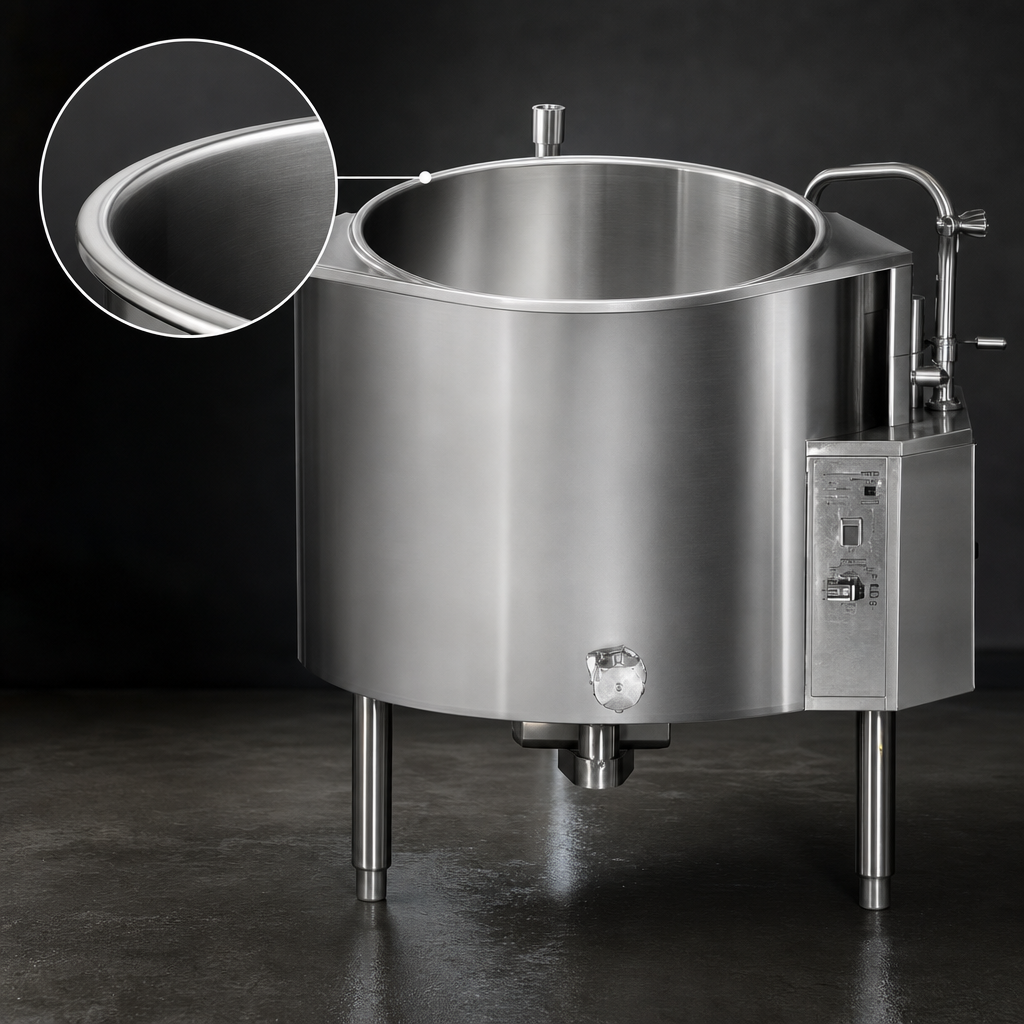

- Seamless deep-drawn 304 stainless liner with integrally formed radius lip for drip-free pouring & effortless clean-up

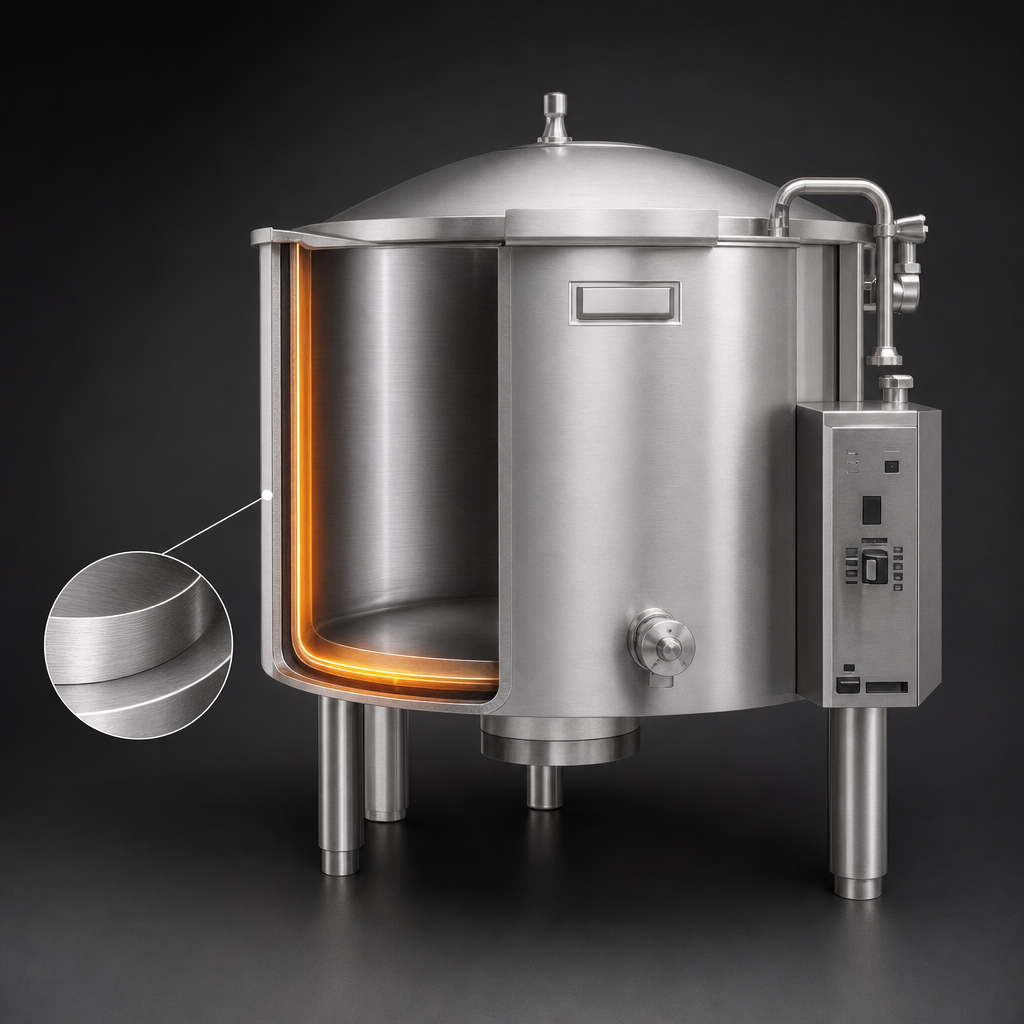

- Full 304L stainless steam jacket blankets product with even heat—no scorching “hot spots”
- Thermostatic control from 150 °F – 260 °F (65 °C – 127 °C) for set-and-forget accuracy
- Electronic spark ignition (120 V) saves energy and eliminates manual pilot lighting
- Factory-installed 2" 304 SS compression draw-off valve with perforated disc strainer
- Full body, high-temperature insulation keeps exterior cool-to-the-touch & reduces kitchen heat load
- Comprehensive protection: pressure relief valve, air eliminator, gauge, sight glass & low-water cut-off with indicator
- All-stainless exterior, legs & seam-welded control console for unmatched durability
- Made in the USA and built to meet or exceed ASME, NSF & other applicable standards
Technical specifications
| Model | LGB-20F (Low-Rim™) |
|---|---|
| Capacity | 20 gal / 76 L |
| Heating | Gas fired, self-contained full jacket |
| BTU input | 66,700 BTU/hr (Natural) • 67,800 BTU/hr (Propane) |
| Thermostat range | 150 °F – 260 °F (65 °C – 127 °C) |
| Ignition | Electronic spark, 120 V / 1 ph / 1 A |
| Draw-off valve | 2" 304 SS compression type w/ ¼" perforated disc strainer |
| Construction | 304/304L stainless liner, jacket, outer casing & control console |
| Insulation | Full body high-temp insulation between jacket & shell |
| Gas connection | ½" IPS; Supply pressure 5-7" W.C. (Natural) / 12-14" W.C. (LP) |
| Overall dimensions | 23" W × 24.6" D × 35.4" H† |
| Net weight | ≈ 250 lb / 113 kg |
† Height includes control console and adjustable bullet feet. See spec sheet for detailed installation drawings.
Ideal applications
- Restaurants, hotels & resort kitchens
- Central commissaries & ghost kitchens
- Schools, healthcare, correctional & military foodservice
- Batch cooking, rethermalizing, blanching & holding
Want even more productivity? Add factory options like a swing-nozzle fill faucet, flexible spray hose, automatic water meter or two-speed agitator—contact us for details.
*Average of Natural & LP BTU ratings.
