Legion LGB-20 Steam Kettles
Description

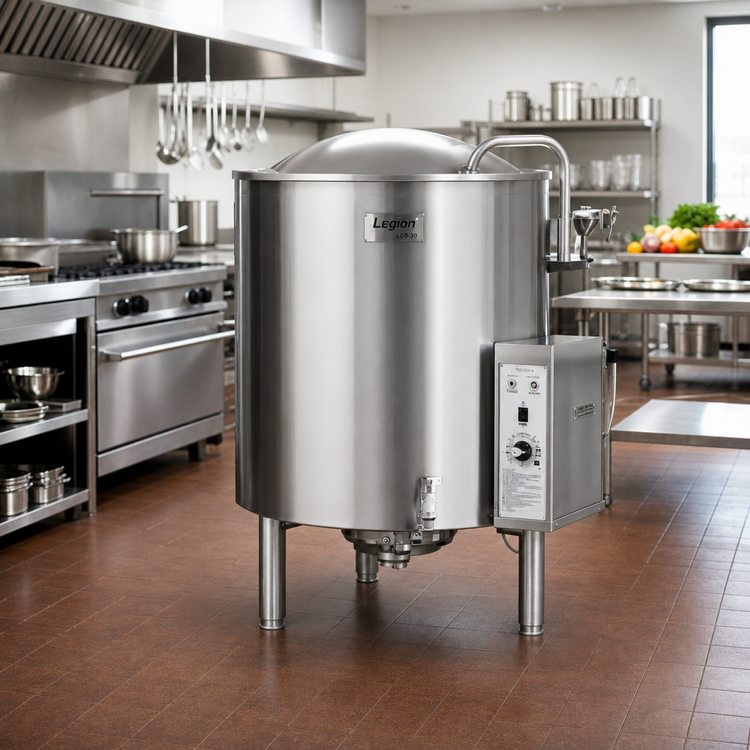

Legion LGB-20 Stationary Gas Kettle – 20 Gal.
Self-Contained • 2/3 Jacketed • Insulated for Safety™Built in the USA for demanding commercial kitchens, the Legion LGB-20 delivers 20 gallons (76 L) of fast, uniform cooking capacity in a compact, floor-mounted design. A seamless 304 stainless liner, full-body insulation and an advanced safety/control package make this kettle as durable as it is operator-friendly.
Key Features & Advantages
- Gas-fired, self-contained system outputs 63,200 BTU (natural) for rapid heat-up.

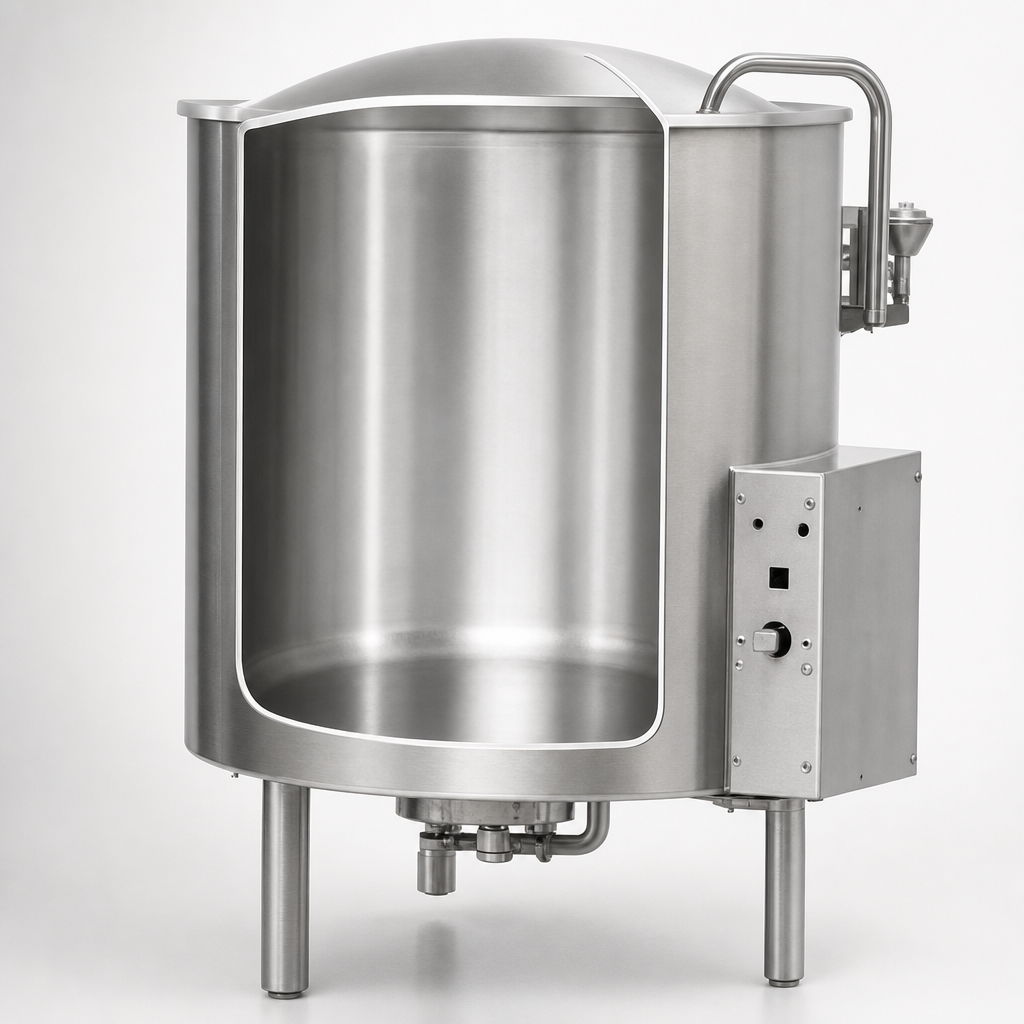

- Deep-drawn 304 stainless steel liner with integrally formed radius lip for drip-free pouring and easy cleaning.

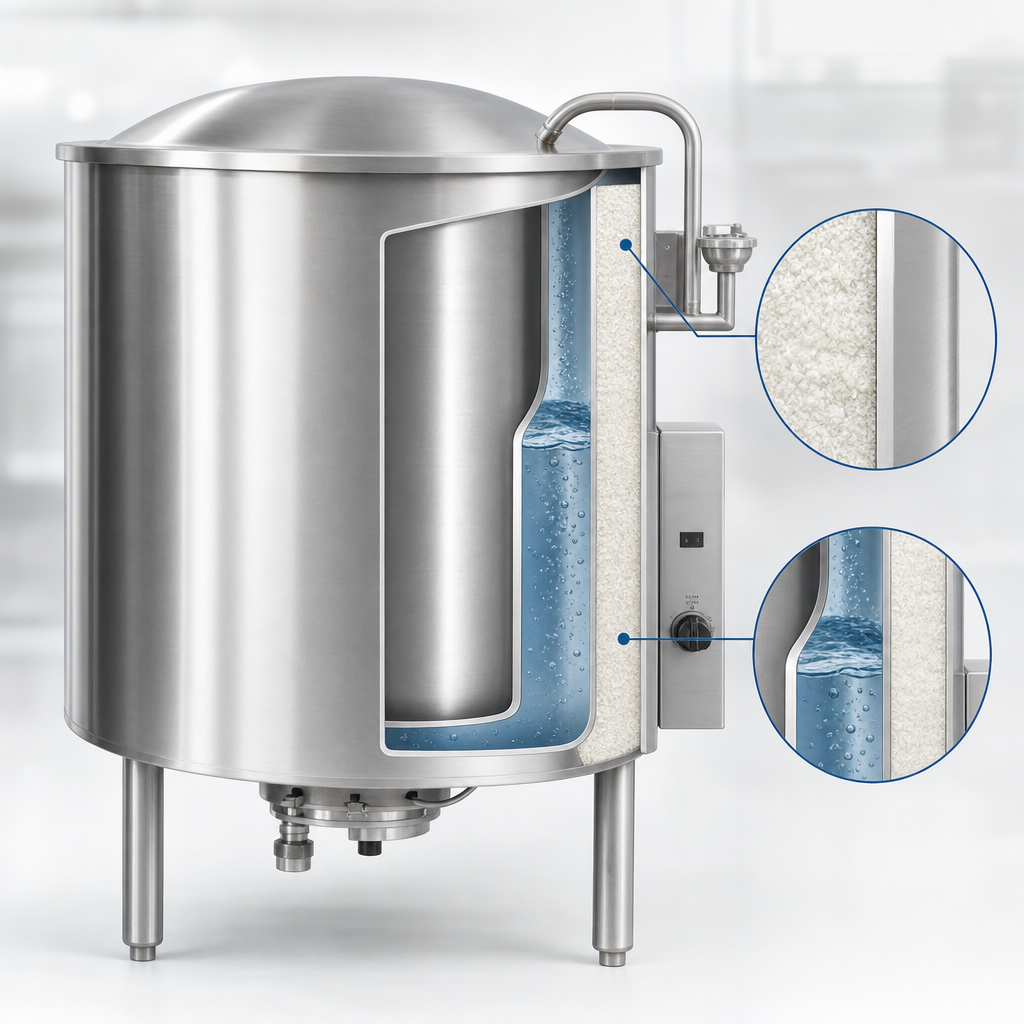

- 2/3 jacket (304L stainless) provides even, gentle steam heat—ideal for soups, sauces, stocks and more.
- Full “Insulated for Safety” body reduces surface temperature, lowers energy use and improves kitchen comfort.
- Electronic spark ignition (120 V standard) for quick, reliable start-up—no manual lighting.
- Precise thermostat control from 150 °F to 260 °F (66 °C – 127 °C).
- Integrated kettle protection system: low-water cutoff, pressure relief valve, air eliminator, pressure gauge, jacket-water sight glass & fill port, safety pilot.
- 2 in. compression draw-off valve with 304 stainless tube—dispenses product smoothly and cleans in minutes.
- One-piece, actuator-assisted domed cover keeps heat in and lifts effortlessly.
- Four stainless legs with adjustable bullet feet for level installation on uneven floors.
Technical Specifications
| Model / Capacity | LGB-20 | 20 gal. (76 L) |
|---|---|
| Fuel Type ( options ) | Natural gas or Propane (LP) |
| BTU Rating | 63,200 BTU (Natural) | 59,600 BTU (Propane) |
| Operating Temp. Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Ignition / Electrical | Electronic spark, 120 V / 1 ph / 1 A (208 V or 240 V optional) |
| Draw-Off Valve | 2 in. stainless compression type (standard) |
| Overall Height | Approx. 64 in. (1,626 mm) to top of cover handle |
| Gas Connection | ½ in. IPS inlet | 5–7 in. W.C. (Natural) • 12–14 in. W.C. (LP) |
| Construction | All-welded 304 stainless kettle, jacket, legs & control console |
| Certifications | ASME, NSF, CSA & other applicable approvals |
Popular Options & Accessories
- Single or dual deck-mount faucets with 12 in. or 18 in. swing nozzles
- 48 in. flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- 2-speed mixer/agitator package
- Gas quick-disconnect & flexible hose kits
- Tri-basket or single basket inserts, disc strainers, measuring strip & care kit
Warranty
Legion backs the LGB-20 with a 12-month parts & labor warranty from the date of installation (15 months from ship date). Extended coverage available.
Need a larger or smaller capacity? Models from 20 gal. to 125 gal. are available—contact our team for details.
