Legion LGB-100FMV Steam Kettles
Description
Legion LGB-100F Low-Rim™ 100-Gallon Gas Stationary Kettle with 2-Speed Mixer
Self-contained • Full jacket & insulation • 154,800 BTU (Natural Gas)Built for the heaviest production schedules, the 100-gallon Legion Low-Profile Kettle couples deep-drawn 304 stainless construction with an integrated 2-speed agitator to deliver perfectly uniform batches of soups, sauces, custards and more—shift after shift. Made in the USA and fully factory jacketed, it arrives ready to drop in, hook up and start cooking.
Key Performance Features
- 100 gal (379 L) capacity – ideal for central kitchens & high-volume commissaries
- Low-Rim™ design puts the kettle rim at a comfortable working height for safer, faster loading & unloading
- Seamless 304 SS kettle liner with integrally formed radius lip for complete clean-out and sanitation
- Full 304L stainless steel jacket rated 150 °F – 260 °F with electronic thermostat control
- 154,800 BTU burner package (Natural gas) with reliable 120 V electronic ignition
- 2" 304 SS compression draw-off valve & tube for rapid product transfer and easy CIP
- Full body fiberglass insulation lowers energy use and keeps the exterior “safe-to-touch”
- Stainless steel, actuator-assisted domed cover supplied standard
- Four heavy-duty stainless legs with adjustable bullet feet for a rock-solid floor mount
Integrated 2-Speed Mixer Package
- Twin-shaft agitator with anchor-style main paddle that contours every inch of the kettle wall & base
- Counter-rotating secondary beater eliminates hotspots and prevents product “balling”
- Two-speed gear motor:
- Low: 23 RPM main / 60 RPM beater – gentle folding action for delicate soups & sauces
- High: 46 RPM main / 120 RPM beater – aggressive mix for thick fillings & starches
- Removable nylon scraper blades continuously wipe the surface, virtually eliminating scorch
- Actuator-assisted bridge lift with positive rim lock lets the mixer tilt clear for full kettle access
- Bayonet-mount agitator components pop off in seconds for sink or dish-machine cleaning
- Safety interlocks prevent high-speed start-ups when the bridge is raised
Built-in Safety & Protection
- Automatic low-water cut-off with indicator light protects the jacket from dry-fire
- Pressure relief valve, air eliminator & easy-view pressure gauge meet ASME requirements
- Jacket-water fill point with sight glass for quick maintenance checks
- Safety pilot & flame failure protection for worry-free unattended operation
Specifications
| Capacity | 100 gal / 379 L |
|---|---|
| BTU Input | 154,800 BTU/hr (Natural) | 149,200 BTU/hr (Propane) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Gas Connection | 3/4" NPT, 5–7" W.C. Natural | 12–14" W.C. LP |
| Electrical | 120 V, 1 ph, 1 A (ignition & controls) |
| Overall Diameter (A) | 44 in / 111.8 cm |
| Rim Height (D) | 35.1 in / 89.2 cm |
| Working Depth (B) | 22.5 in / 57.2 cm |
| Cover Type | 1-piece, stainless, actuator-assisted |
| Draw-off Valve | 2" 304 SS compression, sanitary design |
| Construction | 304 & 304L stainless kettle, jacket, console & outer casing |
| Origin | Made in USA – Waynesboro, GA |
Recommended Applications
- Steam-jacketed cooking of high-volume soups, stocks & sauces
- Custards, puddings, pastry creams & fillings that demand constant agitation
- Chili, mashed potatoes, oatmeal & other viscous products prone to scorching
- Rapid re-thermalization in commissaries, correctional kitchens & hospitals

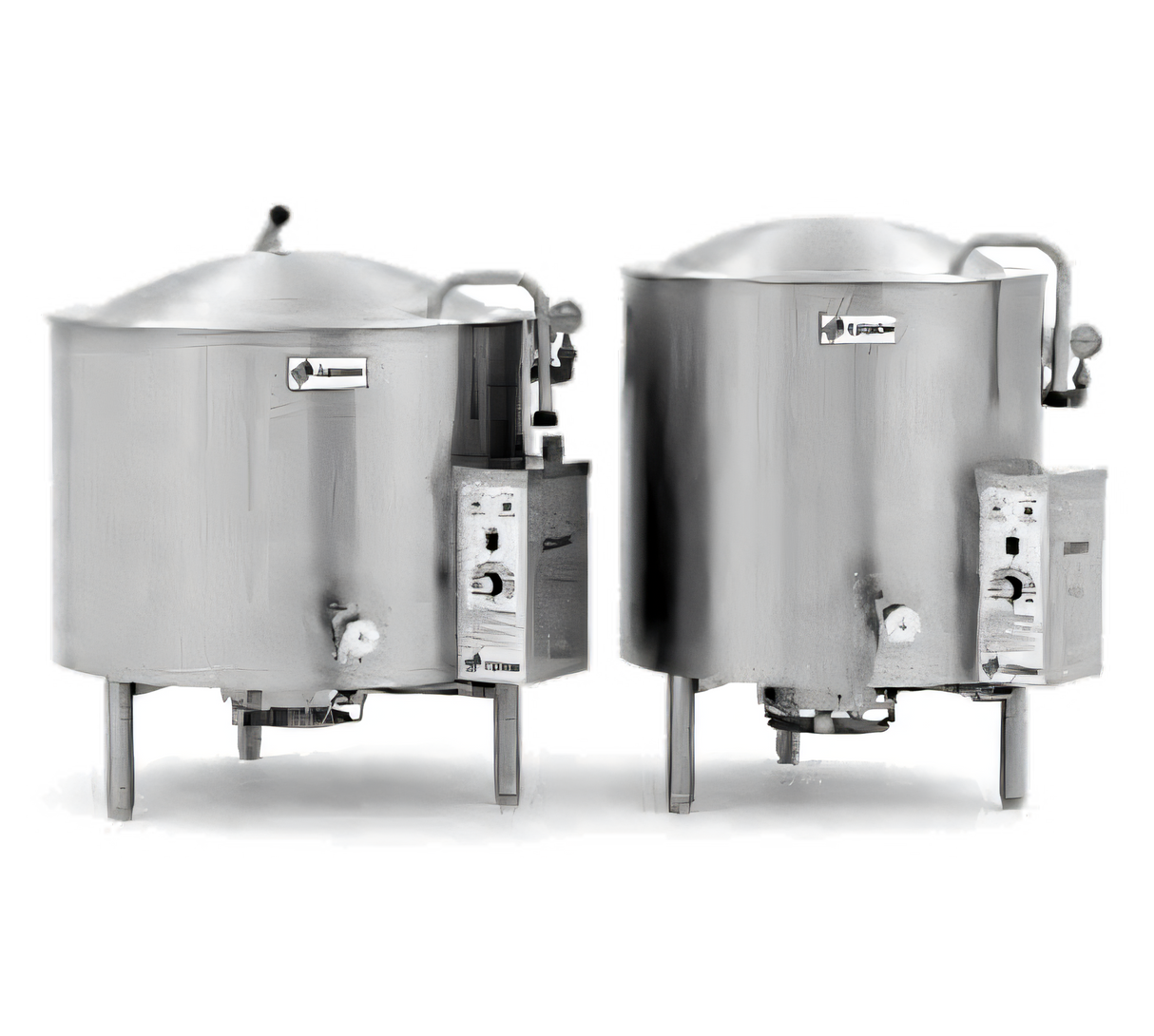

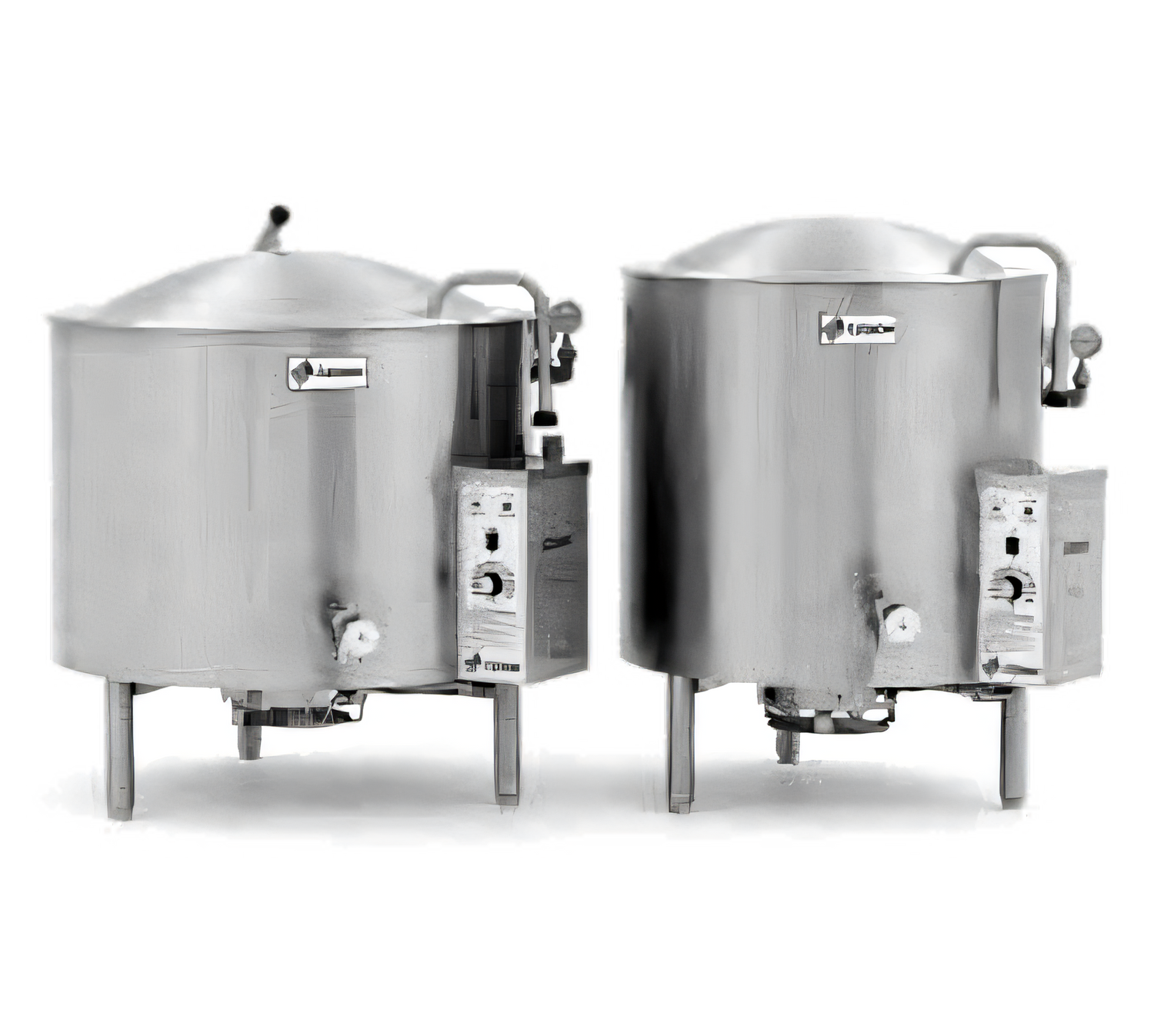

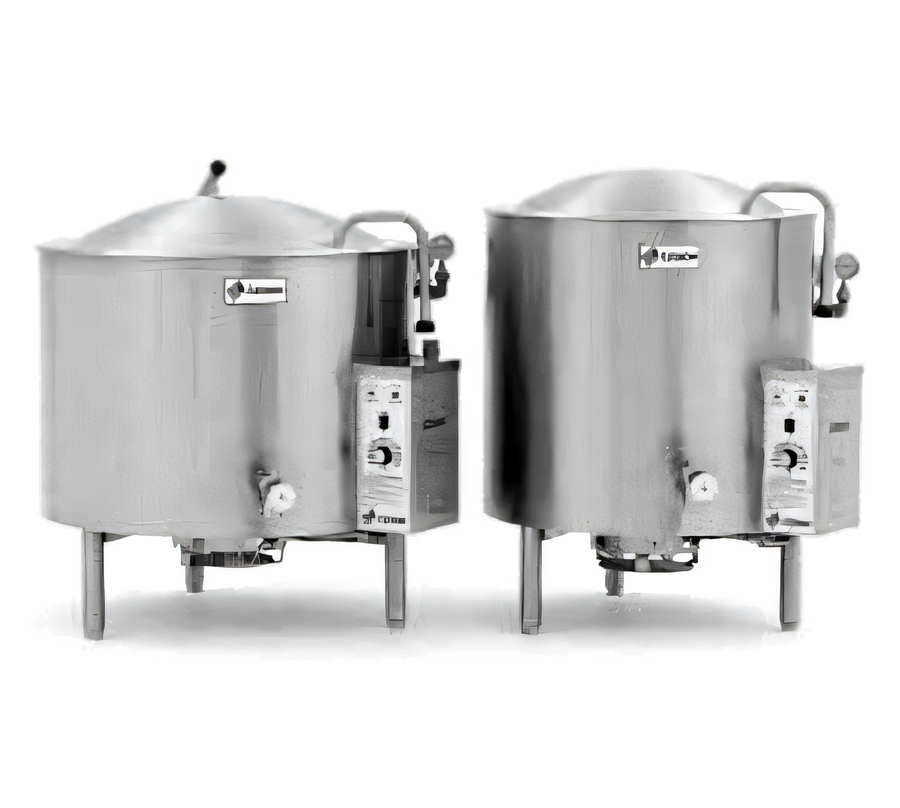

Dimensions shown reference Legion drawings for Low-Rim™ Model LGB-100F with 2″ valve. Photographs may depict smaller-capacity kettles or accessories sold separately.
