Legion LGB-100F Steam Kettles
Description

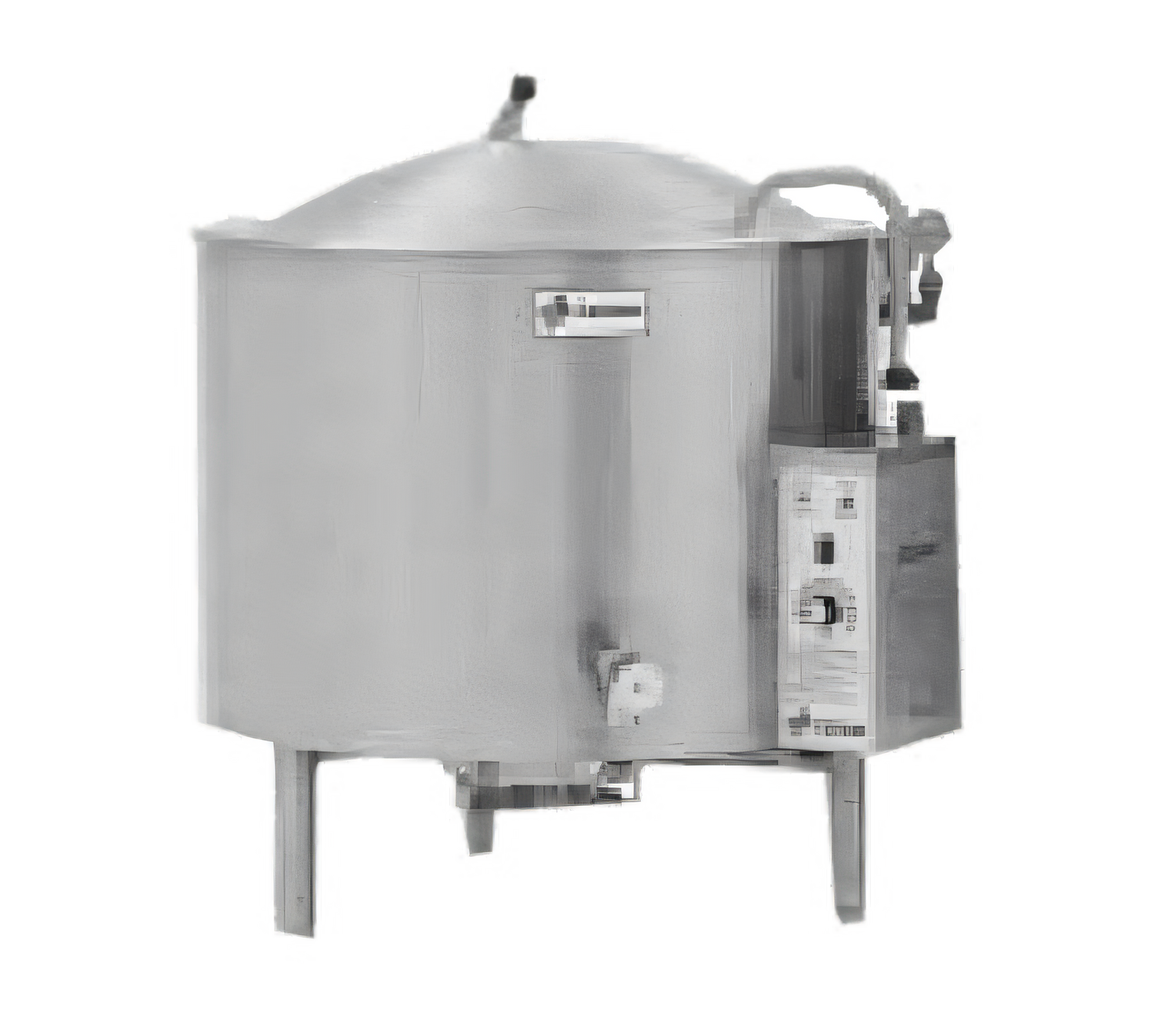

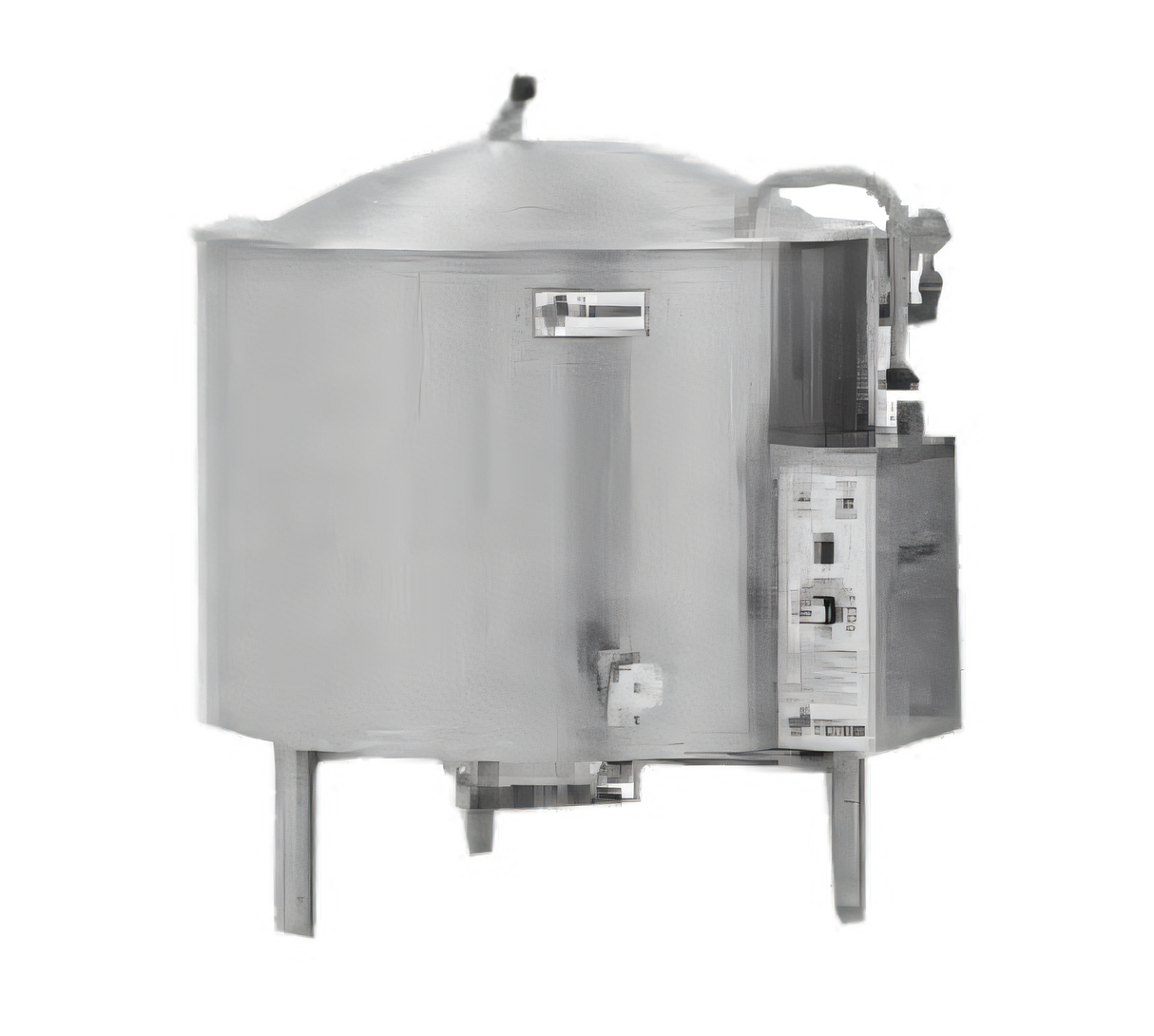

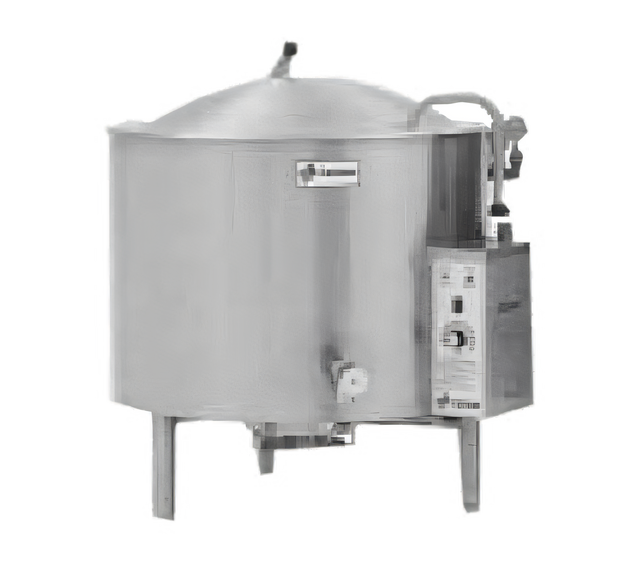

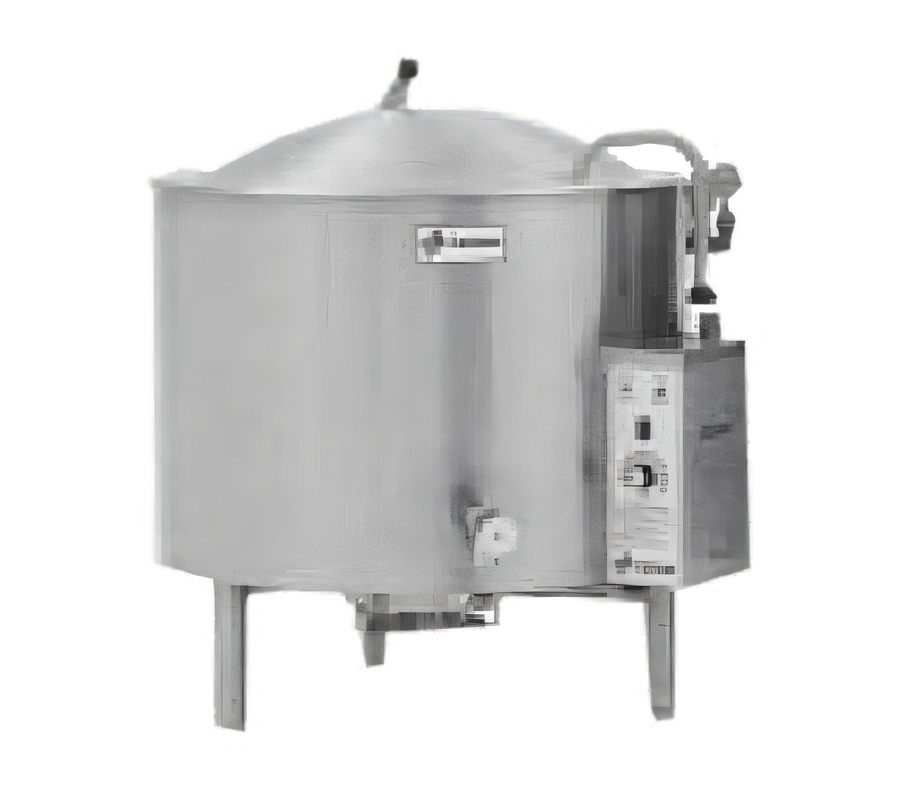

Legion LGB-100F Low-Rim™ 100-Gallon Gas Stationary Kettle
Full-Jacketed • Self-Contained • Made in USAEngineered for the rigors of high-volume production, the Legion LGB-100F combines a massive 100-gallon capacity with energy-saving Insulated for Safety™ construction. Its seamless stainless kettle, precise thermostat control and comprehensive safety system make it the professional’s choice for soups, sauces, stews and more.
Key Advantages
- 100 gal (379 L) capacity—ideal for commissaries, healthcare, correctional and banquet operations.

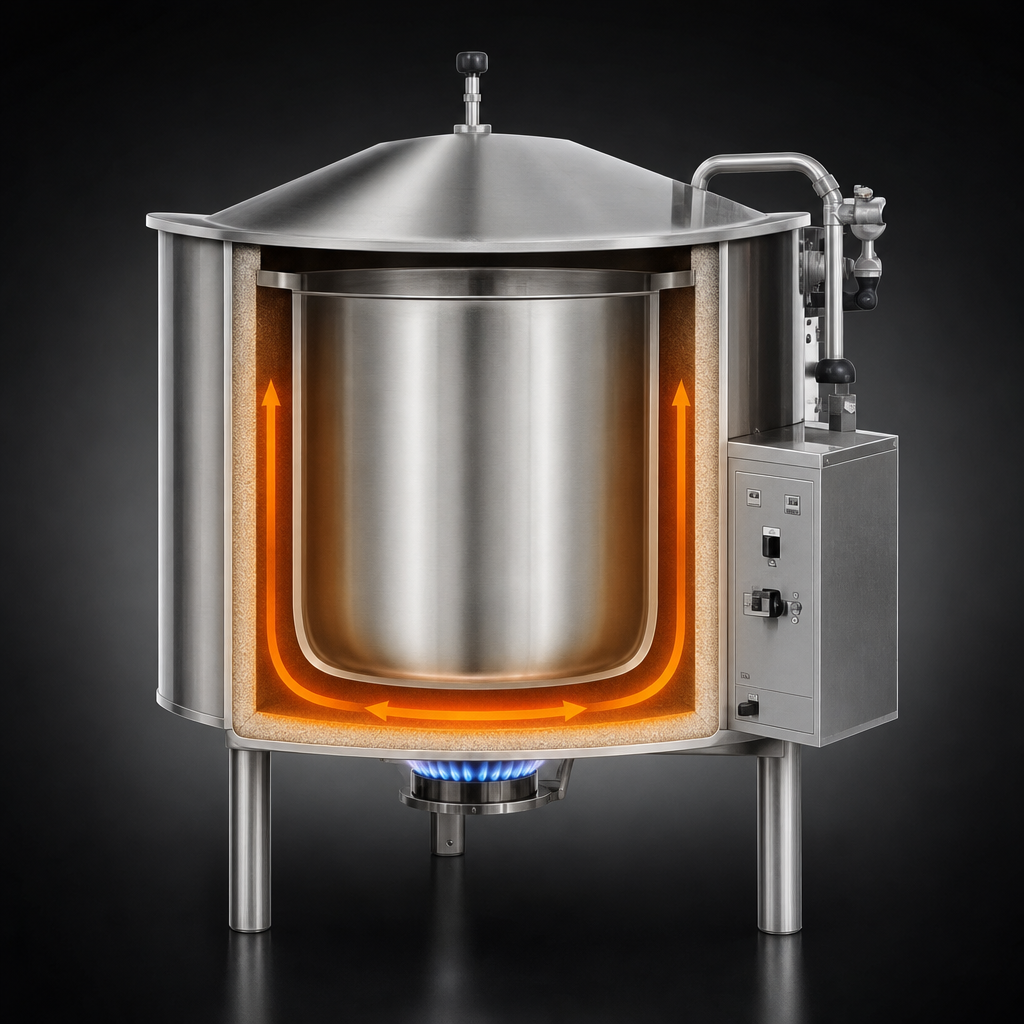

- Gas-fired, full jacket envelops two-thirds of the kettle wall for fast, even heating.
- Full-body insulation keeps exterior surfaces cooler and reduces energy loss.
- Low-Rim™ ergonomic profile with four adjustable bullet feet for safer, easier access.

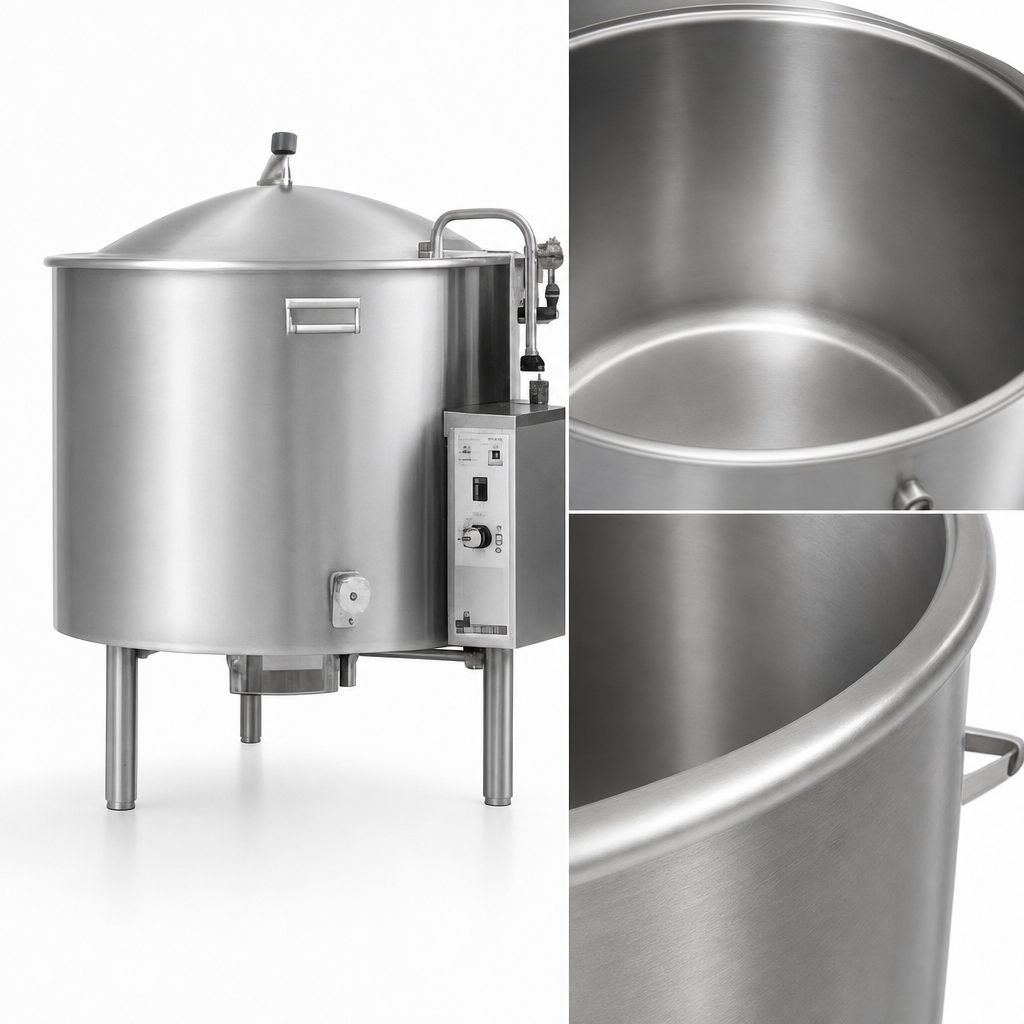

- Seamless deep-drawn 304 stainless liner with integrally formed radius lip—no crevices to trap food soil.
- 304L stainless jacket plus 304 stainless outer casing, legs and welded control console.
- Thermostat temperature range 150 °F – 260 °F with electronic ignition (120 V standard).
- Built-in kettle protection: pressure relief valve, air eliminator, pressure gauge, water jacket fill & sight glass, automatic low-water cut-off and indicator light.
- 2" 304 stainless compression draw-off valve for reliable, controlled portioning.
- Actuator-assisted one-piece domed stainless cover minimizes operator effort.
Technical Specifications
| Model | LGB-100F |
|---|---|
| Capacity | 100 gal / 379 L |
| Energy Source | Natural or Propane Gas |
| BTU Input | Natural: 154,800 BTU/hr Propane: 149,200 BTU/hr |
| Gas Connection | 3/4" IPS |
| Gas Supply Pressure | Natural 5–7" W.C. (factory outlet 3.5") Propane 12–14" W.C. (factory outlet 10") |
| Electrical | 120 V, 1 Ph, 50/60 Hz, 1 A (standard) 208/240 V option available |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-Off Valve | 2" stainless compression type |
| Cover | One-piece domed, actuator-assisted, stainless steel |
| Overall Dimensions* | Approx. 55.6" W × 39.5" D × 93.5" H |
*Dimensions taken from manufacturer’s drawing; slight variations may occur with selected options.
Popular Options & Accessories
- Single or dual faucet with 12" / 18" swing nozzle
- 48" flexible spray hose assembly
- Electric timer with buzzer
- Two-speed mixer/agitator
- Gas quick disconnect or 3/4" × 60" flexible gas hose
- Draw-off drain hose, measuring strip & basket inserts
- Lockable control cover or lid
Elevate your high-volume cooking with the Legion LGB-100F—where uncompromising durability meets precise, efficient performance.
