Legion LGB-100 Steam Kettles
Description
Legion LGB-100 “Insulated for Safety”™ Self-Contained Gas Kettle
100-Gallon | 2/3 Jacketed | Stationary, Floor-Mounted | Made in USAEngineered for high-volume production with uncompromising operator safety, the Legion LGB-100 delivers 100 gallons (379 L) of evenly heated capacity in a fully self-contained, gas-fired design. Its seamless 304 stainless steel kettle liner, full-body insulation and precision thermostat (150 °F – 260 °F) make large-batch cooking faster, safer and more consistent—shift after shift.
Key Features & Benefits

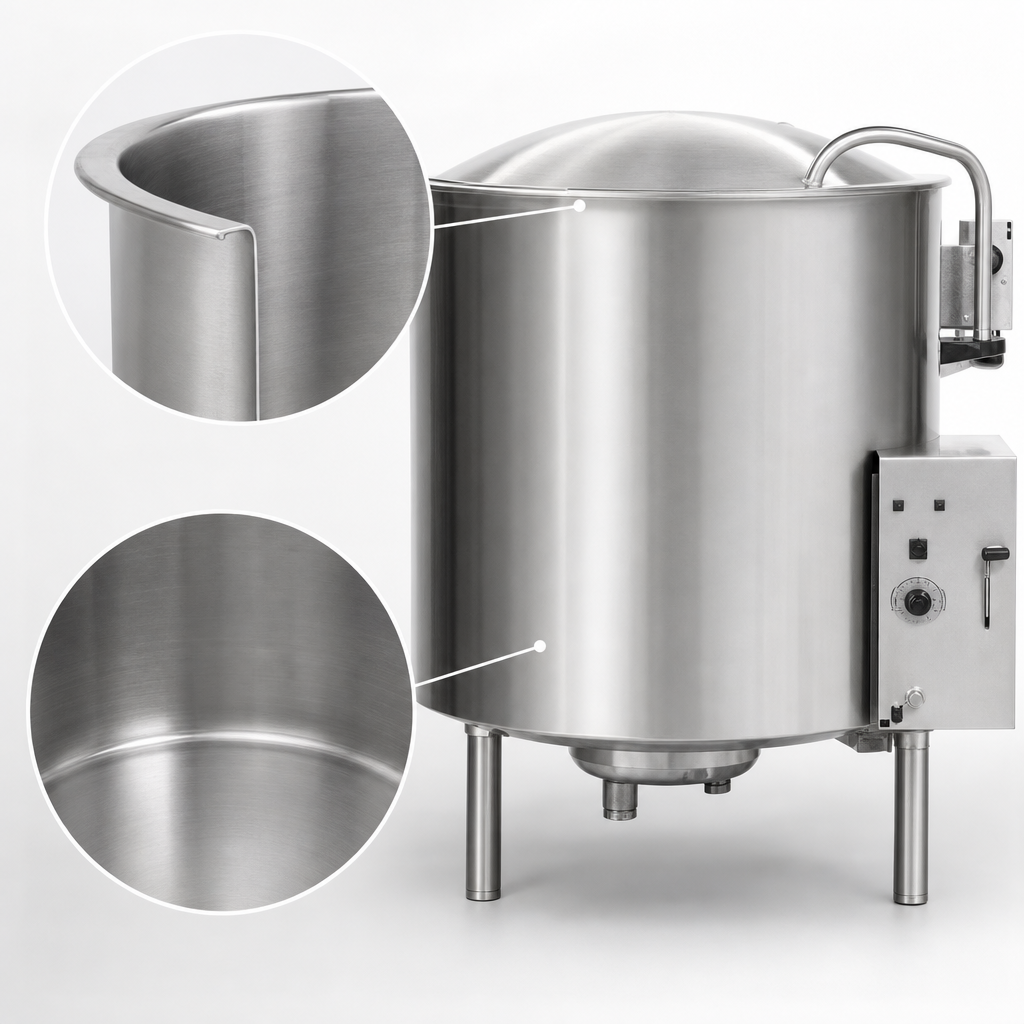

- Seamless deep-drawn 304 stainless steel kettle liner with integrally formed radius lip for easy cleaning and durable sanitation.
- 2/3 jacketed 304L stainless steel jacket provides rapid, even heat transfer over the entire cooking surface.
- Gas-fired burner pack rated at 154,800 BTU (Natural); 149,200 BTU (Propane) for quick heat-up and recovery.
- Electronic ignition (120 V standard) eliminates standing pilots and reduces energy use.
- Actuator-assisted one-piece domed cover—lift effortlessly and keep condensation inside the kettle, not on your floor.
- 2" compression draw-off valve with 304 stainless tube & welds for smooth, drip-free portioning.

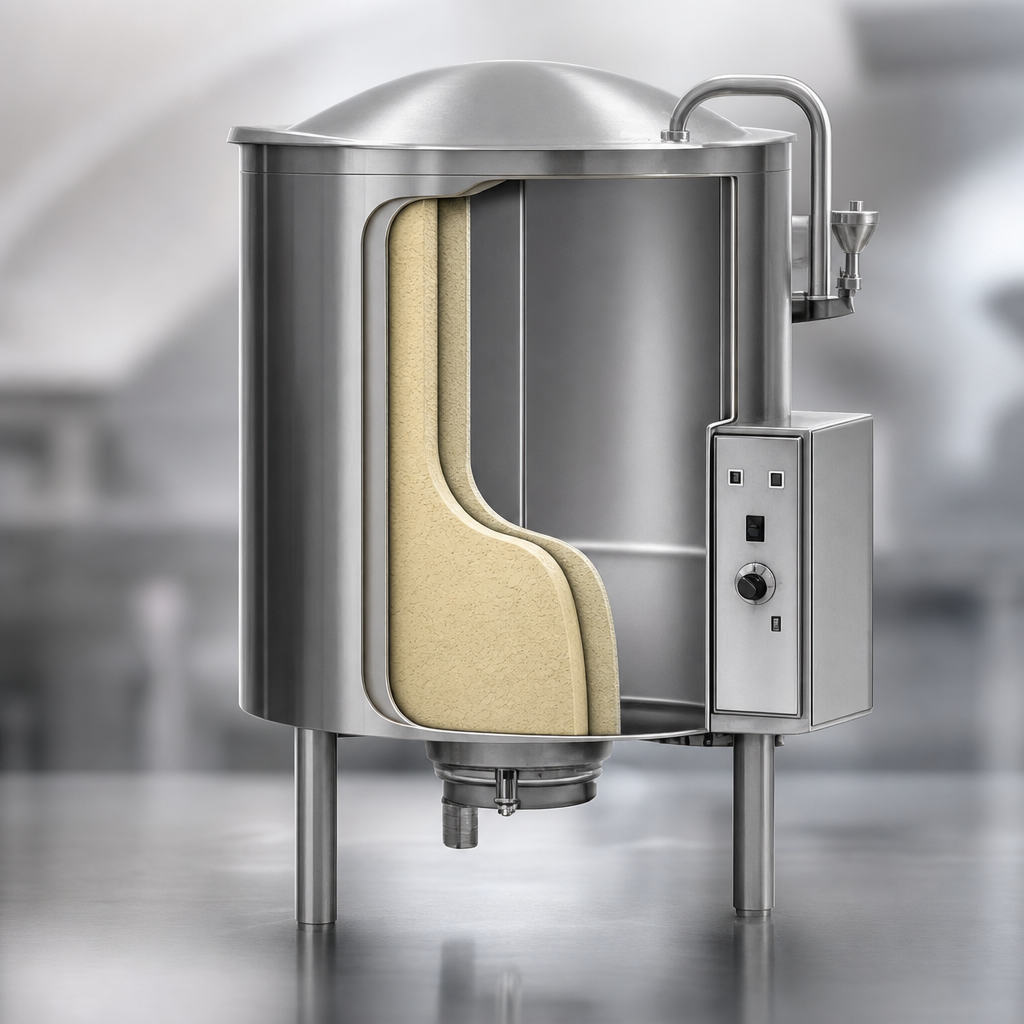

- Full body insulation between jacket and outer casing keeps heat in the kettle and the work area cooler.
- Kettle protection system:
- Automatic low-water cut-off with indicator light
- Pressure relief & air eliminator valves
- Jacket-water fill with sight glass
- Analog pressure gauge & safety pilot control
- Stainless steel outer casing, control console and four leg base with adjustable bullet feet—built tough for institutional kitchens.
- NSF, ASME and applicable agency compliant; manufactured in Waynesboro, Georgia, USA.
Technical Specifications
| Capacity / Working Volume | 100 gal | 379 L |
|---|---|
| Jacket Coverage | 2/3 jacketed |
| Heat Source | Natural or Propane Gas (specify at time of order) |
| Input (BTU/h) | 154,800 BTU – Natural 149,200 BTU – Propane |
| Thermostat Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Ignition / Electrical | Electronic ignition, 120 V, 1 Ph, 1 A (208/240 V optional) |
| Gas Connection | 3/4" IPS supply Natural: 5–7" W.C. Propane: 12–14" W.C. |
| Factory Outlet Pressure | 3.5" W.C. (Natural) 10" W.C. (Propane) |
| Exterior Dimensions* | Overall height to cover handle: 92.4" Body diameter: 39.0" Front-to-back: 43.4" |
| Construction | 304/304L stainless steel liner, jacket, outer casing & control console |
| Standard Valve | 2" compression draw-off (3" available—contact factory) |
| Cover | One-piece, actuator-assisted domed stainless steel |
*Dimensions reference factory drawings for the 100-gallon model. Consult the cut sheet for complete clearance requirements.
Popular Factory Options
- Single or dual fill faucets with 12" or 18" swing nozzles
- 48" vinyl or stainless spray hose assembly
- Mixer / agitator, 2-speed
- Electric timer with buzzer or pressure switch
- Automatic water-fill meter
- Lockable control or kettle covers, security fasteners, drain hoses, measuring strips & basket inserts

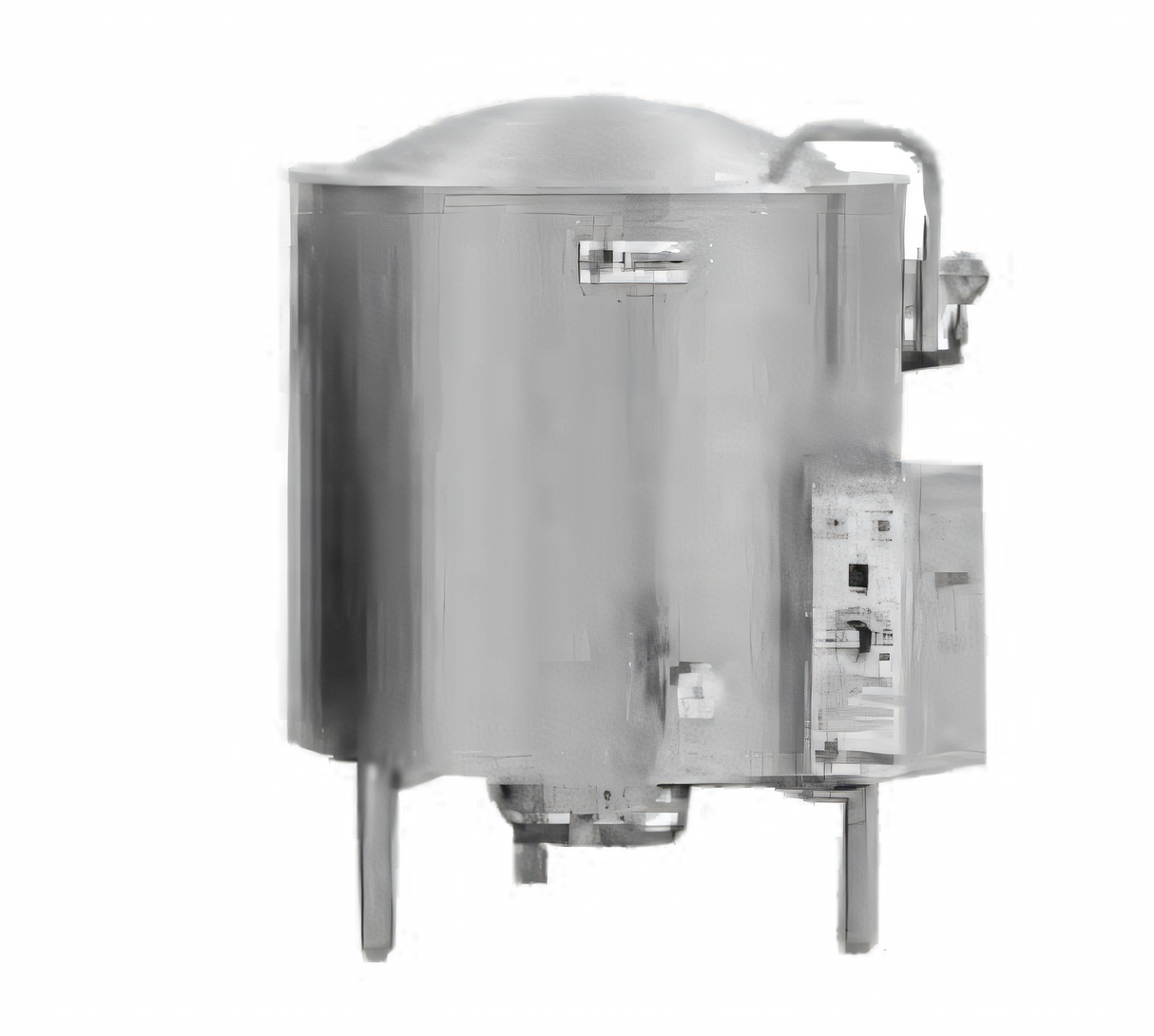

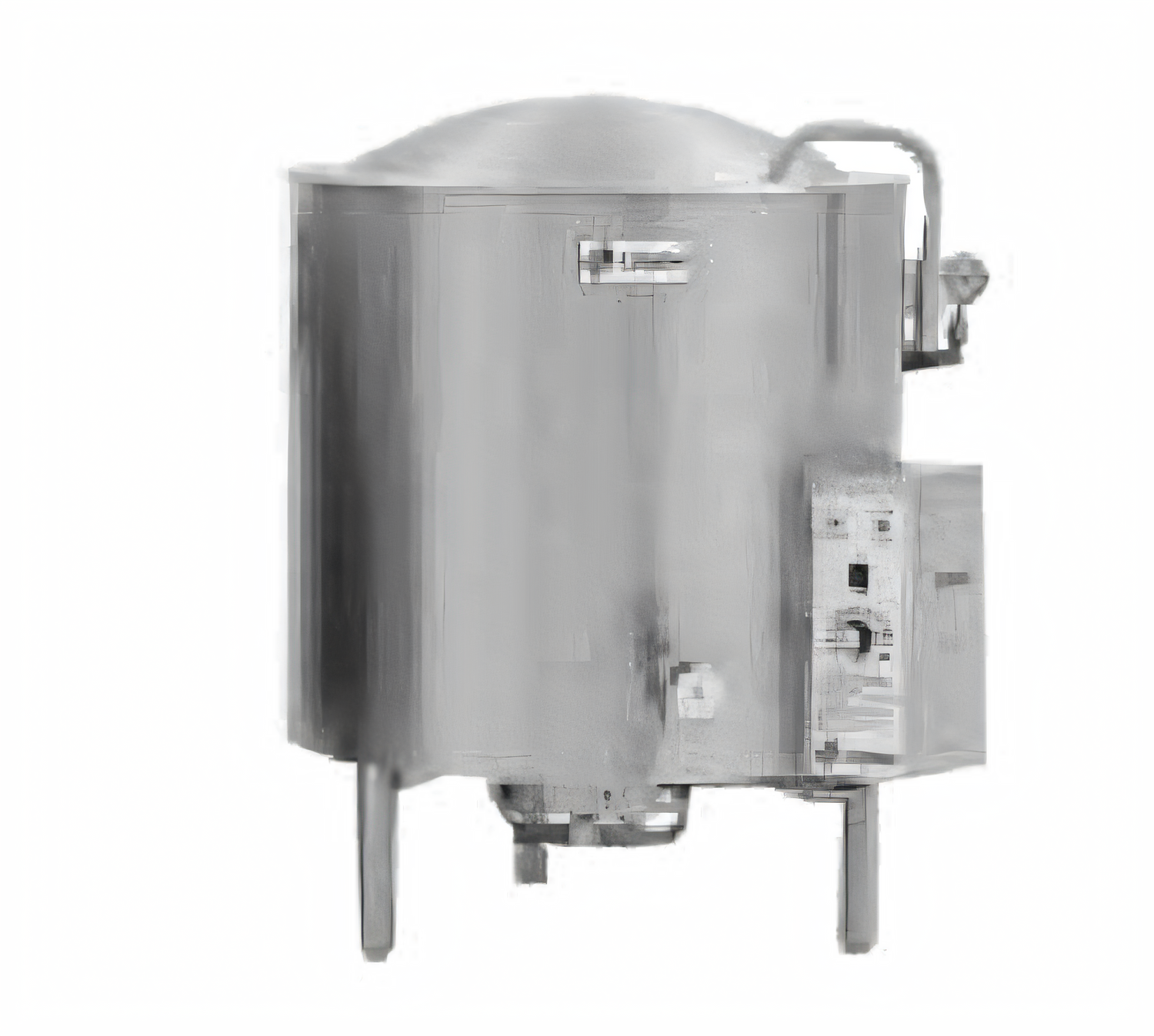

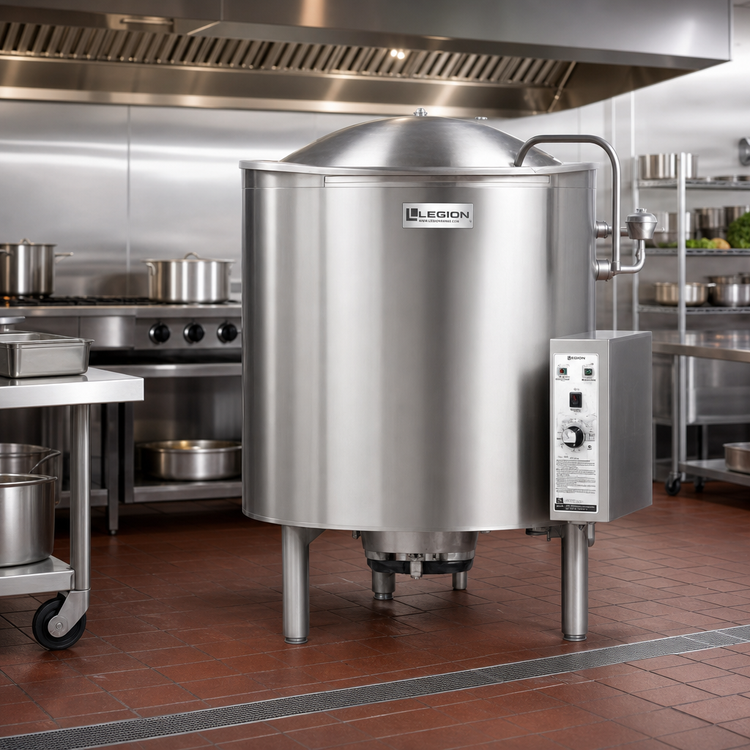

Photos may show smaller 60-gallon model with optional accessories. Performance, dimensions and BTU rating above apply to the LGB-100 only.
