Legion LEC-80MV Steam Kettles
Description

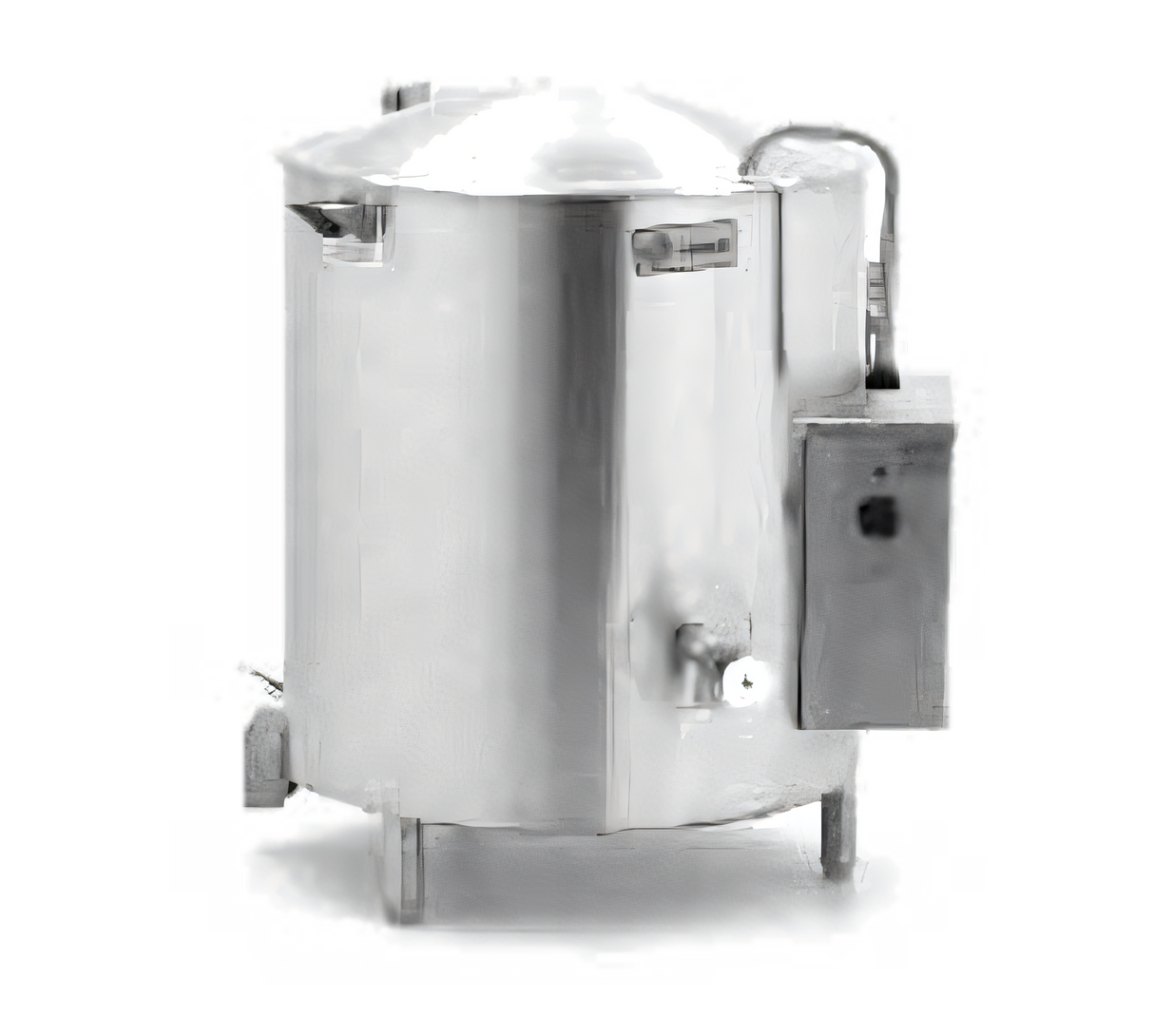

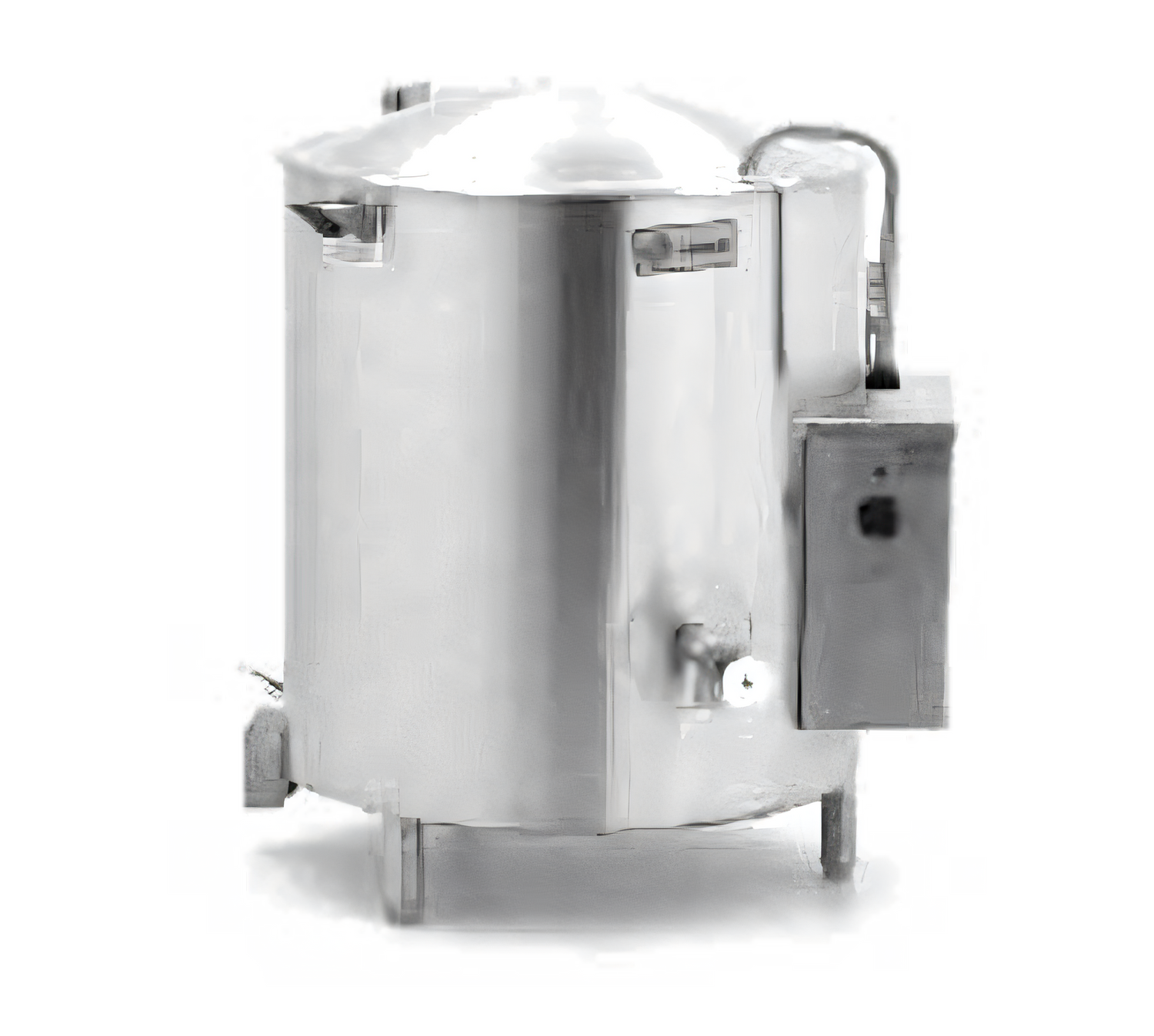

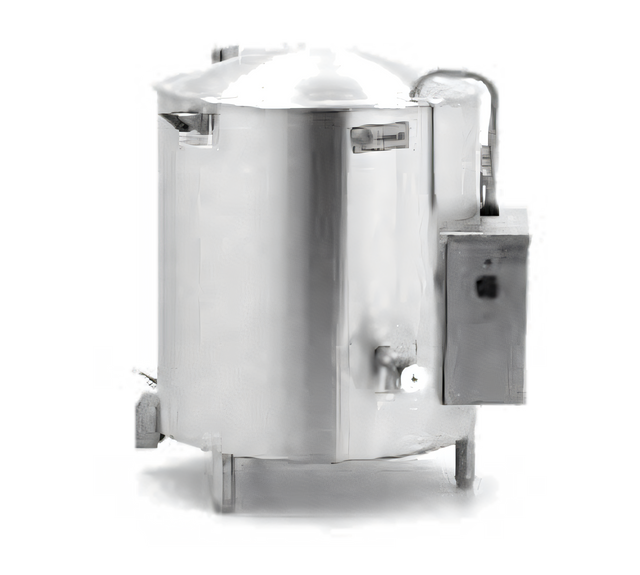

Legion 80-Gallon Self-Contained Electric Kettle with 2-Speed Mixer – 30 kW
Model LEC-80-MV | Floor-Mounted • Insulated • Made in USABuilt for today’s high-output commissaries, hotels and institutions, the Legion LEC-80-MV pairs a fully jacketed 80-gallon kettle with an integrated twin-shaft agitator to deliver consistent, hands-free cooking and unbeatable energy efficiency—no external steam source required.
Why You’ll Love It
- Massive 80 gal / 303 L capacity handles stocks, sauces, risotto, chili and more.
- Self-contained 2⁄3 steam jacket with 30 kW electric elements—fast heat-up, ZERO boiler maintenance.
- Precise thermostat control; jacket rated 30 psi for rapid cooking without scorching.
- Full-body mineral-fiber insulation keeps heat in the kettle and out of your kitchen.
- 304 stainless steel liner, jacket and exterior for long-term corrosion resistance and quick clean-up.
- Automatic low-water cut-off & indicator light protect elements from damage.
- 2" compression draw-off valve with perforated disc strainer for smooth, clog-free portioning.
- Actuator-assisted domed cover (one-hand lift) supplied as standard on 60–80 gal models.
- NSF, UL & ASME compliant—proudly engineered and manufactured in Pennsylvania, USA.
Integrated Twin-Shaft Mixer
- Anchor-style main agitator (304 SS) hugs kettle wall for even heat transfer.
- Counter-rotating secondary beater breaks surface tension and disperses particulates.
- Removable nylon scraper blades continuously wipe entire cooking surface.
- Totally enclosed gear motor, 2 HP
• Low speed 23 RPM • High speed 46 RPM (main agitator) - Bayonet-mounted tools release in seconds for cleaning or batch change-over.
- Safety interlock prevents high-speed starts when mixer bridge is raised.
Technical Specifications
| Working Capacity | 80 gal | 303 L |
|---|---|
| Heat Source | Electric, self-contained 2⁄3 jacket |
| Input Power | 30.0 kW |
| Voltage (3-phase) | 208 / 240 / 380 / 415 / 440 / 480 VAC |
| Amps per leg (208 V 3Ø) | 83.3 A |
| Jacket Rating | 30 psi (max. operating pressure) |
| Draw-Off Valve | 2″ compression type, stainless steel, with ¼″ perforated strainer |
| Construction | 304 SS liner, jacket & outer casing; seam-welded control console |
| Cover | One-piece domed, actuator-assisted lift |
| Overall Dimensions* | Ø 32.5″ (A) H closed 71.0″ H open 89.4″ |
| Shipping Weight | ≈ 960 lb / 435 kg (varies with options) |
*Refer to drawing for complete dimensional data.
Popular Options & Accessories
- Single or double pantry faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray/rinse hose (vinyl or stainless)
- Electronic timer with buzzer
- Automatic water-fill meter
- Basket, tri-basket or nylon bag inserts
- Security package: tamper-resistant fasteners, lockable lid & control cover
- Adjustable flanged feet for floor-seal installations
Legion Industries reserves the right to improve or modify equipment without notice. Photographs may show optional accessories not included with the base model.
