Legion LEC-80 Steam Kettles
Description
Legion LEC-80 Electric Self-Contained Kettle
80-Gallon • 2/3-Jacketed • 30 kW • Made in USAEngineered for high-volume, high-precision cooking, the Legion LEC-80 delivers 80 gallons of dependable, thermostat-controlled performance in a fully insulated, floor-mounted design. From soups and sauces to pasta, chili, and bulk vegetables, this powerhouse kettle keeps your kitchen moving—and your crew safe.
Why Choose the LEC-80?
- Heavy-duty 304 stainless steel liner, jacket, outer casing & control console for unrivaled durability.

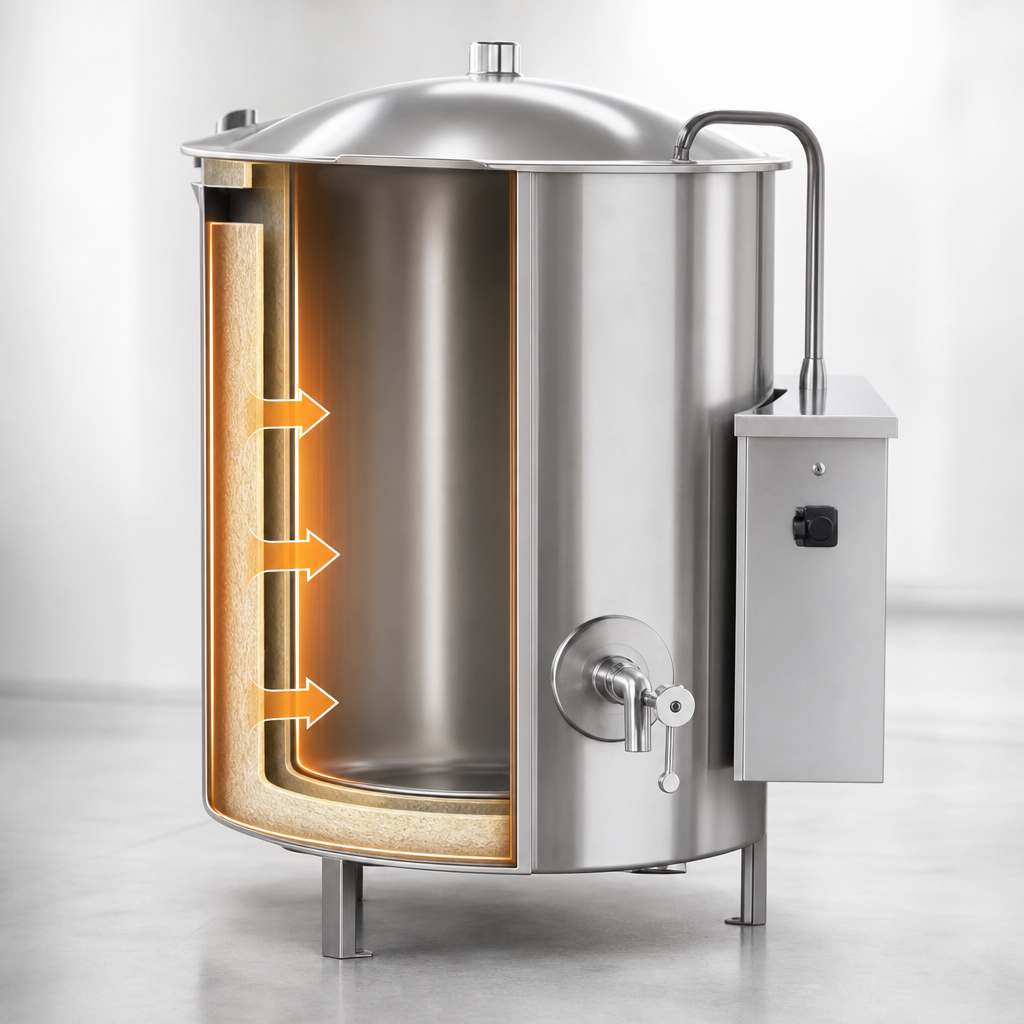

- 2/3 jacket design surrounds product zone for faster, more even heat transfer.
- Integrated full-body insulation (Insulated for Safety™) reduces energy loss and keeps the exterior cool to the touch.
- Precise thermostat control lets you set temperatures from 150 °F – 260 °F (65 °C – 127 °C).
- Actuator-assisted one-piece domed cover makes safe, single-handed operation effortless.
- 2" compression draw-off valve with 304 stainless tube/welds for rapid, clog-free dispensing.
- Factory-installed kettle protection suite: low-water cutoff, pressure relief valve, air eliminator, pressure gauge & fill port.
- Field-replaceable heating elements minimize downtime and extend service life.
- Four stainless adjustable bullet feet ensure solid footing on uneven floors.
Technical Specifications
| Model | LEC-80 (Stationary, Floor Mounted) |
|---|---|
| Capacity | 80 gal | 303 L (≈320 lb of product) |

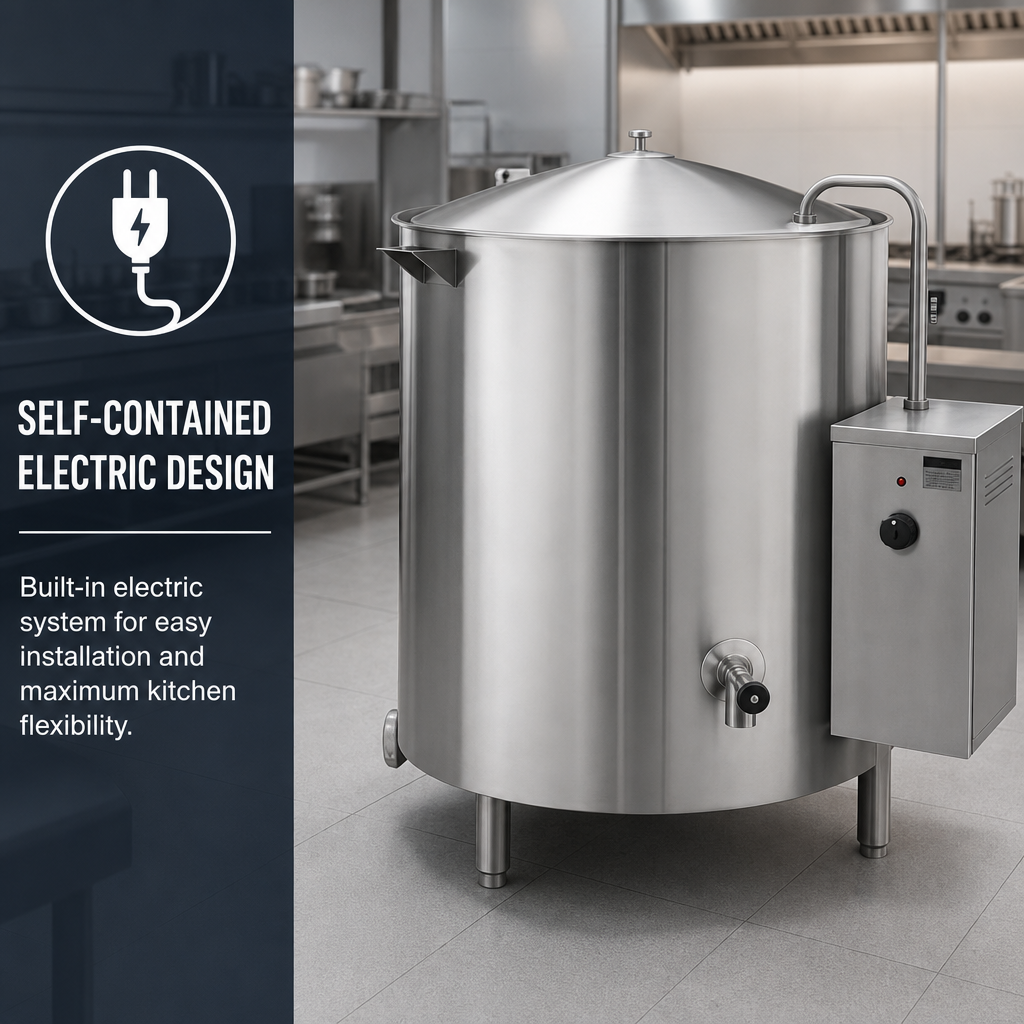

| Heating Power | 30 kW electric, self-contained—no external boiler required |
| Voltage Options | 208, 240, 380, 415, 440, or 480 V • 1- or 3-phase (see amperage table below) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) via dial thermostat |
| Jacket Coverage | 2/3 kettle body |
| Exterior Finish | Satin-polished 304 stainless steel, seam-welded |
| Cover | 304 SS, one-piece domed, actuator-assisted lift |
| Dispense Valve | 2" compression type, 304 SS |
| Overall Height | 89.4 in. (top of cover, open) |
| Shipping Weight | Approx. 820 lb (372 kg) |
| Certifications | ASME, NSF, UL, ETL & CSA compliant |
| Origin | Proudly manufactured in Waynesboro, GA, USA |
Electrical Load (LEC-80, 30 kW)
| Voltage | 1-Phase | 3-Phase |
|---|---|---|
| 208 V | 144 A | 83 A |
| 240 V | 125 A | 72 A |
| 380 V | 79 A | 46 A |
| 415 V | 72 A | 42 A |
| 440 V | 68 A | 39 A |
| 480 V | 63 A | 36 A |
Popular Factory Options
- Single or dual water faucets (12" & 18" swing nozzles) with bracket.
- 48" flexible spray-hose assembly (vinyl or stainless steel).
- Electric cooking timer with audible buzzer.
- 2-speed mixer/agitator package for continuous batching.
- Automatic water-fill meter for precise kettle filling.
- Solid or perforated disc strainers (⅛" or ¼") & nylon bag inserts.
- Lift-off, hinged, or lockable covers for added security.
- Adjustable flanged feet for bolt-down installations.
Backed by Legion’s 1-year parts & labor warranty (12 months from installation or 15 months from ship date, whichever comes first). Extended coverage available at time of purchase.
