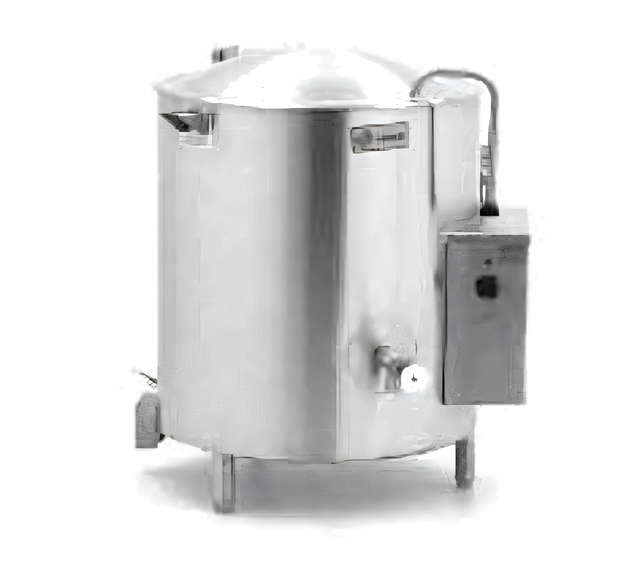

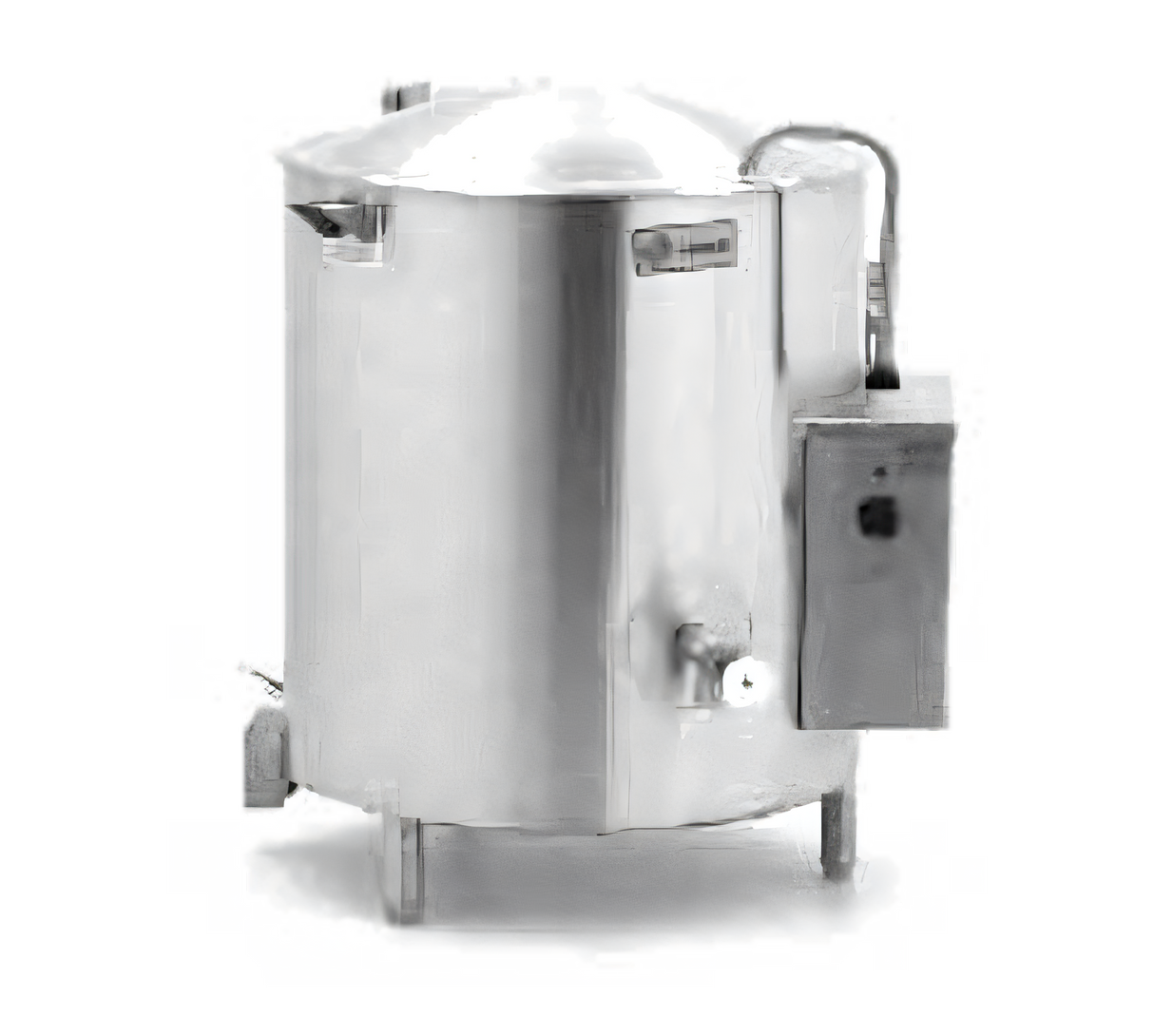

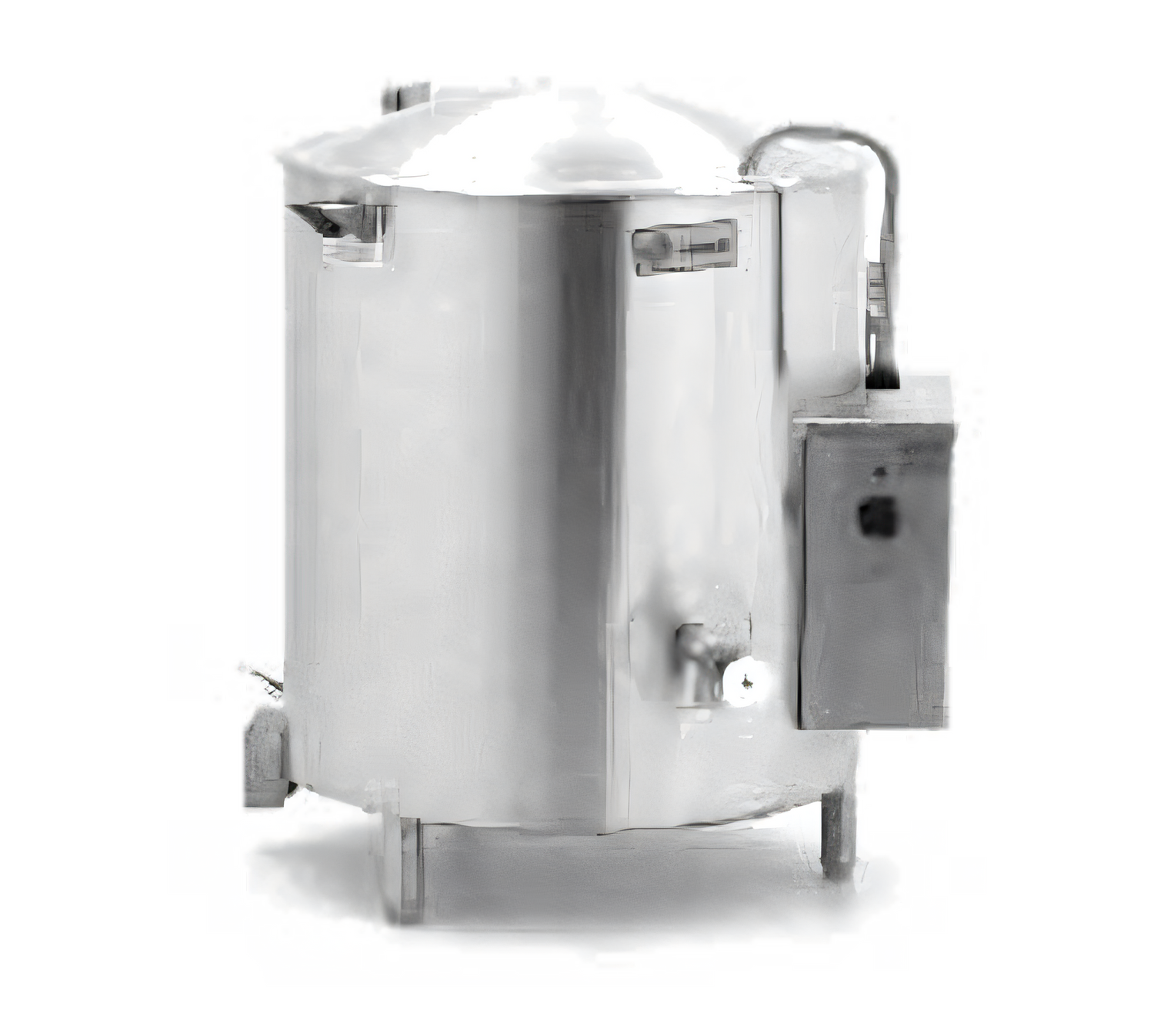

Legion 60 Gallon Self-Contained Electric Kettle with Integrated Mixer – 24 kW
Floor-mounted • 304 Stainless Liner • 2″ Compression Draw-offEngineered for high-volume production, this Legion stationary kettle delivers rapid, even cooking and continuous mixing in a single, self-contained unit—no external boiler required. The 60-gallon bowl, powerful two-speed agitator and precise thermostat control give you the consistency you need for soups, sauces, fillings, confectionery and more.
Key Kettle Features
- 304 stainless steel liner & jacketed body resist corrosion and wipe clean fast.
- 2/3 steam jacket with 24 kW field-replaceable electric elements for fast heat-up and recovery.
- Thermostat temperature control with indicator light helps maintain perfect simmer or rolling boil.
- Kettle protection system: 30 psi safety valve, pressure gauge and automatic low-water cut-off.
- Full-body insulation reduces energy loss and keeps your kitchen cooler.
- 2″ compression draw-off valve with perforated ¼″ disc strainer for clog-free portioning.
- One-piece domed cover (actuator assisted) contains steam and condenses vapors.
- Seam-welded 304 stainless outer casing, legs and control console – built for decades of service.
- Adjustable bullet feet level the kettle on uneven floors.
- NSF, ASME certified and proudly Made in the USA.
Integrated Twin-Shaft Mixer (MV Series)
- Totally-enclosed gear motor with two mixing speeds (Low 23 RPM / High 46 RPM main agitator).
- 304 stainless anchor-style main agitator follows the contour of the kettle for complete product turnover.
- Counter-rotating secondary beater (60 RPM / 120 RPM) quickly breaks up lumps and improves shear.
- Removable nylon scraper blades continuously wipe the kettle wall to prevent burn-on.
- Actuator-assisted lift raises mixer bridge and agitators clear for safe loading, unloading and cleaning.
- Positive rim-lock and safety interlock prevent high-speed starts unless the bridge is fully engaged.
- Bayonet-mount agitator and beater detach in seconds for cleaning or when the kettle is used without mixing.
Technical Specifications
| Capacity | 60 gal | 227 L |
|---|---|
| Heat Source | Self-contained electric steam jacket, 24 kW |
| Jacket Coverage | 2/3 body |
| Operating Pressure | 30 psi max |
| Temperature Control | Adjustable thermostat (approx. 150 – 290 °F) |
| Draw-off Valve | 2″ compression style, 304 stainless |
| Agitator Speeds | Low 23 RPM / High 46 RPM (main) • 60 / 120 RPM (secondary) |
| Electrical | 208, 240, 380, 415, 440 or 480 V • 1 Ø or 3 Ø |
| Interior Material | 304 stainless steel |
| Exterior Material | 304 stainless steel jacket, legs & console |
| Approx. Dimensions* | 29.5″ Dia. bowl • 44.0″ H (rim) • 41.4″ Overall H |
*Dimensions based on standard configuration. Overall width may vary slightly with the 2″ draw-off valve.
Product Weight:
1185.0 lbFrequently Asked Questions
