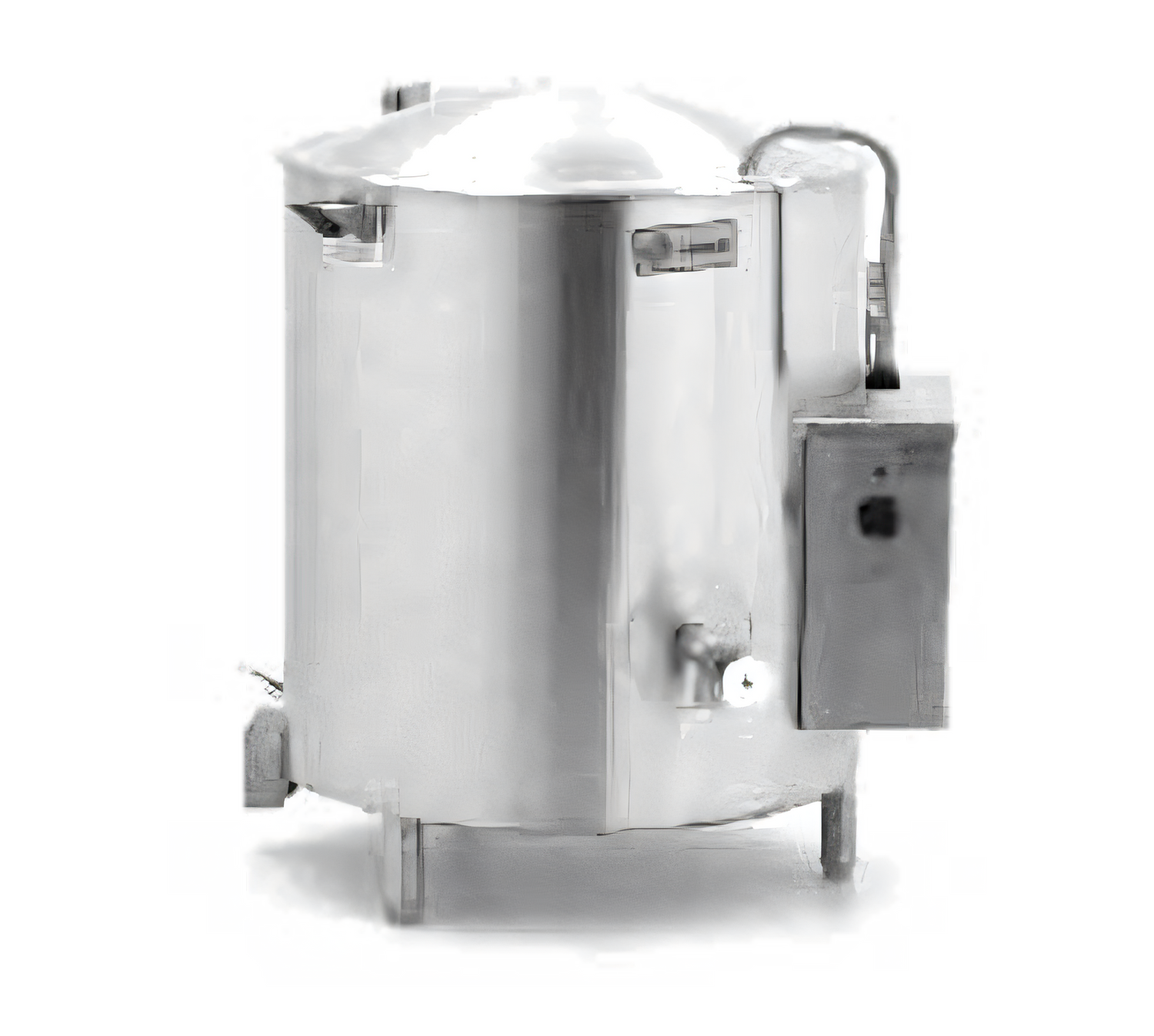

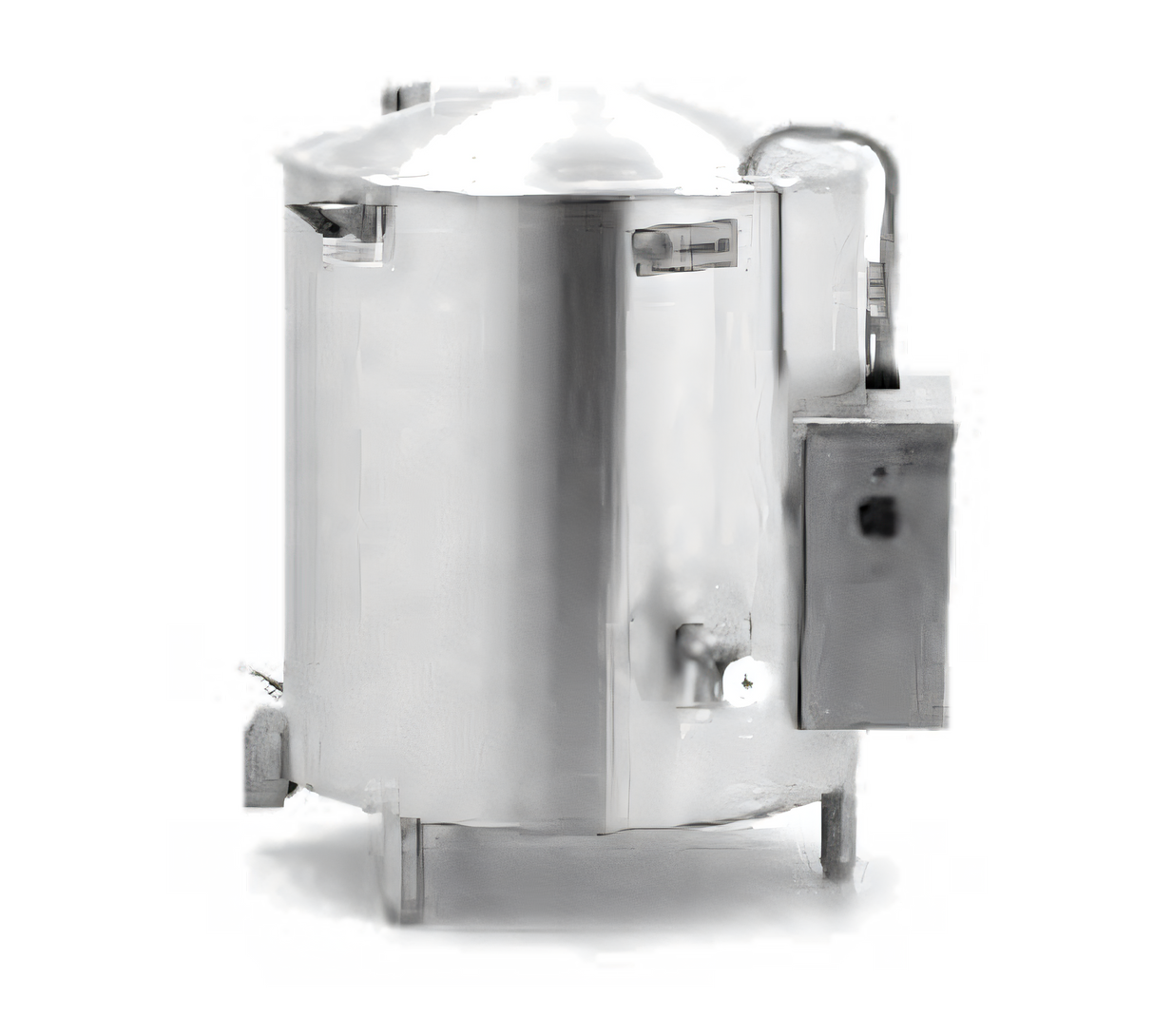

Legion LEC-40MV Steam Kettles
Description
Legion 40-Gallon Self-Contained Electric Kettle with Integrated Mixer — 15 kW
Floor-Mounted | Model LEC-40 | Made in the USAEngineered for high-volume kitchens, this 40-gallon Legion kettle pairs efficient self-contained electric heating with a rugged two-speed mixer. From silky sauces to hearty soups, you’ll cook, mix and dispense every batch with consistent results and less manual labor.
Why You’ll Love It
- 15.0 kW self-contained electric system — no external boiler required.
- 2⁄3 steam jacket surrounded by full-body high-temperature insulation for energy-efficient, even heating.
- 304 stainless-steel liner, jacket and outer casing resist corrosion and simplify sanitation.
- Twin-shaft, two-speed agitator: anchor-style main scraper hugs the kettle wall while a counter-rotating beater keeps product moving.
- Actuator-assisted bridge lift gives full access for loading, sampling or cleaning.
- Dial-set thermostat (0–30 psi jacket) with automatic low-water cut-off and pilot light for worry-free operation.
- 2" compression draw-off valve with ¼" perforated disc strainer — dispense chunky products without clogging.
- Factory-installed pressure gauge, 30 psi safety valve and water-fill connection protect the jacket system.
- Heavy-duty stainless legs with adjustable bullet feet level the kettle on any floor.
- NSF & ASME certified; built, tested and backed by Legion Industries in Dallas, PA.
Integrated Two-Speed Mixer
- High speed: 46 RPM main agitator / 120 RPM beater (1.5 HP)
- Low speed: 23 RPM main agitator / 60 RPM beater (0.75 HP)
- Nylon scraper blades are removable and dishwasher-safe.
- Safety interlock prevents high-speed starts when the bridge is raised.
- Quick-release bayonet mounts let you remove agitator and beater for standalone kettle use.
Technical Specifications
| Capacity | 40 gal (151 L) working volume |
|---|---|
| Heat Source | Self-contained electric, 15 kW |
| Electrical | 208, 240, 380, 415, 440 or 480 V — 1 Ø or 3 Ø (consult amperage chart) |
| Construction | 304 SS liner, jacket, outer shell, control console & one-piece domed cover |
| Jacket Rating | 30 psi maximum working pressure |
| Draw-Off Valve | 2" compression-type with integral ¼" perforated strainer |
| Temperature Control | Thermostat + low-water cut-off & indicator light |
| Agitator Drive | Two-speed gear motor, 15 : 1 ratio, belt-free |
| Overall Dimensions | 25.5" W × 24.3" D × 75.0" H (bridge lowered) |
| Net Weight | Approx. 575 lb (261 kg) |
| Warranty | 12-month parts & labor (extendable) |
Popular Factory Options
- Automatic water-metering valve
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Measuring sight strip or etched gallon markings
- Basket, tri-basket or nylon bag inserts for pasta & vegetables
- Lockable security cover and tamper-resistant fasteners (correctional facilities)
Need help sizing or configuring your kettle? Contact our equipment specialists — we’re happy to assist.
