Legion  |  SKU: LEC-40

Legion LEC-40 Steam Kettles

$15,471.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

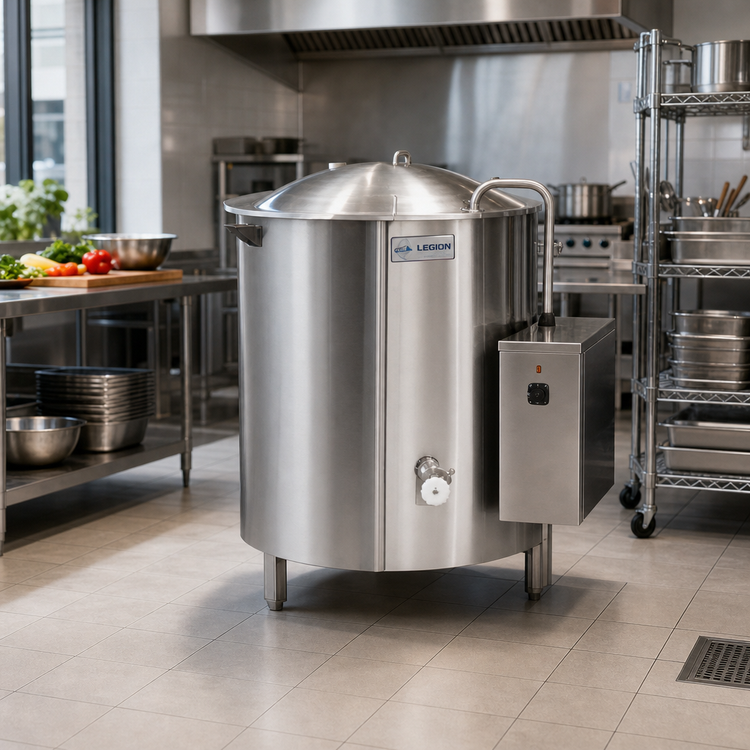

Legion LEC-40 | 40-Gallon Electric Stationary Kettle

Self-Contained • 2/3-Jacketed • Insulated for Safety™

Built for demanding commercial kitchens, the USA-made Legion LEC-40 combines rugged 304 stainless steel construction with a powerful 15 kW electric heating system to deliver fast, even cooking for up to 40 gallons of soups, sauces, stocks and more.

Key Benefits

  • Seamless deep-drawn 304 stainless steel liner with integrally formed radius lip for easy cleaning and exceptional durability.
  • 2/3 jacketed body surrounds the product zone with steam for rapid, uniform heat transfer—no hot spots, no scorching.
  • Insulated for Safety™ full-body insulation keeps exterior surfaces cooler and saves energy.
  • Thermostat-controlled temperature range of 150 °F – 260 °F (65 °C – 127 °C) for precise simmering, poaching or boiling.
  • Comprehensive safety system: pressure relief valve, air eliminator, pressure gauge, jacket-water fill and automatic low-water cut-off with indicator light.
  • 2" compression draw-off valve with 304 stainless tube and ¼" perforated disc strainer for smooth, clog-free dispensing.
  • One-piece, domed, actuator-assisted stainless cover returns condensation to kettle and lifts effortlessly.
  • Field-replaceable heating elements minimize downtime and service costs.

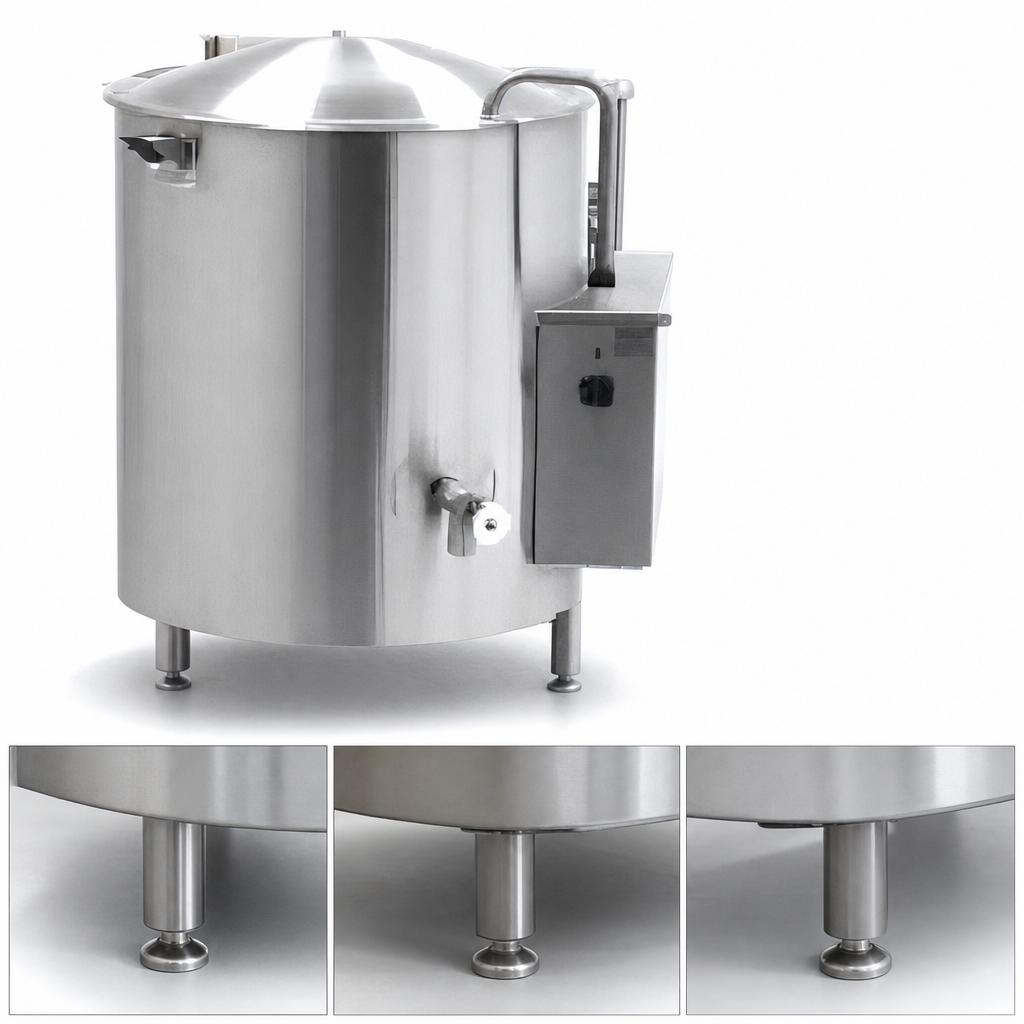

  • Four stainless steel legs with adjustable bullet feet provide a rock-solid, level installation.

Construction Highlights

  • 304L stainless steel jacket seam-welded to liner for long service life.
  • 304 stainless outer casing and control console resist corrosion and harsh cleaning chemicals.
  • Perforated ¼" stainless disc strainer supplied standard.
  • NSF, UL, ASME and other applicable approvals.

Technical Specifications

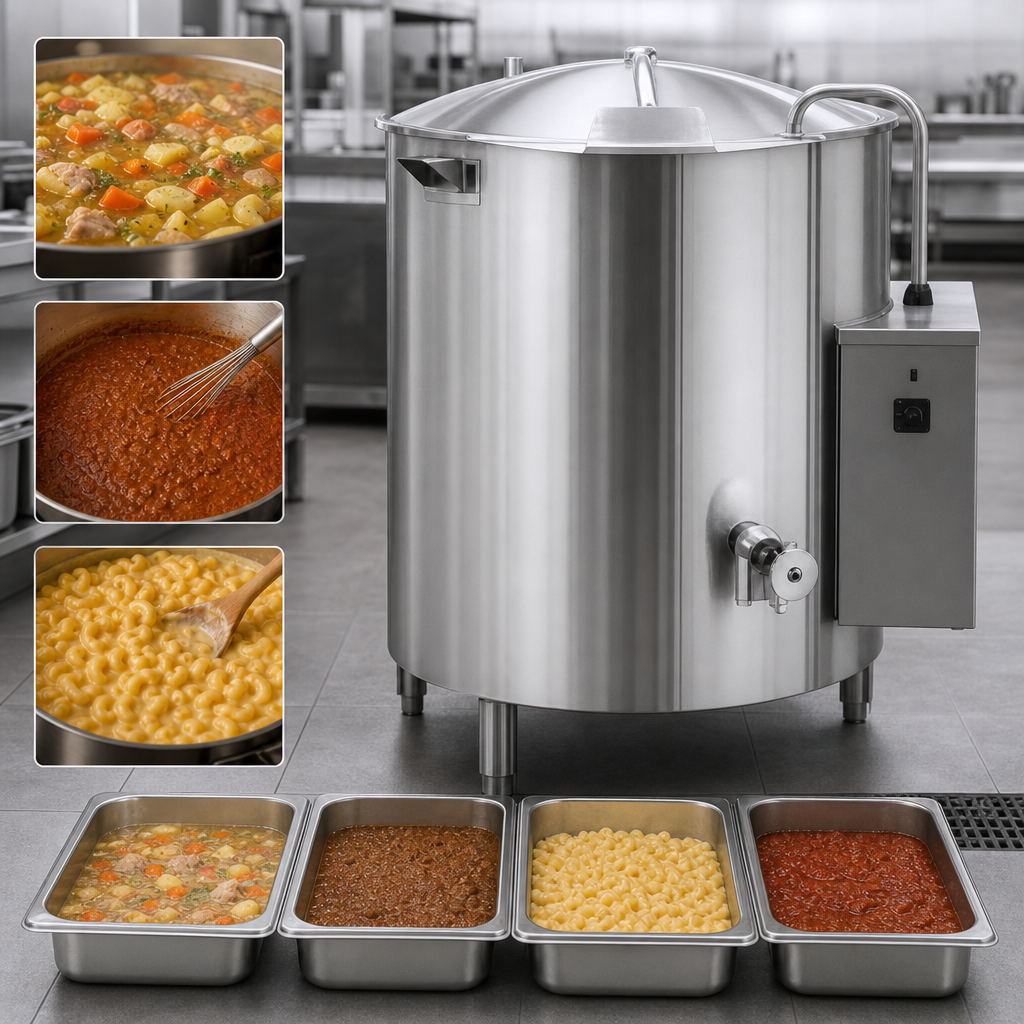

Capacity 40 gal (151 L)
Heat Source Electric, self-contained, 15 kW
Temperature Range 150 °F – 260 °F (65 °C – 127 °C)
Jacket Coverage 2/3 of kettle body
Draw-Off Valve 2" compression-type, 304 stainless
Standard Cover One-piece domed, actuator-assisted stainless steel
Approx. Dimensions (W × D × H) 37.4" × 24.3" × 39.9"* (95 × 62 × 101 cm)
Construction All-welded 304 stainless liner, jacket, casing & console
Origin Waynesboro, Georgia, USA

*Height measured to kettle rim; allow additional clearance for cover and fittings.

Electrical Requirements

Voltage 1-Phase Amps 3-Phase Amps
208 V 72.1 A 41.6 A
240 V 62.5 A 36.1 A
380 V 39.5 A 22.8 A
415 V 36.1 A 20.9 A
440 V 34.1 A 19.7 A
480 V 31.3 A 18.0 A

Specify voltage and phase when ordering.

Popular Options & Accessories

  • Single or dual water-fill faucet with 12" or 18" swing nozzle
  • 48" flexible spray hose (vinyl or stainless)
  • Electric timer with buzzer
  • Two-speed mixer/agitator
  • Automatic water-filling meter
  • Solid or ⅛" perforated disc strainer
  • Draw-off drain hose, measuring strip and care kit
  • Lockable lid or control cover for high-security installations
  • Adjustable flanged feet
Installation note: Unit must be installed and wired by qualified personnel in accordance with local codes. Provide adequate floor support and service clearances.

Covered by Legion’s 12-month parts & labor warranty. Extended warranty options available.

Features & Specs

Manufacturer

Legion

Shipping Weight

630.0lbs

Base

tri-leg

Capacity

30 - 45 gallon

Kettle Liner

304 stainless steel

Kettle Jacket

partial jacket

Specifications

Stationary Kettle, Electric, self-contained, 40-gallon, 304 stainless steel liner, thermostat temperature control, 2" compression draw-off valve, 2/3 jacket, full body insulation, stainless steel kettle, legs & control console, 15.0 kW
