Legion LEC-30MV Steam Kettles
Description

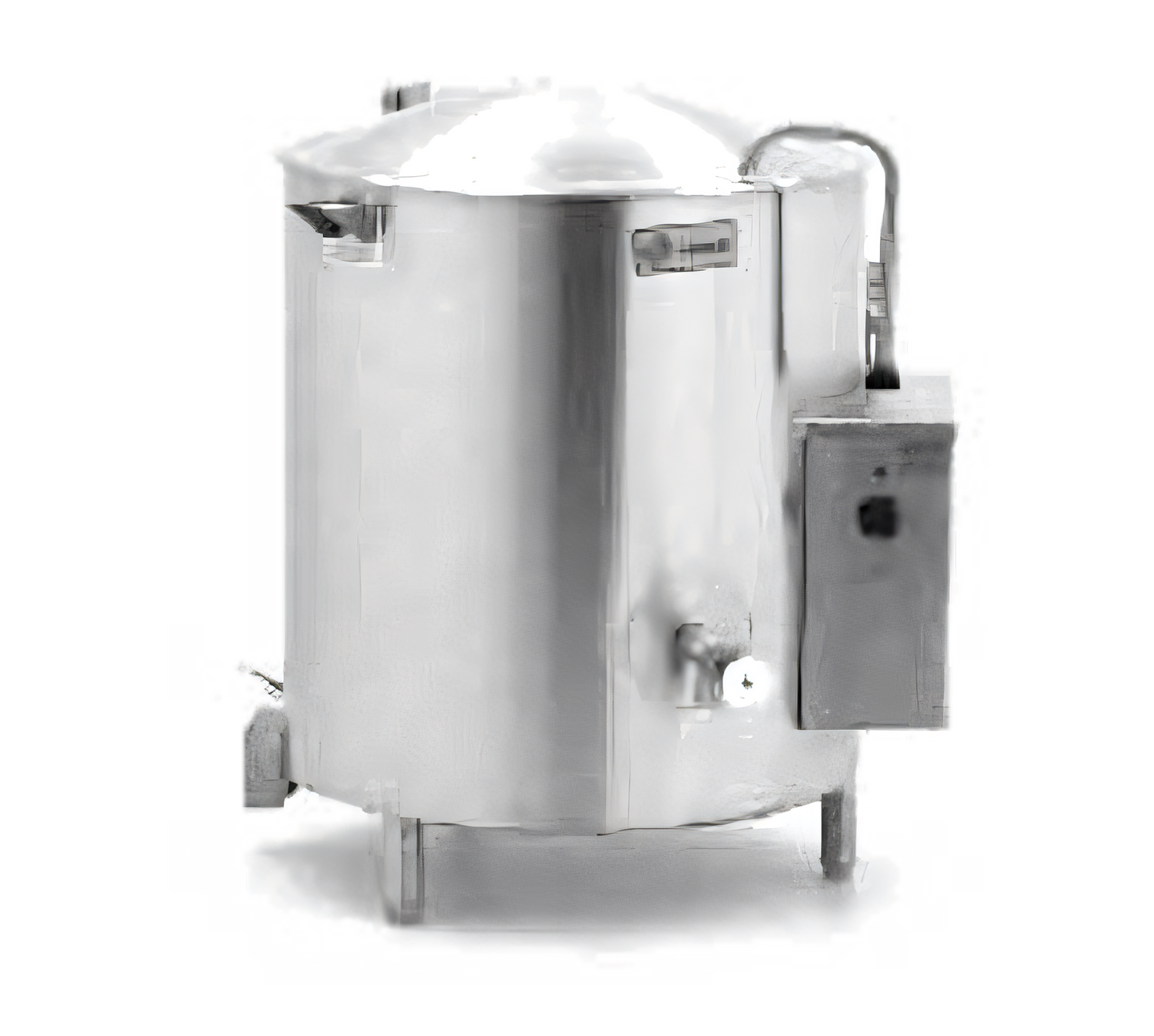

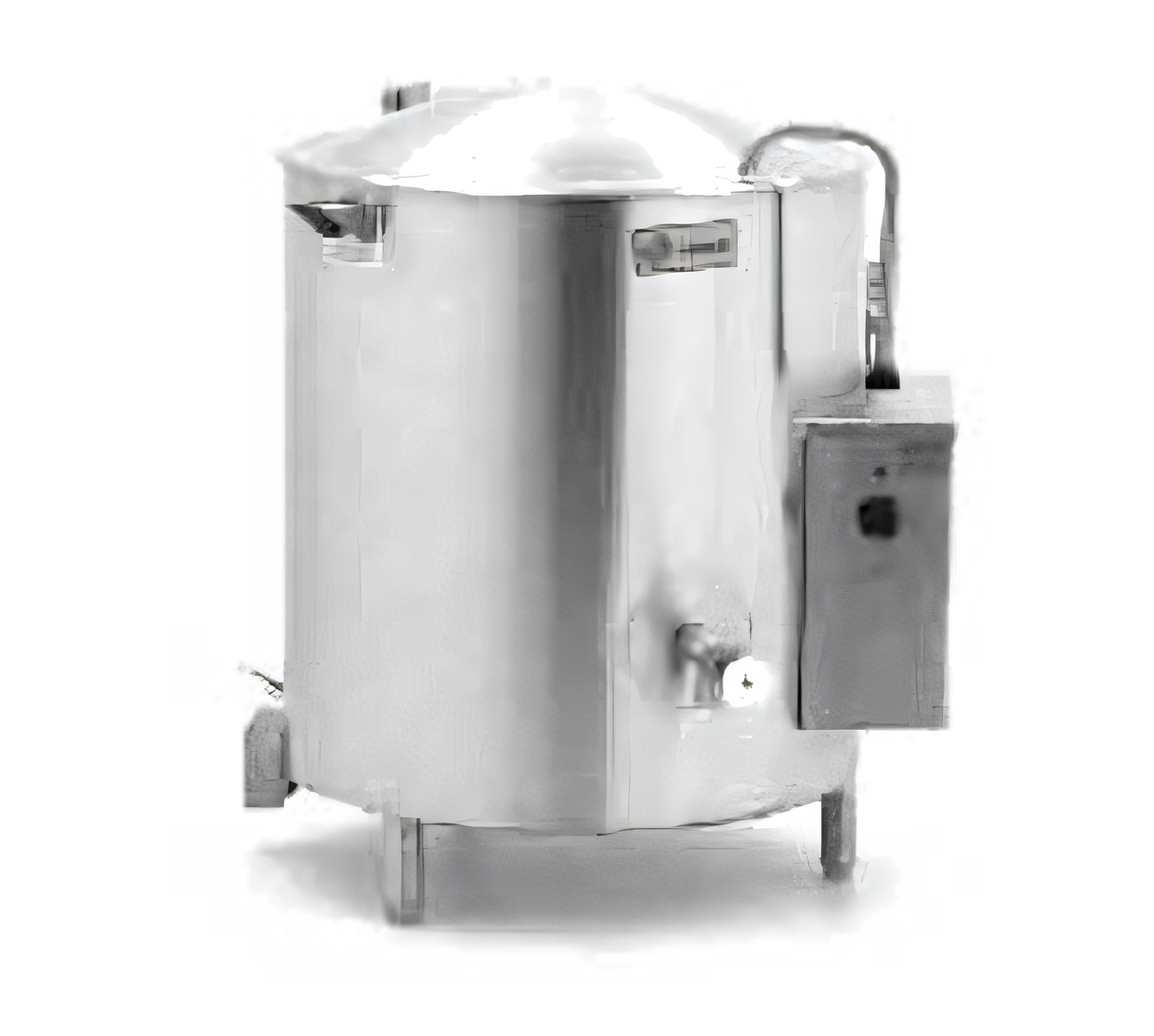

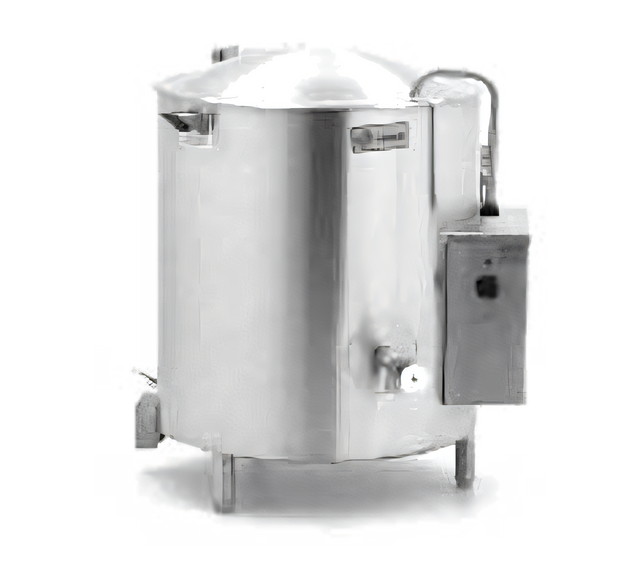

Legion 30-Gallon Self-Contained Electric Kettle with Integrated Mixer
12 kW • 2/3-jacket • Floor-mounted • Made in USABuilt for production kitchens that refuse to compromise, the Legion 30-gallon electric kettle pairs rapid, thermostat-controlled heating with a rugged two-speed agitator. From silky sauces to hearty chowders, you’ll turn out consistent batches faster, safer and with less labor.
Why You’ll Love It
- Powerful & Precise Heating – 12 kW concealed elements heat evenly through a 2/3 steam jacket; dial in exact temps with the snap-action thermostat.
- 30-Gallon Capacity – Ideal for schools, healthcare, commissaries and restaurants producing up to 114 L per batch.
-
Twin-Shaft Mixer Included
- Two-speed gear motor (High 46 RPM / Low 23 RPM main agitator)
- 304 SS anchor agitator hugs the kettle wall while removable nylon blades continuously scrape for zero burn-on
- Counter-rotating beater maximizes product movement for even heating and consistent texture
- Bayonet-mount shafts lift out in seconds for cleaning
- 304 Stainless Steel “Deep-Drawn” Liner – Seam-free cooking surface resists pitting and simplifies sanitizing.
- Full-Body Insulation – Keeps heat in the kettle, not in the room, for a cooler workspace and reduced energy costs.
- 2″ Compression Draw-Off Valve – Quickly dispense soups or transfer product to pans without tools.
- Comprehensive Safety Package – 30 psi ASME relief valve, low-water cut-off with indicator, and pressure gauge protect both staff and equipment.
- Hygienic, All-Stainless Exterior – Jacket, outer casing, legs and control console are 304 SS for a professional look that stands up to chemicals and steam.
Technical Specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Heating Input | 12 kW electric, self-contained steam generator |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 0 – 30 psi (relief valve set) |
| Temperature Control | Adjustable thermostat, 150 – 290 °F (65 – 143 °C) |
| Agitator Speeds | Low 23 RPM / High 46 RPM (main shaft) |
| Draw-Off Valve | 2″ compression type, 304 SS |
| Interior/Exterior | 304 SS liner & jacket with full mineral fiber insulation |
| Electrical (typical) | 208 V / 3 ø 28.9 A • 240 V / 3 ø 25.0 A • 480 V / 3 ø 14.4 A Single-phase ratings also available. |
| Overall Dimensions (W×D×H) | 23.0″ × 20.3″ × 37.6″ (cover closed) |
| Certifications | ASME, NSF, UL (electric), cUL |
Included
- Actuator-assisted one-piece domed cover
- Perforated ¼″ stainless steel strainer disc
- Adjustable bullet feet
- Operator’s manual & warranty registration
Popular Options (Sold Separately)
- Single or dual fill faucet with swing nozzle
- 48″ rinse-down spray hose (vinyl or stainless)
- Automatic water metering system
- Fine ⅛″ perforated strainer disc
- Basket or nylon bag inserts
- Adjustable flanged feet for floor anchoring
Backed by Legion’s 12-month parts & labor warranty. Extended coverage available upon request.
