Legion LEC-30 Steam Kettles
Legion LEC-30 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion LEC-30 Steam Kettles
Description

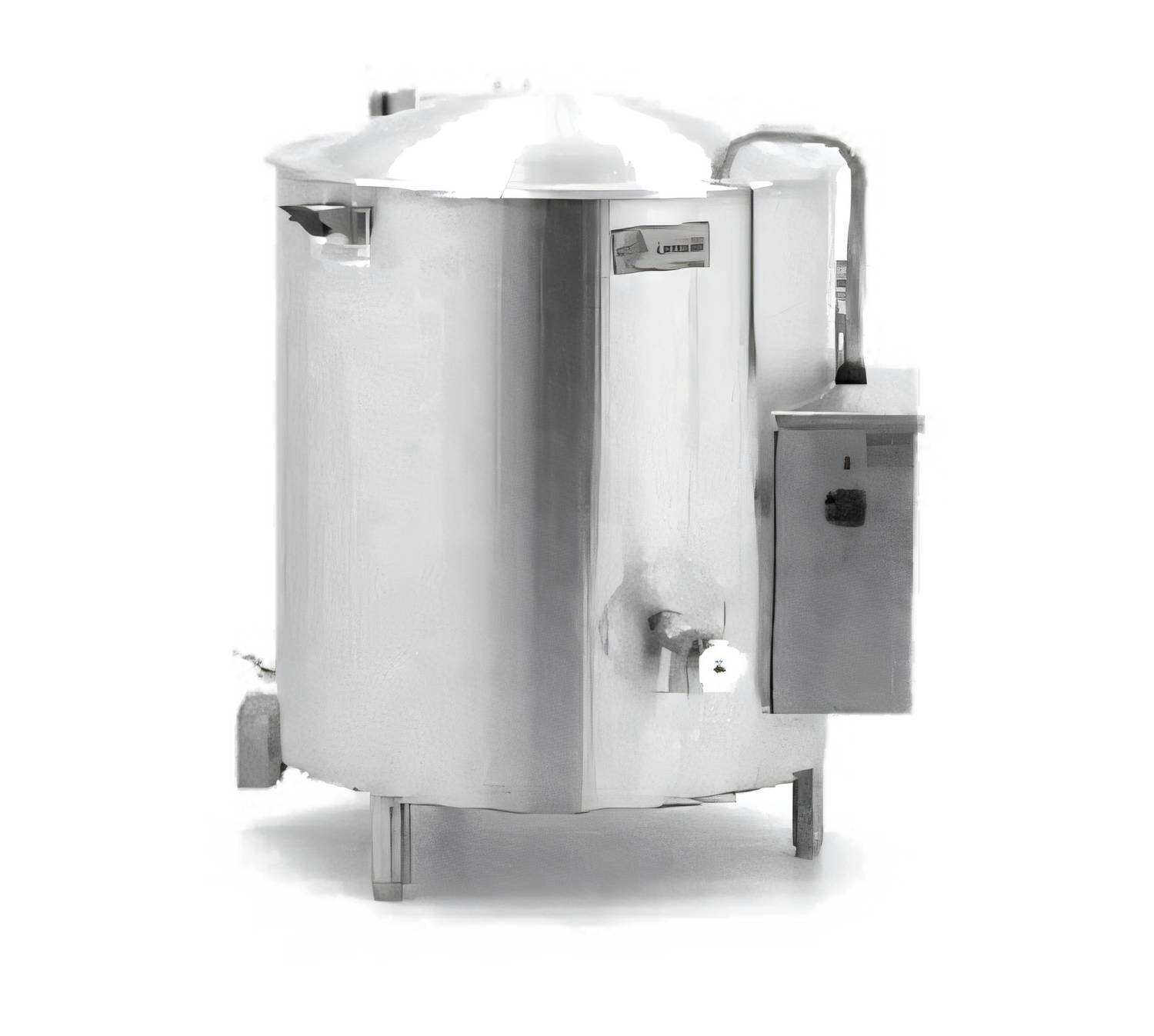

Legion LEC-30 30-Gallon Self-Contained Electric Kettle
2/3-Jacketed • Insulated for Safety™ • Made in the USABuilt for busy commercial kitchens, the Legion LEC-30 delivers fast, uniform heat in a compact floor-mounted footprint. A seamless 304 stainless steel liner, full-body insulation and an easy-draining 2" compression valve make high-volume soups, sauces and stews effortless—while a built-in protection system keeps operators safe and productive.
Why You’ll Love It
- 30-gallon (114 L) capacity handles up to 1,024 servings of 4 oz portions.

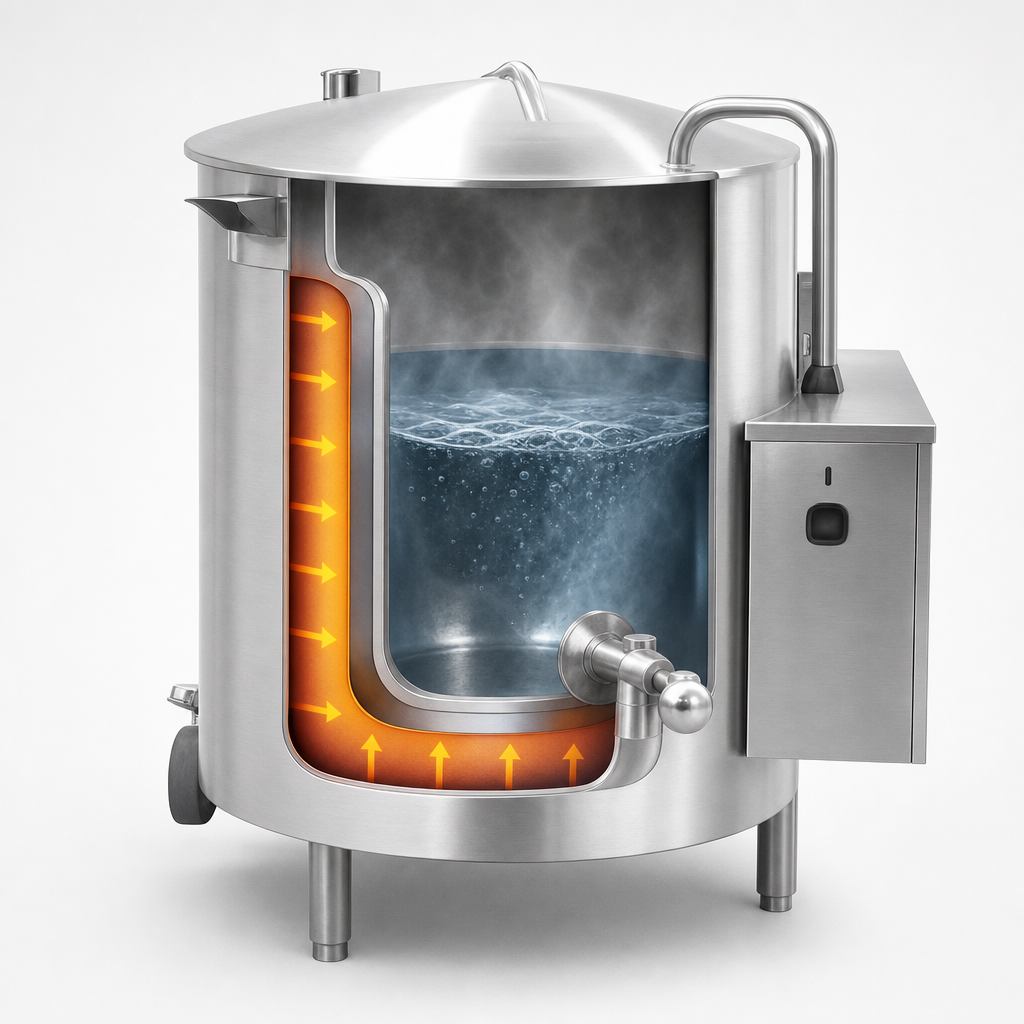

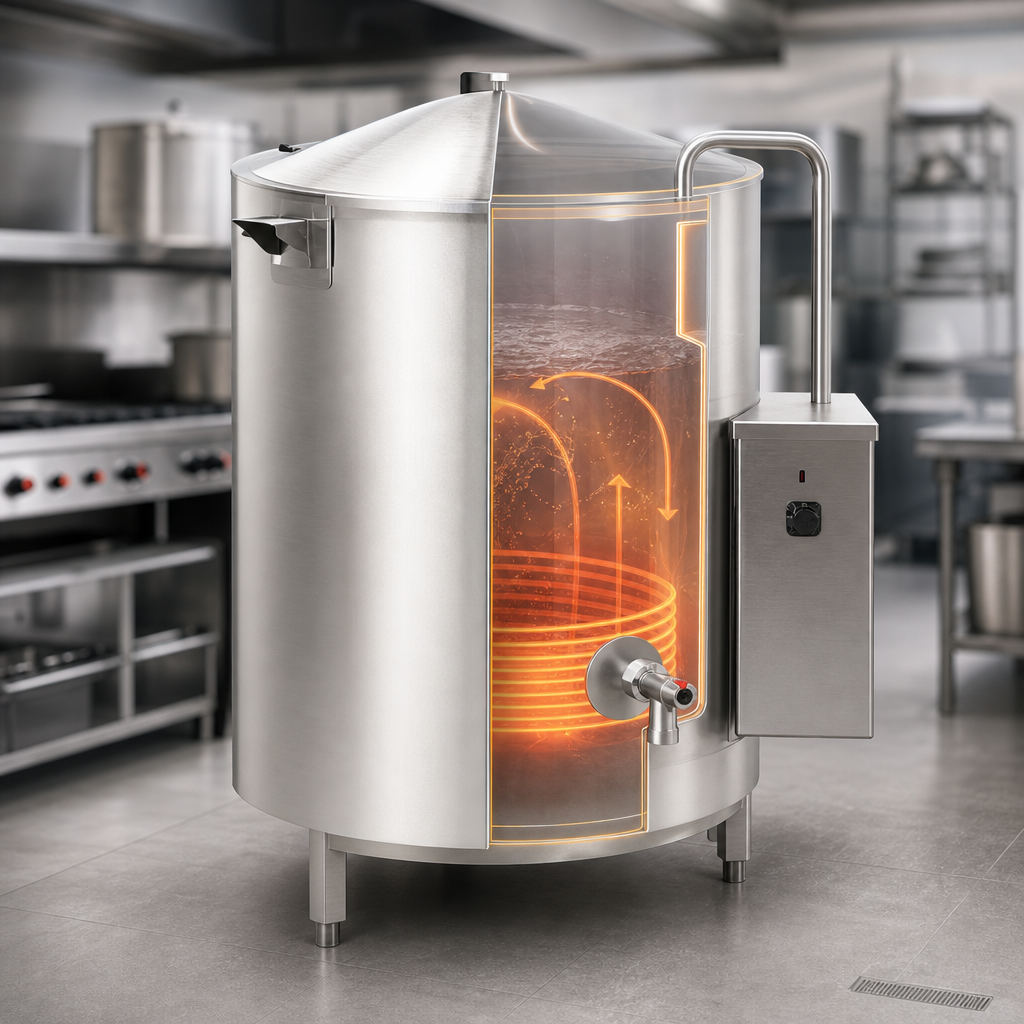

- 12 kW electric elements heat water in the 2/3 jacket for rapid, even cooking—no external boiler required.
- Seamless deep-drawn 304 stainless kettle liner with integrally formed radius lip for simple cleaning and maximum durability.
- Full body insulation keeps exterior surfaces cooler and improves energy efficiency.
- Precise thermostat control from 150 °F – 260 °F (65 °C – 127 °C) with low-water cut-off and indicator light.
- Comprehensive safety suite: pressure relief valve, air eliminator, pressure gauge and jacket-water fill port.
- 2" 304 stainless compression draw-off valve plus perforated disc strainer (¼" holes) for clog-free dispensing.
- Rugged stainless steel outer casing, four adjustable bullet feet and seam-welded control console stand up to daily abuse.
- Field-replaceable heating elements minimize downtime and service costs.
Technical Specifications
| Model | LEC-30 |
|---|---|
| Capacity | 30 gal | 114 L |
| Heating Type | Electric, self-contained (no external boiler) |
| Element Power | 12.0 kW |
| Voltage Options | 208, 240, 380, 415, 440 or 480 VAC (1- or 3-phase) |
| Amperage @ 208 V | 57.7 A (1 ɸ) | 33.3 A (3 ɸ) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Jacket Coverage | 2⁄3 (sides & bottom) |
| Interior Material | 304 stainless steel, seamless |
| Exterior / Console | 304 stainless steel, seam-welded |
| Draw-Off Valve | 2" 304 stainless compression type |
| Standard Accessories | Perforated disc strainer, adjustable bullet feet |
| Overall Height | 55.8 in | 141.7 cm (rim up) |
| Warranty | 12-month parts & labor |
| Certifications | ASME, NSF, UL (field applications) |
Popular Options & Accessories
- Single or dual fill faucets with 12" or 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- Electric timer with buzzer or pressure switch
- Two-speed mixer/agitator kit
- Hinged, lift-off or actuator-assisted covers
- Draw-off drain hose, measuring strip, solid/perforated disc strainers
- Single basket, tri-basket or nylon bag insert systems
Contact us for a complete list of factory-installed options and lead times.
