Legion  |  SKU: LEC-20MV

Legion LEC-20MV Steam Kettles


This product is discontinued and no longer available for purchase.

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

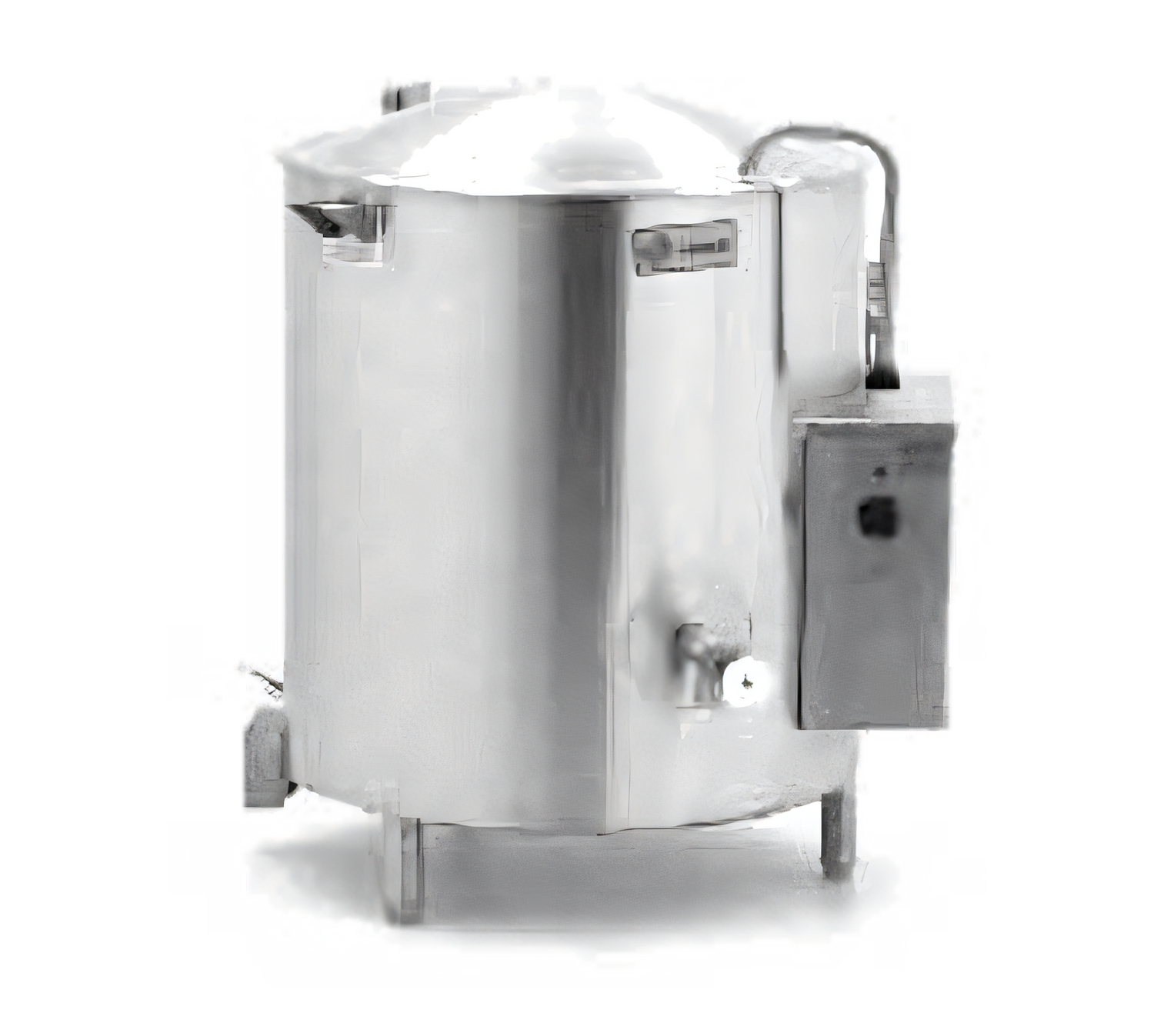

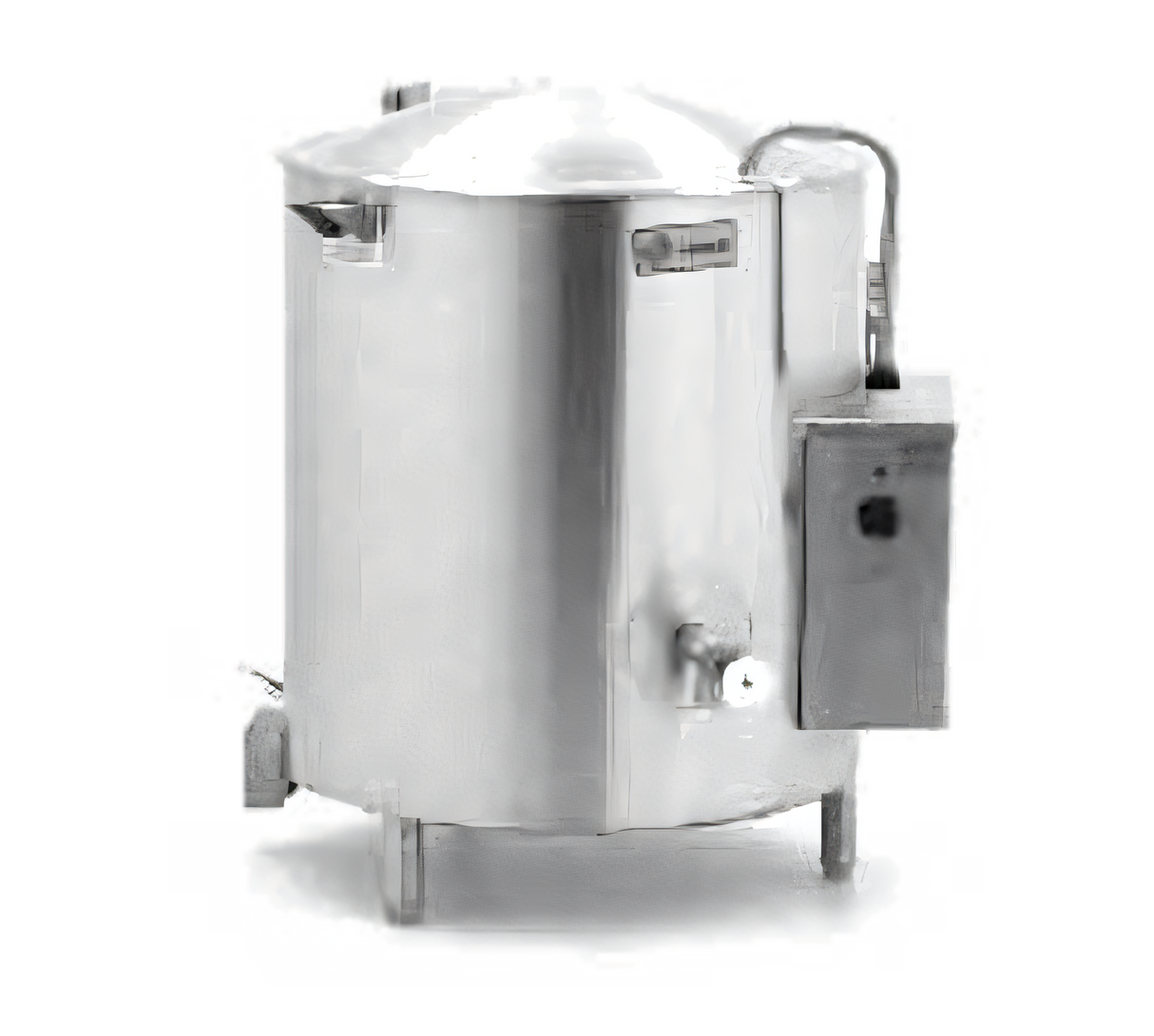

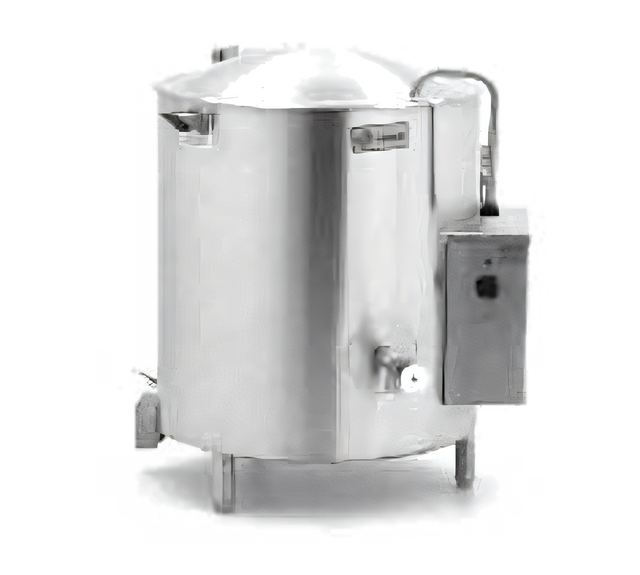

Legion 20-Gallon Self-Contained Electric Kettle with Integrated Mixer

Model LEC-20-MV | 9 kW | 2" Stainless-Steel Compression Draw-Off Valve

Combine rapid, even heating with hands-free agitation—perfect for soups, sauces, custards and small-batch production. 100 % self-contained and floor-mounted, this 20-gallon kettle brings Legion’s legendary build-quality to the heart of your kitchen.

Why You’ll Love It
  • 2/3-jacketed, 9 kW electric heating delivers fast, uniform heat with no external boiler.
  • Integrated twin-shaft mixer maintains product consistency and virtually eliminates burn-on.
  • 304 stainless kettle, jacket, legs and console stand up to daily commercial abuse.
  • Full body mineral-fiber insulation keeps heat in the kettle and out of the kitchen.
  • Thermostat control, low-water cut-off and 30 psi safety valve protect both food and equipment.
  • 2" compression draw-off valve handles chunky chowders and stews without clogging.
  • Field-replaceable heating elements minimize downtime and service costs.
  • Made in the USA; built to comply with NSF, UL & ASME standards.
Built-In Twin-Shaft Mixer
  • Two-speed gear motor (23 & 46 RPM main agitator) optimized for 20-gallon loads.
  • Anchor-style main agitator hugs the kettle wall for complete coverage.
  • Removable nylon scraper blades wipe every revolution for spotless sidewalls.
  • Counter-rotating secondary beater breaks up lumps and boosts heat transfer.
  • Actuator-assisted bridge lift and quick-release agitators for fast cleaning.
  • Safety interlock prevents high-speed starts when mixer is raised.
Technical Specifications
Capacity 20 gal  / 76 L
Kettle Material 304 stainless steel, deep-drawn
Jacket Coverage 2/3 of kettle body
Insulation Full body, between jacket and outer casing
Heating Type Self-contained electric-steam, 9 kW
Operating Pressure 30 psi max (ASME rated)
Temperature Control Adjustable thermostat with indicator light
Draw-Off Valve 2" stainless, compression type
Mixer Speeds 23 RPM & 46 RPM (main agitator)
Electrical 208-480 V, 1 Ø or 3 Ø (43.3 A @ 208 V 1 Ø)
Overall Dimensions* Approx. 34 H × 22 W × 22 D in.
Certifications NSF, ASME, UL

*Dimensions based on 1½-inch valve drawing; final width may vary with 2-inch valve.

Popular Accessories (sold separately)
  • Single or dual water-fill faucet with 12"-18" swing nozzle
  • 48" flexible spray hose assembly
  • Perforated disk strainers (⅛" or ¼" holes)
  • Measuring strip & kettle-care kit
  • Draw-off drain hose
Installation Note: Unit must be hard-wired and leveled on a non-combustible floor by a qualified technician. Allow sufficient clearance for mixer tilt-out, service access and local code compliance.

From delicate custards to hearty stews, the Legion 20-Gallon Electric Kettle with Mixer delivers flawless, repeatable results—helping commercial kitchens of every size work faster, cleaner and smarter.

Features & Specs

Manufacturer

Legion

Shipping Weight

845.0lbs

Type

stationary

Base

tri-leg

Kettle Liner

stainless steel

Capacity

20 gal

Jacket

2/3 jacket

Specifications

Stationary Kettle, Electric, with mixer, self-contained, 20-gallon, 304 stainless steel liner, thermostat temperature control, 2" compression draw-off valve, 2/3 jacket, full body insulation, stainless steel kettle, legs & control console, 9.0 kW
