Legion LEC-20 Steam Kettles
Description

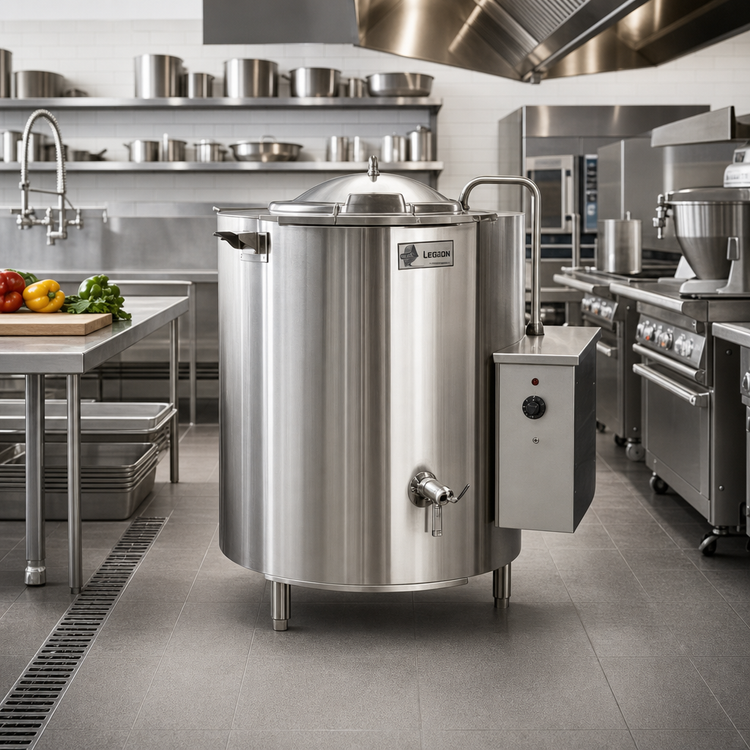

Legion LEC-20 Electric Self-Contained Kettle – 20 Gal (76 L)
2/3-Jacketed • Fully Insulated • Made in USABuilt for demanding commercial kitchens, the Legion LEC-20 delivers fast, even, energy-efficient cooking in a compact 20-gallon footprint. Its deep-drawn 304 stainless liner and full-body insulation make it as durable as it is safe, while the self-contained 9 kW heating system eliminates the need for an external boiler.
Why You’ll Love It

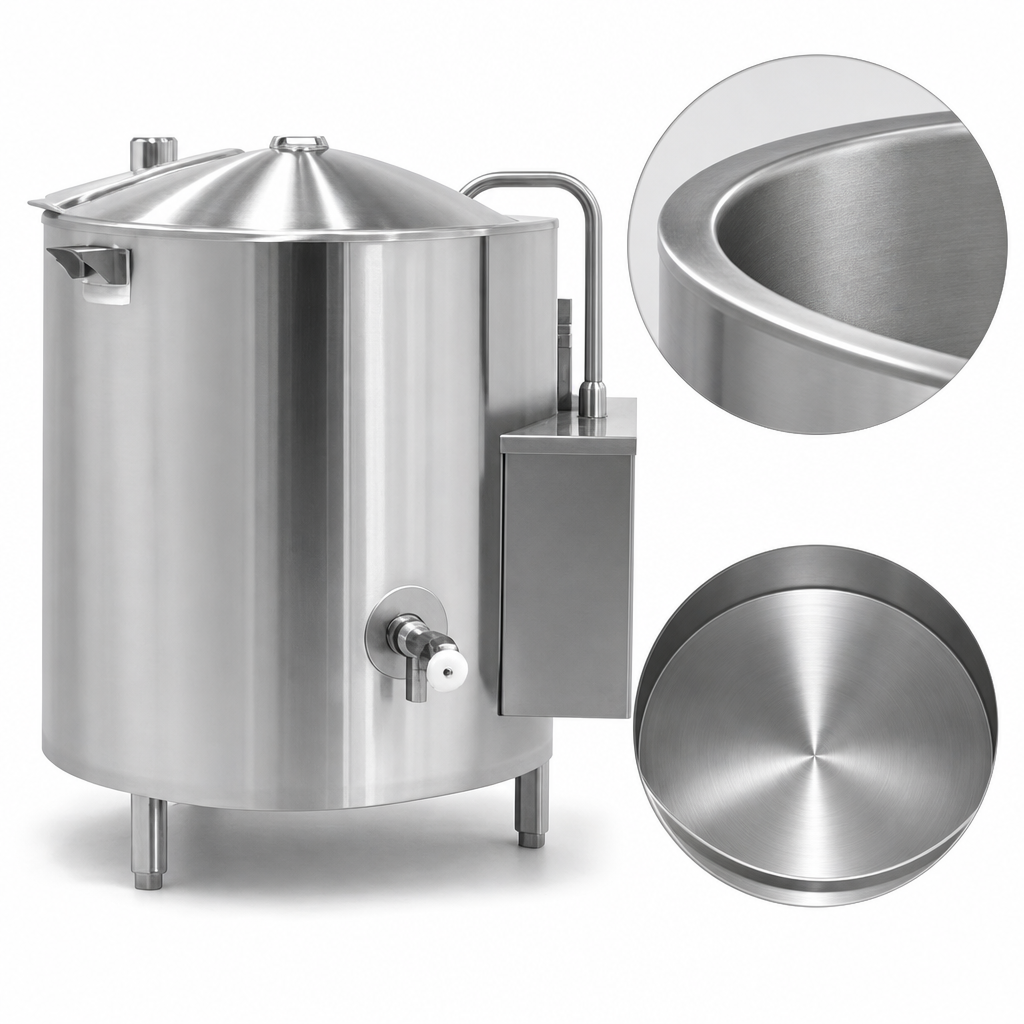

- All-Stainless Construction: 304/304L stainless liner, jacket, outer casing, draw-off tube, legs and control console.
- Self-Contained 2/3 Jacket: rapid heat-up and even temperature distribution without a remote steam source.
- Insulated for Safety™: full-body insulation keeps exterior surfaces cooler and reduces energy loss.
- Precise Thermostat Control: 150 °F – 260 °F dial range with automatic low-water cut-off and indicator light.
- Hassle-Free Cleaning: seamless deep-drawn kettle bowl and a standard 2 in. compression draw-off valve with perforated ¼ in. strainer.
- Field-Replaceable Elements: minimize downtime and service costs.
- Adjustable Bullet Feet: four stainless legs provide a rock-solid, level installation.
Technical Specifications
| Capacity | 20 gal | 76 litres |
|---|---|

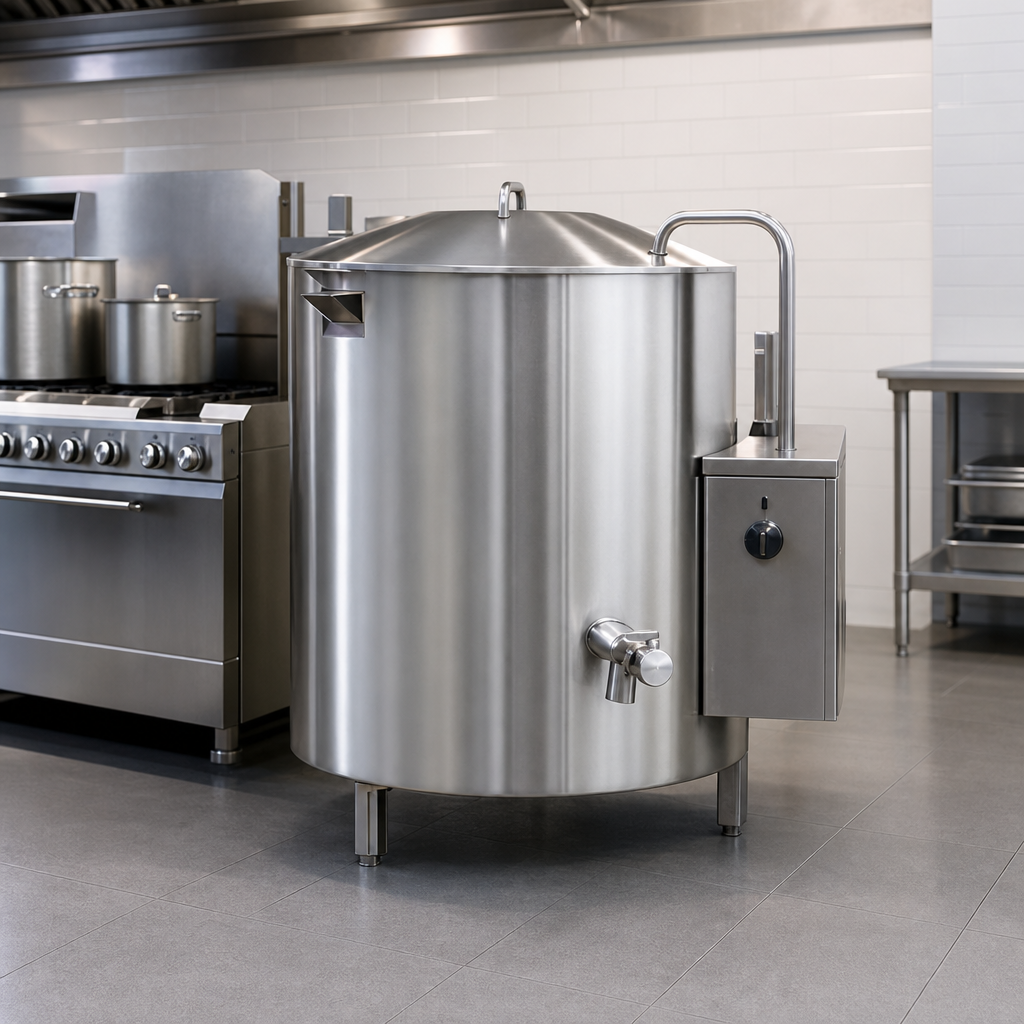

| Kettle Type | Stationary, floor-mounted, self-contained electric |
| Heating Jacket | 2/3 jacket, 304L stainless, water-sealed |
| Insulation | Full body between jacket & outer shell |
| Power Rating | 9.0 kW |
| Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-Off Valve | 2 in. 304 stainless compression type |
| Electrical (per leg) |
208 V 1Ø 43.3 A | 3Ø 25.0 A 240 V 1Ø 37.5 A | 3Ø 21.7 A 480 V 1Ø 18.8 A | 3Ø 10.8 A |
| Overall Dimensions* | 34 in. W × 32.4 in. H × 22 in. D |
| Certifications | ASME, NSF, UL, ETL |
| Origin | Made in Waynesboro, Georgia, USA |
*Dimensions are nominal and subject to change without notice.
Built-In Safety & Protection
- Pressure relief valve & air eliminator
- Analog pressure gauge for visual monitoring
- Jacket water fill port for easy maintenance
- Automatic low-water shut-off with signal light
Popular Factory Options
- Single or dual fill faucets with 12 in. or 18 in. swing nozzles
- 48 in. flexible spray-hose assembly (vinyl or stainless)
- Electric timer with buzzer
- 2-speed mixer / agitator
- Lift-off, hinged or lockable covers
- Draw-off drain hose, measuring strip & care kit
Options ship installed or loose as specified and are sold separately.
Warranty
Legion backs every LEC-Series kettle with a 12-month parts & labor warranty from the date of installation (15 months from shipment). Extended coverage is available.
