Legion  |  SKU: HEC-80MV

Legion HEC-80MV Steam Kettles


This product is discontinued and no longer available for purchase.

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

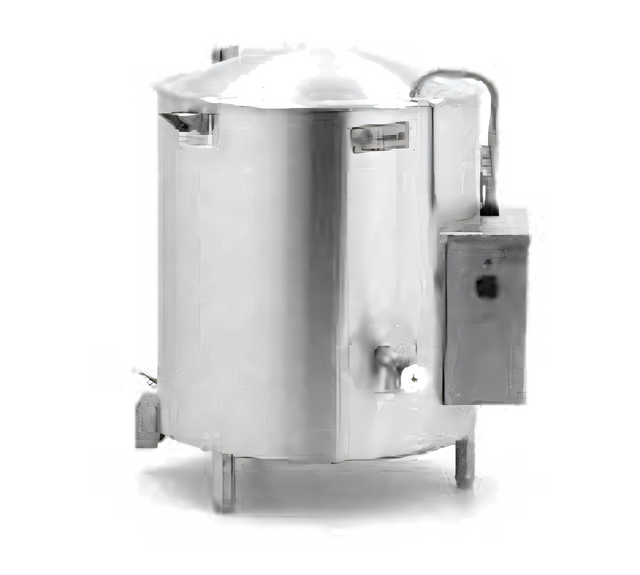

Legion HEC-80MV 80-Gallon Self-Contained Electric Kettle with Mixer

36 kW High-Output • 2/3 Jacketed • Made in USA

Engineered for high-volume production kitchens, the Legion HEC-80MV pairs an 80-gallon electric kettle with a powerful two-speed twin-shaft agitator. The result is faster batch times, effortless product movement and the legendary durability you expect from a 100 % stainless-steel Legion kettle.

Why You’ll Love It

  • Massive 80-gal (303 L) capacity handles soups, sauces, fillings and custards with ease.
  • High-output 36 kW heating package reaches set temps quickly and maintains a steady 150 – 260 °F.
  • Self-contained 2/3 jacket—no external boiler required; simply fill the jacket, plug in and cook.
  • Twin-shaft MV mixer:
    • Anchor-style main agitator contoured to vessel wall
    • Nylon scraper blades keep the entire surface clean—no scorching
    • Counter-rotating beater breaks up clumps and promotes uniform heating
    • Two selectable speeds (23 & 46 RPM main / 60 & 120 RPM beater)
    • Bayonet-mount tools lift out without hardware for rapid sanitation
  • Thermostat control with low-water cutoff, pressure relief valve, gauge and air eliminator for built-in protection.
  • Seamless 304 stainless liner with deep-drawn radius lip—no interior welds to pit or corrode.
  • Full-body insulation cuts ambient heat loss and keeps your kitchen cooler.
  • 2″ compression draw-off valve (304 SS) with ¼″ perforated disc strainer for smooth, debris-free portioning.
  • Actuator-assisted domed cover opens effortlessly and stays put for hands-free loading.
  • Four all-stainless, adjustable bullet feet level the kettle on uneven floors.

Technical Specifications

Model HEC-80MV (Electric, High-Output, Stationary, Mixer-Equipped)
Capacity 80 gal / 303 L
Heat Input 36 kW electric (field-replaceable elements)
Voltage Options (3 Ø) 208 V 99.9 A | 240 V 86.6 A | 380 V 54.7 A | 415 V 50.1 A | 440 V 47.2 A | 480 V 43.3 A
Operating Temp. 150 °F – 260 °F (66 °C – 127 °C)
Jacket Coverage 2/3 of kettle body (ASME-coded 304 L stainless)
Draw-Off 2″ 304 SS compression valve with perforated strainer
Interior Finish Polished 304 stainless, one-piece deep drawn
Exterior 304 stainless outer shell & control console
Overall Dimensions Width 32.5″ | Depth 46.9″ | Height 71.0″ (cover closed) / 89.4″ (cover open)
Made In Waynesboro, Georgia USA
Installation Note: Unit must be hard-wired by a qualified electrician and connected to a potable water source for jacket fill. Refer to the factory service manual for detailed clearances and venting requirements.

What’s Included

  • Actuator-assisted domed cover
  • Perforated ¼″ disc strainer
  • Nylon scraper blades (removable)
  • Operator’s manual & care kit

Common Factory Options (sold separately)

  • Automatic water-fill meter
  • 48″ vinyl or stainless spray-hose assembly
  • 3″ draw-off or ball-type valve
  • Lockable lid for correctional facilities
  • Tri-basket insert & nylon bag system

Legion continually improves products; specifications are subject to change without notice. Contact us for CAD drawings, lead times or custom configurations.

Features & Specs

Manufacturer

Legion

Shipping Weight

1410.0lbs

Capacity

80 gal

Base

tri-leg

Type

stationary

Kettle Liner

stainless steel

Jacket

2/3 jacket

Specifications

Stationary Kettle, Electric, with mixer, high output self-contained, 80-gallon, 304 stainless steel liner, thermostat temperature control, 2" draw-off valve, 2/3 jacket, full body insulation, stainless steel kettle, legs & control console, 36 kW
