Legion HEC-80 Steam Kettles
Description

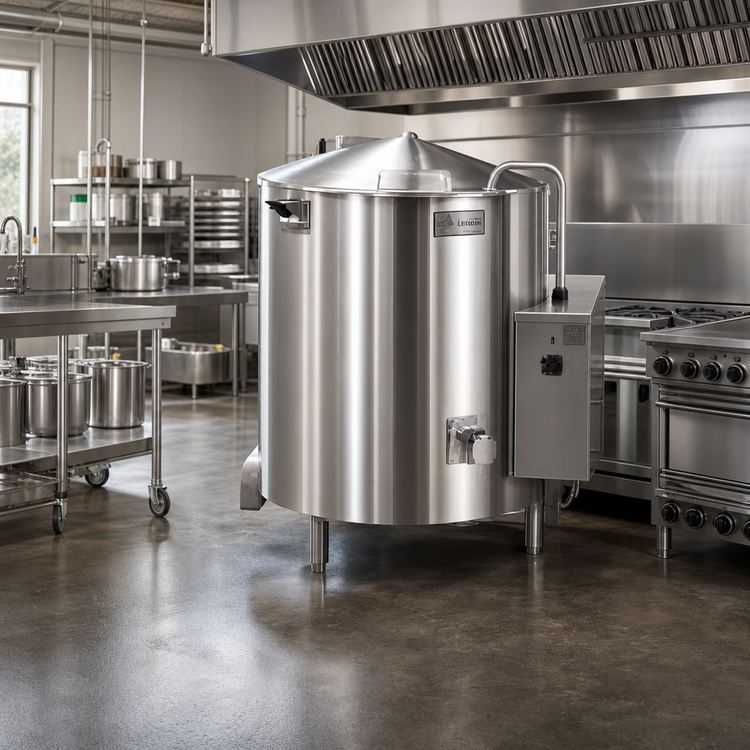

Legion HEC-80 80-Gallon Electric Stationary Kettle
High-Output • Self-Contained • Made in the USAEngineered for high-volume, high-efficiency production, the Legion HEC-80 delivers a full 80 gallons (303 L) of precisely controlled batch cooking capacity in a rugged, fully self-contained electric package—perfect for central kitchens, commissaries and institutional foodservice operations.
Key Features

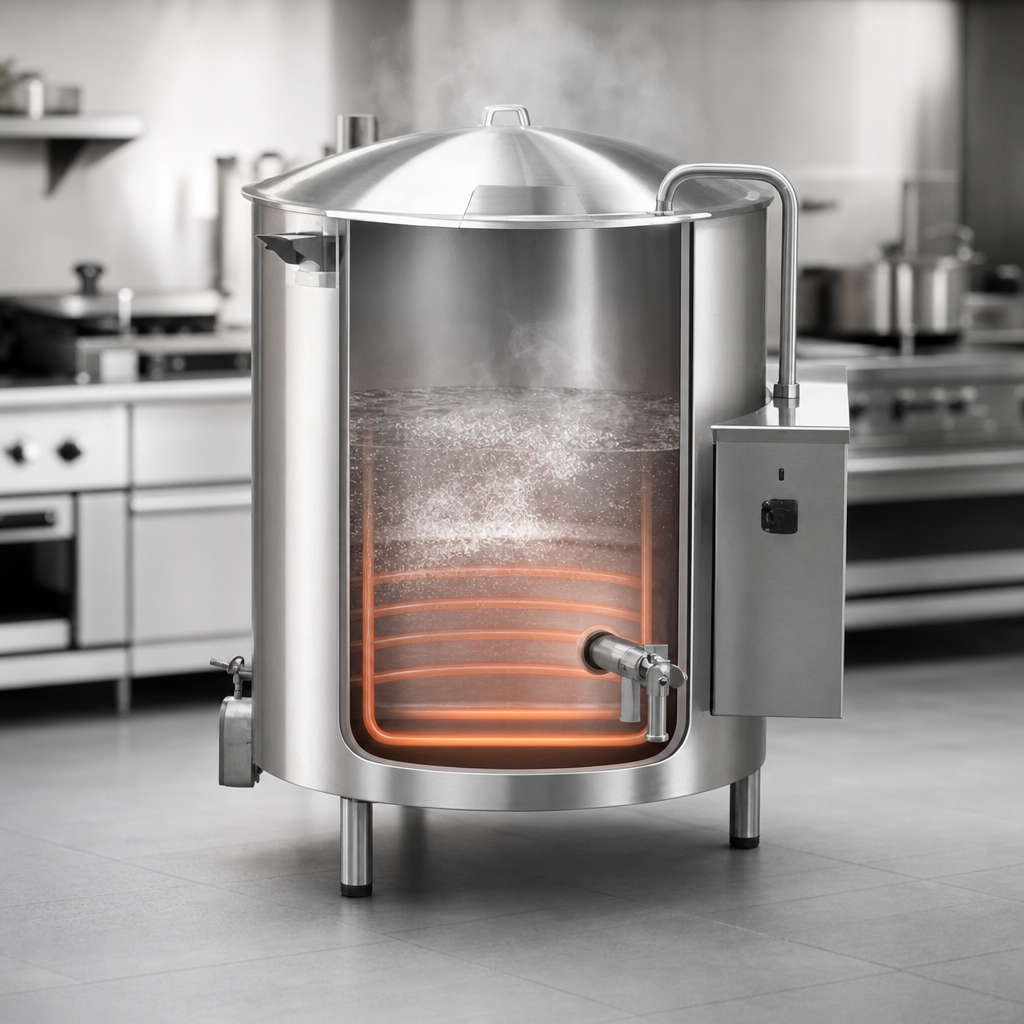

- 36 kW heavy-duty electric elements provide rapid heat-up and quick recovery.
- Seamless deep-drawn 304 stainless steel liner with integrally formed radius lip—no interior weld seams to harbor food soils.
- 2/3 jacket coverage surrounded by full-body insulation for outstanding energy retention and a cool-to-touch exterior.
- Actuator-assisted, one-piece domed cover stays in any position for safe, hands-free operation.
- Factory-installed 2" 304 SS compression draw-off valve with matching sanitary tube and welds.
- All-stainless construction—kettle, jacket, outer casing, legs and control console are 304/304L for maximum durability.
- Thermostatic control (150 °F – 260 °F) plus low-water cut-off, pressure gauge, relief valve and air eliminator protect the jacket system.
- Field-replaceable heating elements minimize downtime and service costs.
- Includes ¼" perforated disc strainer to protect the draw-off opening.
Why Choose a Self-Contained Kettle?
- No external boiler or steam supply required—simply connect electricity and water.
- Lower installation and maintenance costs than direct-steam kettles.
- Precise, even temperature control for delicate sauces, chowders, custards and more.
Specifications

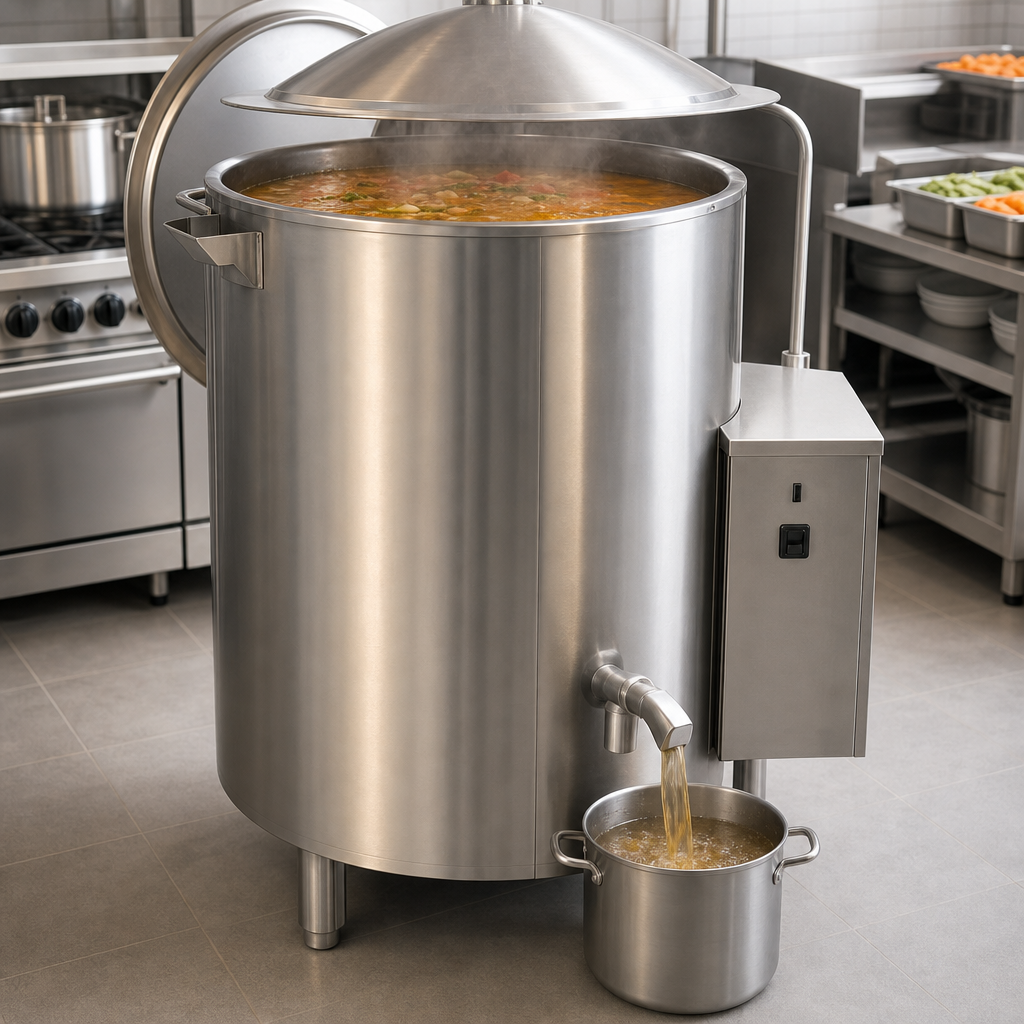

| Capacity | 80 gal / 303 L |
|---|---|
| Heat Input | 36 kW electric (self-contained) |
| Jacket Coverage | 2/3 of kettle body |
| Temperature Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Draw-off Valve | 2" 304 SS compression type |
| Interior / Jacket Material | 304 & 304L stainless steel |
| Exterior Finish | Satin stainless, seam-welded |
| Cover | Actuator-assisted one-piece domed, 304 SS |
| Controls | Thermostat, pressure relief, air eliminator, manual jacket fill, low-water cut-off & indicator light |
| Voltage Options | 208, 240, 380, 415, 440 or 480 V (1 Ø or 3 Ø) |
| Full-Load Amps @ 480 V | 75 A (1 Ø) / 43.3 A (3 Ø) |
| Overall Height | 89.4" (rim up) / 71.0" (rim down) |
| Overall Width | 46.9" |
| Overall Depth | 44.4" |
| Origin | Waynesboro, Georgia, USA |
What’s Included
- Legion HEC-80 stationary kettle with four stainless legs & adjustable bullet feet
- Actuator-assisted domed cover
- ¼" perforated disc strainer
- Installation & operation manual
Popular Accessories (sold separately)
- Single or dual faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (vinyl or stainless)
- Automatic water-filling meter
- Two-speed mixer/agitator
- Draw-off drain hose and measuring strip
- Lockable lid and control cover for security-sensitive installations
Legion Industries continually improves its products; specifications are subject to change without notice. Always verify electrical and installation requirements with local codes prior to ordering.
