Legion HEC-60 Steam Kettles
Description

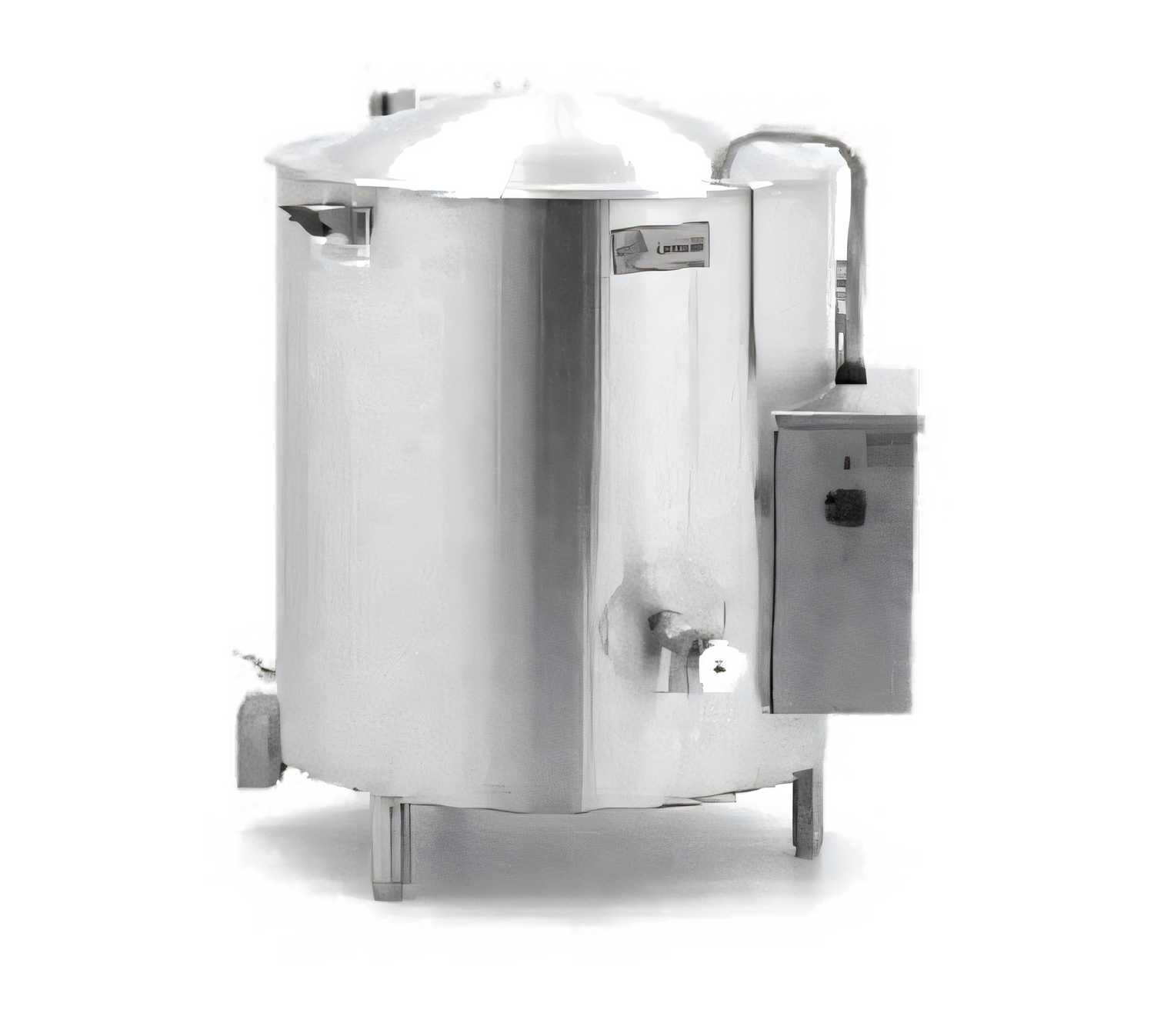

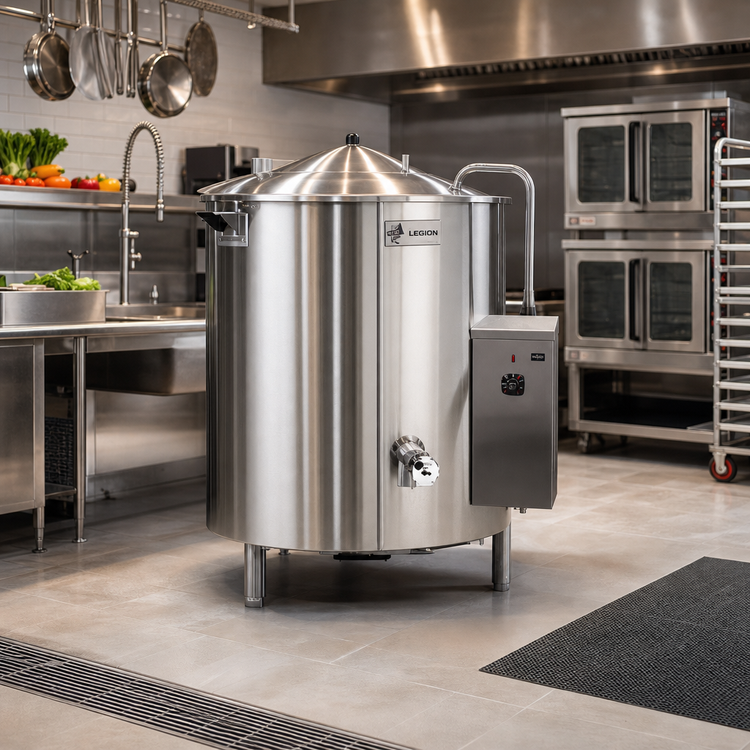

Legion HEC-60 60-Gallon High-Output Electric Stationary Kettle
36 kW self-contained | 2/3 jacketed | Made in USABuilt for kitchens that refuse to compromise on performance or durability, the Legion HEC-60 delivers rapid, even heating and rock-solid construction in a space-saving, fully self-contained design. With a full 60-gallon cooking capacity and high-output 36 kW elements, it is the ultimate workhorse for stocks, soups, sauces, pasta and more.
Key Features
- 60 gal (227 L) capacity – batch-cook up to 480 full-size portions at once
- High-output 36 kW electric elements for fast recovery and reduced cook times

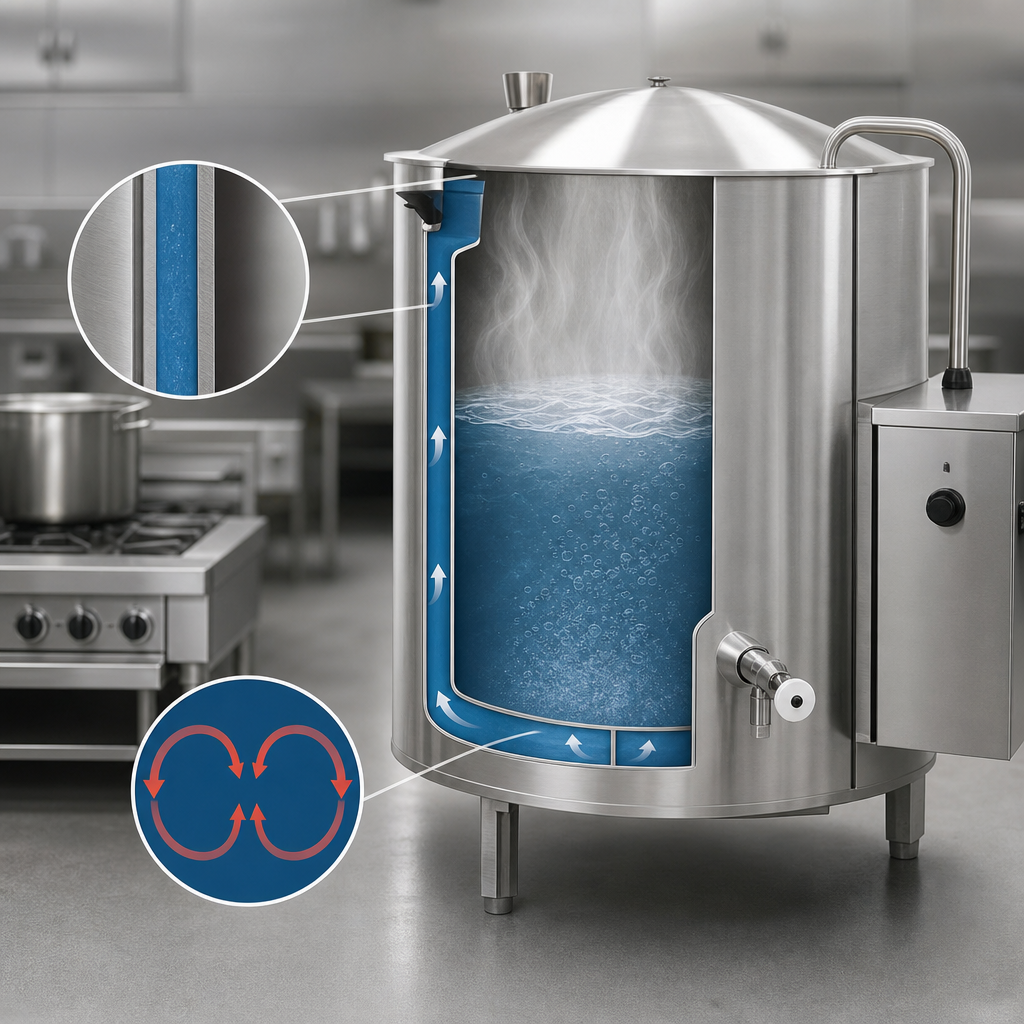

- Self-contained 2/3 steam jacket; no external boiler or steam connection required
- Insulated for Safety™ – full body insulation keeps the exterior cool & saves energy
- Seamless deep-drawn 304 stainless-steel liner with integrally formed radius lip for drip-free pouring
- 304L stainless-steel jacket, outer shell, control console & four sturdy legs
- Actuator-assisted, one-piece domed stainless cover – effortless opening & closing
- 2" 304 SS compression draw-off valve with perforated ¼" disc strainer included
- Comprehensive protection system: thermostat 150-260 °F, pressure relief & air eliminator valves, pressure gauge, sealed water fill, automatic low-water cut-off with indicator light
- Field-replaceable heating elements maximize uptime and simplify service
- Adjustable bullet feet for easy leveling on uneven floors
- NSF, UL & ASME compliant – proudly engineered & built in Waynesboro, GA
Technical Specifications
| Model | HEC-60 (High-Output) |
|---|---|
| Capacity | 60 gal | 227 L |
| Heating Power | 36 kW electric, self-contained |
| Voltage Options | 208, 240, 380, 415, 440 or 480 VAC, single or three-phase |
| Typical Amp Draw (3-Phase) | 208 V : 99.9 A | 240 V : 86.6 A | 380 V : 54.7 A | 415 V : 50.1 A | 440 V : 47.2 A | 480 V : 43.3 A |
| Temperature Range | 150 °F – 260 °F (65.5 °C – 127 °C) |
| Jacket Coverage | 2/3 of kettle body |
| Draw-off Valve | 2" 304 SS compression type |
| Cover | Actuator-assisted, one-piece domed stainless-steel |
| Exterior Finish | Satin-finish 304 stainless |
| Overall Dimensions | Diameter 44.0" (C) | Rim Height 66.1" (J2) | Height w/ Cover Open 83.0" (J1) |
| Warranty | 12 months from installation (parts & labor) |
Ideal Applications
- Commercial kitchens & commissaries
- Hospitals, schools & correctional facilities
- Catering operations & central production hubs
- High-volume soup, sauce, gravy, chili or pasta production
Need a different size, faucet assembly or agitator? Contact us for the full range of Legion accessories and options.
