Legion  |  SKU: HEC-40MV

Legion HEC-40MV Steam Kettles


This product is discontinued and no longer available for purchase.

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

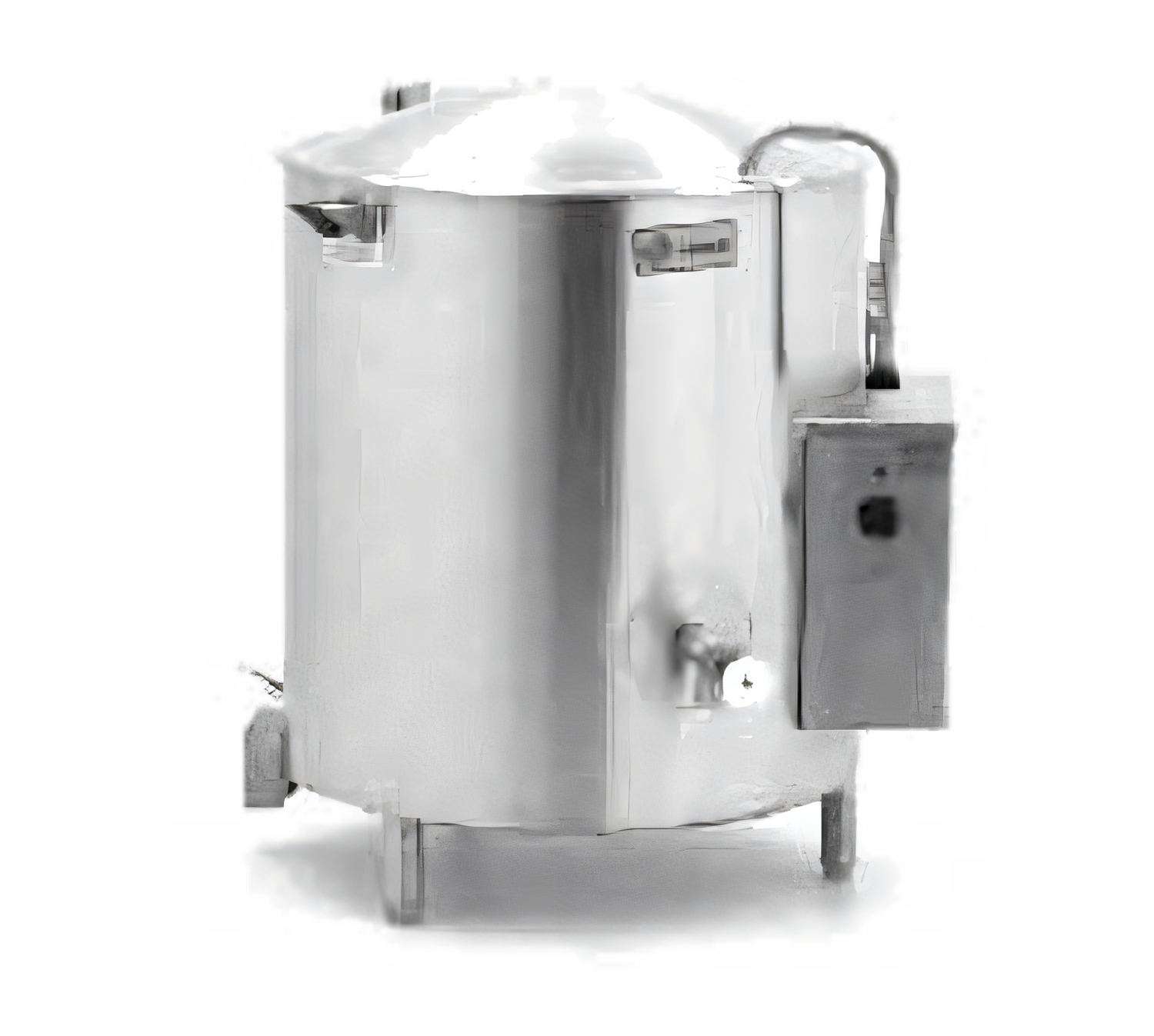

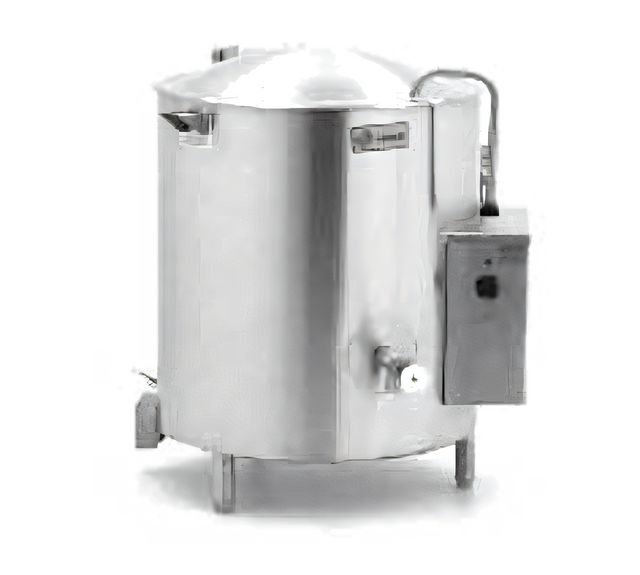

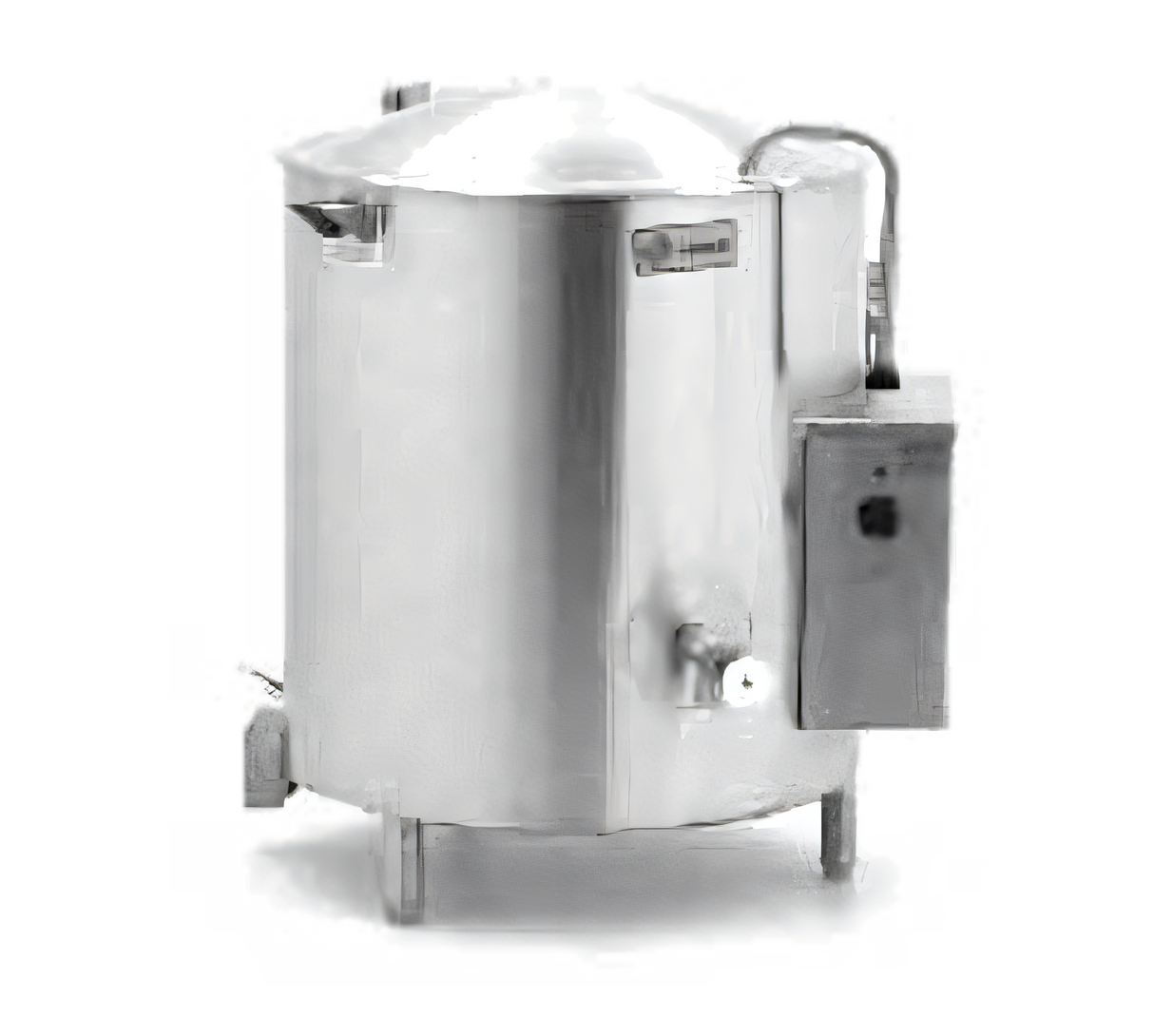

Legion 40-Gallon High-Output Electric Stationary Kettle with Mixer

Model HEC-40-MV | 24 kW Self-Contained, 2/3-Jacketed, Made in USA

Built for high-volume kitchens that refuse to compromise on speed, consistency or safety, the Legion HEC-40-MV combines a 40-gallon Insulated-for-Safety™ kettle with a powerful twin-shaft agitator. From hearty soups to delicate sauces, every batch cooks, mixes and serves with unmatched efficiency.

Key Advantages

  • Rapid Heat-Up – 24 kW electric elements heat the 2/3 jacket from 150 °F – 260 °F with lightning-fast recovery.
  • Seamless 304 Stainless Cooking Surface – deep-drawn liner with integral radius lip wipes clean and resists pitting.
  • Twin-Shaft Agitation – anchor-style main agitator plus counter-rotating beater keep even dense foods moving.
  • Nylon Scraper Blades – removable blades continuously sweep the sidewall & base to prevent scorching.
  • Full-Body Insulation – locks heat in, keeps exterior cool to the touch and lowers energy costs.
  • 2" Compression Draw-Off Valve – heavy-duty, all-stainless valve delivers smooth, drip-free portioning.
  • Kettle Protection System – thermostat control, low-water cutoff, pressure relief valve & gauge safeguard the vessel.
  • Field-Replaceable Elements – minimizes downtime and service costs.
  • NSF, UL & ASME Compliant – engineered and manufactured in Waynesboro, GA.

Technical Specifications

Capacity 40 gal | 151 L
Heat Input 24 kW electric (self-contained water bath)
Jacket Coverage 2/3 of kettle body
Operating Temperature 150 °F – 260 °F (65 °C – 127 °C) thermostat
Agitation Twin-shaft, 2-speed (23 & 46 RPM main / 60 & 120 RPM secondary)
Agitator Motor Low speed ¾ HP  | High speed 2 HP
Voltage (factory wired) 208, 240, 380, 415, 440 or 480 V  | 1- or 3-phase
Amps @ 240 V / 3-ph 57.7 A
Construction 304L stainless jacket, kettle, legs & seam-welded control console
Cover One-piece, domed, actuator-assisted (stainless)
Dimensions (WxDxH) 25.5" × 22.3" × 75.0" (see spec sheet for full chart)
Net Weight Approx. 510 lb / 231 kg

What’s Included

  • Perforated ¼" disc strainer
  • Adjustable bullet feet
  • Actuator-assisted kettle cover
  • Removable agitator & beater for quick cleaning

Popular Options & Accessories

  • Single or dual fill faucets with 12" or 18" swing nozzles
  • 48" flexible spray hose (vinyl or stainless)
  • Automatic water-fill meter
  • Tri-basket or nylon bag cooking inserts
  • Electric timer with buzzer
  • Lockable control or kettle covers for high-security sites

Contact your Legion representative for configuration assistance or additional customizations.

Installation & Electrical Notice: This kettle must be installed by a licensed professional in accordance with local codes. A dedicated, properly sized electrical supply and floor drain are required.

Warranty

Backed by Legion’s 12-month parts & labor warranty with optional extended coverage up to three years.

Features & Specs

Manufacturer

Legion

Shipping Weight

1045.0lbs

Capacity

40 gal

Base

tri-leg

Type

stationary

Kettle Liner

stainless steel

Jacket

2/3 jacket

Specifications

Stationary Kettle, Electric, with mixer, high output self-contained, 40-gallon, 304 stainless steel liner, thermostat temperature control, 2" compression draw-off valve, 2/3 jacket, full body insulation, stainless steel kettle, legs & control console, 24.0 kW
