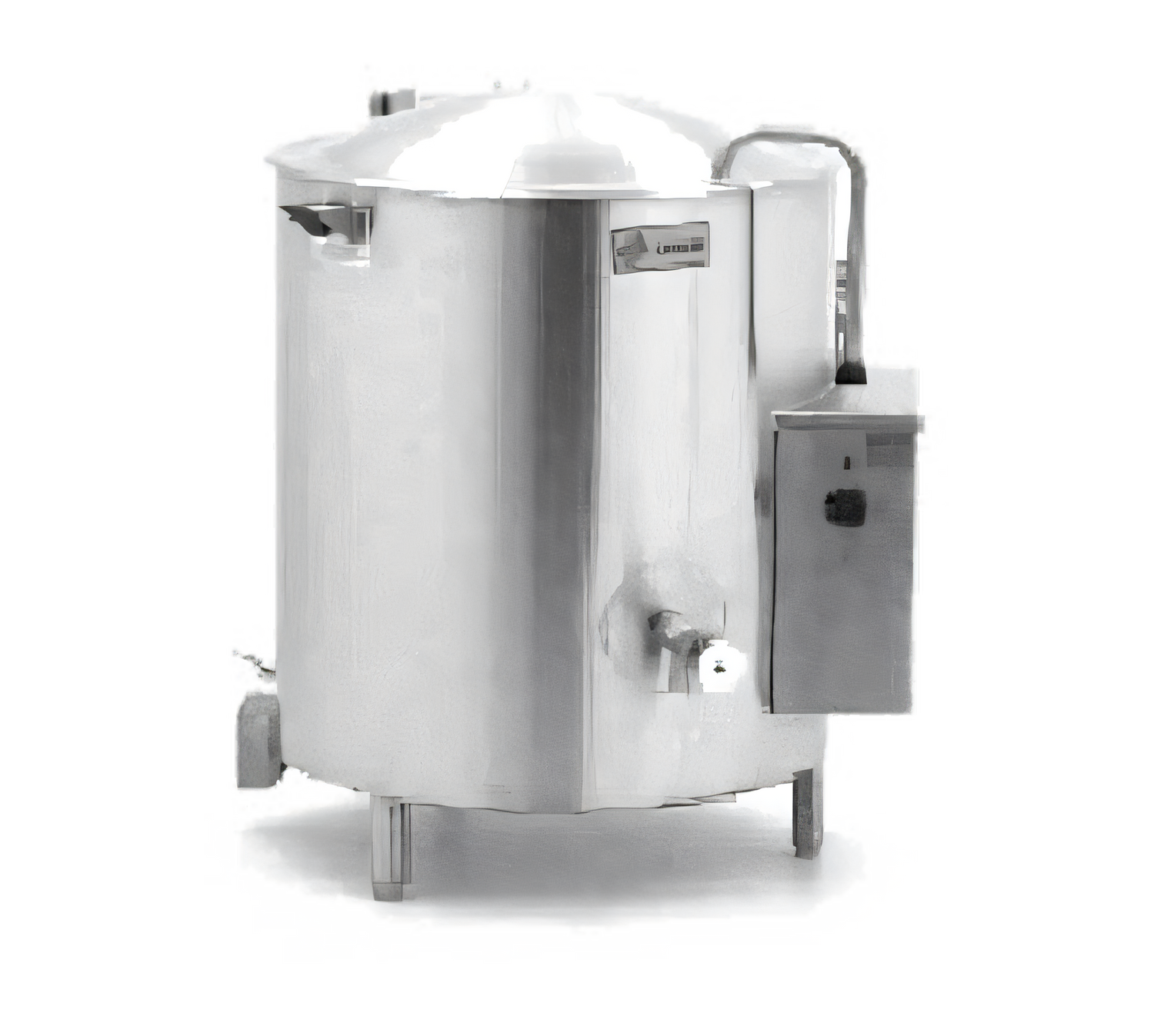

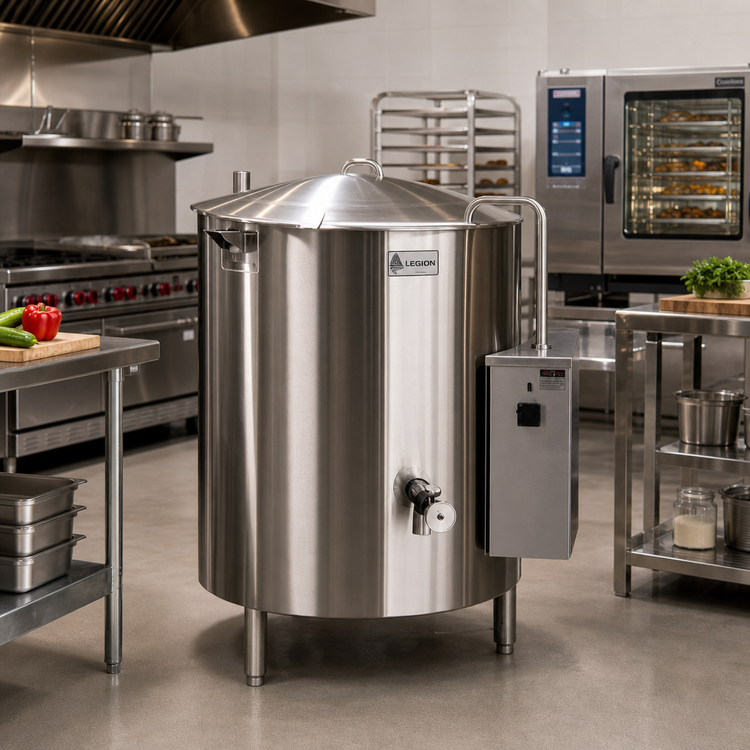

Legion HEC-40 | 40-Gallon High-Output Electric Stationary Kettle

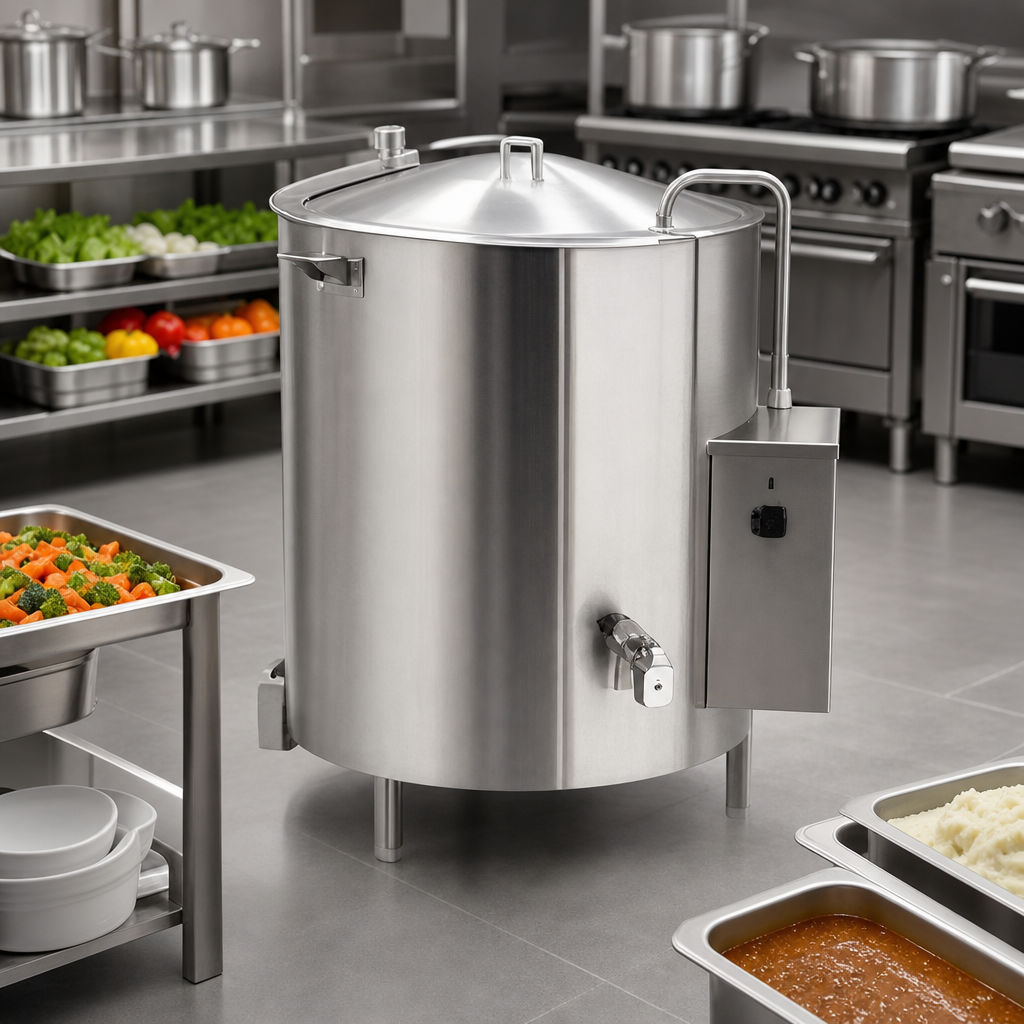

When production volumes climb and consistency is non-negotiable, the Legion HEC-40 answers the call. This 40-gallon (151 L) self-contained electric kettle delivers rapid heat-up, rock-solid temperature control, and a rugged all-stainless build that’s engineered for decades of dependable service.

Why Kitchens Choose the HEC-40

• 24 kW high-output elements bring large batches to a boil fast and recover instantly between loads.
• Seamless deep-drawn 304 stainless liner with an integrally formed radius lip wipes clean in seconds.

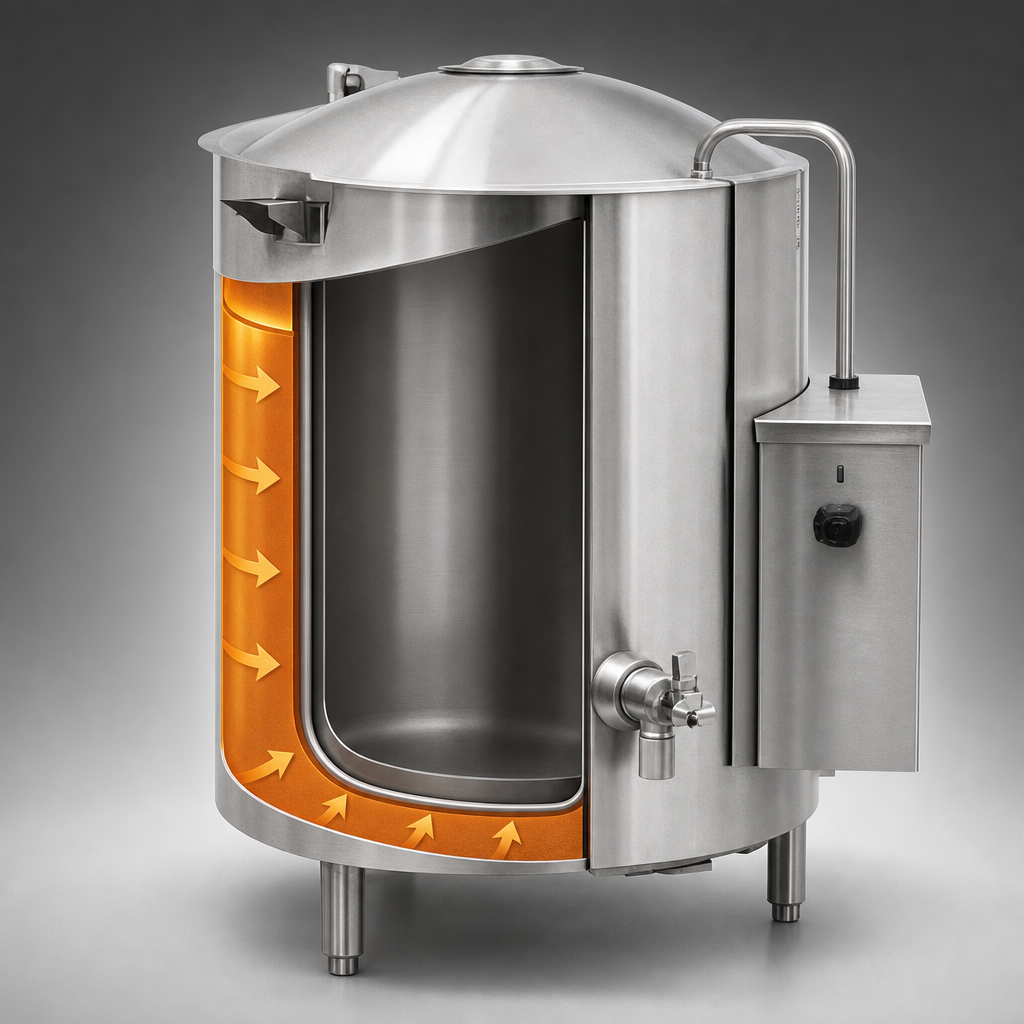

• 2/3 jacketed design surrounds product with even, gentle heat—no scorching or hot spots.
• Thermostat range 150 °F – 260 °F (65 °C – 127 °C) covers delicate custards to rolling boils.
• 2" compression draw-off valve (304 SS) with ¼" perforated disc strainer for smooth, clog-free draining.
• Full-body insulation keeps exterior surfaces cool and saves energy.
• Made in the USA and built to meet or exceed ASME, NSF, UL & ETL standards.

Safety & Protection Systems

• Pressure relief valve, air eliminator vent, and jacket pressure gauge.
• Automatic low-water cut-off with indicator light prevents dry-firing.
• Field-replaceable heating elements for quick, inexpensive service.
• One-piece domed cover with actuator assist minimizes operator steam exposure.

Built for the Long Haul

• 304L stainless jacket, outer casing, legs, and control console—no coatings to chip.
• Seam-welded construction resists leaks and simplifies sanitation.
• Adjustable bullet feet level the kettle on uneven floors.

Technical Specifications

Popular Accessories

• Single or dual fill faucets with 12" / 18" swing nozzles
• 48" flexible spray hose assembly (vinyl or stainless)
• Automatic water-fill meter
• 2-speed mixer/agitator kit
• Draw-off drain hose, measuring strip, nylon bag inserts & more

*Electrical installation must conform to local codes. **Refer to factory drawing for complete dimensional data.
