Legion  |  SKU: HEC-30MV

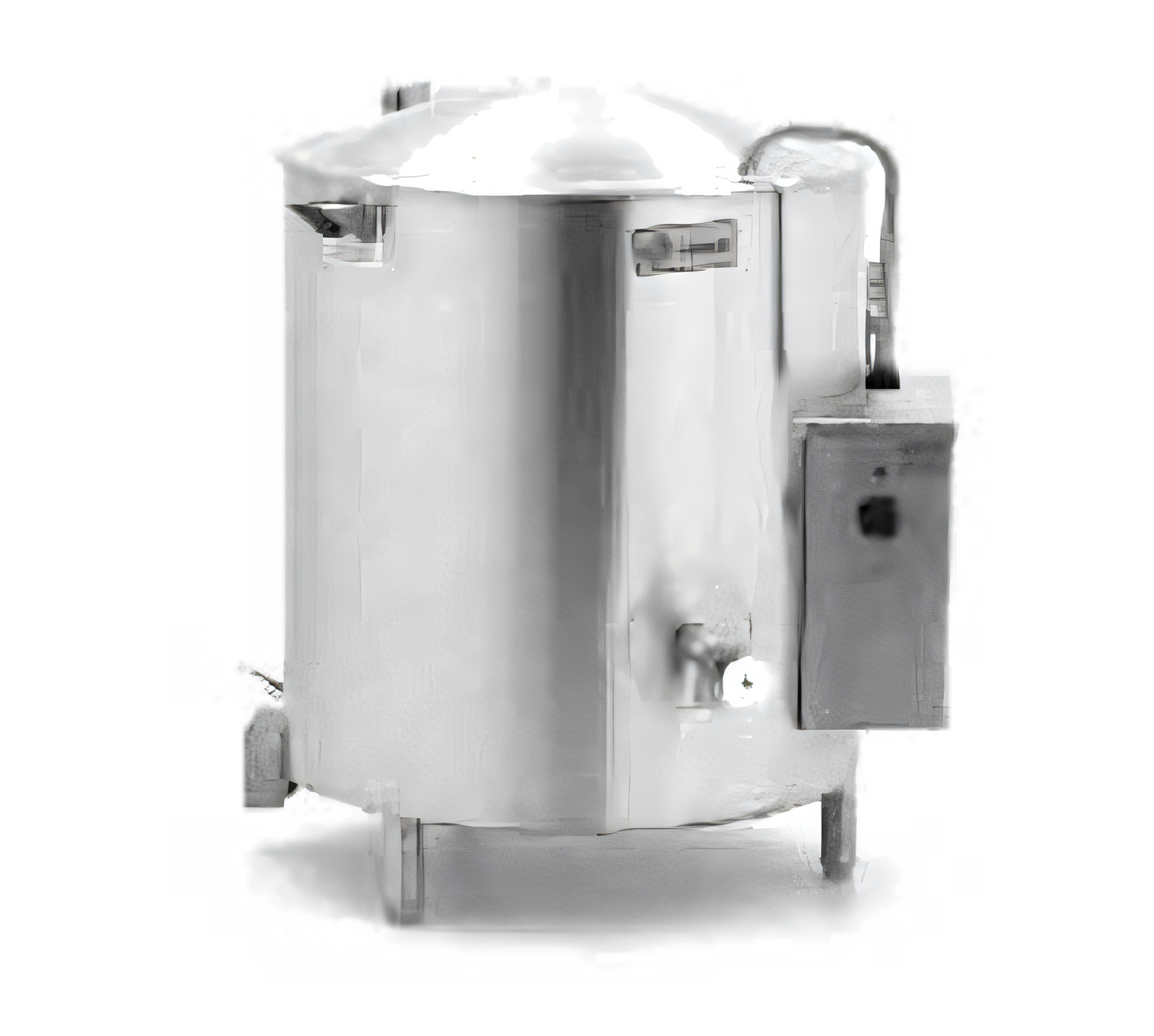

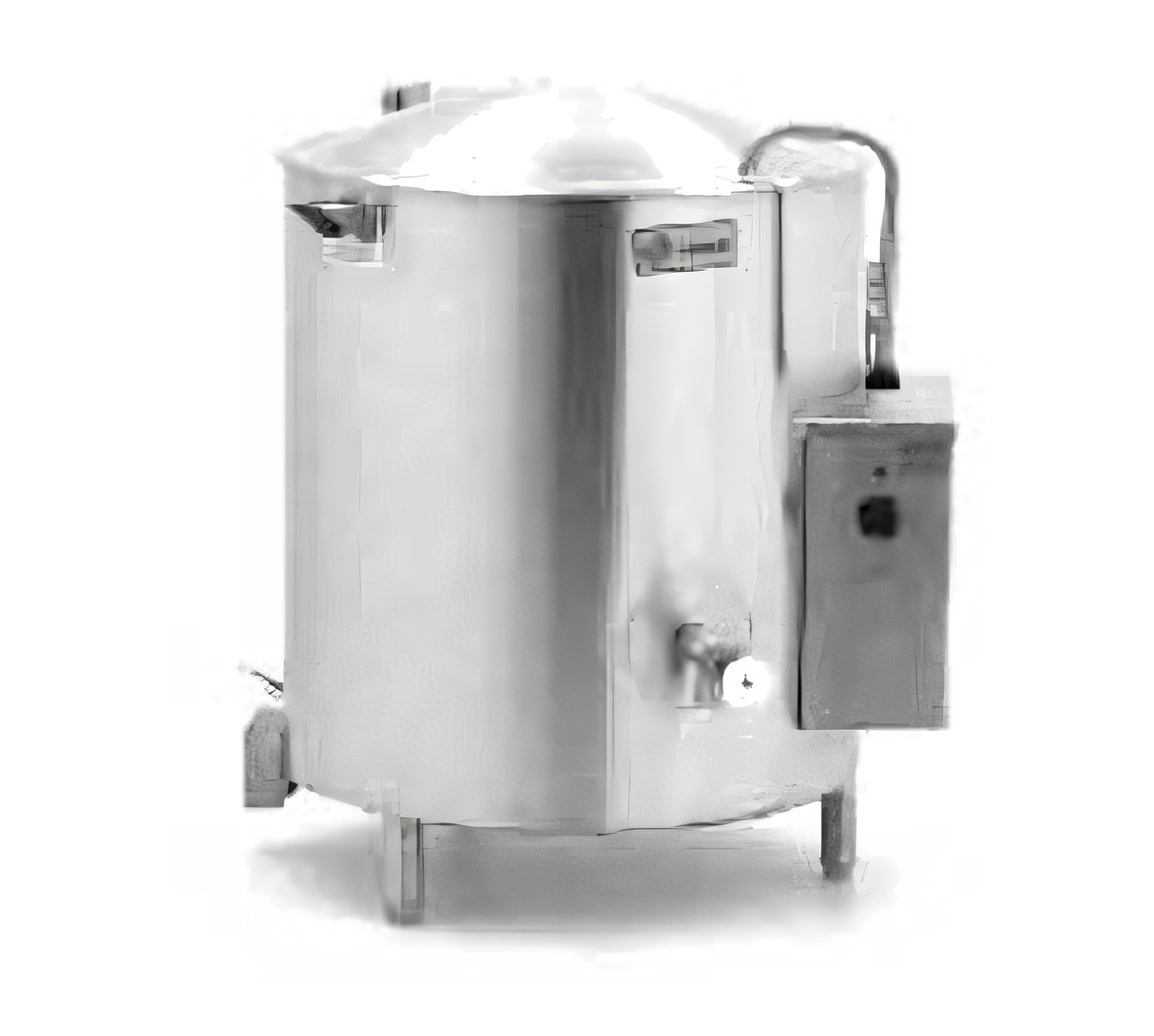

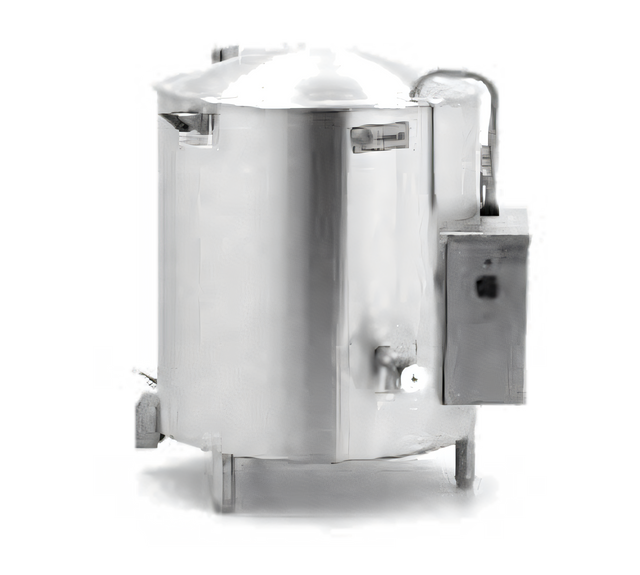

Legion HEC-30MV Steam Kettles

This product is discontinued and no longer available for purchase.

Documents
Cutsheet Owner's manual Mv mixer spec sheet Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

30-Gallon High-Output Electric Kettle with Mixer – 24 kW

Legion Model HEC-30MV • Stationary • Self-Contained • Made in USA

Built for demanding production kitchens, the HEC-30MV pairs Legion’s legendary 2⁄3-jacketed kettle with a powerful twin-shaft agitator. A seamless 304 stainless liner, full-body insulation and 24 kW of high-output electric heat give you rapid heat-up, rock-solid temperature control and day-in, day-out reliability.

Why You’ll Love It

  • 30 gal (114 L) seamless, deep-drawn 304 stainless kettle with integrally formed radius lip for drip-free pouring.
  • 24 kW high-output electric elements (field replaceable) slash batch times and recover fast between loads.
  • Self-contained 2⁄3 jacket—no remote boiler required. Just connect electricity and water.
  • Foamed-in-place full-body insulation maximises efficiency and keeps exterior surfaces cool to the touch.
  • Precision mechanical thermostat (150 °F – 260 °F) with low-water cutoff, pressure gauge, relief & air-eliminator valves for built-in safety.
  • High-capacity 2" compression draw-off valve with 304 SS tube and welds for fast, clog-free draining.
  • 304 SS seam-welded control console and four adjustable bullet feet for rock-solid floor mounting.

Integrated Twin-Shaft Mixer

  • Anchor-style main agitator follows kettle contour; removable nylon blades continuously scrape the sidewall and bottom.
  • Counter-rotating 304 SS secondary beater breaks up lumps for even product consistency.
  • Two-speed gear motor lets you match agitation to delicate sauces or heavy chowders.
  • Actuator-assisted lift raises the bridge, scraper and beater clear for loading, cleaning or manual operation.
  • Bayonet-mount shafts come off in seconds—no tools—simplifying sanitation.
  • Built-in safety interlock prevents high-speed starts while tools are lifted.

What’s in the Crate

  • One-piece domed cover with actuator assist
  • Perforated ¼" disc strainer
  • Jacket water fill connection & sight glass
  • Installation & operation manual

Technical Specifications

Capacity 30 gal / 114 L (working volume)
Heating Input 24 kW electric, self-contained
Voltage Options 208 V, 240 V, 380 V, 415 V, 440 V, 480 V  • 1 Ø or 3 Ø
Thermostat Range 150 °F – 260 °F (66 °C – 127 °C)
Jacket 2⁄3 jacketed, 304L stainless, ASME-coded
Draw-Off Valve 2" compression type, 304 SS, sanitary design
Overall Dimensions (WxDxH) 23.0" × 20.3" × 70.4" (kettle & mixer raised)
See drawing for detailed footprint.
Net Weight Approx. 485 lb / 220 kg
Amp Draw (High-Output 24 kW)
Voltage 1-Phase 3-Phase
208 V 115.4 A 66.6 A
240 V 100.0 A 57.7 A
380 V 63.2 A 36.5 A
415 V 57.8 A 33.4 A
440 V 54.5 A 31.5 A
480 V 50.0 A 28.9 A

Popular Factory Options

  • Single or dual faucets with 12" or 18" swing nozzles
  • 48" stainless spray hose & bracket
  • Automatic water-fill meter
  • Tri-basket insert or nylon bag insert with spreader ring
  • Lockable lid & control cover for correctional facilities
Legion kettles are manufactured under strict ASME, NSF and UL guidelines and carry a 12-month parts & labour warranty from date of installation (15 months from ship).

Features & Specs

Manufacturer

Legion

Shipping Weight

935.0lbs

Kettle Liner

stainless steel

Base

tri-leg

Capacity

30 gal

Type

stationary

Jacket

2/3 jacket

Specifications

Stationary Kettle, Electric, with mixer, high output self-contained, 30-gallon, 304 stainless steel liner, thermostat temperature control, 2" compression draw-off valve, 2/3 jacket, full body insulation, stainless steel kettle, legs & control console, 24.0 kW
