Legion HEC-30 Steam Kettles
Description

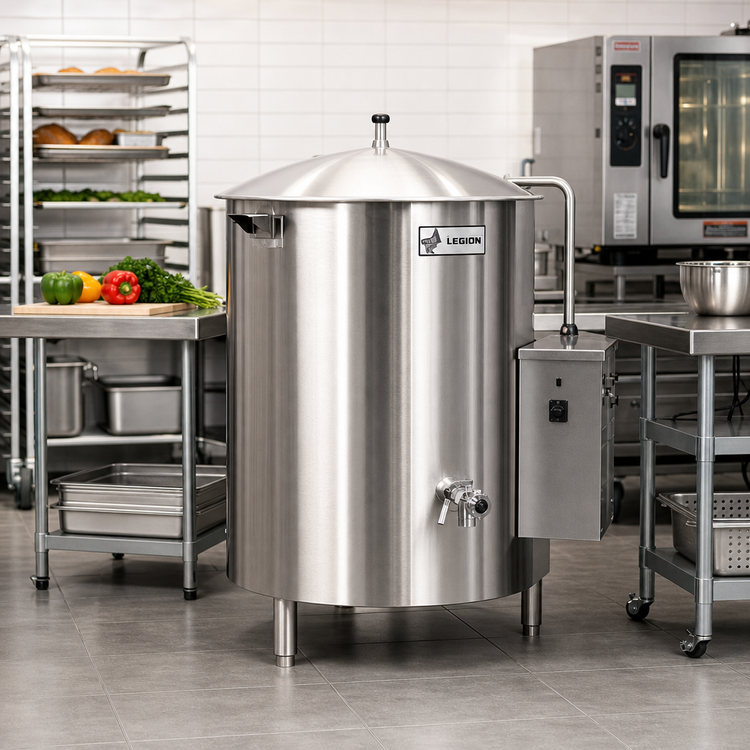

Legion HEC-30 30-Gallon Electric Self-Contained Kettle — 24 kW
High–Output • 2⁄3-Jacket • Floor-Mounted • Made in USAEngineered for demanding commercial kitchens, the Legion HEC-30 combines a fast-acting 24 kW electric heating package with the company’s signature Insulated for Safety™ jacket. The result is a 30-gallon workhorse that heats evenly, pours cleanly and stays cool to the touch—all while eliminating the need for an external boiler.
Key Performance Features
- 30 gal / 114 L working capacity—ideal for soups, sauces, pasta, sous-vide batches & more

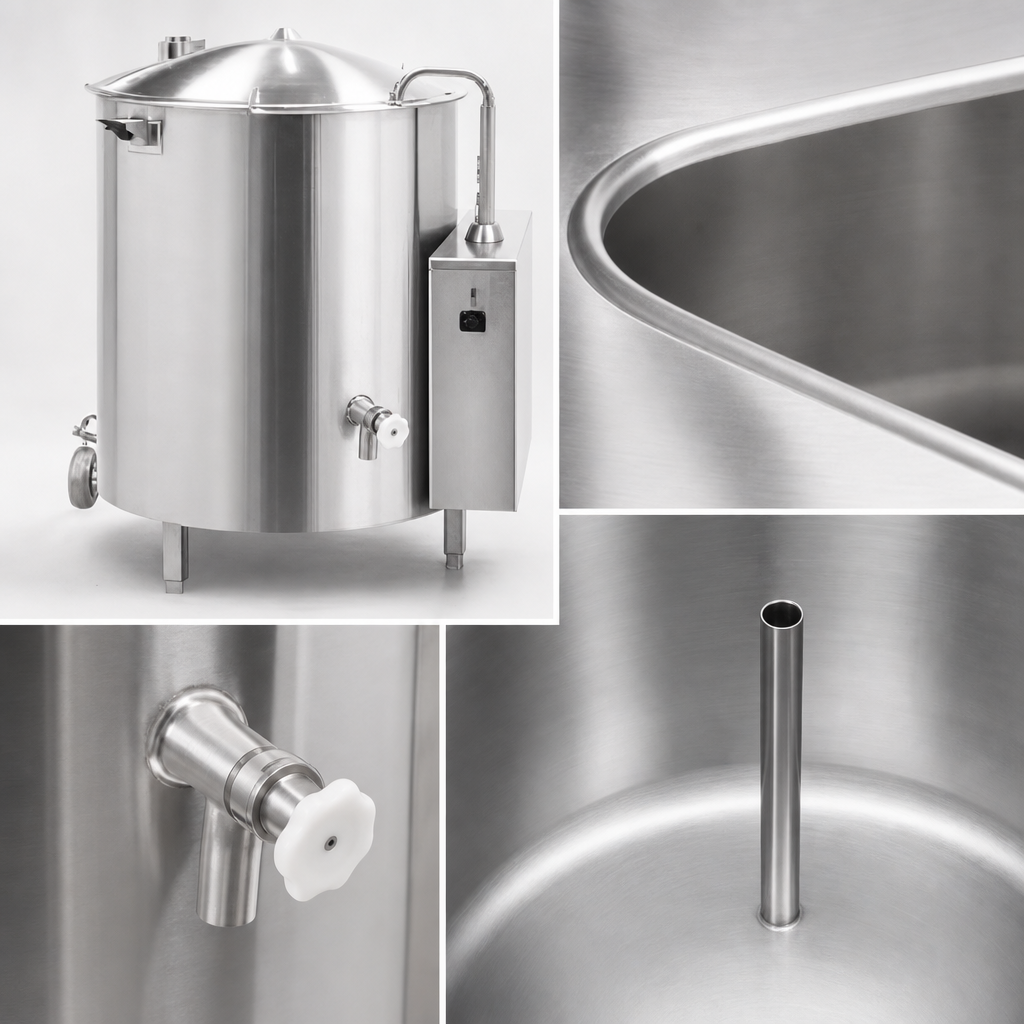

- Seamless deep-drawn 304 stainless steel kettle liner with sanitary radius lip
- High-output 24 kW elements speed batch times and are field-replaceable
- 2⁄3 jacket in 304L stainless steel delivers uniform heat with no hot spots
- Full-body mineral insulation keeps exterior surfaces cool and saves energy
- Thermostat-controlled 150 °F – 260 °F (66 °C – 127 °C) for precise cooking & holding
- Built-in safety system: pressure relief valve, air eliminator, pressure gauge & low-water cut-off with indicator light

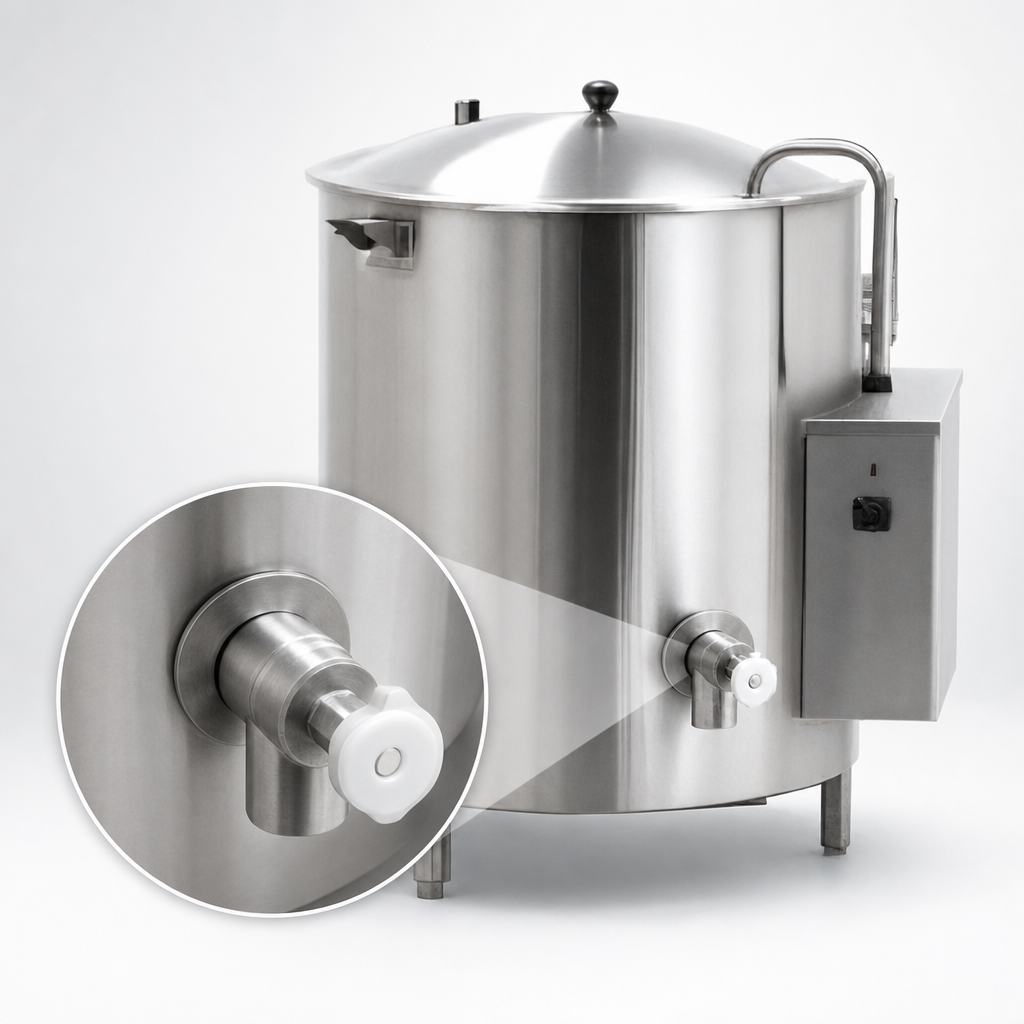

- 2″ compression-type stainless steel draw-off valve for fast, drip-free portioning
- Rugged four-leg base with adjustable bullet feet for rock-solid installation
- Seam-welded stainless control console protects components from splash & steam
- NSF, ASME & UL compliant; proudly manufactured in Waynesboro, GA
Specifications
| Model | HEC-30 (High Output) |
|---|---|
| Capacity | 30 gal (114 L) |
| Heat Input | 24 kW electric, self-contained (no external steam boiler) |
| Voltage Options | 208, 240, 380, 415, 440 or 480 V • 1- or 3-phase, field-wired |
| Thermostat Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Jacket | 2⁄3 coverage, 304L stainless, water bath |
| Draw-Off Valve | 2″ compression type, 304 stainless |
| Construction | 304 stainless liner, jacket, outer casing & control console |
| Insulation | Full-body mineral fiber |
| Cover | Lift-off stainless cover (optional actuator-assisted dome) |
| Overall Dimensions* | Dia. 37.6″ • H (rim) 55.8″ • H (console top) 70.4″ |
| Shipping Weight* | Approx. 590 lb (268 kg) |
*Dimensions & weight are nominal. Consult shop drawings for rough-in.
Electrical Load (24 kW)
| Voltage | 1-Phase | 3-Phase |
|---|---|---|
| 208 V | 115.4 A | 66.6 A |
| 240 V | 100.0 A | 57.7 A |
| 480 V | 50.0 A | 28.9 A |
Other voltages available (380 V, 415 V, 440 V). Always verify amperage with a qualified electrician before installation.
Popular Options & Accessories
- Single or dual pantry faucets (12″ / 18″ swing spouts)
- 48″ flexible spray hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Two-speed mixer/agitator kit
- Draw-off strainers (solid or perforated), drain hose & measuring strip
- Lockable covers, control-console guards & security fasteners
- Adjustable flanged feet for bolt-down installations
Warranty
Legion backs every kettle with a 12-month parts & labor warranty from the date of installation (15 months from ship date). Extended coverage is available—ask your sales representative for details.
