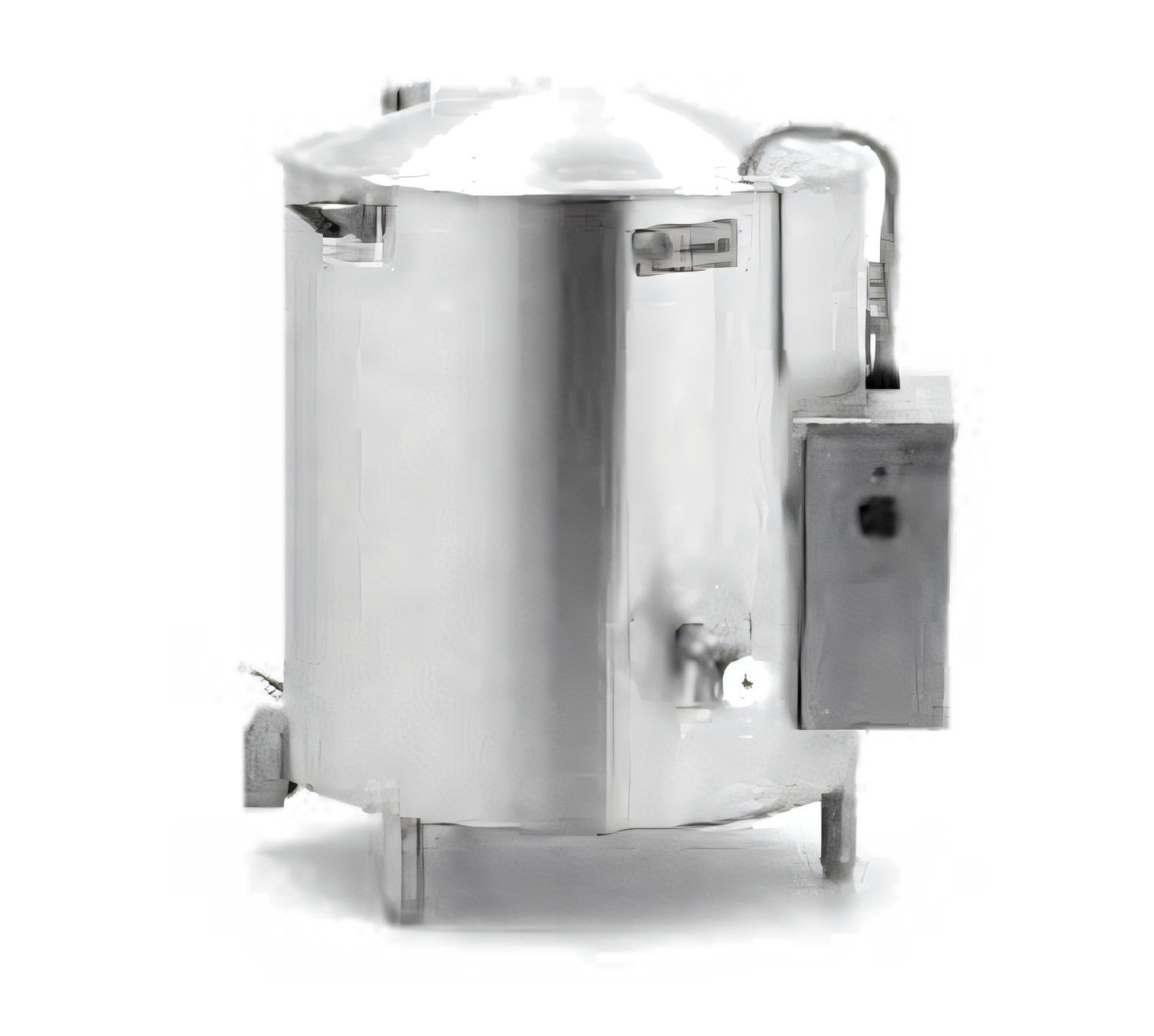

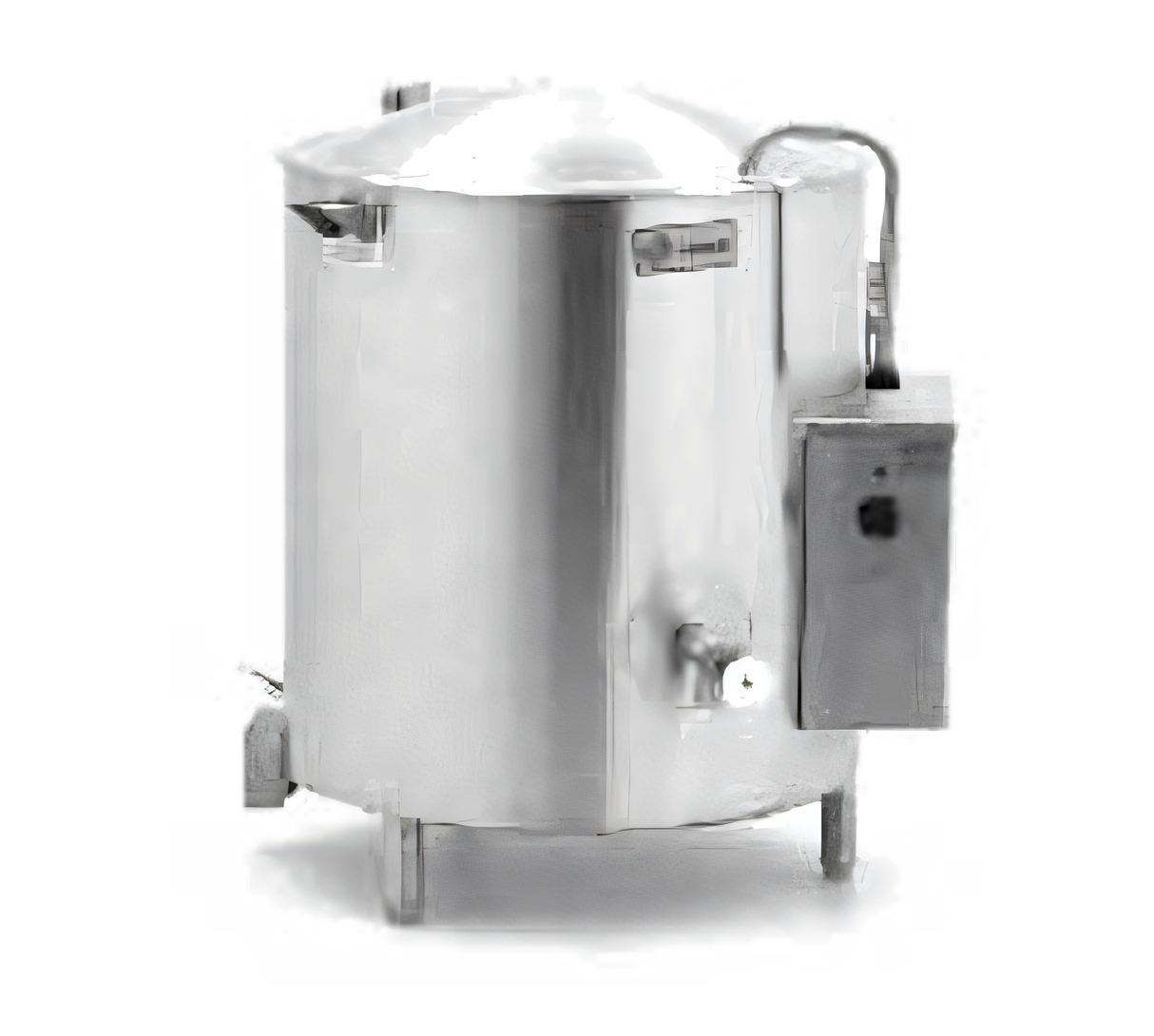

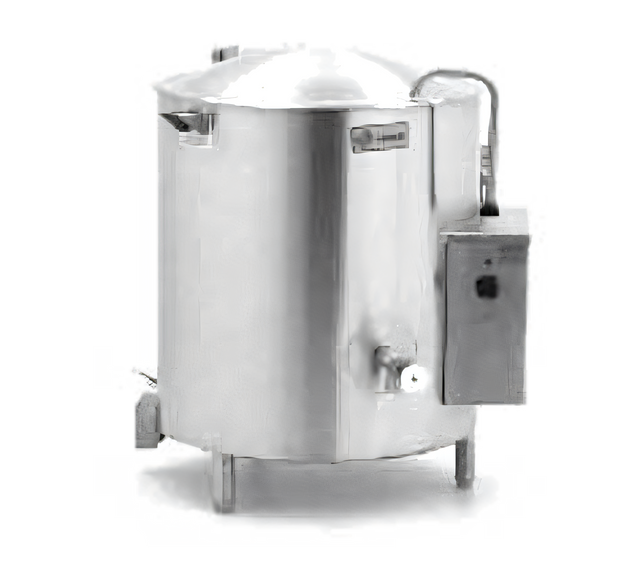

Legion HEC-20MV Steam Kettles
Description
Legion 20-Gallon High-Output Electric Kettle with 2-Speed Mixer
Model HEC-20 | 12 kW | 2/3 Jacketed | Made in USABuilt for demanding production kitchens, the HEC-20 combines steam-kettle performance, rapid electric heat and an integrated twin-shaft mixer—delivering consistent, scorch-free results in a compact 20-gallon footprint.
Top Reasons Chefs Choose It
- 12 kW high-output elements bring product to temperature fast.
- Seamless 304 SS liner & 2/3 steam jacket ensure even heat distribution.
- Full-body insulation saves energy and keeps the exterior cool to the touch.
- Thermostat control (150 – 260 °F), pressure relief and low-water cut-off safeguard every batch.
- Twin-shaft mixer continuously scrapes and agitates for uniform texture.
- 2" 304 SS compression draw-off valve speeds portioning and clean-out.
- Field-replaceable heating elements minimize downtime and service costs.
- All-stainless construction—liner, jacket, outer casing, legs & console—for unmatched hygiene and durability.
Integrated 2-Speed Mixer Highlights
- Enclosed aluminum mixer bridge with totally-enclosed gear motor.
- Main anchor agitator (304 SS) contoured to kettle shape; removable nylon blades scrape the entire surface.
- Counter-rotating secondary beater keeps heavier ingredients in suspension.
- Speeds (20 gal): Low 23 RPM / 60 RPM (beater) · High 46 RPM / 120 RPM (beater).
- Actuator-assisted lift and positive rim-lock for safe, effortless loading and cleaning.
- Bayonet-mount components detach tool-free for sanitizing.
- Safety interlock prevents high-speed start when mixer is raised.
Technical Specifications
| Capacity | 20 gal (76 L) |
|---|---|
| Heat Input | 12 kW electric, self-contained |
| Jacket Coverage | 2/3 jacket, water-sealed |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Construction | 304 SS deep-drawn liner & 304L jacket; seam-welded outer shell & control console |
| Insulation | Full-body fiberglass insulation |
| Draw-Off | 2" 304 SS compression valve with ¼" perforated disc strainer |
| Electrical (208 V, 1-phase) | 57.7 A |
| Electrical (240 V, 1-phase) | 50.0 A |
| Electrical (208 V, 3-phase) | 33.3 A |
| Electrical (240 V, 3-phase) | 28.9 A |
| Overall Dimensions* | 34.0" W × 32.4" D × 64.3" H |
*Dimensions include mixer bridge in raised position. Refer to spec sheet for detailed drawings.
Included with Your Kettle
- Domed one-piece stainless cover
- Twin-shaft agitator assembly with nylon scrapers
- Perforated disc strainer (¼")
- Four adjustable bullet feet
- Owner’s manual & 12-month parts-and-labor warranty
Popular Factory Options
- Single or dual fill faucets (12" or 18" swing nozzle)
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- Lockable lid or control cover for correctional facilities
- Tri-basket or nylon bag inserts for pasta, stock & infusions
- Draw-off drain hose & measuring strip
Legion Industries reserves the right to improve products without prior notice. Photos may show optional accessories.
