Legion HEC-20 Steam Kettles
Description

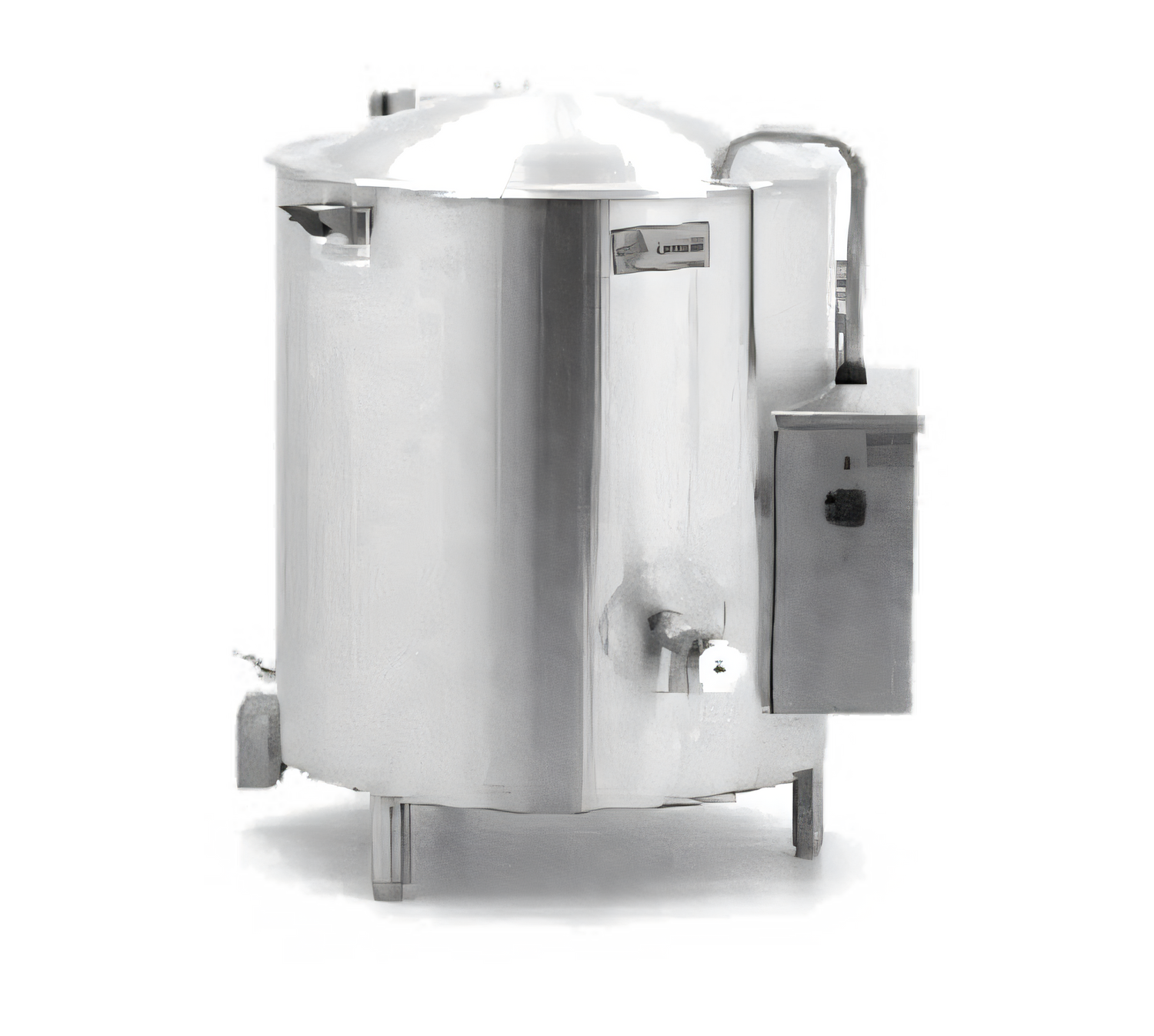

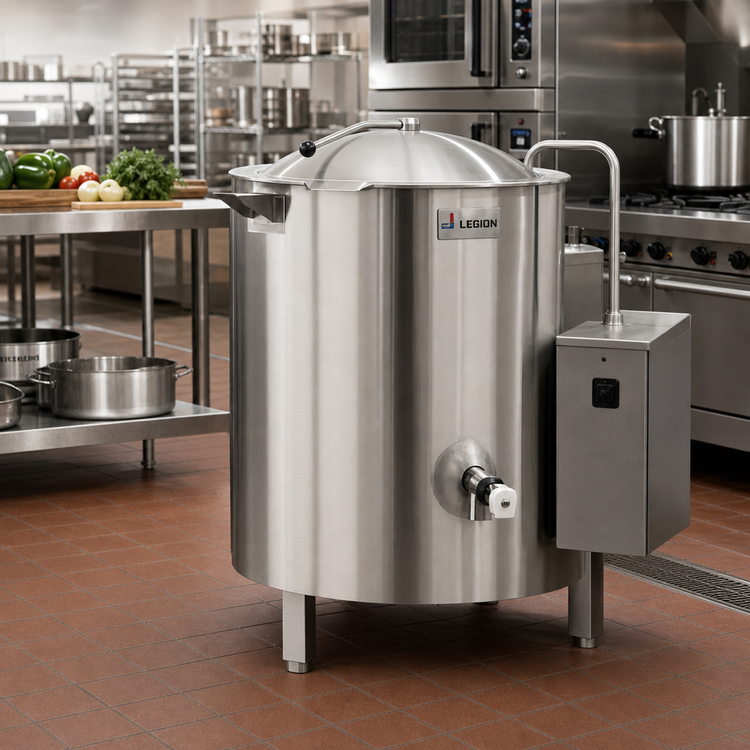

Legion HEC-20 Insulated Self-Contained Electric Kettle
20 gal | High-Output 12 kW | 2/3-Jacketed, Floor-MountedBuilt for demanding commercial kitchens, the Legion HEC-20 delivers fast, even heating, rock-solid durability and operator-friendly safety features—all in a compact 20-gallon footprint.
Key Features

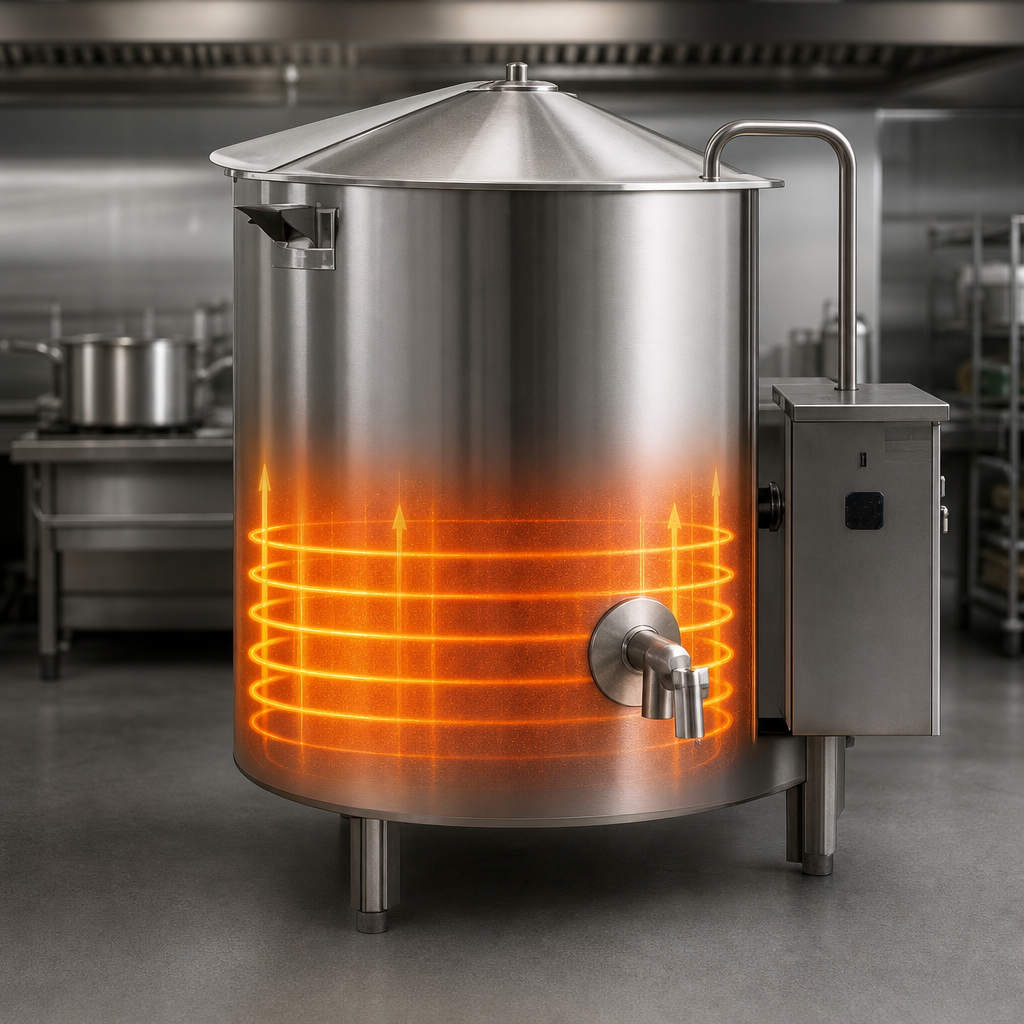

- High-output 12 kW electric elements—ideal for rapid batch turnover.
- Seamless deep-drawn 304 stainless steel kettle liner with integrally formed radius lip for effortless cleaning and ladling.
- Full 2/3 steam jacket (304L stainless) surrounds product zone for uniform cooking and no hot spots.
- Full-body insulation (“Insulated for Safety™”) keeps exterior surfaces cooler and reduces energy loss.
- Thermostat temperature control, 150 °F – 260 °F, with low-water cut-off & indicator light for worry-free operation.
- 2″ compression draw-off valve and 304 stainless draw-off tube for quick, smooth portioning or draining.
- Stainless steel control console (seam welded) and four sturdy stainless legs with adjustable bullet feet.
- Factory-installed kettle protection system: pressure relief valve, air eliminator, pressure gauge and jacket-water fill.
- Field-replaceable heating elements minimize downtime and service costs.
- Made in the USA and built to meet or exceed ASME, NSF, UL and other applicable standards.
Technical Specifications
| Model | HEC-20 (High-Output, Self-Contained) |
|---|---|

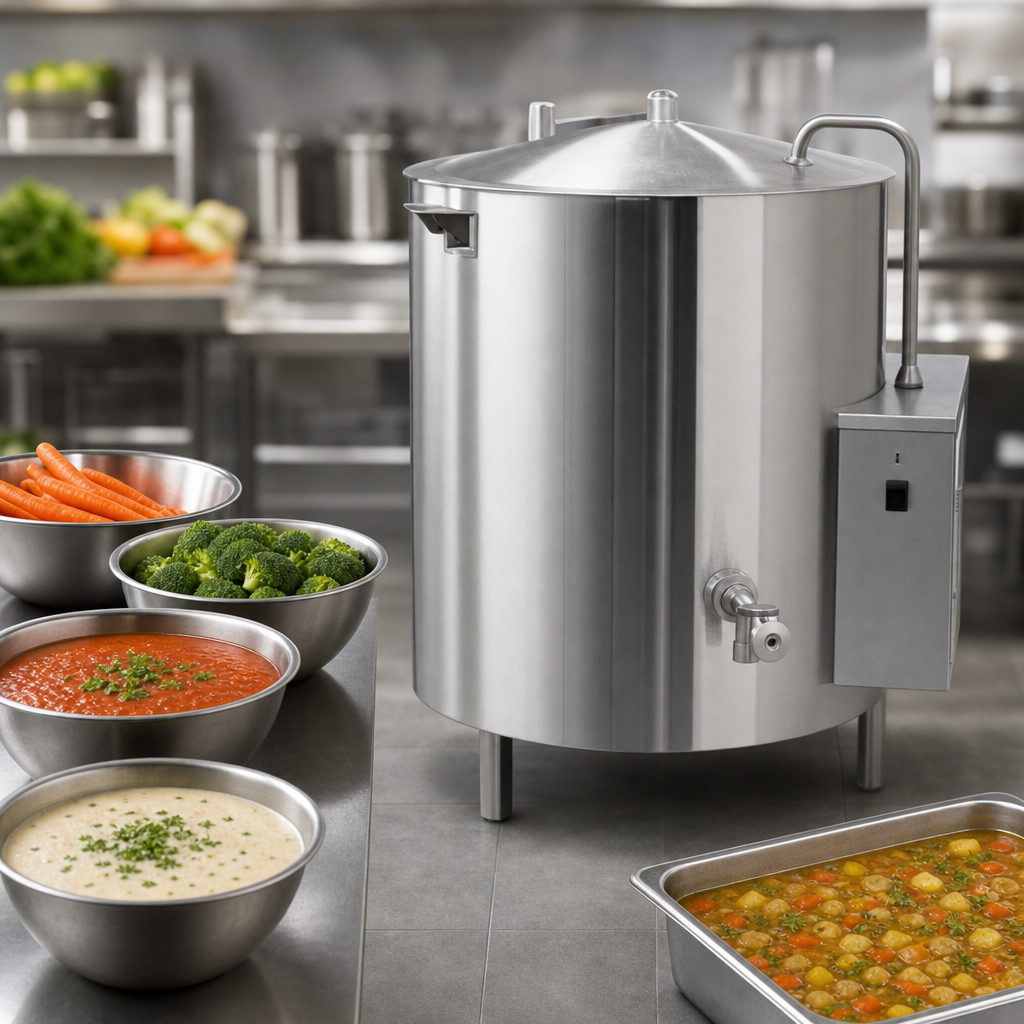

| Capacity | 20 gal | 76 L |
| Power Rating | 12 kW electric |
| Jacket Coverage | 2/3 of kettle body |
| Temperature Range | 150 °F – 260 °F (thermostat) |
| Draw-Off Valve | 2″ compression-type, 304 SS |
| Construction | 304 SS liner, jacket & outer casing; seam-welded control console |
| Insulation | Full-body fiberglass (exterior remains cooler) |
| Electrical (Single-Phase) | 208 V 57.7 A | 240 V 50.0 A | 380 V 31.6 A | 415 V 28.9 A | 440 V 27.3 A | 480 V 25.0 A |
| Electrical (Three-Phase) | 208 V 33.3 A | 240 V 28.9 A | 380 V 18.2 A | 415 V 16.7 A | 440 V 15.7 A | 480 V 14.4 A |
| Overall Dimensions (A × C × F) | 22.0″ × 32.4″ × 34.0″ (refer to spec drawing) |
| Shipping | Factory built, tested & crated in Waynesboro, GA, USA |
Popular Accessories & Options
- Single or dual deck-mounted faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray-rinsing hose (vinyl or stainless)
- Electric timer with audible buzzer
- 2-speed mixer/agitator assembly
- Draw-off drain hose, measuring strip or perforated/solid disc strainers
- Lift-off, 2-piece hinged or lockable covers
- Security fastener kits and lockable control covers for correctional facilities
Accessories are factory-supplied or field-installed. Contact your Legion representative for details.
Warranty
Legion backs the HEC-20 with a one-year parts & labor warranty (12 months from installation or 15 months from shipment, whichever occurs first). Extended warranty programs are available.
