Legion  |  Combi-Pan  |  SKU: CSG41-9

Legion CSG41-9 Combi-Pan Braising Pans & Tilt Skillets

$18,804.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

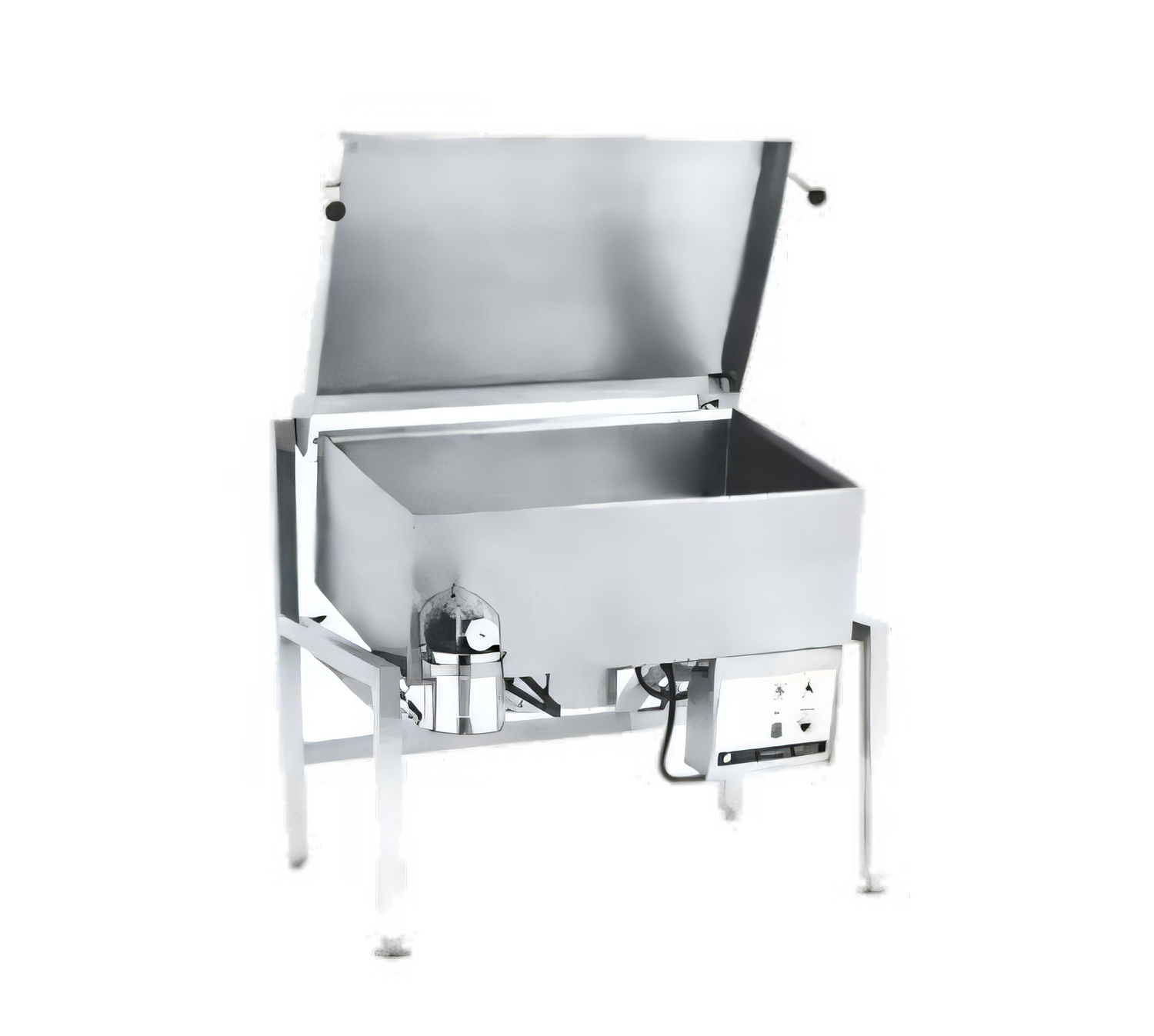

Legion Combi-Pan® Insulated Tilting Skillet – 40.1 gal (Model CSG41-9)

Gas-Fired • 132,000 BTU • Made in the USA

Built for high-volume foodservice operations, the Legion Combi-Pan® CSG41-9 replaces multiple pieces of equipment with one ultra-versatile, insulated tilting skillet. Sear, braise, griddle, steam or shallow-fry up to 40 gallons of product, then pour off safely with the smooth 10° tilt and 1 ½" draw-off valve.

Key Features

  • 40.1 gal (152 L) capacity with 1,029 in² cooking surface—handles 105 lb of frying oil or 5.4 ft³ of product.
  • Gas burner bank delivers 132,000 BTU/hr (149,000 BTU/hr LP) with reliable electronic ignition.
  • 10° forward tilt at a comfortable 31" working height for fast, controlled pour-off.
  • 1 ½" stainless compression draw-off valve with integrated food-pan holder.

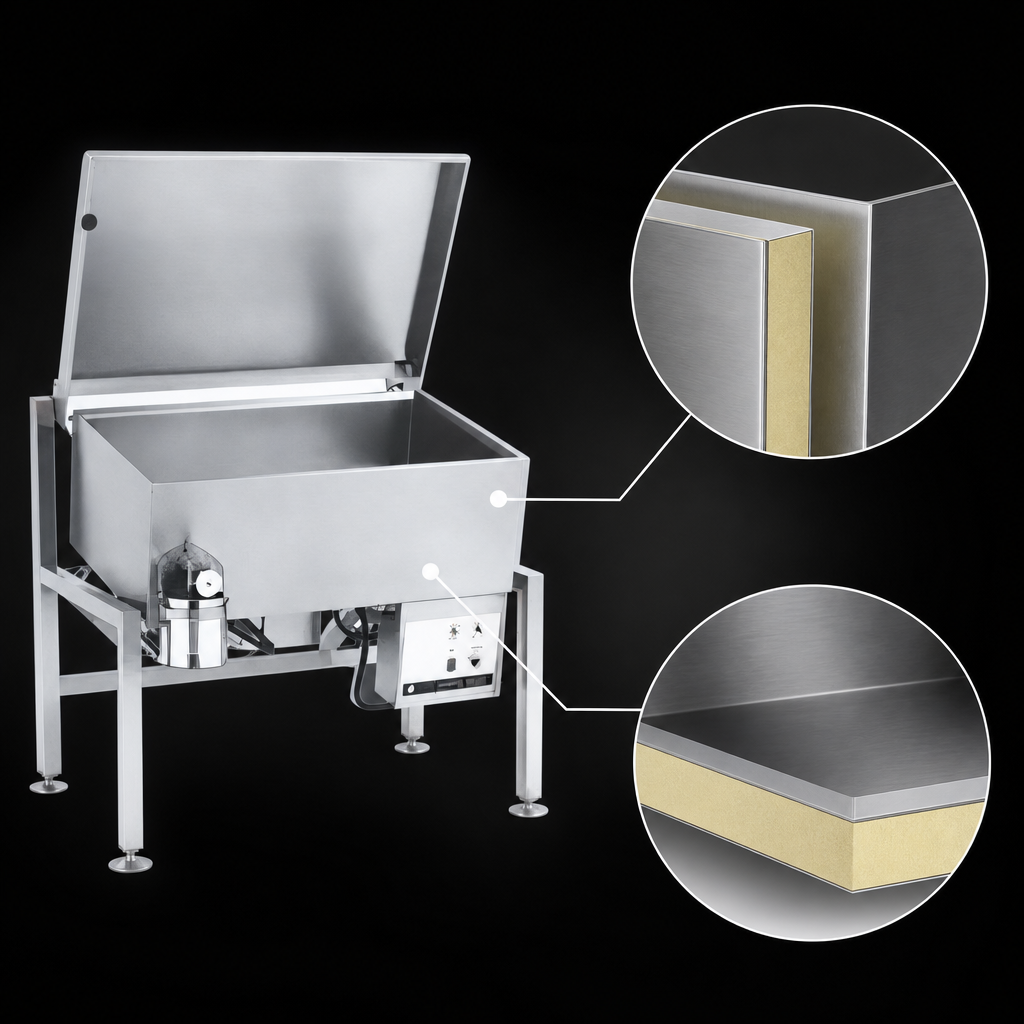

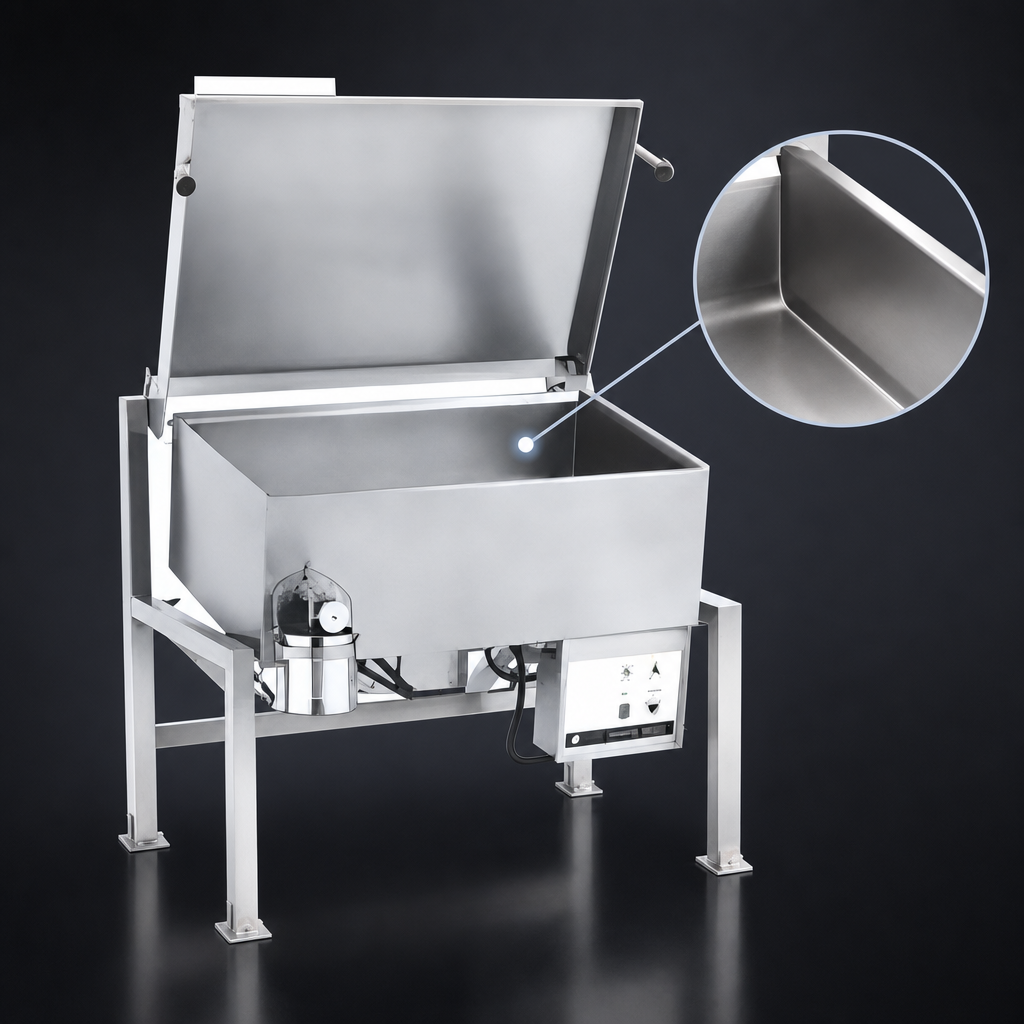

  • All-welded 304 stainless pan, lid, frame and component enclosure—Insulated for Safety™ to keep exterior surfaces cool.
  • Patented actuator-assisted counterbalanced lid with full-width condensate drip shield and rear steam vent.
  • Thermostat control 175 °F–400 °F plus high-limit safety cutoff.
  • Approved for use as a fryer; optional baskets, spray hose and automatic fill accessories available.
  • Adjustable flanged front feet and bullet rear feet for secure floor mounting.
  • Meets NSF, ASME, UL and CSA standards—proudly made in the USA.

Operator Benefits

  • One-pan versatility cuts equipment costs and frees up valuable line space.
  • Reduced labor—counterbalanced lid and 10° tilt make single-person operation easy and safe.
  • Energy smart insulation lowers exterior temperatures and standby losses.
  • Seam-welded interior, tapered rim and rear drip collector speed daily cleanup.

Specifications

Model CSG41-9
Capacity 40.1 gal / 152 L
Pan Depth 9 in (229 mm)
Cooking Surface 1,029 in² (6,638 cm²)
Batch Volume 5.4 ft³ (0.15 m³)
Gas Input 132,000 BTU/hr (Natural) • 149,000 BTU/hr (LP)
Gas Connection 3/4" IPS – inlet 5–7" w.c. NG / 12–14" w.c. LP
Electrical 120 V, 1-phase (controls & ignition)
Thermostat Range 175 °F – 400 °F (79 °C – 204 °C)
Overall Width 53 in (1,346 mm)
Overall Depth 40 in (1,016 mm)
Working Height 31 in (787 mm)
Draw-Off Valve 1 ½" stainless compression type
Lid Stainless, actuator-assisted counterbalance with drip shield
Construction All-welded 304 stainless steel pan, lid, frame & enclosure

Popular Accessories (sold separately)

  • Perforated or solid 12 × 20 food pans (2 ½", 4" or 6" deep)
  • Perforated cooking/steaming basket (11" × 20 ½" × 5")
  • Single or dual fill faucet with 48" flexible spray hose
  • Automatic water-fill meter
  • Draw-off strainers, hoses and #10 can holder
  • Casters and restraining-device kits
Looking for custom options like ball-type draw-off valves, alternate voltages or security fasteners? Contact our team—this skillet is built to order.

Features & Specs

Manufacturer

Legion

Brand_name

Combi-Pan

Shipping Weight

688.0lbs

Capacity

40 - 49 gal

Base

modular open

Tilt

power tilt

Specifications

Combi-Pan Tilting Skillet, Gas, 40.1-gallon, 10° tilting pan, adjustable thermostat, 1-1/2" draw-off valve, stainless steel lid with actuator-assisted counter balance, stainless steel pan and open frame, flanged front feet, bullet back feet, 132,000 BTU
